Commercial LED Area Lighting

What Are LED Area Lights

Commercial LED area lights are outdoor fixtures used to illuminate large exterior spaces such as parking lots, industrial yards, distribution centers, campuses, roadways, building perimeters, loading areas, sports facilities, and other open commercial properties. They are designed to provide high lumen output, controlled light distribution, and reliable performance from pole-mounted, wall-mounted, or structure-mounted locations.

Area lighting is a broad category. For many projects, the best fixture may be a shoebox light, flood light, high mast light, wall pack, post top light, solar area light, or stadium light depending on pole height, site layout, mounting location, beam pattern, voltage, controls, and required light levels. The goal is not just to choose the highest wattage, but to match the fixture type and optic pattern to the area being lit.

Many LED area light projects involve replacing older metal halide or high-pressure sodium systems. LED fixtures can reduce energy use, improve visibility, support modern controls, and reduce lamp and ballast maintenance when properly selected. Most commercial outdoor projects use 4000K or 5000K color temperatures for visibility, security, and general outdoor performance, although requirements vary by site.

Selection and Installation Note: Product specifications, optics, mounting options, voltage, controls, certifications, surge protection, IP ratings, wind load requirements, and warranty coverage vary by model. Confirm the selected product specification before ordering. For code-sensitive, electrical, pole-mounted, dark-sky, roadway, parking, security, or safety-critical applications, verify requirements with your local inspector or a licensed electrical professional.

Choose LED Area Lights by Fixture Type or Outdoor Application

The right LED area light depends on the size of the space, pole height, mounting method, desired coverage pattern, light level requirements, local lighting codes, and whether the project is a new installation or a retrofit from HID lighting. Use the table below to choose the most appropriate starting category.

When Commercial LED Area Lights Are the Right Fit

LED area lights are a strong fit when a large outdoor space needs reliable visibility, improved energy efficiency, controlled light distribution, and reduced maintenance. They are not always the best choice when the project requires a more specialized fixture type, a decorative appearance, a classified-location fixture, or a detailed lighting layout that has not been reviewed.

Choosing LED Area Lights by Pole Height, Optics, Lumens, Mounting, Voltage, and Controls

LED area lights should not be selected by wattage alone. The correct fixture depends on pole height, pole spacing, mounting method, optic distribution, lumen output, voltage, surge protection, controls, color temperature, local ordinances, and whether the installation is replacing existing HID fixtures or lighting a new site.

A photometric plan is recommended for parking lots, industrial yards, campuses, roadways, large outdoor areas, security-sensitive properties, and any project where fixture spacing, light levels, uniformity, glare, light trespass, or code requirements must be confirmed before ordering.

Planning Checklist

LED Lumens for Replacing Metal Halide Area Lighting

Metal halide replacement should start with lumen output and distribution, not wattage alone. LED fixtures often use fewer watts than HID fixtures because they provide more controlled light distribution, instant-on operation, and less lumen loss over time. Actual requirements vary based on mounting height, pole spacing, optics, site layout, surface reflectance, and required light levels.

These ranges are only starting points. A lighting plan can confirm fixture quantity, spacing, distribution, average light levels, minimum light levels, uniformity, glare, and property-line spill before installation.

Area Lighting Project Examples

Outdoor area lighting projects vary widely depending on mounting height, pole spacing, existing infrastructure, fixture type, optics, and the size of the site. These examples show common area-lighting applications where layout and fixture selection affect visibility, coverage, and long-term performance.

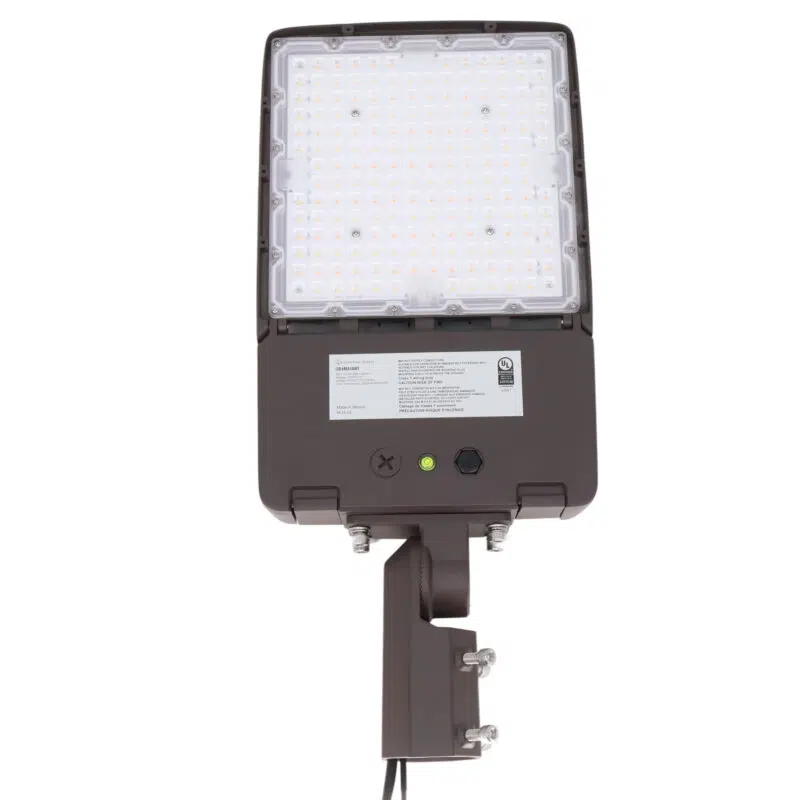

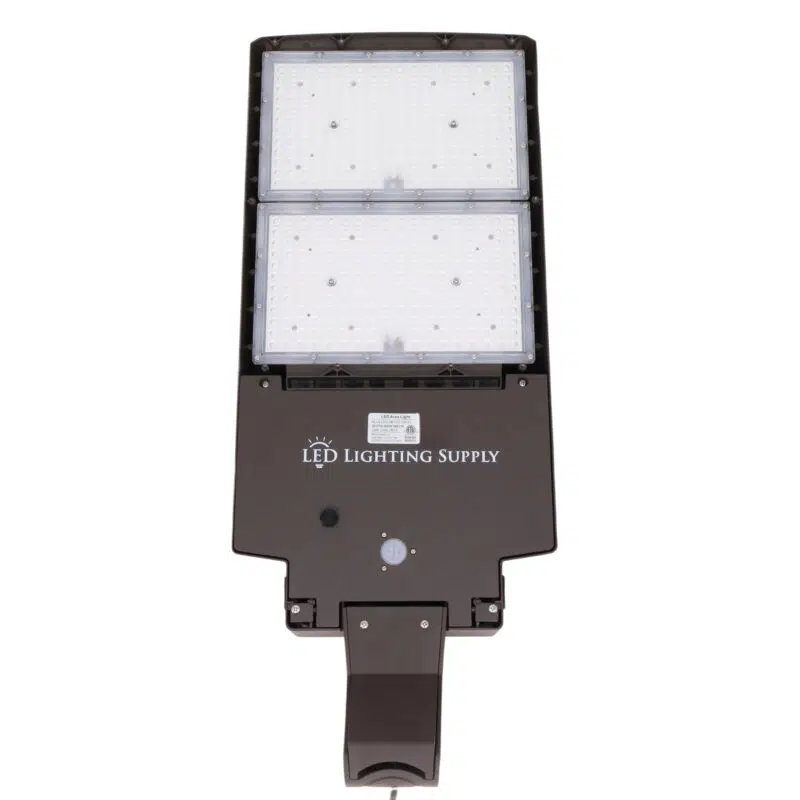

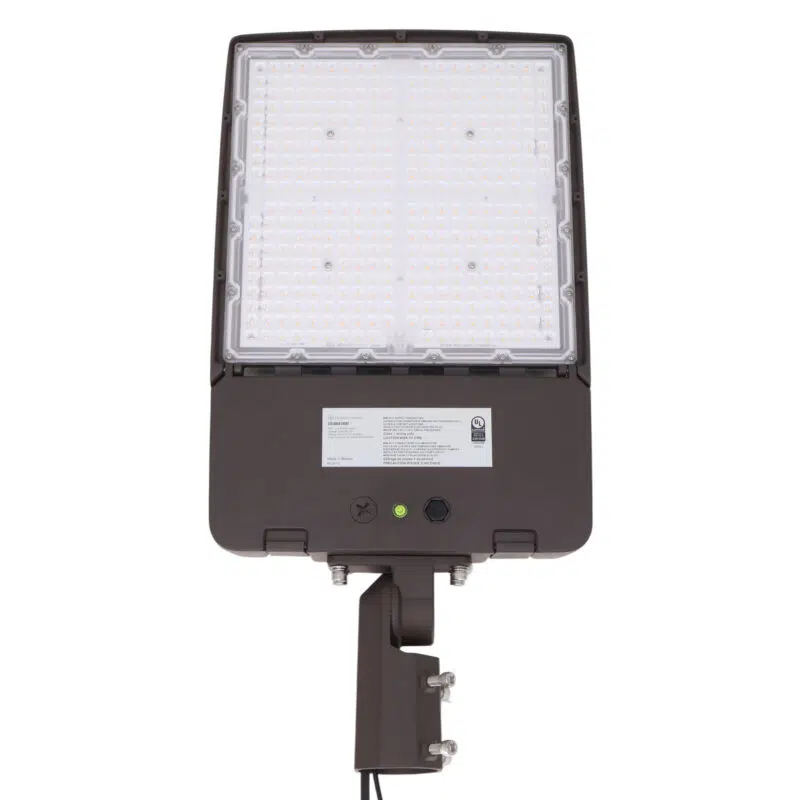

Pole-mounted shoebox fixtures are commonly used for commercial parking lots, drive lanes, and large outdoor areas where broad, uniform coverage is required.

Sports and recreation areas may require higher-output area or stadium fixtures with more precise aiming, beam control, and light-level review.

Outdoor Lighting Certifications, Rebates, and Warranty Support

LED outdoor lights from LED Lighting Supply carry a safety listing such as UL, ETL, or CSA, depending on product. Many outdoor lighting models are DLC or DLC Premium listed for utility rebate support where available.

Most LED outdoor lights include a 5-year warranty unless otherwise specified, with USA-based warranty support. Before purchase, confirm rebate eligibility, voltage, controls compatibility, mounting method, wet-location or environmental rating, surge protection, and whether the fixture is right for the site layout and surrounding conditions.

Common LED Area Lighting Mistakes

LED area lighting projects go wrong when retrofits are treated like simple wattage swaps instead of lighting layouts. The most common issues involve optics, pole spacing, pole structure, voltage drop, dark-sky requirements, surge protection, and controls compatibility.

• Using HID conversion charts without reviewing light distribution: LED fixtures direct light differently than HID fixtures. Confirm lumens, optics, mounting height, and spacing with a lighting plan.
• Skipping pole structural review: Existing poles may not be suitable for new fixture weight, wind load, EPA, or mounting hardware. Verify structural requirements with a qualified professional where needed.
• Mixing optic types without a plan: Type III, Type IV, Type V, flood, and narrow-beam distributions should be selected based on site geometry, not mixed randomly.
• Ignoring local lighting ordinances: Some municipalities require full cutoff optics, lower color temperatures, shielding, or limits on light trespass and uplight.
• Changing pole height without recalculating layout: Moving from one mounting height to another changes spacing, light levels, glare, and uniformity.
• Skipping surge protection: Pole-mounted outdoor lights are exposed to lightning and power disturbances. Confirm surge protection at the fixture, pole, or panel as needed.
• Selecting color temperature without considering the site: 5000K may appear brighter, while 4000K may offer better visual comfort. Local ordinances may also limit color temperature.
• Installing photocells in poor locations: Nearby fixtures, building lights, or adjacent properties can affect photocell operation. Remote photocells or astronomical timers may be better in some layouts.
• Ignoring voltage drop on long runs: Remote poles and long circuits may require wire sizing review to prevent flicker, dimming issues, or driver problems.
• Using the wrong fixture family: Shoebox, flood, wall pack, post top, high mast, solar, and stadium fixtures are not interchangeable. Match the fixture type to the application.

Request an area lighting plan and our Product Specialists can help review fixture type, mounting height, pole spacing, optics, lumen output, voltage, surge protection, controls, light levels, and product specifications for your outdoor LED area lighting project.

Commercial LED Area Lighting Frequently Asked Questions

What Are the Key Considerations When Choosing LED Area Lights

When selecting LED area lights, consider the size and purpose of the space, such as parking lots or sports facilities, to determine the appropriate wattage and lumen output. Ensure compatibility with your existing voltage (120-277V or 347-480V) and verify that the mounting method matches your infrastructure. Opt for color temperatures of 4000K or 5000K for optimal visibility and safety. Always check for necessary certifications like DLC Premium, UL, or ETL if utility rebates or compliance are required.

How Do LED Area Lights Compare to Traditional HID Systems

LED area lights offer significant advantages over traditional HID systems, including 50-80% energy savings and reduced maintenance due to their longer lifespan of 50,000 to 100,000 hours. They provide superior light quality with high CRI ratings, ensuring better visibility and safety. Additionally, LEDs reach full brightness instantly, unlike HID fixtures that require warm-up periods.

What Types of LED Area Lights Are Available

LED area lights come in various types to suit different applications. LED flood lights offer versatile mounting and beam angles for building facades. LED shoebox lights are ideal for parking lots with uniform coverage. LED high mast lights illuminate large spaces like ports. LED pole top lights provide decorative lighting for parks. LED solar area lights are self-contained for remote locations, and LED stadium lights cater to sports venues with high lumen output.

How Many LED Lumens Are Needed to Replace Metal Halide Lighting

To replace metal halide lighting, match both lumen output and distribution patterns. For example, a 250-Watt metal halide can be replaced with 9,000-12,000 LED lumens, while a 1000-Watt metal halide requires 35,000-50,000 LED lumens. Actual needs depend on mounting height and layout, so a photometric analysis is recommended for precise planning.

What Certifications Should LED Area Lights Have

Ensure LED area lights have essential certifications like DLC Premium, UL Listed, and ETL Listed. These certifications confirm safety, performance, and energy efficiency, qualifying your project for utility rebates and tax incentives. They also ensure compliance with national electrical codes for outdoor lighting installations.

What Are the Benefits of Using LED Area Lights

LED area lights offer numerous benefits, including energy efficiency with up to 80% savings, superior light quality with high CRI ratings, and reduced maintenance due to their long lifespan. They also provide precision optics for targeted lighting, enhance safety by reducing liability risks, and support smart controls for automated operation and additional energy savings.

How Can I Avoid Common Mistakes When Installing LED Area Lights

Avoid common mistakes by conducting a structural assessment of existing poles, verifying compatibility with local lighting codes, and using photometric calculations instead of relying solely on wattage conversion charts. Ensure consistent optic types for uniform lighting and consider surge protection in areas prone to lightning. Always account for changes in mounting height and potential light pollution from adjacent properties.
