300 Watt LED Shoebox Area Light | 39000 Lumens | 4000K or 5000K | 100V-277V or 277V-480V
This 300 Watt LED Shoebox Area Light is a strong choice for outdoor applications requiring high output and broad lateral coverage, delivering 39,000 lumens at 130 lumens per watt with Type 3 optics for effective roadway, parking lot, and perimeter lighting. Its die-cast aluminum housing, polycarbonate lens, and IP65 rating ensure durability and reliable operation in wet, dusty, and harsh weather conditions from -40°F to 113°F. Arm and slip fitter mounting options support flexible installation on various pole types.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 300 |
| Lumens | 39000 |
| Lumens Per Watt | 130 |
| Replaces | 1000 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 4000K or 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Arm or Slip Fitter |
| EPA Rating | 2.1 |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | .9 |
| THD | 15% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 27 L X 13.11 W X 6.61 H |
| Weight (lbs) | 17 |
Product SKU Variations
- SKU: MLLG-LS-LED-SB3-300-50
- SKU: MLLG-LS-LED-SB3-300-50-HV
- SKU: MLLG-LS-LED-SB3-300-40
Download IES Files
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.

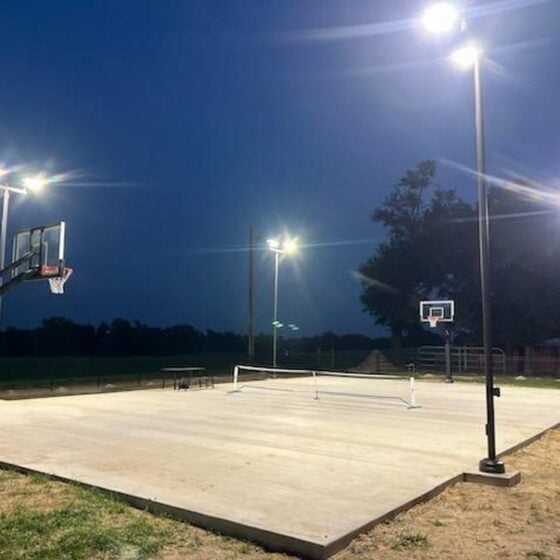

Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview
This 300-watt LED shoebox area light provides 39,000 lumens for exterior pole-mounted lighting layouts. It uses a Type 3 distribution for forward-directed area and perimeter coverage.
The fixture is available in 4000K or 5000K and operates on 100V-277V or 277V-480V input. Arm and slip fitter mounting support common pole-top installation configurations.
Core Performance and Output
The fixture produces 39,000 lumens at 130 lumens per watt. Its Type 3 distribution directs light outward from the pole for roadway perimeter, parking, and site layouts.
Electrical performance includes 50/60Hz operation, 0.9 power factor, and 15% THD. The fixture supports 1-10V dimming.
This output level can be excessive at low mounting heights or in compact layouts. Higher mounting positions require a layout review to maintain uniform coverage and control light distribution.
Adjustability and Control Options
1-10V dimming is available for lighting control systems that use a compatible low-voltage dimming signal. The fixture is offered with 100V-277V or 277V-480V voltage options.
Color temperature options are 4000K and 5000K. The standard optical distribution is Type 3.
Longevity and Reliability
The LED system is rated for 50,000 L70 hours. L70 indicates the point at which the light output is rated at 70 percent of its initial level.
The fixture operates in ambient temperatures from -40F to 113F. A 5-year warranty is included.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a bronze finish. A polycarbonate lens protects the optical system.
The fixture is IP65 rated. It measures 27 inches long by 13.11 inches wide by 6.61 inches high and weighs 17 pounds.
Where This Product Fits Best
This shoebox light fits exterior pole-mounted locations requiring substantial forward-directed light output. Its Type 3 distribution and 39,000-lumen output align with larger site, perimeter, and court lighting layouts.
- parking lot lighting
- commercial site lighting
- roadway perimeter lighting
- area lighting
- tennis court lighting
- industrial yard lighting
- municipal site lighting
The IP65 rating and -40F to 113F operating range support outdoor exposure. Pole structure, mounting hardware, fixture weight, and EPA rating must be considered for each installation.
Installation and Long-Term Use
Arm and slip fitter mounting allow the fixture to be installed on compatible pole configurations. The pole and mounting assembly must support the 17-pound fixture weight and 2.1 EPA rating.
Confirm the available branch voltage before installation because the fixture is offered in separate 100V-277V and 277V-480V versions. Dimming wiring should be separated and terminated according to the 1-10V control arrangement.
Long-term service access should account for the fixture dimensions, pole location, and mounting method. The die-cast aluminum housing and polycarbonate lens should be inspected during routine exterior lighting maintenance.
How This Fixture Is Commonly Used

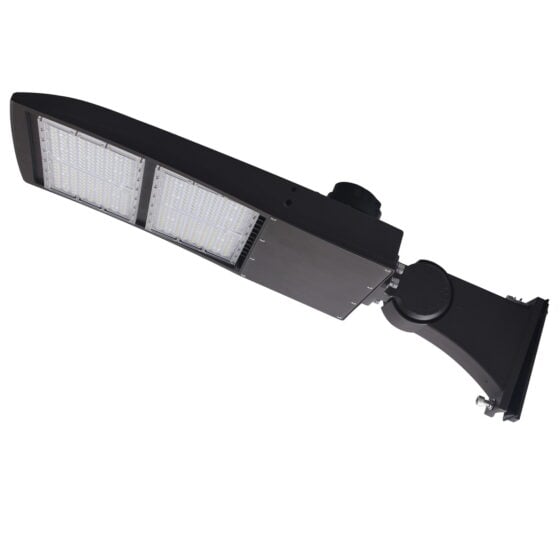

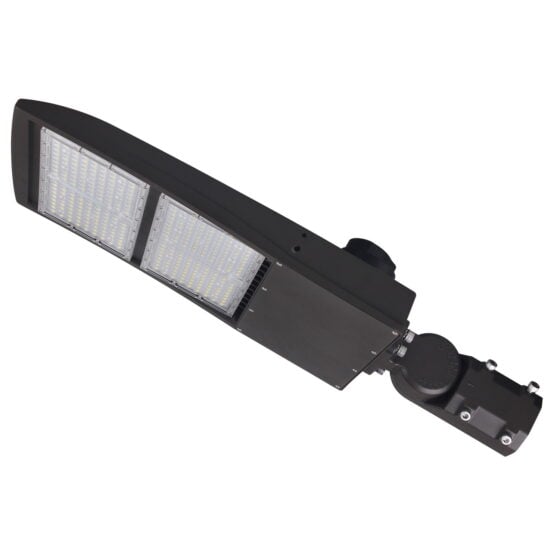

In parking lot lighting, commercial site lighting, and area lighting layouts, the fixture is mounted on poles with the Type 3 distribution directed toward the intended coverage area. Arm mounting is commonly used where the fixture projects outward from the pole, while slip fitter mounting is used with compatible pole tenons.
For roadway perimeter lighting, industrial yard lighting, municipal site lighting, and tennis court lighting, fixture orientation is coordinated with travel paths, site boundaries, or court edges. Mounting height and pole placement affect the reach and overlap of the Type 3 distribution.
Spacing varies with mounting height, target light levels, pole locations, and the required coverage pattern. Higher output can reduce fixture count, but layout review is needed to avoid uneven light levels or excessive brightness near the pole.
Safety, Certifications, and Warranty
This fixture is UL listed and rebate eligible. It is IP65 rated.
The operating temperature range is -40F to 113F. The warranty period is 5 years.
Frequently Asked Questions
Q: What is the light output of this shoebox area light?
A: The fixture produces 39,000 lumens while operating at 300 watts.
Q: What beam distribution does this fixture use?
A: The standard distribution is Type 3.
Q: What voltage options are available?
A: The fixture is available in 100V-277V and 277V-480V versions.
Q: Can this fixture be dimmed?
A: Yes. It supports 1-10V dimming.
Q: What fixture data should be reviewed when planning a lighting layout?
A: Review the 39,000-lumen output, Type 3 distribution, mounting method, fixture dimensions, fixture weight, and EPA rating. Specific spacing and fixture quantity are not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture suited for parking lot lighting and commercial site lighting?
A: Parking lot lighting and commercial site lighting are valid applications for this shoebox light. Its 39,000-lumen output and Type 3 distribution should be evaluated against the required site layout.
Q: What mounting options are available for roadway perimeter lighting or area lighting?
A: The fixture is available with arm or slip fitter mounting. The selected mounting method must match the pole configuration.
Q: What should be confirmed for industrial yard lighting or municipal site lighting?
A: Confirm the available voltage, mounting configuration, pole support requirements, and required lighting layout. The fixture is available in 100V-277V and 277V-480V versions and has a 2.1 EPA rating.
Web ID: 1584
