Surge Protector for LED Lights
- Helps protect LED drivers from transient voltage spikes
- Models available for common commercial and industrial voltages
- Selection support based on voltage, phase, and panel location
Our Citel Surge Protector for LED Lights include panel-mounted devices for service, distribution, branch, and local panel applications. Available models support 120/240V, 277/480V, and other single-phase or three-phase electrical configurations. Depending on the model, products include threaded panel connections, wire leads, LED status indicators, and audible fault alarms.
These surge protectors are commonly used in metalworking and fabrication plants, welding and plasma-cutting facilities, machining and CNC production areas, plants with motors, pumps, fans, or compressors, conveyor systems, induction-heating operations, and warehouses connected to heavy production operations.
-
Starting At $311.84
Panel-mounted surge protectors help protect LED lighting systems from short-duration voltage transients that can damage drivers, controls, sensors, and emergency components. Although many commercial and industrial LED fixtures include built-in surge protection, a properly selected surge protective device (SPD) at the electrical panel can provide an additional layer of protection before disturbances reach multiple downstream lighting circuits. Combining panel-level protection with fixture-level surge protection can provide a coordinated approach where electrical transients are a recurring concern.
Before Selecting a Surge Protector: Confirm the exact system voltage, phase, wiring configuration, available short-circuit current, and panel location. These factors determine the compatible SPD configuration and where protection is needed. A surge protector with the wrong voltage or system configuration may not provide the intended protection and can create an unsafe installation.
How Panel-Mounted Surge Protection Helps LED Lights
LED fixtures use electronic drivers to convert incoming AC power into the controlled DC power required by the LEDs. Repeated electrical transients can stress driver components even when a single event does not cause immediate failure. Panel-mounted surge protection can help reduce the risk of:
- Premature LED driver failure
- Fixtures that flicker, cycle, or stop operating
- Damage to occupancy sensors and lighting controls
- Failure of dimming and networked-control components
- Unexpected lighting outages over production areas
- Repeated fixture or driver replacements
Installation at the panel supplying LED lighting can help limit transient events traveling through the facility distribution system. Larger facilities may require coordinated surge protection at the service entrance, distribution panels, and local panels serving sensitive equipment.
How to Select a Surge Protector
| Selection Factor | What to Confirm |
|---|---|
| System voltage | Match the SPD to the actual line-to-line and line-to-neutral voltage, such as 120/240V or 277/480V. |
| Phase and wiring | Confirm whether the system is single phase, split phase, three-phase wye, or three-phase delta, and verify the number of conductors and neutral configuration. |
| Panel location | Identify whether protection is needed at the service entrance, a distribution panel, a branch panel, or a local panel serving lighting circuits. |
| Surge-current rating | Review the device’s nominal and maximum surge-current ratings using the exact product specifications. A higher rating does not correct a voltage or wiring mismatch. |
| Voltage protection rating | Compare the published voltage protection ratings for the applicable protection modes. |
| Short-circuit current rating | Confirm that the SPD’s SCCR is appropriate for the available fault current at the installation point. |
| Protection modes | Verify the required line-to-line, line-to-neutral, line-to-ground, and neutral-to-ground protection for the electrical system. |
| Status monitoring | Choose a device with visible indicators or alarms so maintenance personnel can confirm that surge protection remains operational. |

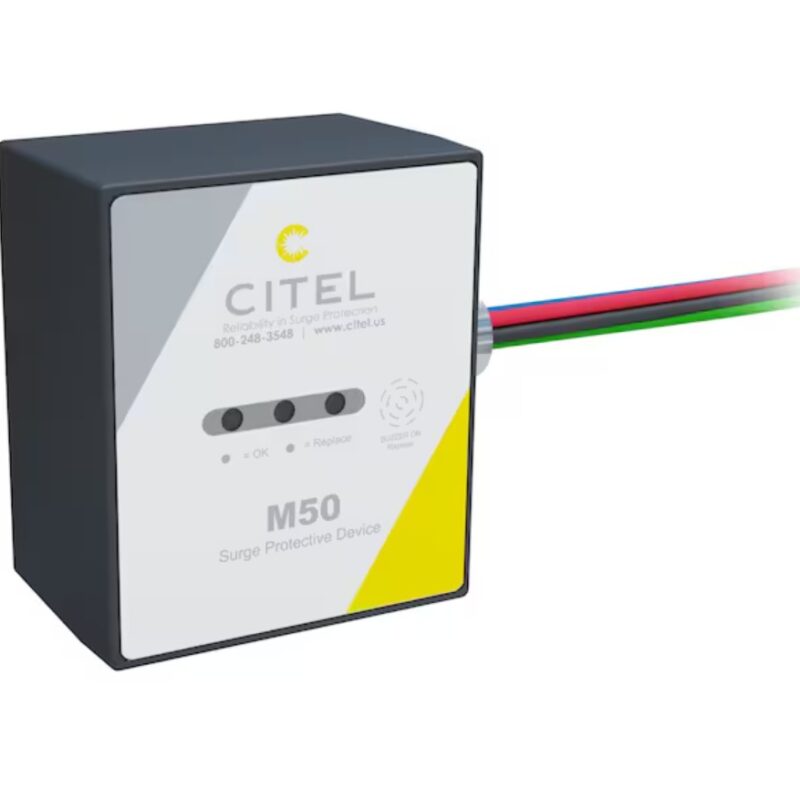

Citel Panel-Mounted Surge Protector Features
Available Citel M50-series devices provide panel-mounted protection for compatible electrical systems. Depending on the model, features may include:
- UL 1449 Type 1 designation
- 50kA maximum surge-current rating per mode
- Hybrid MOV-GSG surge-protection technology
- Protection modes matched to the applicable system configuration
- LED operating-status indicators
- Audible fault alarm
- Panel mounting using a threaded connection and wire leads
- Enclosures suitable for applicable indoor or outdoor installations
Specifications vary by voltage and wiring configuration. Confirm the exact Citel model, published ratings, installation instructions, and environmental suitability rather than selecting from the surge-current rating alone.
Surge Protection Does Not Correct Every Power-Quality Problem
A surge protective device is intended to limit short-duration transient overvoltage. It does not correct every electrical condition that can damage LED lighting. Facilities may require additional investigation or mitigation when problems involve:
- Sustained overvoltage or undervoltage
- Incorrect neutral or grounding connections
- Voltage imbalance
- Electrical harmonics
- Repeated voltage sags
- High-frequency electrical noise
- Improperly configured variable frequency drives
- Loose connections or wiring defects
If LED failures continue after surge protection is installed, a qualified electrical professional should evaluate the facility’s power quality, grounding, bonding, neutral, connected equipment, and distribution system.
Installation Considerations
Panel-mounted surge protective devices should be installed by a qualified electrician according to the manufacturer’s instructions, applicable electrical codes, panel requirements, and the authority having jurisdiction. Lead length and routing can affect surge-protection performance. The SPD should generally be mounted close to the protected panel with conductors kept as short and direct as the approved installation permits. The electrician should also verify voltage, phase, wiring configuration, grounding, available fault current, and required overcurrent protection before installation.
Need Help Selecting Surge Protection for LED Lighting?
LED Lighting Supply can help narrow available Citel surge protectors using the facility voltage, phase, wiring configuration, panel location, connected lighting load, equipment creating electrical disturbances, and existing fixture surge-protection ratings. Contact us about surge protection for LED lighting and include panel photographs, voltage and phase information, one-line diagrams, fixture specifications, or details about the machinery operating in the facility when available. LED Lighting Supply can assist with product selection using the information provided. Final electrical-system evaluation, SPD coordination, wiring, installation, grounding, bonding, fault-current requirements, and code compliance should be confirmed by a qualified electrical professional.
Surge Protector for LED Lights FAQs
Why Use A Panel-Mounted Surge Protector If LED Fixtures Have Built-In Protection?
A properly selected panel-mounted surge protective device provides an additional layer of protection before a disturbance reaches multiple lighting circuits, even when LED fixtures include built-in surge protection. Fixture-level protection provides localized protection at each luminaire, while panel-mounted protection can protect multiple downstream lighting circuits.
What Information Is Needed To Select A Surge Protector For LED Lighting?
Select the surge protector based on the exact system voltage, phase, wiring configuration, available short-circuit current, and panel location. The selected device should also have appropriate protection modes, voltage protection ratings, surge-current ratings, and status monitoring for the electrical system.
Where Can A Panel-Mounted Surge Protector Be Installed?
Panel-mounted Citel surge protectors are designed for service, distribution, branch, and local panel applications, depending on the selected model and installation. Larger facilities may require coordinated surge protection at the service entrance, distribution panels, and local panels serving sensitive equipment.
What LED Lighting Problems Can Panel-Mounted Surge Protection Help Reduce?
Panel-mounted surge protection can help reduce the risk of premature LED driver failure, fixture flickering or cycling, damage to occupancy sensors and lighting controls, and failure of dimming or networked-control components. It can also help reduce unexpected lighting outages and repeated fixture or driver replacements.
Which Facilities Are Well Suited For Panel-Mounted Surge Protection?
Panel-mounted Citel surge protectors are well suited for manufacturing and industrial facilities where electrical switching events are common. Supported applications may include facilities with welders, large motors, compressors, conveyors, variable frequency drives, induction equipment, and other high-power process equipment.
Will A Surge Protector Correct All Power-Quality Problems Affecting LED Lighting?
No, a surge protective device is intended to limit short-duration transient overvoltage and does not correct every electrical condition that can damage LED lighting. It does not correct conditions such as sustained overvoltage or undervoltage, voltage imbalance, electrical harmonics, repeated voltage sags, wiring defects, or improperly configured variable frequency drives.
What Installation Factors Affect Panel-Mounted Surge Protection?
Lead length and routing can affect surge-protection performance, so the SPD should generally be mounted close to the protected panel with conductors kept as short and direct as approved installation permits. A qualified electrician should verify voltage, phase, wiring configuration, grounding, available fault current, and required overcurrent protection before installation.
