Surface Mount Flat Panel LED Lights

Surface Mount Flat Panel LED Lights are 2X2 or 2X4 ceiling lights designed to fit inside the grid of a commercial indoor drop ceiling whereas commercial grid ceilings are either 2X2 or 2X4 spaced. LED Panel lights fit perfectly inside these grid spaces. Not only can they replace fluorescent lighting, they also provide flicker free, hum free lighting at typically 50% or more energy savings.
Surface Mount Flat Panel LED Lighting Plan - Free
Get yours now!

SHOW FILTERS
LED Watts
Metal Halide Equivalent
Lumens
Voltage
Color Temperature
Mount
LED Wattage
Metal Halide Equivalent
Lumens
Voltage
Color Temperature
Mount

Showing 1–10 of 17 results

Frequently Asked Questions

There’s a lot of questions to consider before you purchase your first LED panel light. Scroll below to find answers to our most common questions or call (888) 423-3191 and we'll do our best to assist you.



General

Frequently Asked Questions

There’s a lot of questions to consider before you purchase your first LED panel or troffer light. Scroll below to find answers to our most common questions or call (888) 423-3191 and we'll do our best to assist you.

Faq Icon 1

General

Faq Icon 2

Before you buy

Faq Icon 3

Fixtures and Fittings

Faq Icon 4

Installation

General

What Are LED Panel Lights?

LED panel lights are interior lights designed to install inside the grid system of a dropped ceiling that you commonly see inside offices, schools, hospitals and other commercial facilities. They come in 3 sizes - 1X4, 2X2 and 2X4.

Can Fluorescent Panel Lights Be Retrofitted to LEDs?

They can. LED tubes were first meant to be a fluorescent panel retrofit, replacing fluorescent tubes with LED tubes. There are models available where you can use the existing ballast or bypass the ballast. There are pros and cons with each installation type. In the past few years, another retrofit option has been introduced - magnetic retrofit strips that do not use the tube lamp holders or tombstones but attach magnetically to the body of the fixture.

1x4 Panel LED Panel

1x4 Panel LED Panel

2x2 Led Backlit Panel

2x2 Led Backlit Panel

2x4 Led Backlit Panel

2x4 Led Backlit Panel

Can Heat Affect LED Panels?

Yes, but this is not unique to LED fixtures. Too much heat can affect any LED light if the heat causes the LED fixture to operate above its upper temperature range.

What Is the Difference Between Troffers and Panels?

They are both the same size, 2X2 and 2X4. Panels have a flat panel style, the entire face of the panel is flat. Troffers are usually fixtures with an indent in the fixture, with the LED strips mounted behind a center bulge. They are more of an architectural fixture for commercial office buildings.

What’s the Difference Between Edge Lit and Back Lit Panels?

The main difference is where the LEDs are located. In edge lit panels, LEDs are mounted in the outside frame of the panel, pointing inwards, lighting up the translucent panel. Back lit panels have LED strips installed on the back of the fixture, pointing downwards toward the floor.

How Do I Select LED Panel Lights?

The process is similar to most LED lights we sell - start with a lighting plan after indicating how bright you want the space to be. The lighting plan software we use will allow us to switch out different panels and troffers, set the spacing, until the desired light levels are met and the lighting is balanced. If you have a current installation with panels, you can also replace them one for one and can expect the same or slightly better lighting with an LED panel.

BEFORE YOU BUY

Are 2x2, 2x4 or 1x4 Panels Better to Use?

It all comes down to your preferences and needs. Panels drop into the ceiling in most cases, so it can also depend on the drop ceiling configuration that you have. 2X4 panels will put out more light than 1X4 and 2X2 panels.

We also carry standard output panels and high output panels depending on your requirements.

FIXTURES AND FITTINGS

Are LED Flat Panel Lights Replaceable?

Yes. When the panel fails, you need to replace the entire panel. There are no parts, other than the driver, that can be replaced.

How Are Panel Lights Mounted?

There are three methods - they can be dropped into the existing grid of a drop ceiling, they can be suspended from the ceiling with hanging wire and they can be ceiling mounted using a ceiling mount frame (frames are not always available for all fixtures).

How Long Do LED Panels Last For?

Under normal operating conditions, 12 hours a day, 7 days a week, you can expect 10-15 years of life from a high quality panel.

How Do You Dim LED Panel Lights?

Some panels come with a dimmable 0-10V driver and 1-10V driver. Some of our panels are dimmable using a supplied remote control. Others can be connected in series using low voltage wire and a wall mounted 0-10V dimmer switch.

Are There Color Changeable LED Panels?

Yes, and we have them. Using a remote control or some panels have switches on board the fixture, you can choose the color temperature. So you no longer have to decide which color temperature to choose upfront. You can select it after or as you install the light.

Abstract modern white office interior background 3d

Do They Have Safety Clips on the Back?

Some models have safety clips, making them safe for installation in earthquake prone areas.

Do LED Panels Come with a Remote?

Some do. For example, our color, wattage and integrated motion panels can be configured with the remote control.

INSTALLATION

How Do You Wire Flat Panel LED Lights?

These panels are really simple to wire. There are only three wires to hook up - line, neutral and ground. Any qualified electrician can easily install them.

How Do You Install LED Panel Lights?

They simply drop into a drop ceiling grid, and all you have to do is wire them to your power circuit.

How Do You Install a Battery Backup on a LED Panel?

Some of our panels have battery backups as an option. If you order these panels with the battery backup, they are already installed - there is nothing for you to do other than wire the panels to the circuit following the supplied instructions.

Get a Free LED Panel Lighting Plan

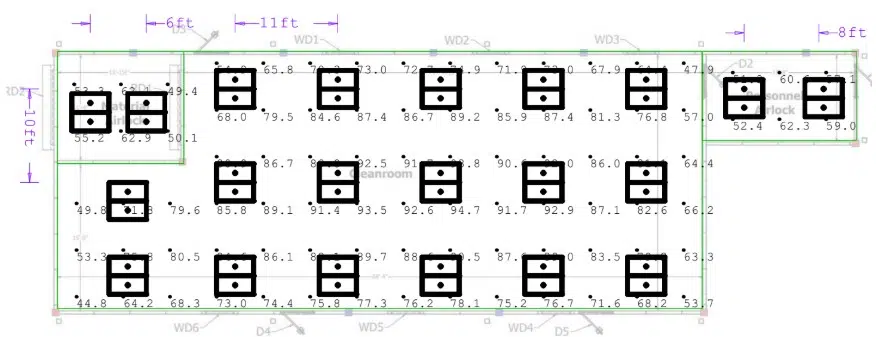

If you are just replacing fixture with fixture, a lighting plan will help you select the right fixture. If you are creating a new area or building that doesn't have lighting yet, a lighting plan will lay out the light locations and show you how bright the lighting will be.

If you know how bright you want the space to be, we can pick the right led panel ceiling light fixture to meet your needs and requirements.

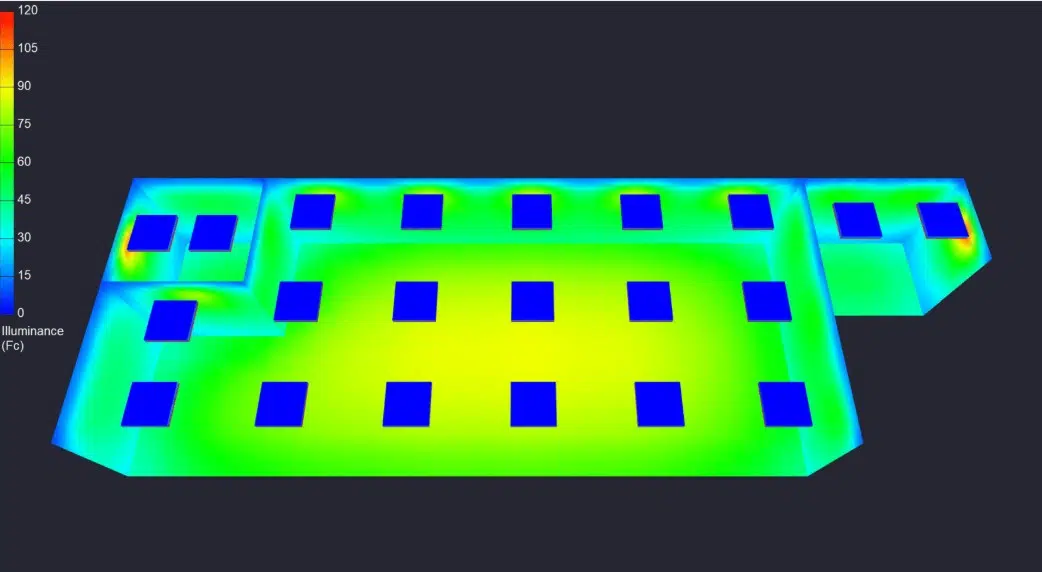

When we do led panel lighting plans, we use specialized lighting software that allows us to model your space, add lights, place them in your digital space, and calculate the brightness and how even the light will be.

Led Panel Lighting Plan
