Understanding Foundation Pilings: The Critical Infrastructure That Supports Your Projects

When structural integrity cannot be compromised, contractors and project managers turn to foundation pilings as the backbone of their most demanding construction projects. Our Product Specialists understand that whether you're developing marina facilities, commercial buildings, or industrial installations, the foundation system determines long-term project success and safety.

LED Lighting Supply's expertise in wood and fiberglass piling solutions spans over 15 years, during which we've guided countless projects toward optimal foundation systems. Facilities using properly specified piling systems experience significantly fewer structural issues and 70% lower maintenance costs throughout their operational lifespan. Our comprehensive piling selection addresses the complex requirements of building foundations, highways, docks, piers, and marine structures. Success begins below ground level, where soil composition, water table depths, and environmental conditions demand expert analysis and solution engineering. Our structurally engineered round piling materials include:

• CCA-Treated Southern Yellow Pine Wood Pilings
• Composite Piles (also known as fortress pilings or fiberglass piling)

Piling Applications We Support

Dock Pilings: Marine Foundation Solutions for Waterfront Properties

Dock pilings require specialized CCA-treated Southern Yellow Pine or composite materials designed to withstand constant water exposure, tidal forces, and marine organism attack. Treatment levels range from 0.8 lbs retention for freshwater docks to 2.5 lbs retention for saltwater environments with marine borer presence, ensuring optimal chemical protection based on water conditions. Composite dock pilings offer superior saltwater resistance and 50+ year service life, while wood pilings provide cost-effective performance with 30-year durability when properly specified for marine applications.

Marine Pilings: Heavy-Duty Foundation Systems for Coastal Construction

Marine pilings must withstand harsh saltwater environments, constant moisture exposure, and corrosive marine conditions that rapidly deteriorate standard materials. ASTM D25 compliant pilings feature enhanced CCA treatment levels up to 2.5 lbs retention for maximum protection against marine borers, saltwater corrosion, and biological attack in oceanfront installations. Advanced composite marine pilings deliver twice the strength of steel with complete resistance to rot, rust, and marine organism damage, making them ideal for piers, marinas, and coastal infrastructure requiring long-term structural integrity.

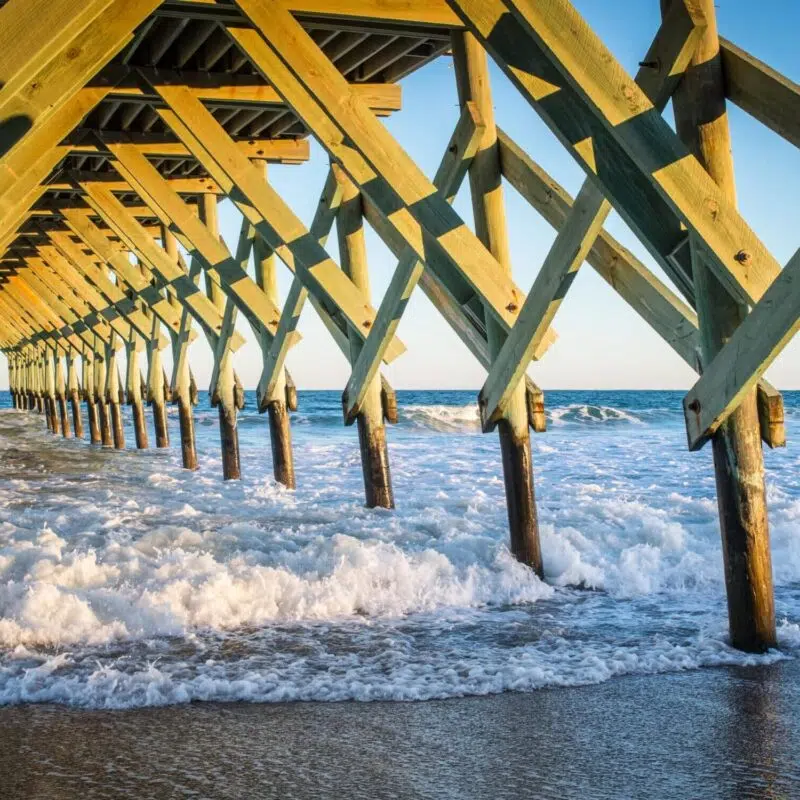

Pier Pilings: Engineered Support Systems for Commercial and Recreational Structures

Pier pilings require maximum load-bearing capacity and corrosion resistance to support commercial and recreational structures exposed to constant marine conditions. Class A and Class B piling specifications ensure adequate diameter and structural capacity based on pier length and load requirements, with minimum diameters ranging from 12" to 14" measured 3 feet from butt. Composite pier pilings offer lightweight installation advantages while maintaining superior strength properties, reducing construction equipment needs by up to 30% while providing enhanced resistance to saltwater, chemicals, and extreme weather conditions.

Maximize Project ROI With Our Premium Wood Piling Solutions

LED Lighting Supply delivers Southern Yellow Pine timber piles that consistently exceed industry quality standards for both marine and terrestrial applications. We recommend wood pilings as the most proven and cost-effective foundation solution when properly specified for project conditions. Our carefully selected Southern Yellow Pine receives comprehensive CCA-treated preservative injection. This process creates superior resistance to rot, decay, and saltwater damage, extending service life up to 30 years in properly maintained installations.

Southern Yellow Pine stands out as the premier species for quality pilings due to its exceptional structural characteristics and superior treatment absorption. The species offers an ideal balance of strength, density, and permeability that enables thorough preservative chemical penetration throughout the lumber. Based on 17 years of commercial construction experience, wood piles excel in loose soil conditions where their natural flexibility facilitates installation in construction and surge-prone areas. Installation typically involves placing pilings in prepared holes filled with gravel for enhanced stability, reducing total project expenses while maintaining structural integrity.

Key Advantages of Our Wood Piling Systems

• Most economical per-foot option compared to concrete and steel alternatives, delivering up to 40% cost savings on material expenses
• Simplified installation processes reduce labor costs by approximately 25% while maximizing project profitability
• Natural resilience withstands shifting soil conditions and fluctuating marine environments
• CCA treatment provides comprehensive protection against rot, decay, and marine organism damage
• Properly treated systems control moisture intrusion, extending service life up to 30 years in standard applications

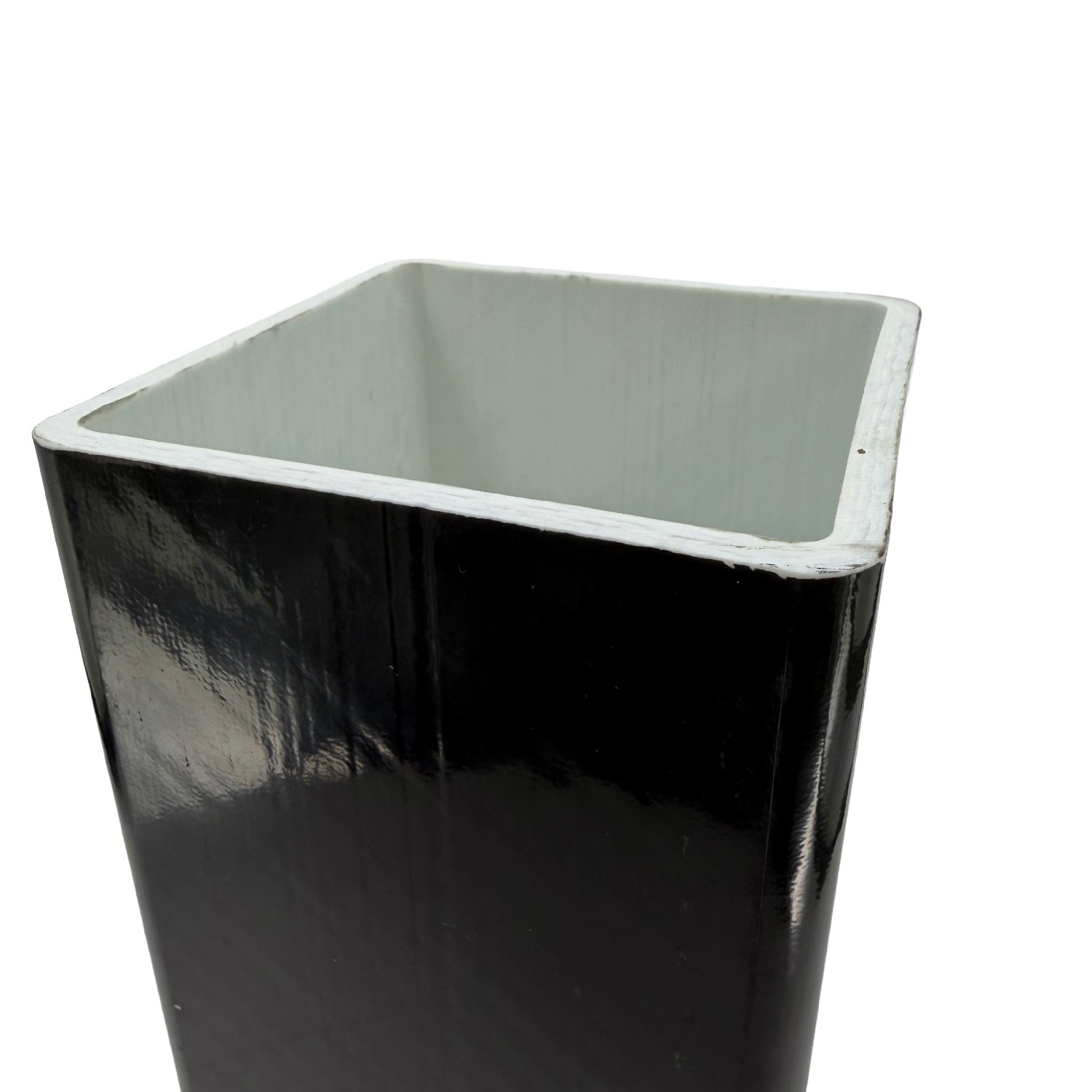

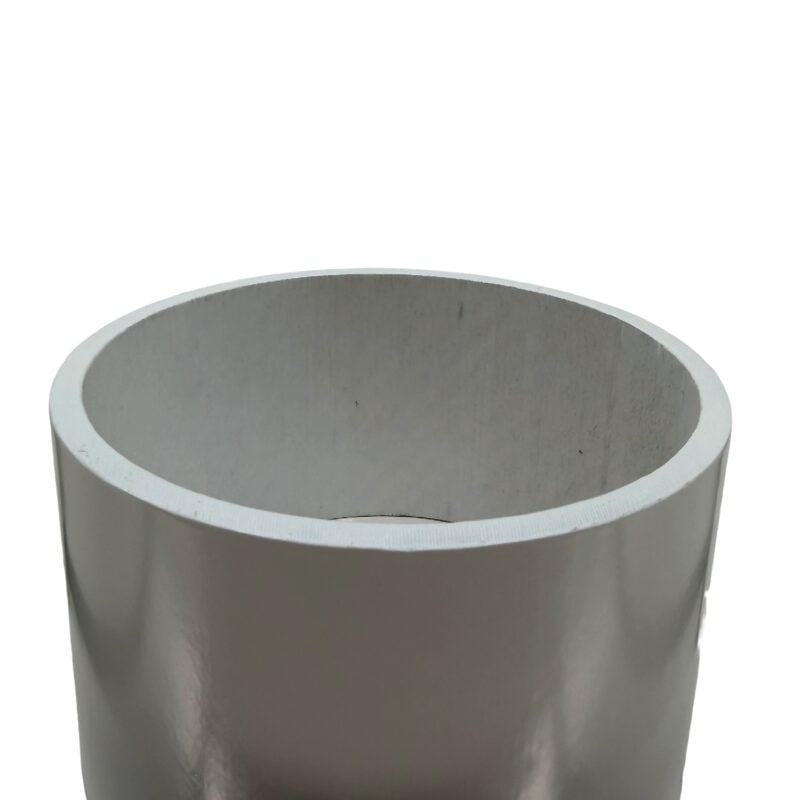

Extend Service Life to 50+ Years With Our Advanced Composite Piling Systems

Advanced composite piles represent the next generation of foundation technology, combining fiberglass reinforcement with engineered polymer matrices designed to outlast conventional materials in the harshest environments. LED Lighting Supply's expertise ensures that these FRP (Fiberglass Reinforced Polymer) solutions deliver superior performance where traditional materials fail prematurely. We engineer solutions that prove ideal for oceanfront installations due to their exceptional saltwater and severe marine condition resistance.

Composite pilings demonstrate outstanding resistance to salt water, chemicals, and extreme weather while maintaining structural integrity across wide temperature ranges. Most of our customers find that compared to precast concrete piles, composite pilings deliver enhanced corrosion resistance and reduced weight, making them superior for marine and coastal environments. Our durable poles feature preservative HDPE integral sleeve coating, protecting against rot, rust, corrosion, marine life, and sulfate soils. With 17 years of experience, composite pilings' lightweight design simplifies installation while maintaining load-bearing capacity that is twice as strong as steel options. This reduces equipment needs and labor costs by up to 30% during construction while minimizing damage to boats and marine hardware.

Superior Performance Benefits of Our Composite Systems

• Reliable, durable material with HDPE protective coating promotes 50+ year service life while reducing replacement costs by up to 60%
• Twice as strong as steel pilings, ensuring maintained structural integrity under extreme loads
• Complete resistance to water damage, rot, rust, and corrosion in saltwater environments
• Low maintenance requirements and lightweight construction reduce installation time by approximately 35%

Understanding Piling Classifications: Matching Structural Requirements to Optimal Solutions

The piling classification system employs standardized approaches to categorize pilings based on dimensional specifications and structural requirements. LED Lighting Supply supports various piling classes, each defining specific size requirements and load-bearing capabilities based on the minimum diameter measured 3 feet from the butt.

• Class A Pilings: Feature the largest diameter specifications, delivering maximum structural capacity for heavy-duty applications requiring substantial load support. Major commercial and industrial projects commonly specify these pilings where structural integrity cannot be compromised.
• Class B Pilings: Balance structural performance with cost effectiveness through intermediate sizing. This classification serves diverse construction applications, from moderate commercial projects to substantial residential developments.
• Class C Pilings: Deliver the most economical diameter option for light to moderate load applications, perfect for dock construction and installations where multiple smaller pilings efficiently distribute structural loads.

All LED Lighting Supply timber piles meet American Society for Testing and Materials ASTM D25 standards, establishing comprehensive specifications for round timber piles in construction. These standards define critical manufacturing aspects, including species selection, treatment requirements, dimensional tolerances, and quality control measures.

Under 40'

• Class A: Min. Dia. 3' from Butt: 14", Min. Dia. Tip: 9"
• Class B: Min. Dia. 3' from Butt: 12", Min. Dia. Tip: 8"
• Class C: Min. Dia. 3' from Butt: 12", Min. Dia. Tip: 8"

40' To 54'

• Class A: Min. Dia. 3' from Butt: 14", Min. Dia. Tip: 9"
• Class B: Min. Dia. 3' from Butt: 12", Min. Dia. Tip: 7"
• Class C: Min. Dia. 3' from Butt: 12", Min. Dia. Tip: 6"

55' To 74'

• Class A: Min. Dia. 3' from Butt: 14", Min. Dia. Tip: 8"
• Class B: Min. Dia. 3' from Butt: 13", Min. Dia. Tip: 7"
• Class C: Min. Dia. 3' from Butt: 12", Min. Dia. Tip: 6"

75' To 90'

• Class A: Min. Dia. 3' from Butt: 14", Min. Dia. Tip: 7"
• Class B: Min. Dia. 3' from Butt: 13", Min. Dia. Tip: 6"
• Class C: Min. Dia. 3' from Butt: 12", Min. Dia. Tip: 6"

Over 90'

• Class A: Min. Dia. 3' from Butt: 14", Min. Dia. Tip: 6"
• Class B: Min. Dia. 3' from Butt: 13", Min. Dia. Tip: 5"
• Class C: Min. Dia. 3' from Butt: 12", Min. Dia. Tip: 5"

Understanding Treatment Level Requirements by Application and Environment

Selecting the appropriate chemical treatment level is critical for ensuring optimal piling performance and longevity across different environmental conditions. LED Lighting Supply provides comprehensive guidance on treatment specifications based on specific use cases and environmental exposure levels, ensuring your project receives the proper chemical retention for maximum durability and structural integrity.

Foundation Applications (0.6 lbs retention):

• Standard soil conditions with limited water exposure
• Building foundations and structural support systems
• Retaining walls and terrestrial ground contact applications
• Cost-effective protection against decay and insect damage in dry environments

Fresh Water Environments (0.8 lbs retention):

• Lakes, rivers, and freshwater dock installations
• Applications with prolonged moisture saturation potential
• Enhanced protection against constant moisture contact and fungal growth
• Elevated treatment levels for increased moisture exposure risks

Brackish Water and Salt Water Applications (1.0 lbs retention):

• Coastal installations with moderate salt exposure
• Applications that are subject to the corrosive effects of salt and increased moisture
• Enhanced chemical protection for accelerated deterioration environments
• Maintains structural integrity over extended service periods

High Salt Water Exposure (1.5 lbs retention):

• Oceanfront installations and coastal construction projects
• Environments with constant salt spray and tidal action
• Maximum chemical protection for harsh marine conditions
• Reliable long-term performance in elevated moisture and salt content

Marine Borer Zones (2.5 lbs retention):

• Piers, marinas, bulkheads, and jetties with marine borer presence
• Maximum treatment level for the most demanding marine applications
• Comprehensive protection against both chemical deterioration and biological attack
• Critical specification where marine borers pose catastrophic structural damage risks

Optimizing Installation Methods for Maximum Performance and Cost Effectiveness

LED Lighting Supply's expertise ensures proper installation method selection based on site-specific conditions and project requirements. Two primary installation approaches deliver optimal results across different applications:

• Drilled Piles: Commonly used for concrete piles and precision applications
• Jetting: Most effective installation method for wood and composite piles

Drilled pile installation involves excavating holes to the required depth and diameter before piling placement. We typically recommend this method for precise positioning, and it proves particularly effective in rocky or hard soil conditions where driven installation becomes difficult. The process reduces vibration impacts on surrounding structures, making it ideal for urban construction projects. Jetting installation utilizes high-pressure water to penetrate and displace soil, creating pathways for piling installation. From our experience across hundreds of projects, this method works exceptionally well in sandy or loose soil conditions where water effectively cuts through ground materials, reducing installation time by up to 50% in suitable soil types.

Critical Site Analysis for Optimal Installation Success

Successful piling projects begin with comprehensive site condition analysis, including soil type, water table elevation, and environmental factors. Different soil conditions demand different piling approaches, with clay soils, sandy conditions, and rocky substrates each presenting distinct challenges. We evaluate projects with varying elevations or sloped terrain to ensure proper load distribution and structural continuity. Water table levels significantly impact piling performance and longevity, with high water tables increasing erosion risk around pile foundations and potentially requiring specialized treatments or materials.

Partner With LED Lighting Supply's Piling Experts for Your Next Foundation Project

LED Lighting Supply brings over 15 years of experience supplying high-quality structural materials for commercial and industrial projects. Our comprehensive piling selection includes wood pilings, composite pilings, and specialized marine solutions designed to meet the most demanding project requirements. Our consultative approach ensures you receive the most appropriate piling solution for your specific needs.

Our Product Specialists provide technical support throughout the project lifecycle, from initial material selection through installation guidance and post-purchase maintenance recommendations. Whether you need wood pylons for nautical dock projects or durable composite pilings for commercial construction, we maintain the expertise and inventory to support your requirements while ensuring structural integrity, cost effectiveness, and long-term performance. Request a free piling quote from our Product Specialist team today. We're ready to help you select the most appropriate piling solution that maximizes structural integrity while optimizing project costs and long-term performance.
