20 Foot Piling | Class B | .60 CCA Treated | Southern Yellow Pine
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Total Height (ft) | 20 |
| ANSI Class | Class B |
| Material | Wood Piling |
| Pole Weight (lbs) | 550-650 |
| Min Pole Top Circ (in) | 25 |
| Min Pole Top OD (in) | 8 |
| Min Circ 3 ft from Butt (in) | 37 |
| OD 3 ft From Butt (in) | 12 |
| Treatment | .60 CCA |
| Opt Treatment | .80 CCA | 1.0 CCA | 1.5 CCA | 2.5 CCA |
| Warranty | 1 year |
Our 20 foot Class B CCA Treated Southern Yellow Pine Pilings are grown, debarked, and treated in the United States. They are manufactured to ASTM D25 standards and are treated to the latest American Wood Preservers Association standards to prevent decay and damage.
USE CASE and CCA TREATMENT LEVELS
- Foundation: 0.6 pounds
- Fresh Water: 0.8 pounds
- Brackish Water, Salt Water: 1.0 pounds
- Salt Water: 1.5 pounds
- Salt Water where marine bores are present (piers, marinas, bulkheads, and jetties): 2.5 pounds
Delivery is made with a flatbed truck, and the customer is responsible for offloading. Offloading requires a forklift or an appropriate similar machine (customer supplied). Customer is responsible for any costs associated with delivery rescheduling because of improper scheduling or not having the proper offloading equipment available at the time of delivery.
Pricing: Does not include the cost of shipping. Shipping is available to the lower 48 USA states. We can supply a budgetary shipping quote or a firm shipping quote that is good for 14 days to your delivery location.
Disclaimer: LED Lighting Supply is not responsible for improper loading (ie, what is mounted to the piling), installation costs, or foundation design of piling. Dimensions and specifications of pilings are subject to change without notice but the tip and butt dimensions will always be within ASTM specifications. While our main product line is southern yellow pine, we at times are able to offer other species including douglas fir and red pine. All poles are treated with CCA unless specified otherwise. Our standard treatment is .60 pounds per cubic foot.
Please be advised that our wood pilings are covered solely by a 1-year workmanship warranty, which ensures that the pilings are free from defects from the manufacturing process, and structural integrity, for a period of one year from the date of purchase. This warranty does not cover damage resulting from external factors, misuse, or normal wear and tear.
Product Overview
This 20 foot wood piling is a Class B Southern Yellow Pine piling for direct embed structural installation. It is treated with .60 CCA treatment and manufactured to ASTM D25 standards.

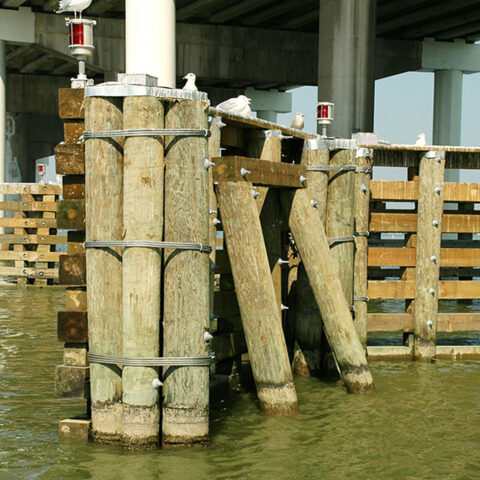

The piling supports marine structures, dock structures, pier construction, and waterfront structures where wood piling construction is part of the project design. Its 20 foot length, butt dimensions, and treatment level must be reviewed against required embedment and above-grade or above-water exposure.
Core Performance and Output
This piling provides structural support rather than light output. The Class B construction has a minimum top circumference of 25 inches, a minimum top outside diameter of 8 inches, a minimum circumference of 37 inches at 3 feet from the butt, and a 12 inch outside diameter at 3 feet from the butt.
Pole weight is 550 to 650 pounds. The 20 foot overall length affects available installed height after embedment, so final structural use depends on the project embedment requirement and loading conditions.
Adjustability and Control Options
This is a fixed-length 20 foot piling with no field adjustment or control components. Direct embed installation establishes the final installed position and exposed length.
Optional treatment levels include .80 CCA, 1.0 CCA, 1.5 CCA, and 2.5 CCA. Treatment selection must match the project requirements before installation.
Longevity and Reliability
The .60 CCA treatment is intended to prevent decay and damage. The piling is treated to current American Wood Preservers Association standards.
Southern Yellow Pine is grown, debarked, and treated in the United States. Long-term condition depends on the installed environment, treatment level, and project construction details.
Build Quality and Physical Characteristics
This piling is constructed from wood piling material and carries a Class B ANSI rating. It has a minimum 8 inch top outside diameter and a 12 inch outside diameter measured 3 feet from the butt.
Each piling weighs 550 to 650 pounds. Handling and placement equipment must account for the piling length and weight during direct embed installation.
Where This Product Fits Best
This piling fits structural projects that require treated wood support members in marine and waterfront construction. It is suited to direct embed piling work where a 20 foot Class B piling matches the project design.
- marine structures
- dock structures
- pier construction
- waterfront structures
- marina construction
- coastal facility construction
- boardwalk structures
- mooring structures
The CCA treatment addresses decay and damage exposure. Final suitability depends on the required treatment retention, embedment depth, structural loads, and site conditions.
Installation and Long-Term Use
This piling is intended for direct embed mounting. Installation requires placement control, suitable handling equipment, and alignment before the piling is embedded.
The final exposed height is determined by the required embedment and project layout. Inspect the piling before installation for dimensions, treatment requirements, and condition.
How This Fixture Is Commonly Used
For marine structures and dock structures, pilings are positioned according to the structural layout and required support locations. The 20 foot overall length must be considered against the required installed height after embedment.
For pier construction, waterfront structures, marina construction, coastal facility construction, boardwalk structures, and mooring structures, spacing follows the engineered layout. Greater embedment requirements reduce the available exposed piling length.
Safety, Certifications, and Warranty
This piling is manufactured to ASTM D25 standards. It is AWPA certified.
The warranty is 1 year. Installation crews must manage the 550 to 650 pound piling weight during handling, positioning, and direct embed placement.
Frequently Asked Questions
Q: What is the overall length of this piling?
A: The piling has a total length of 20 feet.
Q: What treatment does this piling include?
A: The standard treatment is .60 CCA. Optional treatment levels are .80 CCA, 1.0 CCA, 1.5 CCA, and 2.5 CCA.
Q: What are the piling dimensions at the top and butt area?
A: The minimum top circumference is 25 inches, with a minimum top outside diameter of 8 inches. At 3 feet from the butt, the minimum circumference is 37 inches and the outside diameter is 12 inches.
Q: What installation method is identified for this piling?
A: This piling is intended for direct embed mounting.
Q: What information affects piling layout planning?
A: The 20 foot length, butt dimensions, required embedment, and project structural layout affect piling placement. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Can this piling be used for marina construction?
A: Marina construction is a listed application. Final fit depends on the project treatment requirement, embedment requirement, and structural design.
Q: Is this piling appropriate for pier construction?
A: Pier construction is a listed application. The 20 foot length and Class B construction must align with the project structural requirements.
Q: What should be confirmed before using this piling in coastal facility construction?
A: Confirm the required treatment level, embedment requirement, piling dimensions, and structural layout. The standard treatment is .60 CCA, with higher optional CCA treatment levels available.
