20 / 25 / 30 Wattage Adjustable 2X2 LED Backlit Panel Light | 2500 to 3750 Lumens | 3500K / 4000K / 5000K Adjustable | 100-277V | 4 Pack
This 2X2 LED backlit panel is a strong choice for indoor commercial and industrial spaces with grid ceilings, such as offices, classrooms, retail areas, and corridors, thanks to its selectable wattage (20/25/30W) and color temperature (3500K/4000K/5000K), which allow tailored light levels and appearance for each area. The corrosion-resistant aluminum frame and anti-yellowing polycarbonate lens ensure durability and consistent light quality, while the 0-10V dimming and multiple mounting options support flexible installation and control. It is not suitable for wet or outdoor environments, as it is designed for indoor use within -4°F to 122°F.
Dwayne Kula | President, CTO and Founder
6125 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 20 | 25 | 30 |
| Lumens | 2500 | 3125 | 3750 |
| Lumens Per Watt | 125 |
| Replaces | Fluorescent Troffer |
| Voltage | 100V-277V |
| Color Temperature | 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 110° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Recessed |
| Mounting (Opt) | Chain-Cable or Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
Durable Construction
| Housing | Aluminum Alloy |
| Operating Temperature | -4°F to 122°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 23.75 X 23.75 X 1.25 |
| Weight (lbs) | 4.5 lbs |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 2×2 LED backlit panel light is a wattage-selectable, color-selectable fixture for recessed commercial ceilings. It operates from 100-277V and is supplied in a pack of four fixtures.
The fixture replaces fluorescent troffers with a low-profile 23.75 x 23.75 inch panel format. Recessed mounting is standard, with chain-cable and surface mounting available as optional configurations.
Core Performance and Output
Selectable wattage settings are 20W, 25W, and 30W, producing 2500, 3125, and 3750 lumens. Fixture efficacy is 125 lumens per watt with an 80+ CRI.
The 110 degree beam distribution provides broad ceiling-plane coverage through a polycarbonate lens. Higher output settings can be excessive in smaller rooms or spaces with lower ceilings.
The fixture operates on 100-277V, 50/60Hz electrical systems. Color temperature is selectable between 3500K, 4000K, and 5000K.
Adjustability and Control Options
Wattage adjustment allows the fixture output to be set at 20W, 25W, or 30W before installation. This supports different output requirements within the same ceiling layout.
Color temperature adjustment provides 3500K, 4000K, and 5000K settings. The fixture supports 0-10V dimming.
Longevity and Reliability
The LED system is rated for 50,000 hours at L70. This rating identifies the point at which light output is expected to reach 70 percent of initial output.
The operating temperature range is -4F to 122F. The fixture includes a 5-year warranty.
Build Quality and Physical Characteristics

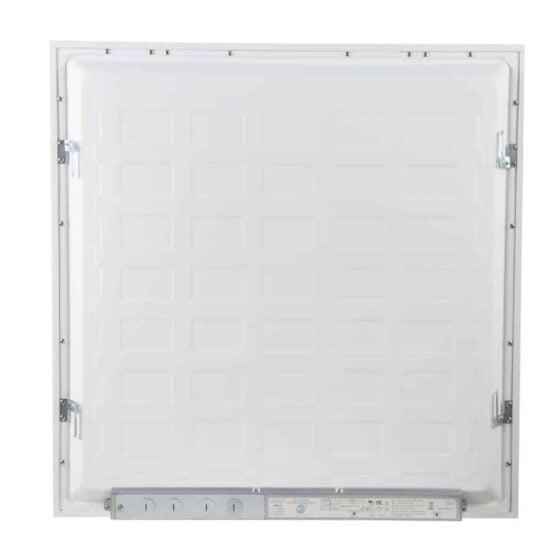

The panel uses an aluminum alloy housing with a white finish and a polycarbonate lens. Fixture dimensions are 23.75 x 23.75 x 1.25 inches.
Each fixture weighs 4.5 pounds. The shallow housing profile is intended for 2×2 recessed ceiling grid installations.
Where This Product Fits Best
This panel light fits interior ceiling applications where a 2×2 recessed fixture, broad distribution, and selectable output are required. Its output range supports common occupied commercial and institutional spaces.
- office lighting
- healthcare facility lighting
- educational facility lighting
- commercial interior lighting
- conference room lighting
- corridor lighting
- reception area lighting
The fixture is rated for operation from -4F to 122F. Recessed mounting is standard, while chain-cable and surface mounting are optional.
Installation and Long-Term Use
Standard installation is recessed mounting in a 2×2 ceiling grid. Chain-cable and surface mounting are optional where recessed installation is not used.
Confirm the selected wattage and color temperature before final fixture placement. The 100-277V input range and 0-10V dimming connection should be matched to the available electrical and control system.
How This Fixture Is Commonly Used
In office lighting, healthcare facility lighting, educational facility lighting, and commercial interior lighting, these panels are typically arranged in ceiling-grid layouts. Mounting height and room configuration affect the final layout.
Conference room lighting, corridor lighting, and reception area lighting often use the selected color temperature to maintain a consistent appearance across the space. Higher wattage settings increase output but can require layout review for lower-ceiling areas.
Safety, Certifications, and Warranty
This fixture is UL listed and rebate eligible.
The warranty period is 5 years. The fixture is supplied in packs of four.
Frequently Asked Questions
Q: What wattage and lumen settings are available?
A: The fixture is selectable at 20W, 25W, or 30W, producing 2500, 3125, or 3750 lumens.
Q: What color temperatures are available?
A: Color temperature is selectable at 3500K, 4000K, or 5000K.
Q: What mounting methods are available?
A: Recessed mounting is standard. Chain-cable and surface mounting are optional.
Q: Does this panel support dimming?
A: Yes. The fixture supports 0-10V dimming.
Q: What should be established before finalizing a fixture layout?
A: Mounting height, selected wattage, target light levels, and layout requirements affect fixture placement. The supplied product data does not establish a specific spacing value or fixture count.
Application Questions and Clarification
Q: Is this fixture appropriate for office lighting and conference room lighting?
A: Office lighting and conference room lighting are valid applications for this panel light. The selectable wattage and color temperature settings allow the fixture configuration to be set for the project requirements.
Q: Can this fixture be used for healthcare facility lighting?
A: Healthcare facility lighting is a valid application. Final fixture selection should account for the required output setting, color temperature setting, mounting method, and layout requirements.
Q: What should be considered for corridor lighting?
A: Corridor lighting is a valid application. Fixture placement depends on the corridor layout, mounting height, selected wattage, and target light levels.
