180 / 240 / 300 Watt Adjustable LED Shoebox Area Light | 27900 to 46500 Lumens | 3000K / 4000K / 5000K Color Adjustable | 100V-277V

Product Overview

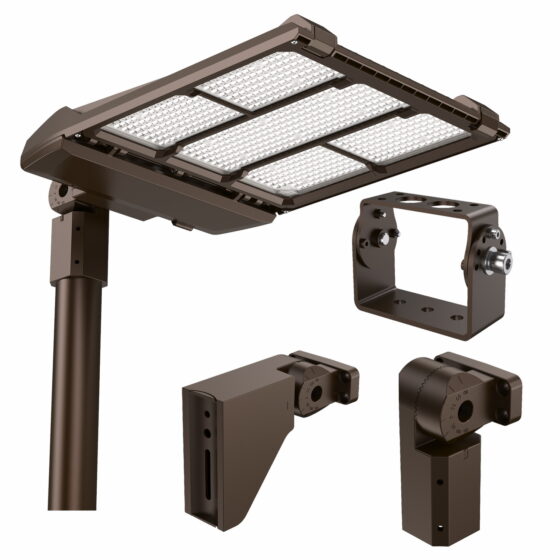

This LED shoebox area light provides selectable wattage settings of 180, 240, or 300 watts, delivering lumen outputs from 27,900 to 46,500. The fixture is designed to replace 1000 watt metal halide systems in exterior and large-area applications.

Color temperature can be set to 3000K, 4000K, or 5000K. The fixture operates on 100V-277V input. A 277V-480V option is available. The standard beam angle is Type 3, with Type 4 and Type 5 optics available as alternatives.

The fixture uses a die-cast aluminum housing with a polycarbonate lens. It is finished in bronze and weighs 14 lbs. Dimensions are 22.6 inches long, 15.9 inches wide, and 2.64 inches high.

Mounting options include yoke, slip fitter, or trunnion. The fixture is rated for 100,000 hours (L70) and includes 10kV line-earth surge protection.

Where This Product Fits Best

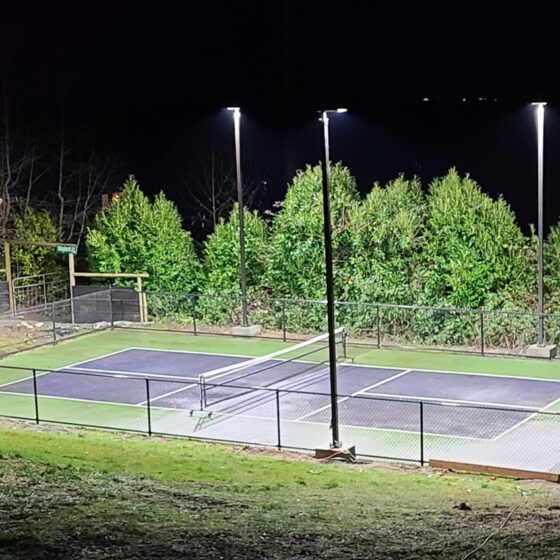

This fixture is suited for outdoor area lighting, parking lots, roadways, and perimeter applications where high-output, long-life LED performance is required. It is also used in commercial and industrial exterior spaces needing a direct replacement for 1000 watt metal halide fixtures.

The adjustable wattage and color temperature allow for adaptation to site-specific requirements, including retrofits and new installations. The available beam angle options support different coverage needs.

With an IP65 rating, the fixture is built for environments exposed to rain, dust, and outdoor conditions. The IK08 rating supports use in locations where moderate impact resistance is needed.

Operating temperature range of -22°F to 122°F allows installation in most climates without additional enclosure or protection.

Performance and Functional Considerations

The fixture delivers 155 lumens per watt across all wattage settings. Power factor is greater than 0.92, and total harmonic distortion is less than 15%.

Selectable wattage and color temperature are set at installation. The fixture does not support dimming. Motion sensor and optional photocell accessories are available for control integration.

Type 3 beam angle is standard, with Type 4 and Type 5 optics available for different distribution requirements. The EPA rating is 1.52, which should be considered for pole and mounting structure selection.

Surge protection is rated at 10kV line-earth, supporting use in areas with frequent electrical disturbances.

Installation and Long-Term Use

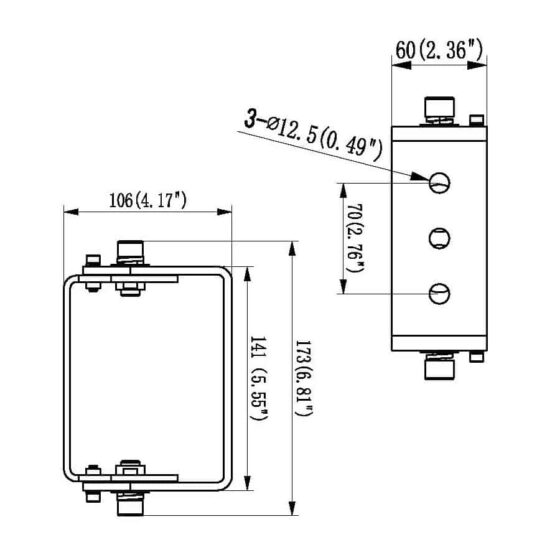

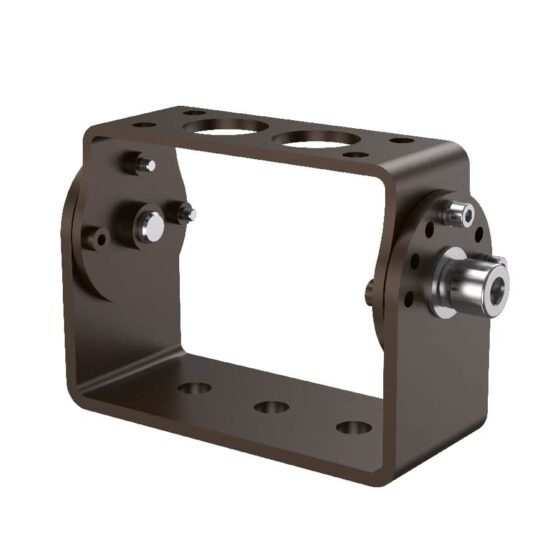

Mounting options include yoke, slip fitter, or trunnion, allowing compatibility with most standard poles and brackets. The fixture weight and dimensions should be confirmed against existing mounting hardware and structural supports.

All adjustments for wattage and color temperature are made during installation. No in-service dimming is supported. The fixture is designed for minimal maintenance over its 100,000 hour rated life.

IP65 rating allows for direct exposure to rain and dust without additional enclosure. IK08 rating provides resistance to moderate impacts from objects or equipment.

Operating temperature range supports use in both hot and cold climates. The die-cast aluminum housing and polycarbonate lens are designed for durability in outdoor environments.

How This Fixture Is Commonly Used

After installation, you can rely on the fixture to provide consistent area lighting with the selected wattage and color temperature. The adjustable settings allow you to match output and appearance to site needs before energizing the fixture.

Once set, the fixture operates at the chosen output and color. No dimming or in-service adjustment is available. If a motion sensor or photocell is installed, the fixture will respond to those controls as configured.

The fixture?s polycarbonate lens and die-cast housing hold up to weather and moderate impacts, reducing the need for frequent inspection or replacement. The IP65 and IK08 ratings mean you can expect the fixture to withstand typical outdoor conditions and incidental contact.

Routine cleaning and periodic checks for debris or lens obstruction are the main ongoing maintenance tasks. The fixture?s long rated life minimizes relamping or replacement cycles.

Safety, Certifications, and Warranty

This fixture is ETL listed and DLC Premium qualified.

IP65 rating allows use in wet and dusty environments. IK08 rating provides resistance to moderate impacts.

Surge protection is rated at 10kV line-earth. The fixture is designed for safe operation within the specified voltage range and environmental conditions.

LED Lighting Supply provides a 5-year warranty on this fixture.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100V-277V. A 277V-480V option is available.

What is the output range?
The fixture provides selectable outputs of 27,900, 37,200, or 46,500 lumens, depending on the wattage setting.

What environmental ratings apply?
This fixture is rated IP65 for wet and dusty environments and IK08 for moderate impact resistance.

What mounting methods are supported?
Yoke, slip fitter, and trunnion mounting options are available.

What certifications does this fixture carry?
This fixture is ETL listed and DLC Premium qualified.

What is the warranty period?
LED Lighting Supply provides a 5-year warranty.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
