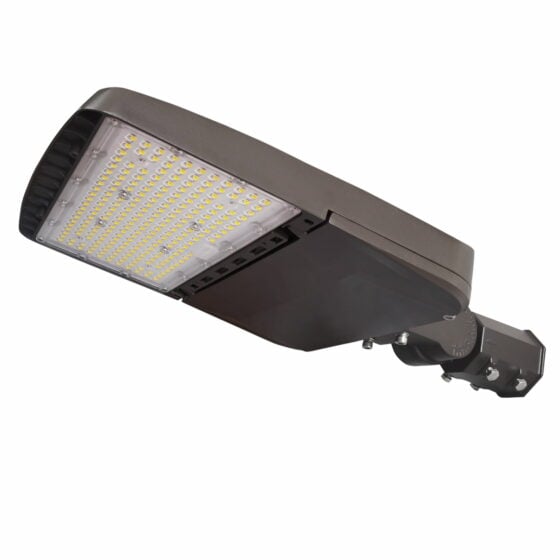

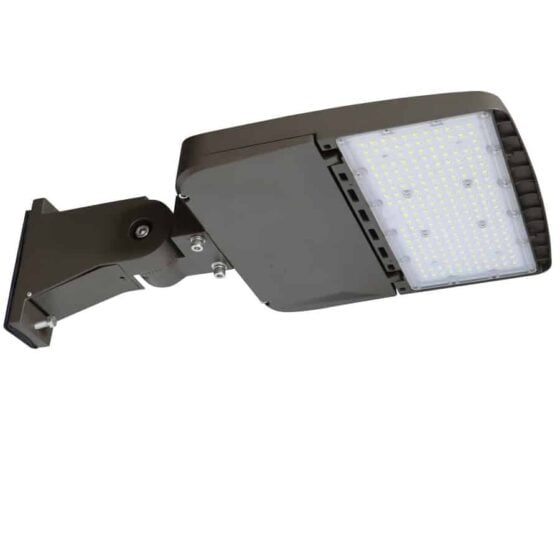

170 / 200 / 220 / 240 Watt Adjustable LED Shoebox | 26000 to 36720 Lumens | 3000K / 4000K / 5000K | 100-277V

Product Overview

This is an adjustable wattage LED shoebox fixture designed for exterior area and site lighting. It delivers selectable output from 170 to 240 watts, with lumen packages ranging from 26,000 to 36,720 lumens. Color temperature can be set to 3000K, 4000K, or 5000K at installation. Typical use includes mounting on poles or arms in parking lots, commercial sites, and sports courts, replacing 400W to 1000W metal halide fixtures.

The fixture is suitable for mounting heights from 18 to 35 feet, depending on output selection and site requirements. It is engineered for outdoor environments requiring consistent, high-output illumination and long-term reliability.

Core Performance and Output

This shoebox light provides four selectable wattage settings: 170W, 200W, 220W, and 240W. Maximum delivered output is 36,720 lumens at 240W, with an efficacy of 153 lumens per watt. The Type 3 distribution is designed for roadway, parking lot, and perimeter area coverage, supporting uniform horizontal illumination.

Color temperature can be field-set to 3000K, 4000K, or 5000K. The fixture operates on 100-277V input and maintains a power factor above 0.90 with THD below 15%. Output at the highest wattage is best suited for mounting heights above 25 feet; at lower heights, glare or excessive brightness may occur. Uniformity may decrease at mounting heights above 35 feet, depending on pole spacing and site layout.

Adjustability and Control Options

Both wattage and color temperature are adjustable via onboard switches, allowing field selection during installation or maintenance. This supports adaptation to site-specific requirements or future changes in lighting needs. The fixture does not include dimming capability.

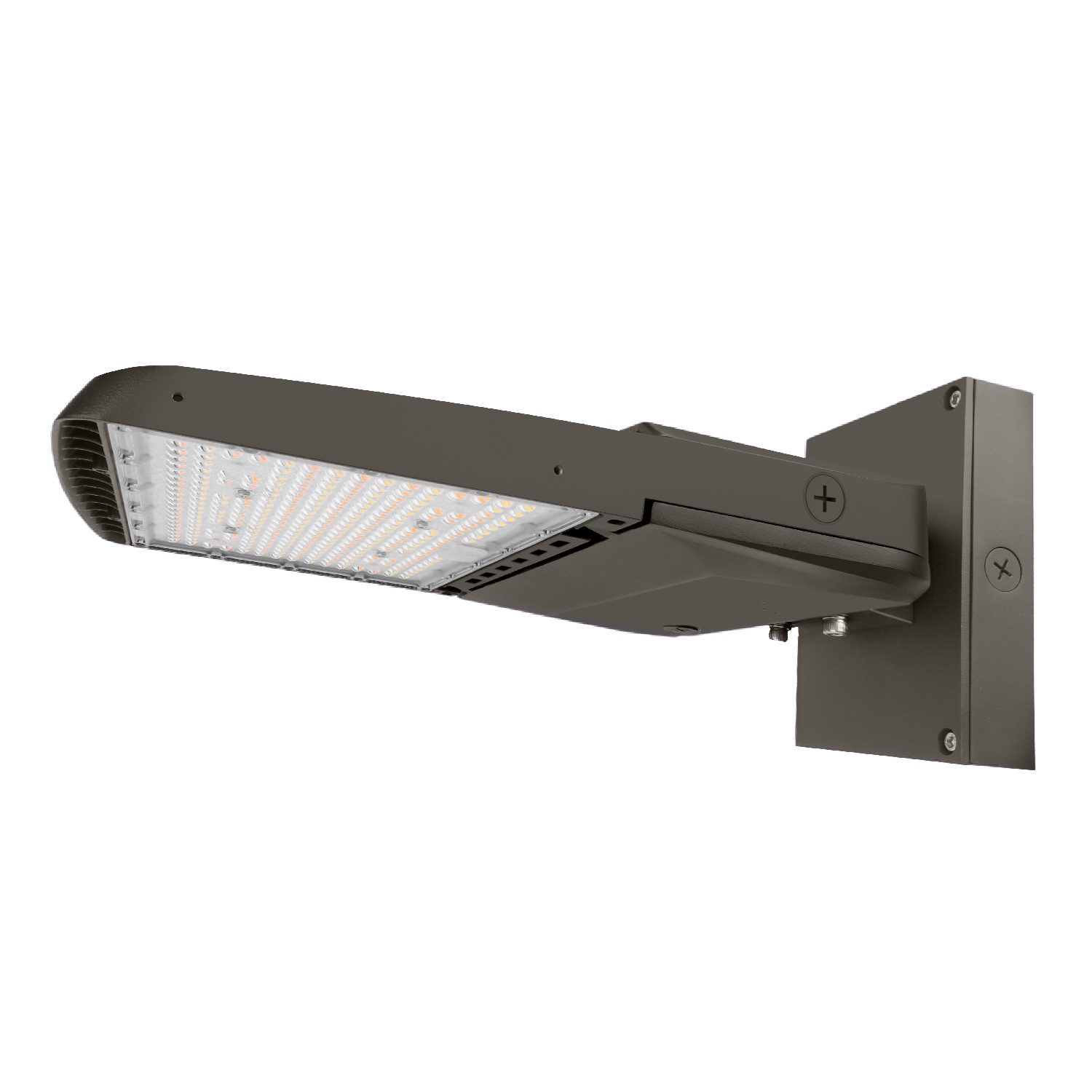

Mounting options include yoke, arm, or slip fitter, supporting compatibility with a range of pole and bracket types. An optional photocell is available for dusk-to-dawn operation. No integrated motion sensing or networked controls are included.

Longevity and Reliability

The fixture is rated for 100,000 hours (L70) and includes a 5-year warranty. The die-cast aluminum housing and polycarbonate lens provide long-term durability in outdoor environments. Surge protection is rated at 10kV, supporting operation in areas with frequent electrical disturbances.

IP65 ingress protection ensures resistance to dust and water jets, suitable for exposed exterior mounting. The fixture operates in ambient temperatures from -40°F to 113°F. No routine internal maintenance is required beyond periodic lens cleaning and inspection of mounting hardware.

Build Quality and Physical Characteristics

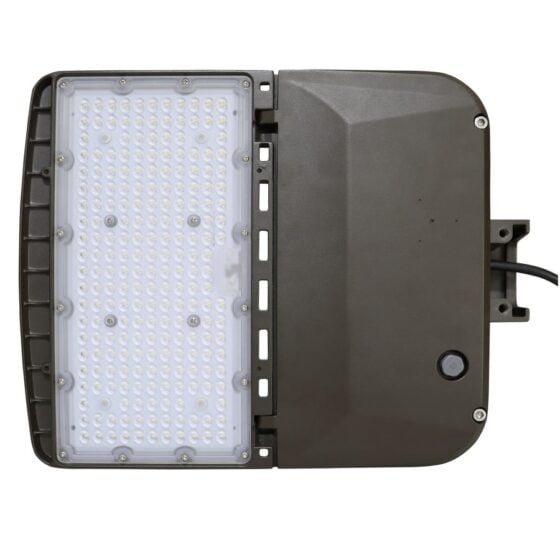

The housing is constructed from die-cast aluminum with a bronze finish. The fixture measures 16 x 11.8 x 3 inches and weighs 9.1 lbs. The polycarbonate lens is impact-resistant and designed for outdoor use. The EPA rating is 1.4, supporting use on standard area lighting poles with appropriate wind load calculations.

All mounting hardware is designed for compatibility with common pole and bracket types. The fixture is UL listed and DLC Premium qualified. No external driver box is required; all components are integrated within the housing.

Where This Product Fits Best

This adjustable LED shoebox is intended for exterior area lighting in commercial and institutional environments. It is commonly installed on poles or arms for large parking lots, site perimeters, and outdoor sports courts. The selectable output and color temperature support adaptation to a range of site conditions and lighting standards.

• parking lot lighting
• area lighting
• commercial site lighting
• roadway perimeter lighting
• tennis court lighting
• pickleball court lighting
• horse arena lighting
• dealership lighting

Suitable for outdoor environments exposed to weather, dust, and temperature variation. Not intended for enclosed or hazardous locations. EPA and wind load must be considered for pole selection and installation.

Installation and Long-Term Use

The fixture supports yoke, arm, or slip fitter mounting for compatibility with round or square poles and wall brackets. All wiring is accessible via a rear compartment. Field adjustment of wattage and color temperature is performed before energizing the fixture.

Periodic inspection of mounting hardware and cleaning of the lens are recommended for optimal performance. The fixture is designed for minimal maintenance over its rated life. Photocell installation, if required, is performed at the time of mounting. Ensure pole and foundation are rated for the fixture?s EPA and weight, especially in high-wind regions.

How This Fixture Is Commonly Used

Typical mounting heights range from 18 to 35 feet, depending on output setting and site requirements. Fixtures are spaced to achieve uniform coverage, with pole spacing typically between 3 to 5 mounting heights apart for parking lots and area lighting. For sports courts, layout is determined by court dimensions and required light levels.

Higher output settings reduce the number of fixtures needed but may increase glare if not properly aimed or shielded. Adjustments to wattage and color temperature are made during installation to match site conditions or user preference.

Safety, Certifications, and Warranty

This fixture is UL listed and DLC Premium qualified. It is IP65 rated for outdoor use and includes 10kV surge protection. The housing and lens are designed for impact resistance and weather exposure.

Operating temperature range is -40°F to 113°F. The product includes a 5-year warranty covering manufacturing defects and performance. All safety and certification markings are present on the fixture label.

Frequently Asked Questions

Q: What is the recommended mounting height for this fixture?

A: Recommended mounting height is 18 to 35 feet, depending on wattage setting and site requirements.

Q: Can the wattage and color temperature be changed after installation?

A: Yes, both wattage and color temperature are adjustable via onboard switches, but adjustments should be made with power off.

Q: Is this fixture compatible with existing metal halide pole arms?

A: The fixture supports yoke, arm, or slip fitter mounting and is compatible with most standard pole arms used for metal halide fixtures.

Q: Does this fixture support dimming or motion controls?

A: No, this model does not include dimming or integrated motion controls. An optional photocell is available for dusk-to-dawn operation.

Q: How should fixture spacing be planned for parking lot layouts?

A: Spacing is typically 3 to 5 times the mounting height, depending on output setting and required light levels. Site photometric analysis is recommended for precise layout.

Application Questions and Clarification

Q: Is this fixture suitable for tennis court or pickleball court lighting?

A: Yes, this fixture is commonly used for tennis and pickleball court lighting when mounted at appropriate heights and spaced for uniform coverage.

Q: Can this fixture be used for dealership or campus area lighting?

A: Yes, it is suitable for dealership lighting and campus area lighting, provided mounting height and pole selection match site requirements.

Q: Is this fixture appropriate for horse arena lighting?

A: Yes, this fixture is used in horse arena lighting applications, with output and layout adjusted to meet required light levels and minimize glare.

Q: What environmental conditions is this fixture rated for?

A: The fixture is IP65 rated and operates from -40°F to 113°F, suitable for most outdoor environments except hazardous or enclosed locations.
