240 / 260 / 280 / 310 Watt Adjustable LED Shoebox Light | 36720 to 47430 Lumens | 3000K / 4000K / 5000K | 100-277V | Black or White
This adjustable LED shoebox fixture is a strong choice for exterior and large-area lighting where reliable, high-output illumination is needed. Its selectable wattage (240-310W) and color temperature (3000K, 4000K, 5000K) allow adaptation to site-specific requirements, while the Type 3 distribution delivers effective lateral coverage for parking lots, roadways, and perimeter areas. The IP65 rating, die-cast aluminum housing, and 10kV surge protection ensure durability in harsh outdoor environments. With DLC Premium and UL listing, plus multiple mounting options, it suits most commercial installations.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 240 | 260 | 280 | 310 |
| Lumens | 36720 | 39780 | 42840 | 47430 |
| Lumens Per Watt | 153 |
| Replaces | 1000 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 100,000 (L70) hours |
| Mounting (Opt) | Yoke or Arm or Slip Fitter |
| EPA Rating | 1.7 |

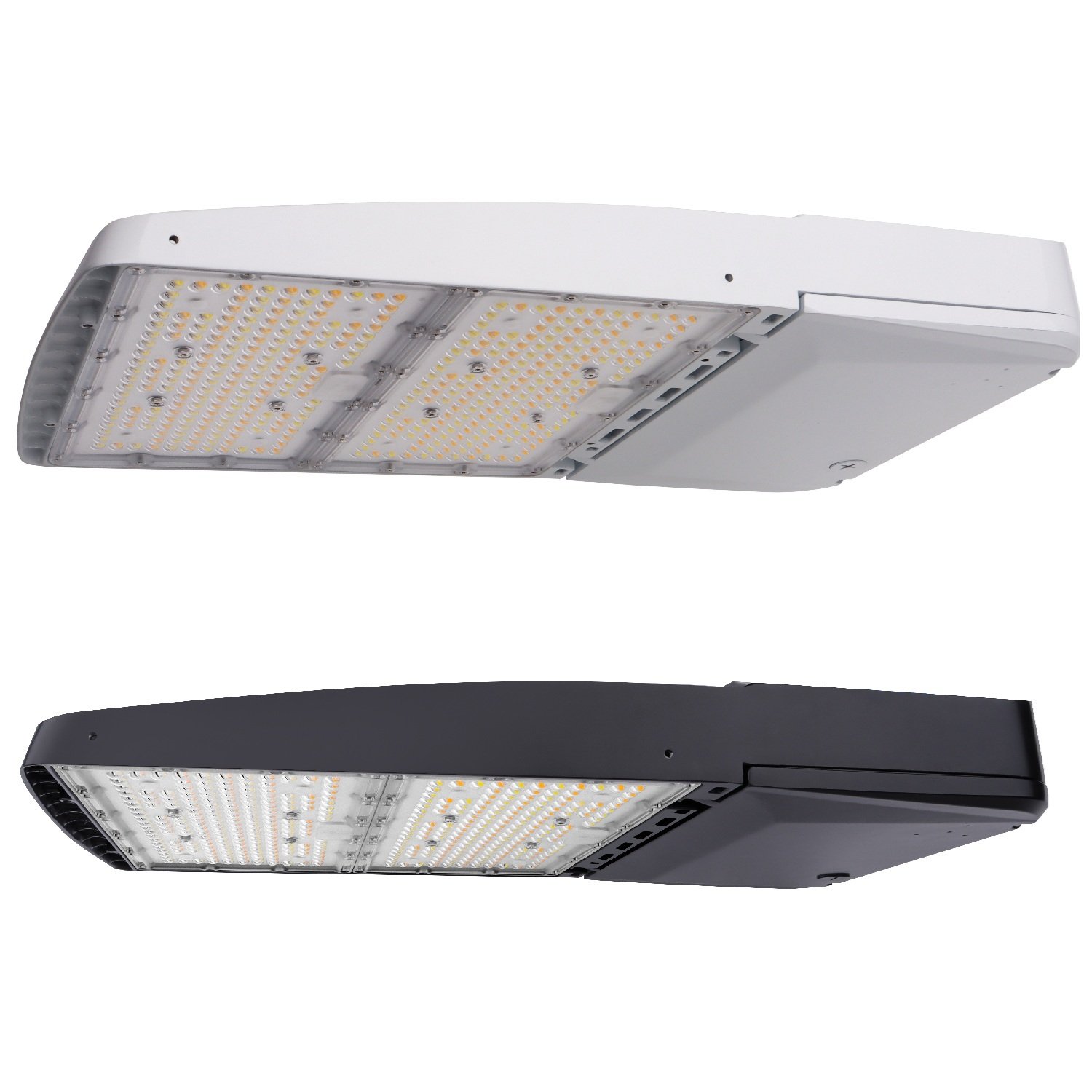

| Fixture Color | Black or White |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
| THD | < 15% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 22 H X 11.8 W X 3 D |
| Weight (lbs) | 11.3 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Optional Photocell
Product SKU Variations
- SKU: LLS-X-SB4-310/280/260/240-CC-BK
- SKU: LLS-X-SB4-310/280/260/240-CC-W
Download IES Files
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview
This adjustable LED shoebox light provides 36,720 to 47,430 lumens with selectable wattage and color temperature settings. It is configured for pole-mounted outdoor lighting where output, color temperature, and fixture finish may need to be set during installation.
The fixture replaces 1000 watt metal halide lighting in parking lot lighting, area lighting, commercial site lighting, and tennis court lighting. Available yoke, arm, and slip fitter mounts support different pole and structure configurations.
Core Performance and Output
Selectable wattage settings include 240W, 260W, 280W, and 310W. Output ranges from 36,720 to 47,430 lumens at 153 lumens per watt, with 3000K, 4000K, and 5000K color temperature settings.
The standard Type 3 distribution directs light outward from the mounting point for roadway perimeter lighting and site layouts. Higher output can reduce fixture count, but it can also create excessive light at lower mounting heights if the layout is not reviewed.
This fixture operates on 100-277V, 50/60Hz power with a power factor greater than 0.90 and THD below 15%. It is not dimmable.
Adjustability and Control Options
Field-adjustable wattage allows the fixture output to be set at 240W, 260W, 280W, or 310W. Color temperature is adjustable between 3000K, 4000K, and 5000K.
An optional photocell is available for daylight-responsive operation. The fixture does not include dimming capability, so lighting control requirements should be confirmed before installation.
Longevity and Reliability
The rated lifespan is 100,000 hours at L70. A 10kV surge protection device is included for electrical surge protection.
The operating temperature range is -40F to 113F. The fixture carries a 5-year warranty.
Build Quality and Physical Characteristics

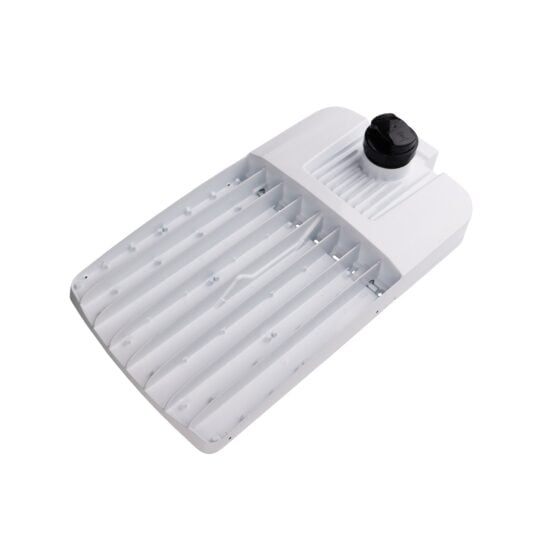

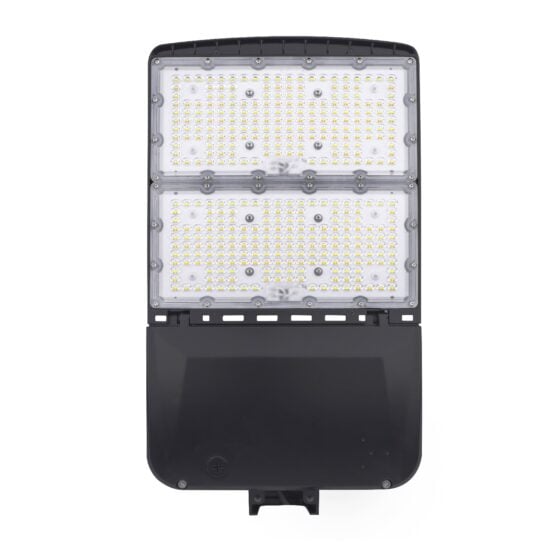

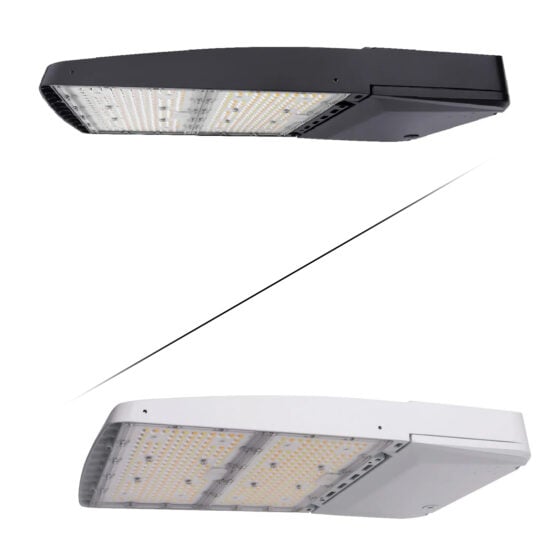

The housing is die-cast aluminum with a polycarbonate lens. The fixture is IP65 rated and is available in black or white.
Overall dimensions are 22 inches high by 11.8 inches wide by 3 inches deep. Fixture weight is 11.3 pounds, and the EPA rating is 1.7.
Where This Product Fits Best
This shoebox light fits outdoor pole-mounted layouts that require high-output Type 3 distribution. Its adjustable output and color temperature support site lighting plans with different perimeter and area-lighting conditions.
- parking lot lighting
- commercial site lighting
- area lighting
- roadway perimeter lighting
- tennis court lighting
- pickleball court lighting
- campus lighting
- industrial yard lighting
The IP65 enclosure, die-cast aluminum housing, and -40F to 113F operating range support outdoor exposure. Pole and mounting structure selection must account for the 1.7 EPA rating.
Installation and Long-Term Use

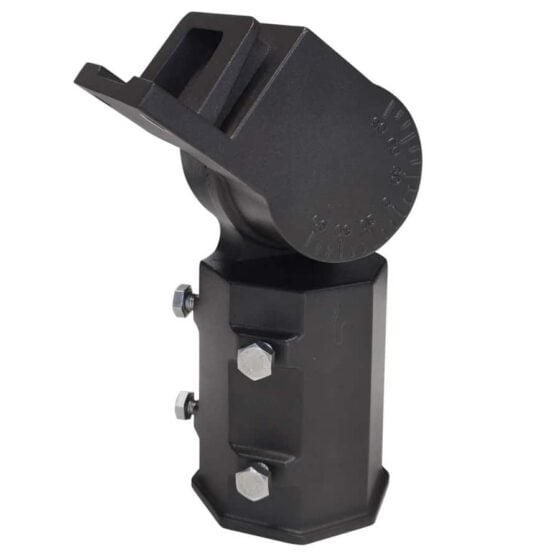

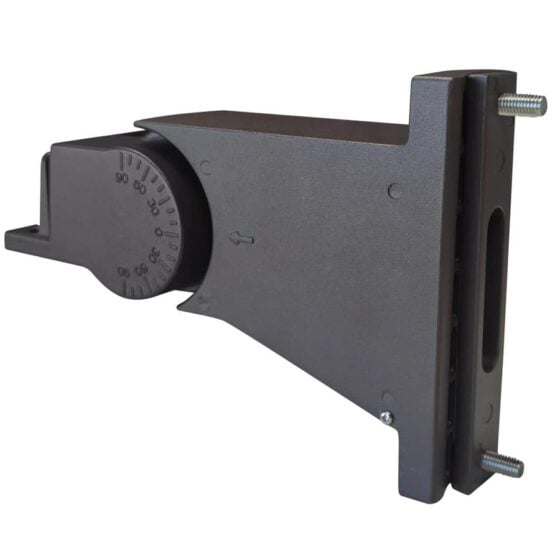

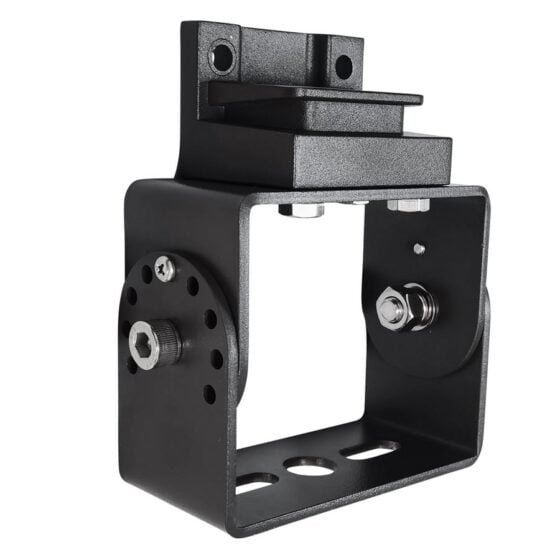

Yoke, arm, and slip fitter mounting options allow the fixture to be configured for different mounting arrangements. The selected mount must match the pole, tenon, or mounting surface provided for the project.
Set wattage and color temperature before final commissioning. Verify supply voltage is within the 100-277V operating range and confirm whether the optional photocell is required.
How This Fixture Is Commonly Used
For parking lot lighting, commercial site lighting, and roadway perimeter lighting, fixtures are arranged along poles to project the Type 3 distribution outward from the mounting location. Mounting height and pole placement determine the final coverage pattern.

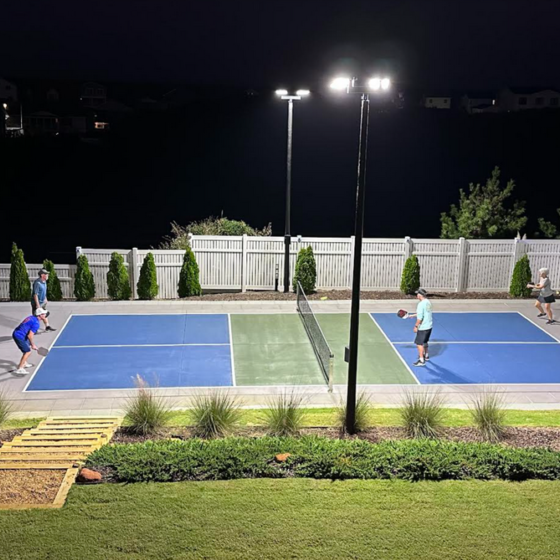

For tennis court lighting and pickleball court lighting, layouts need to account for fixture orientation, output setting, and target light levels. Higher wattage can reduce fixture count, but the final layout must control glare and uniformity.
Safety, Certifications, and Warranty
UL listed. DLC Premium listed.
The fixture is IP65 rated and includes 10kV surge protection. Warranty coverage is 5 years.
Frequently Asked Questions
Q: What wattage settings are available?
A: The fixture is adjustable between 240W, 260W, 280W, and 310W.
Q: What color temperatures can be selected?
A: Available color temperature settings are 3000K, 4000K, and 5000K.
Q: Which mounting options are available?
A: Available mounting options are yoke, arm, and slip fitter.
Q: How should fixture layout be planned?
A: Mounting height, pole placement, output setting, Type 3 distribution, and target light levels affect the layout. The supplied data does not establish a specific spacing distance or fixture quantity.
Application Questions and Clarification
Q: Can this fixture be used for parking lot lighting and commercial site lighting?
A: Parking lot lighting and commercial site lighting are listed applications for this shoebox light. Final placement depends on mounting height, pole location, output setting, and lighting requirements.
Q: What should be reviewed for tennis court lighting or pickleball court lighting?
A: Review fixture orientation, mounting height, output setting, Type 3 distribution, and target light levels. The supplied product data does not establish a specific fixture layout for either application.
Q: Does this fixture support dimming controls?
A: No. This fixture is not dimmable. An optional photocell is available.
