240 / 260 / 280 / 310 Watt Adjustable LED Shoebox Light | 36720 to 47430 Lumens | 3000K / 4000K / 5000K | 100-277V or 277-480V
240 | 260 | 280 | 310 Wattage Adjustable LED shoebox light – parking lot light has durable die-cast one-piece aluminum housing that is powder coated with strong anti-corrosion performance for years of maintenance-free lighting. This LED parking lot light ships with NEMA Socket and Shortening Cap.
Neil Peterson | CEO and Chief Lighting Specialist
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 240 | 260 | 280 | 310 |
| Lumens | 36720 | 39780 | 42840 | 47430 |
| Lumens Per Watt | 153 |
| Replaces | 1000 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 100,000 (L70) hours |
| Mounting (Opt) | Wall or Yoke or Arm or Slip Fitter |
| EPA Rating | 1.7 |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
| THD | < 15% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 22 H X 11.8 W X 3 D |
| Weight (lbs) | 11.3 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Optional Photocell
Product SKU Variations
- SKU: LLS-X-SB4-310/280/260/240-CC
- SKU: LLS-X-SB4-310/280/260/240-CC-HV
Download IES Files
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview
This adjustable LED shoebox light provides 240W, 260W, 280W, or 310W output with selectable 3000K, 4000K, or 5000K color temperature settings. It is configured for pole-mounted and structure-mounted area lighting with Type 3 distribution.
The fixture produces 36,720 to 47,430 lumens and is listed as a 1000W metal halide replacement. Wall, yoke, arm, and slip fitter mounting options support different installation conditions.
Core Performance and Output
Selectable wattage settings produce 36,720, 39,780, 42,840, or 47,430 lumens at 153 lumens per watt. The Type 3 distribution directs light outward for roadway perimeter lighting, parking lot lighting, and commercial site lighting layouts.
The fixture operates on 100-277V or 277-480V, 50/60Hz power. Power factor is greater than 0.90 and THD is less than 15%. Higher output settings can create excessive light levels where mounting heights are limited.
Adjustability and Control Options

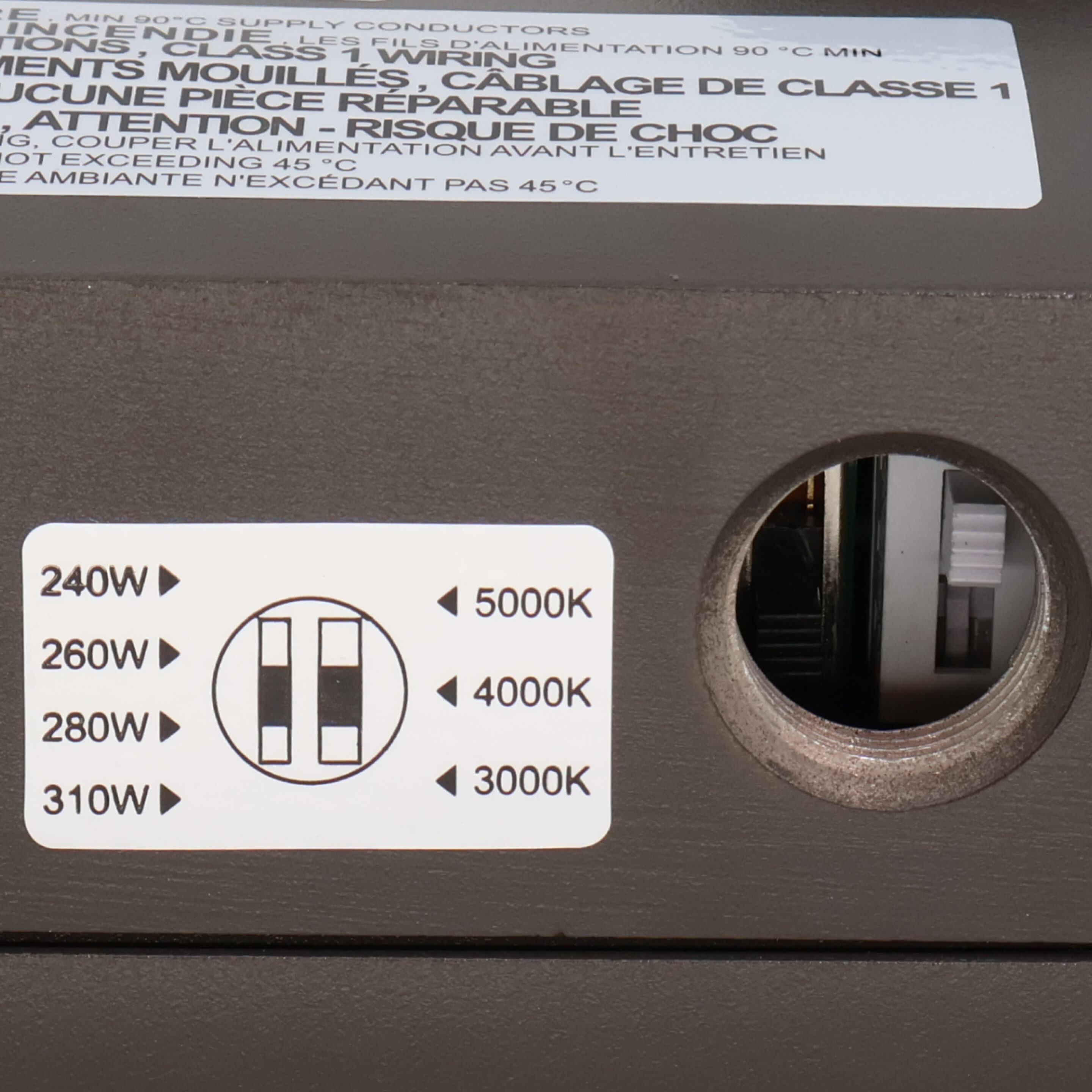

Field-adjustable wattage allows output selection from 240W through 310W. Field-adjustable color temperature allows selection of 3000K, 4000K, or 5000K before commissioning.
This fixture is non-dimming. An optional photocell is available for automatic on-off operation based on ambient light conditions.
Longevity and Reliability
The rated L70 life is 100,000 hours. A 10kV surge protection device is included for electrical transient protection.
The operating temperature range is -40F to 113F. Long-term performance depends on maintaining the electrical connection, mounting assembly, and lens condition.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a bronze finish. A polycarbonate lens protects the optical assembly.
The fixture is IP65 rated. It measures 22 inches high by 11.8 inches wide by 3 inches deep and weighs 11.3 pounds.
Where This Product Fits Best
This shoebox light fits higher-output parking, perimeter, court, and commercial site lighting layouts where Type 3 distribution and selectable output are required.
- parking lot lighting and commercial site lighting
- roadway perimeter lighting and area lighting
- tennis court lighting and pickleball court lighting
- campus lighting and municipal site lighting
- industrial yard lighting
The IP65-rated enclosure, -40F to 113F operating range, and die-cast aluminum housing support installations exposed to weather and changing seasonal conditions.
Installation and Long-Term Use

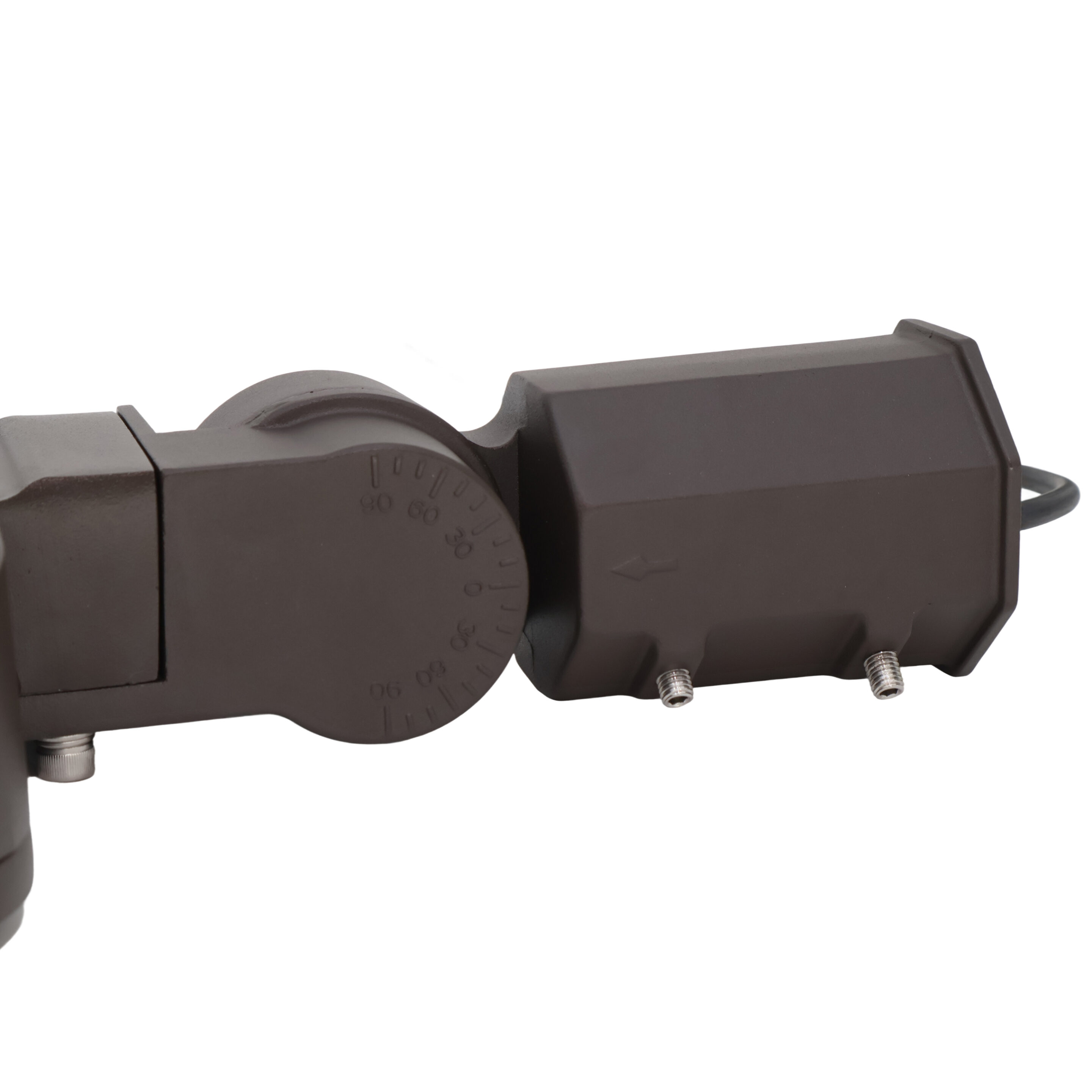

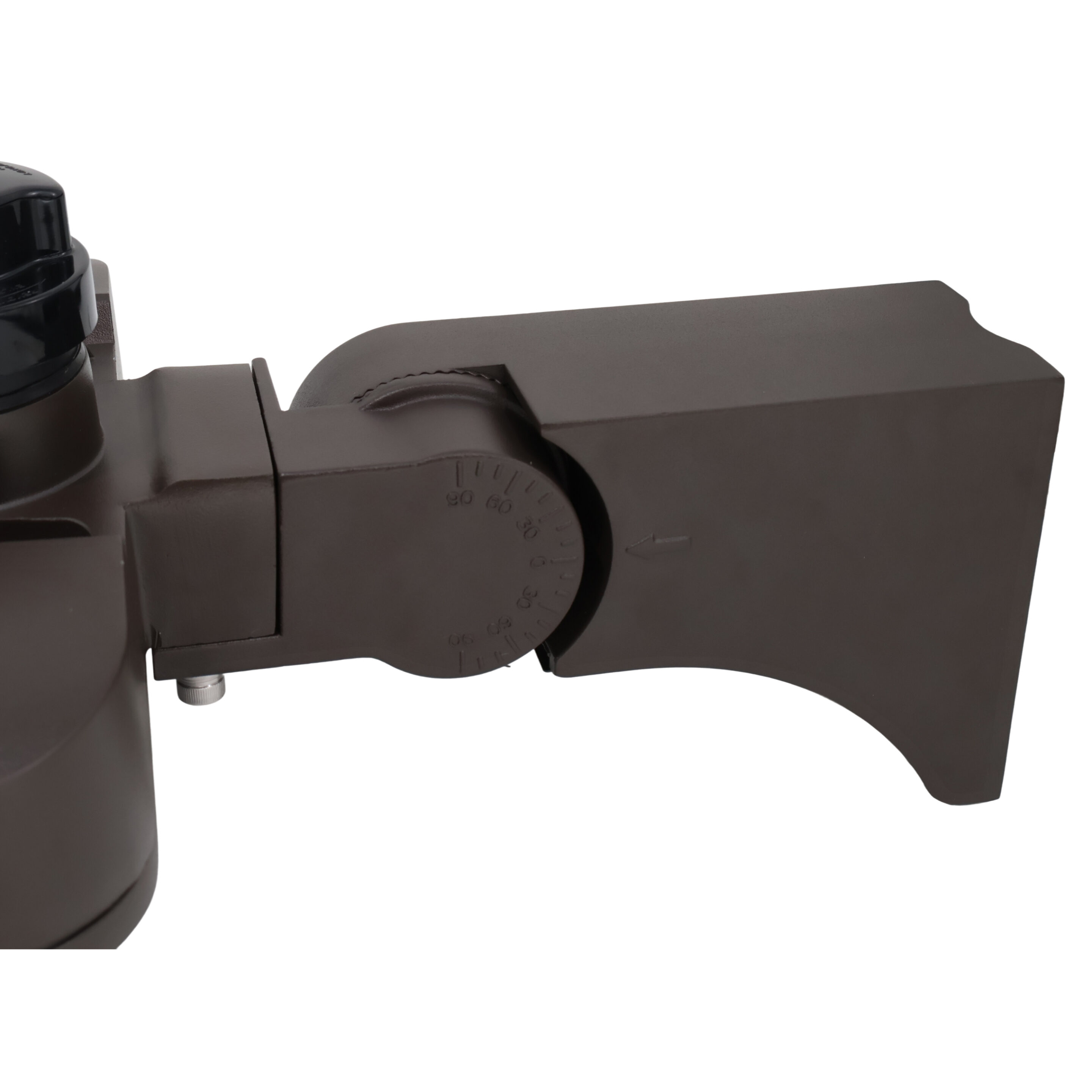

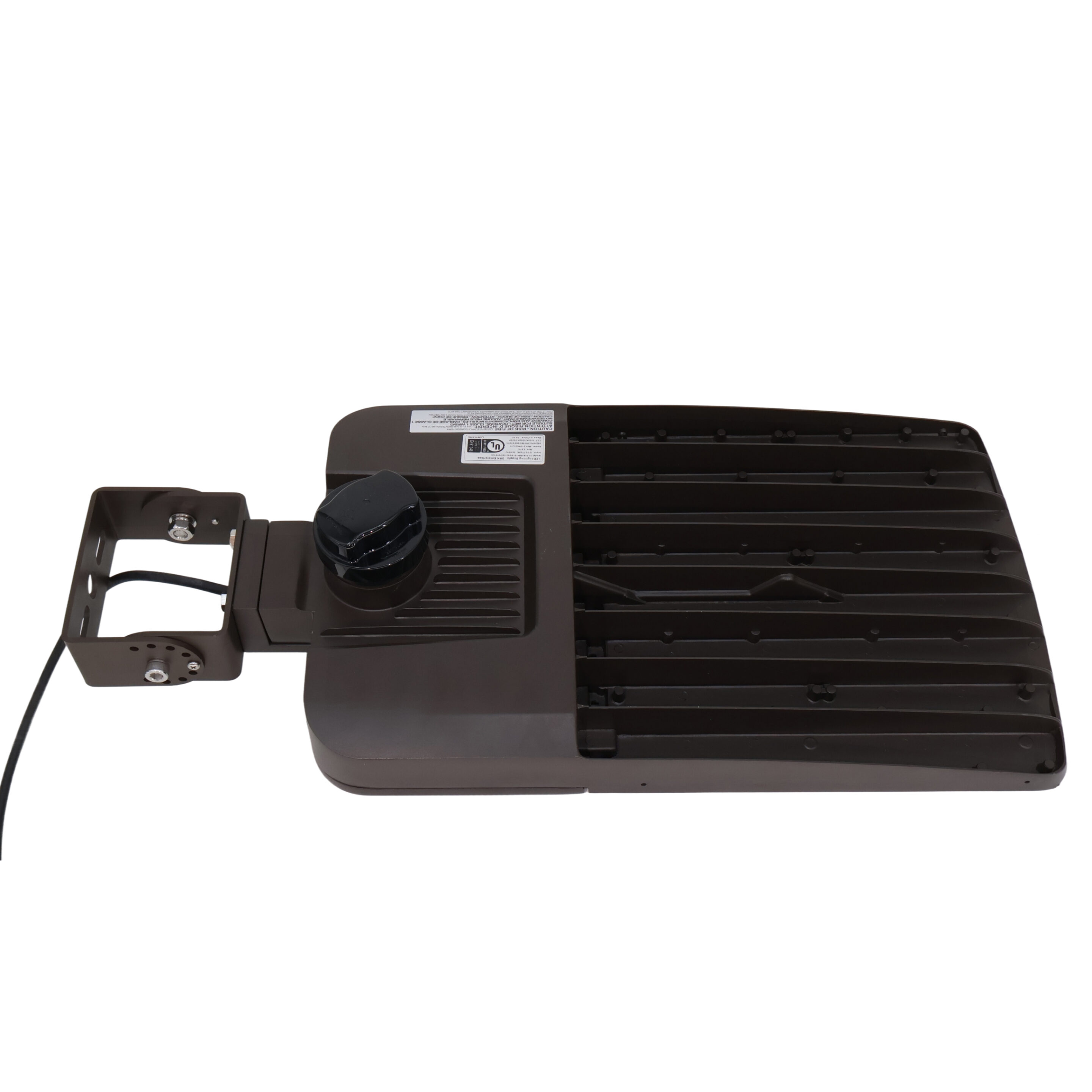

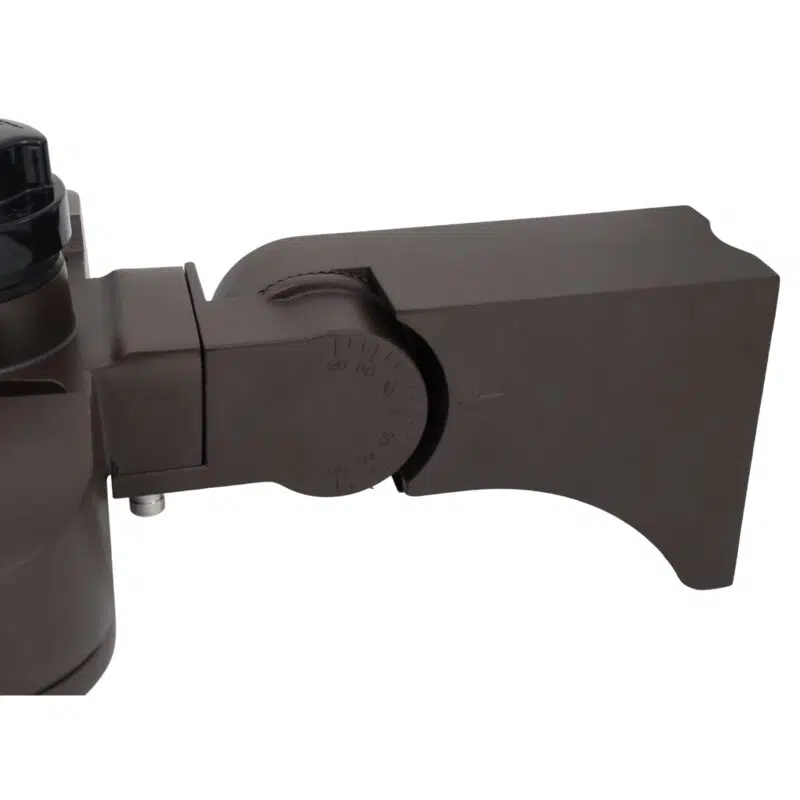

Wall, yoke, arm, and slip fitter mounting options allow the fixture to match the existing support structure and aiming requirement. The selected mount must support the 11.3-pound fixture weight and EPA rating of 1.7.
Set wattage and color temperature before final installation and commissioning. Verify the available supply voltage matches the selected 100-277V or 277-480V configuration.
How This Fixture Is Commonly Used
For parking lot lighting, commercial site lighting, and roadway perimeter lighting, fixtures are commonly arranged along vehicle paths, perimeter edges, and pole lines. Mounting height is coordinated with pole height, Type 3 distribution, and required light coverage.
For tennis court lighting and pickleball court lighting, fixture placement is coordinated around the court layout to control direction and coverage. Higher wattage can reduce fixture count, but the final layout must account for glare and target light levels.
Safety, Certifications, and Warranty
This fixture is UL listed and DLC Premium listed. It is IP65 rated.
The fixture includes a 5-year warranty. The housing is die-cast aluminum and the lens is polycarbonate.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture has 240W, 260W, 280W, and 310W selectable wattage settings. Output ranges from 36,720 to 47,430 lumens.
Q: What color temperatures are available?
A: The selectable color temperatures are 3000K, 4000K, and 5000K.
Q: Which mounting options are available?
A: Wall, yoke, arm, and slip fitter mounting options are available.
Q: How should fixture layout be planned for parking lot lighting?
A: Layout planning should account for mounting height, Type 3 distribution, selected wattage, target light levels, and site geometry. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture configured for tennis court lighting and pickleball court lighting?
A: Tennis court lighting and pickleball court lighting are valid applications for this shoebox light. Final placement depends on the court layout, selected wattage, and light level requirements.
Q: What should be confirmed before selecting the voltage configuration?
A: Confirm whether the installation has 100-277V or 277-480V supply power. The fixture is available in either voltage configuration.
Q: When is the optional photocell relevant?
A: The optional photocell can be used where automatic on-off operation based on ambient light conditions is required.
