80 / 100 / 120 / 150 Watt Adjustable LED Shoebox | 12240 to 22950 Lumens | 3000K / 4000K / 5000K | 100-277V | Black or White

Product Overview

This adjustable LED shoebox fixture is designed for exterior area and site lighting where precise output and color control are required. It supports selectable wattages of 80, 100, 120, or 150 watts and delivers up to 22,950 lumens. Typical installations include parking lots, commercial sites, and perimeter roadways, often as a direct replacement for 400W metal halide fixtures. The fixture is available in black or white and supports multiple mounting options for retrofit or new installations.

Color temperature can be set to 3000K, 4000K, or 5000K at the time of installation. The housing is IP65 rated for outdoor use and includes integrated surge protection. This model is UL and DLC Premium listed, supporting use in regulated environments where certification is required.

Core Performance and Output

This fixture provides selectable output from 12,240 to 22,950 lumens, with a maximum efficacy of 153 lumens per watt. The Type 3 distribution is suited for area and roadway perimeter lighting, providing broad lateral coverage with controlled forward throw. Power factor exceeds 0.95 and THD is below 15%, supporting stable operation on 100-277V circuits.

Output levels are suitable for mounting heights from 15 to 30 feet. At lower mounting heights, the highest wattage setting may produce excessive brightness or glare. Uniformity may decrease if spacing exceeds typical pole-to-pole distances for area lighting layouts.

Adjustability and Control Options

Wattage and color temperature are field adjustable using onboard switches, allowing tuning for site-specific requirements or energy management. The fixture does not support dimming but can be equipped with a photocell for dusk-to-dawn operation. Mounting options include yoke, arm, or slip fitter, supporting retrofit and new pole installations.

Adjustability supports phased upgrades or changes in site use without replacing the fixture. All adjustments are made at the fixture and require access during installation or maintenance.

Longevity and Reliability

The fixture is rated for 100,000 hours (L70) and includes a 5-year warranty. The die-cast aluminum housing and polycarbonate lens provide resistance to impact and weather exposure. Integrated 10kV surge protection is included for electrical reliability in outdoor environments.

Operating temperature range is -40°F to 113°F. No routine re-lamping is required. Periodic cleaning of the lens and inspection of mounting hardware is recommended for long-term performance.

Build Quality and Physical Characteristics

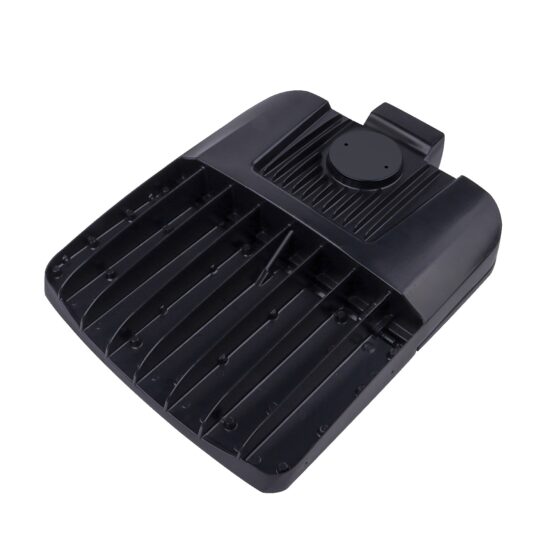

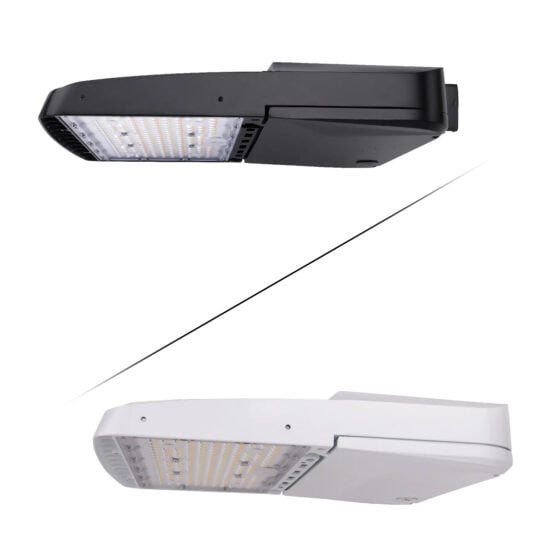

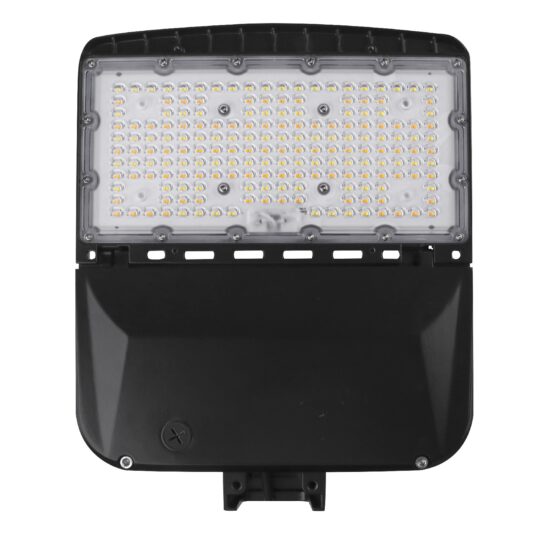

The fixture measures 14 inches long by 11.8 inches wide and 3 inches high, with a weight of 7.2 lbs. The housing is die-cast aluminum with a powder-coated finish in black or white. The polycarbonate lens is impact resistant and UV stabilized.

IP65 rating supports use in wet locations. The fixture?s EPA rating is 1.35, suitable for most standard area lighting poles. All mounting hardware is corrosion resistant for outdoor use.

Where This Product Fits Best

This shoebox fixture is intended for exterior area lighting in commercial and municipal environments. It is commonly deployed for new installations or as a retrofit for legacy HID fixtures on existing poles. The adjustable output and color temperature support a range of site requirements, from parking lots to sports courts and perimeter roadways.

• parking lot lighting
• area lighting
• commercial site lighting
• roadway perimeter lighting
• tennis court lighting
• pickleball court lighting
• horse arena lighting
• dealership lighting

Suitable for outdoor use in environments exposed to rain, dust, and temperature extremes. Not intended for hazardous or marine environments.

Installation and Long-Term Use

The fixture supports yoke, arm, or slip fitter mounting for compatibility with square or round poles. Typical installation involves mounting at heights between 15 and 30 feet, with spacing determined by site layout and required light levels. The adjustable wattage and color temperature allow tuning during commissioning or future site changes.

Routine maintenance is limited to lens cleaning and periodic inspection of mounting hardware. Photocell accessory can be installed for automatic dusk-to-dawn operation. All adjustments require access to the fixture housing.

How This Fixture Is Commonly Used

Commonly installed on steel or aluminum poles in parking lots, commercial campuses, and dealership lots. Mounting heights typically range from 18 to 28 feet, with pole spacing based on output setting and site geometry. Type 3 optics are used to provide wide lateral coverage along drive lanes or lot perimeters.

Fixture count can be reduced by using higher wattage settings, but this may increase glare or require careful aiming. Spacing and layout should be confirmed based on site photometric analysis and local requirements.

Safety, Certifications, and Warranty

This fixture is UL listed and DLC Premium qualified. It is IP65 rated for wet locations and includes 10kV surge protection. The housing and lens are designed for outdoor durability and impact resistance.

Warranty coverage is 5 years from date of installation. All certifications and ratings are documented for code compliance and utility rebate eligibility.

Frequently Asked Questions

Q: What is the recommended mounting height for this fixture?

A: Typical mounting heights range from 15 to 30 feet, depending on the selected wattage and site requirements.

Q: Can the wattage and color temperature be changed after installation?

A: Yes, both wattage and color temperature are field adjustable at the fixture. Access to the housing is required for adjustments.

Q: Is this fixture compatible with existing metal halide pole arms?

A: The fixture supports yoke, arm, or slip fitter mounting and is compatible with most standard pole arms used for 400W metal halide fixtures.

Q: Does this fixture support dimming controls?

A: No, this model does not support dimming. It can be equipped with a photocell for dusk-to-dawn operation.

Q: What is the EPA rating and how does it affect pole selection?

A: The fixture has an EPA rating of 1.35. Ensure the total EPA on the pole does not exceed the pole?s wind load rating.

Q: How should fixture spacing be determined for parking lot layouts?

A: Spacing depends on mounting height, output setting, and required light levels. Photometric analysis is recommended for precise layout.

Application Questions and Clarification

Q: Is this fixture suitable for tennis court or pickleball court lighting?

A: Yes, the adjustable output and Type 3 optics support use on tennis and pickleball courts at typical mounting heights.

Q: Can this fixture be used for dealership lot lighting?

A: Yes, it is commonly installed for dealership lighting, providing uniform coverage and color temperature options.

Q: Is this fixture appropriate for municipal site or campus area lighting?

A: Yes, it is suitable for municipal sites and campus area lighting where certified, weather-resistant fixtures are required.

Q: Is this fixture intended for use in hazardous or marine environments?

A: No, this model is not rated for hazardous or marine environments. Use only in standard outdoor commercial or municipal settings.
