80 / 100 / 120 / 150 Watt Adjustable LED Shoebox Light | 12240 to 22950 Lumens | 3000K / 4000K / 5000K | 100-277V or 277-480V
This LED shoebox fixture is a strong choice for outdoor area lighting upgrades, offering selectable wattage and color temperature to match site requirements and replace 400W metal halide systems efficiently. Its Type 3 distribution is well-suited for parking lots, roadways, and perimeter lighting, while the IP65 rating, die-cast aluminum housing, and polycarbonate lens ensure durability in wet and dusty environments. The fixture supports both standard and high-voltage inputs, includes 10kV surge protection, and is UL listed and DLC Premium qualified.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 80 | 100 | 120 | 150 |
| Lumens | 12240 | 15300 | 18360 | 22950 |
| Lumens Per Watt | 153 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 100,000 (L70) hours |

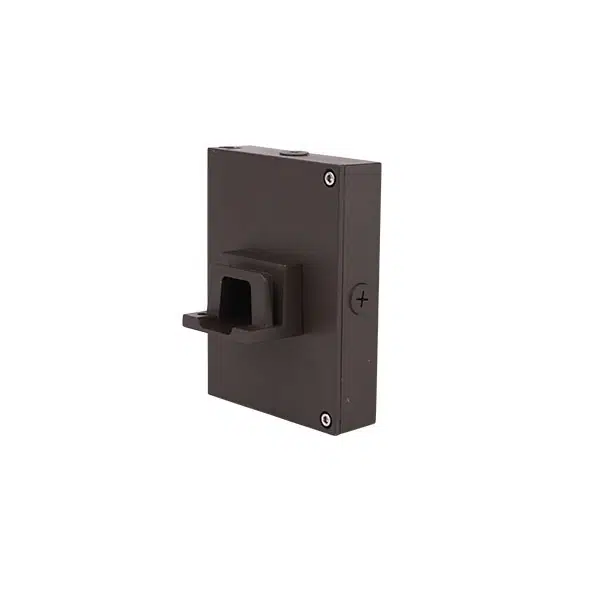

| Mounting | Wall or Yoke or Arm or Slip Fitter |
| EPA Rating | 1.35 |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | > .95 |
| THD | < 15% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 13.3 L X 11.8 W X 3 H |
| Weight (lbs) | 7.2 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Optional Photocell
Product SKU Variations
- SKU: LLS-X-SB4-150/120/100/80-CC
- SKU: LLS-X-SB4-150/120/100/80-CC-HV
Download IES Files
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview

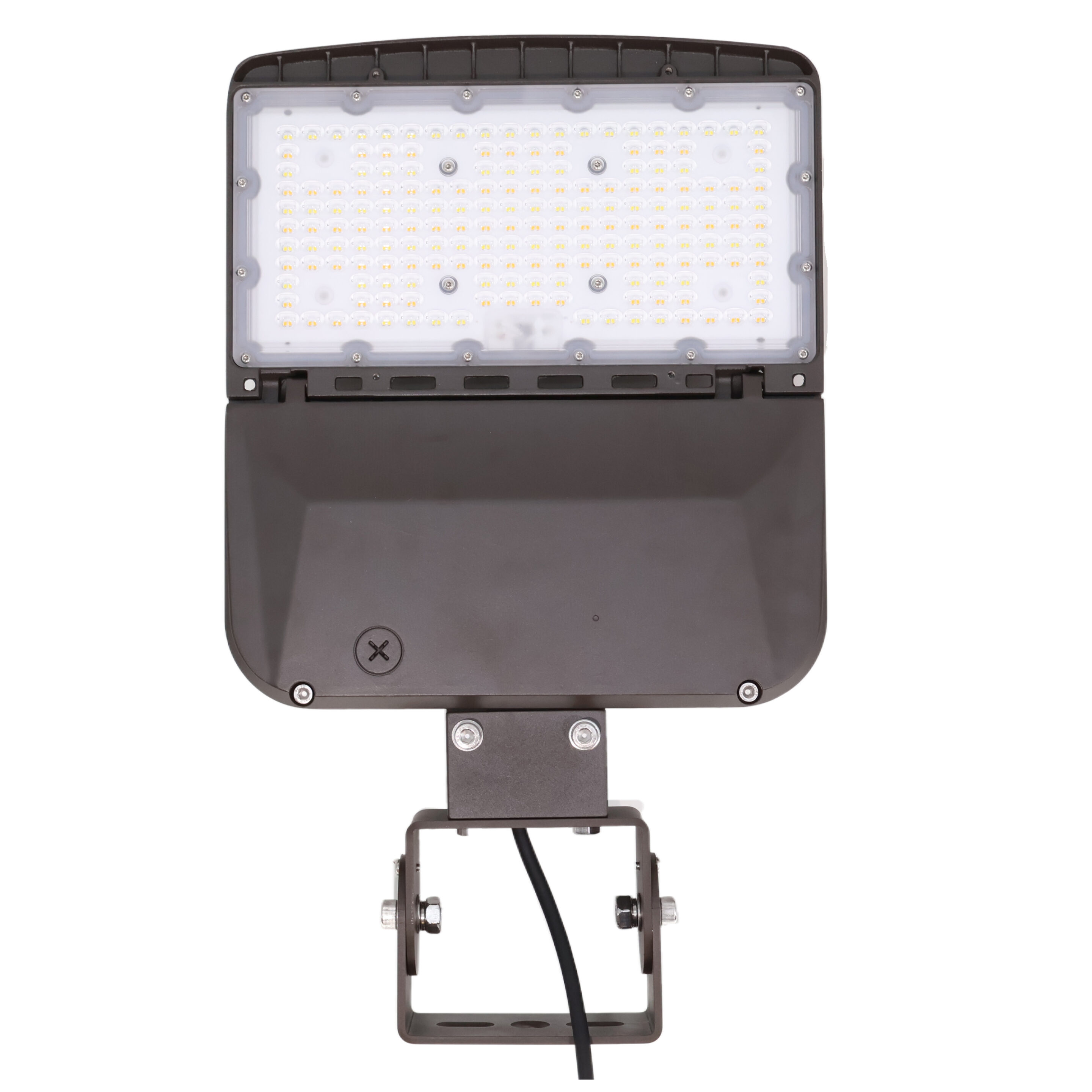

This adjustable LED shoebox light is an exterior area fixture with selectable 80W, 100W, 120W, and 150W output settings and selectable 3000K, 4000K, and 5000K color temperatures. It uses a Type 3 distribution for directional site lighting.
The fixture is configured for parking lot lighting, area lighting, commercial site lighting, and roadway perimeter lighting. It replaces 400W metal halide fixtures where the existing mounting location and light layout support the Type 3 distribution.
Core Performance and Output
Output ranges from 12,240 to 22,950 lumens at 153 lumens per watt. The wattage adjustment allows output selection from the installed fixture without changing the housing or mounting arrangement.
The standard Type 3 optic projects light forward and outward from the mounting point. Higher wattage settings can reduce fixture count in a layout but may increase glare when installed at lower mounting heights.
The fixture operates on 100-277V or 277-480V input voltage at 50/60Hz. Power factor is greater than 0.95, and total harmonic distortion is less than 15%.
Adjustability and Control Options

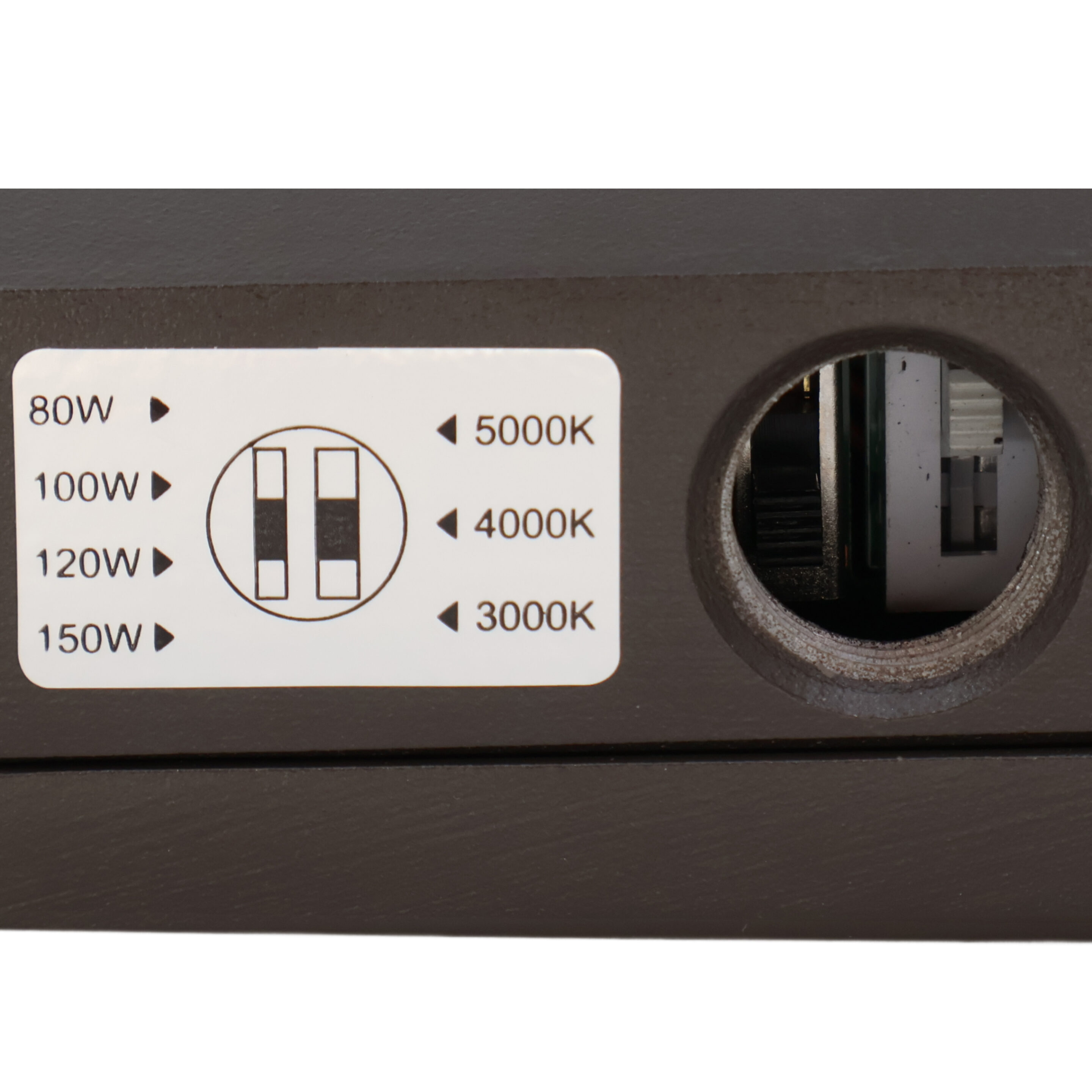

Wattage is adjustable at 80W, 100W, 120W, or 150W. Color temperature is adjustable between 3000K, 4000K, and 5000K.

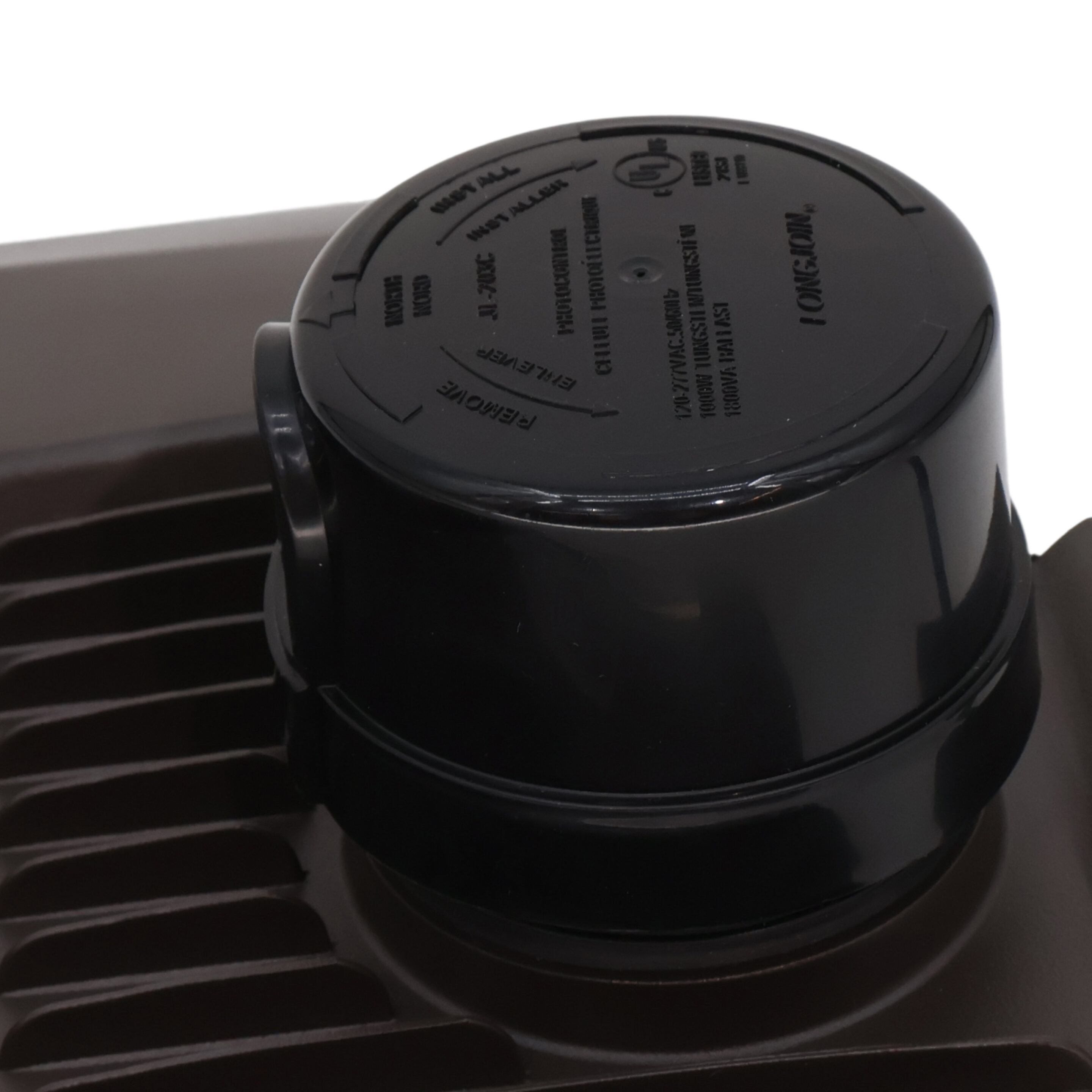

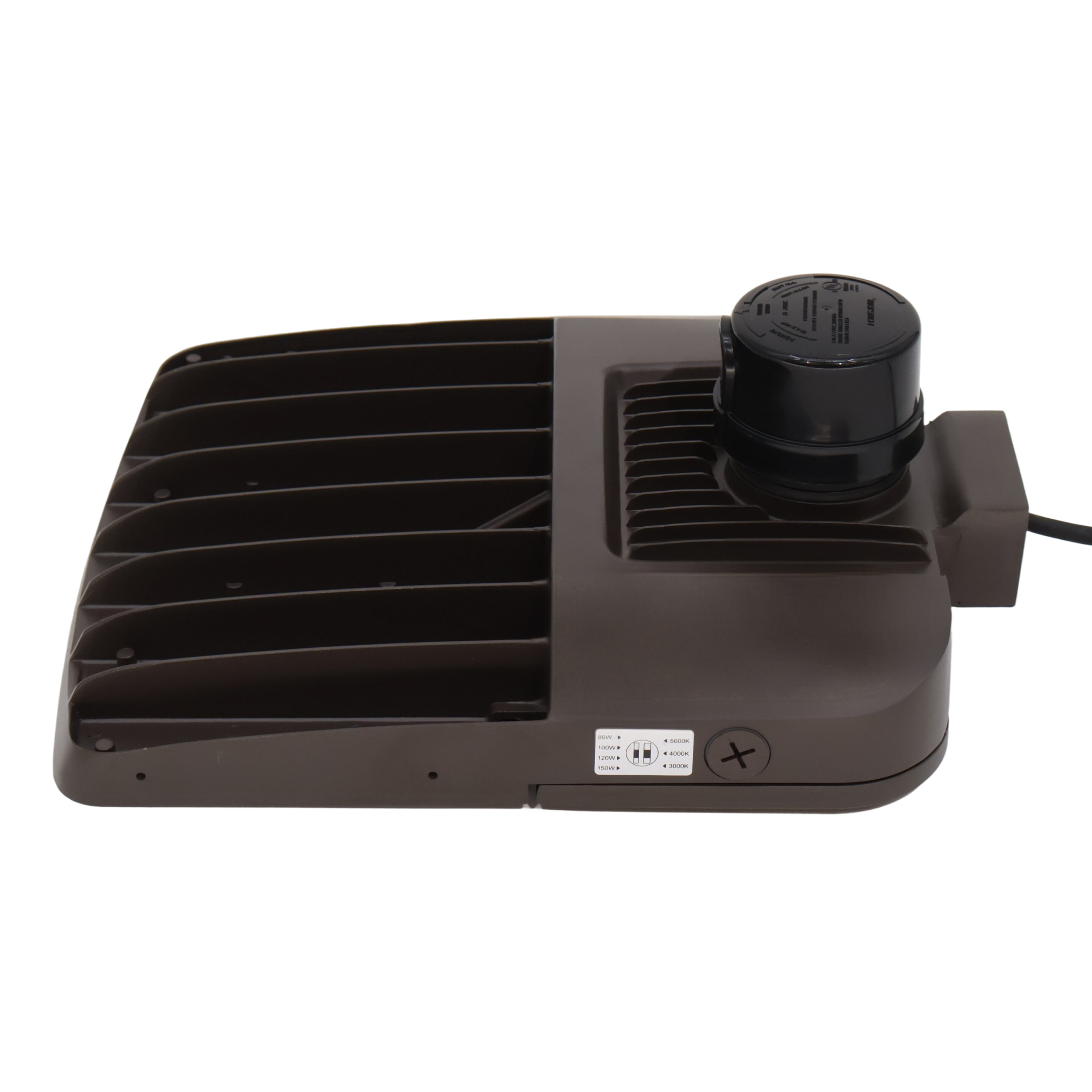

This fixture is non-dimming. An optional photocell is available for automatic operation based on available daylight.
Longevity and Reliability
Rated life is 100,000 hours at L70. The fixture includes 10kV surge protection for exterior electrical conditions.
The operating temperature range is -40 degrees F to 113 degrees F. Long-term performance depends on maintaining secure mounting, electrical connections, and a clean lens surface.
Build Quality and Physical Characteristics

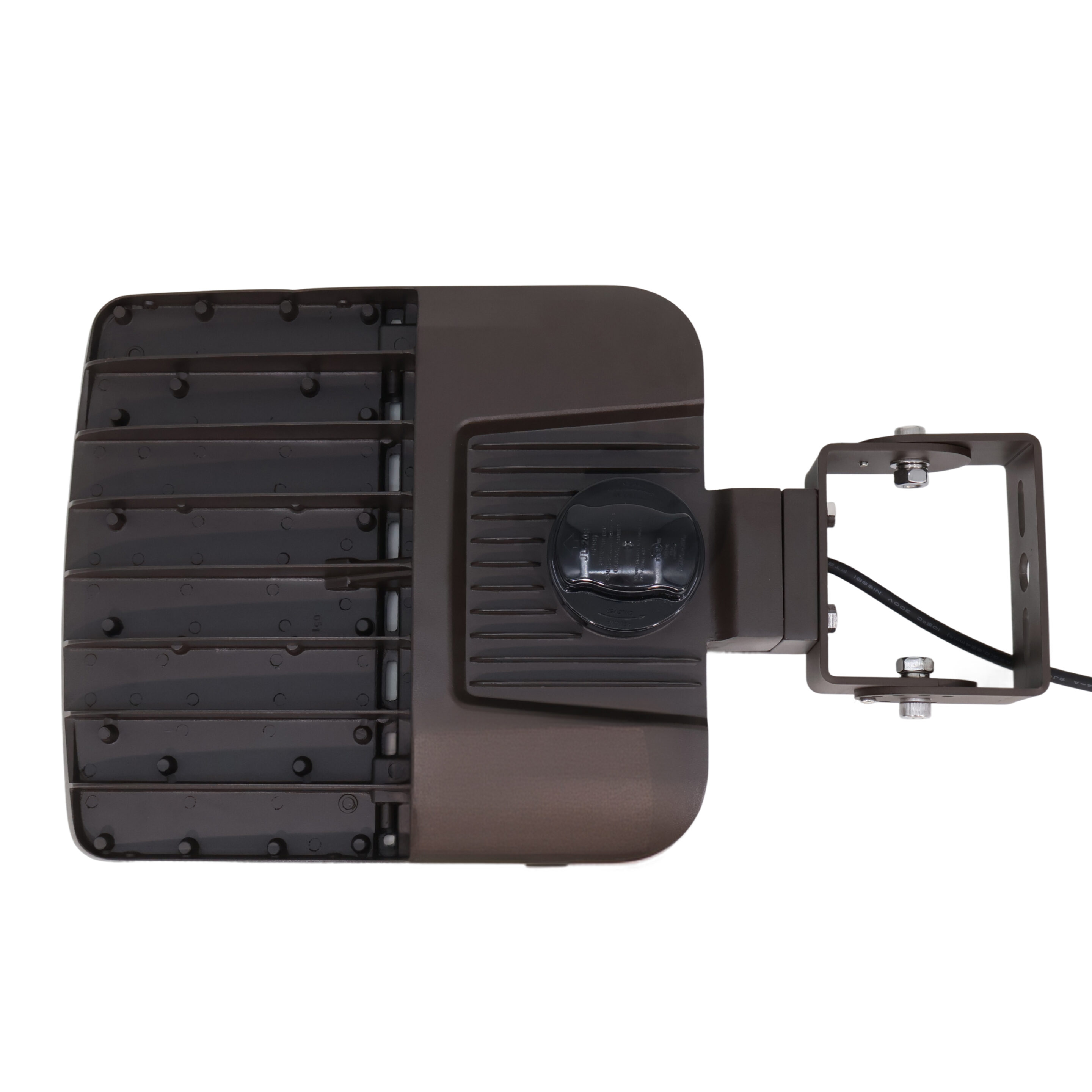

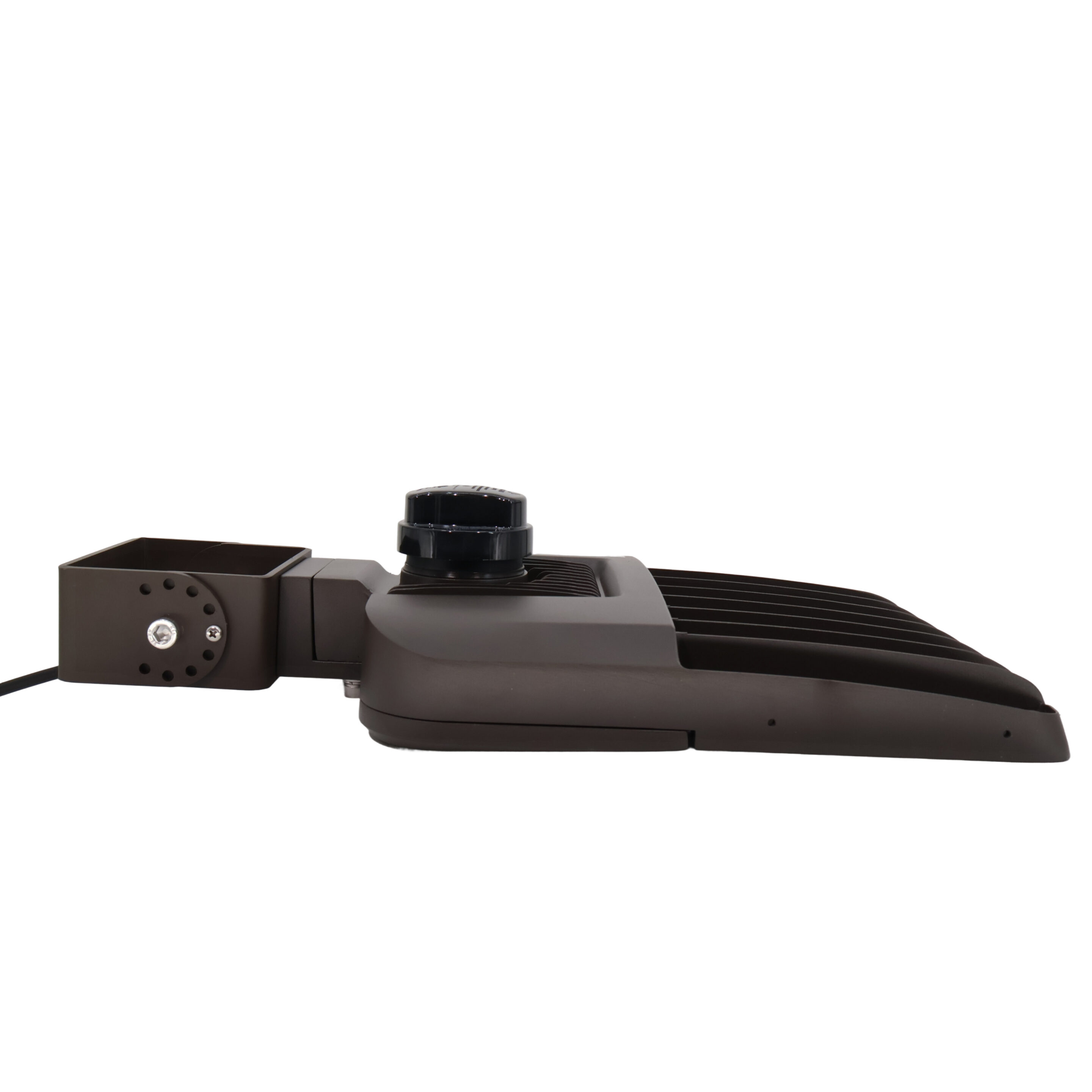

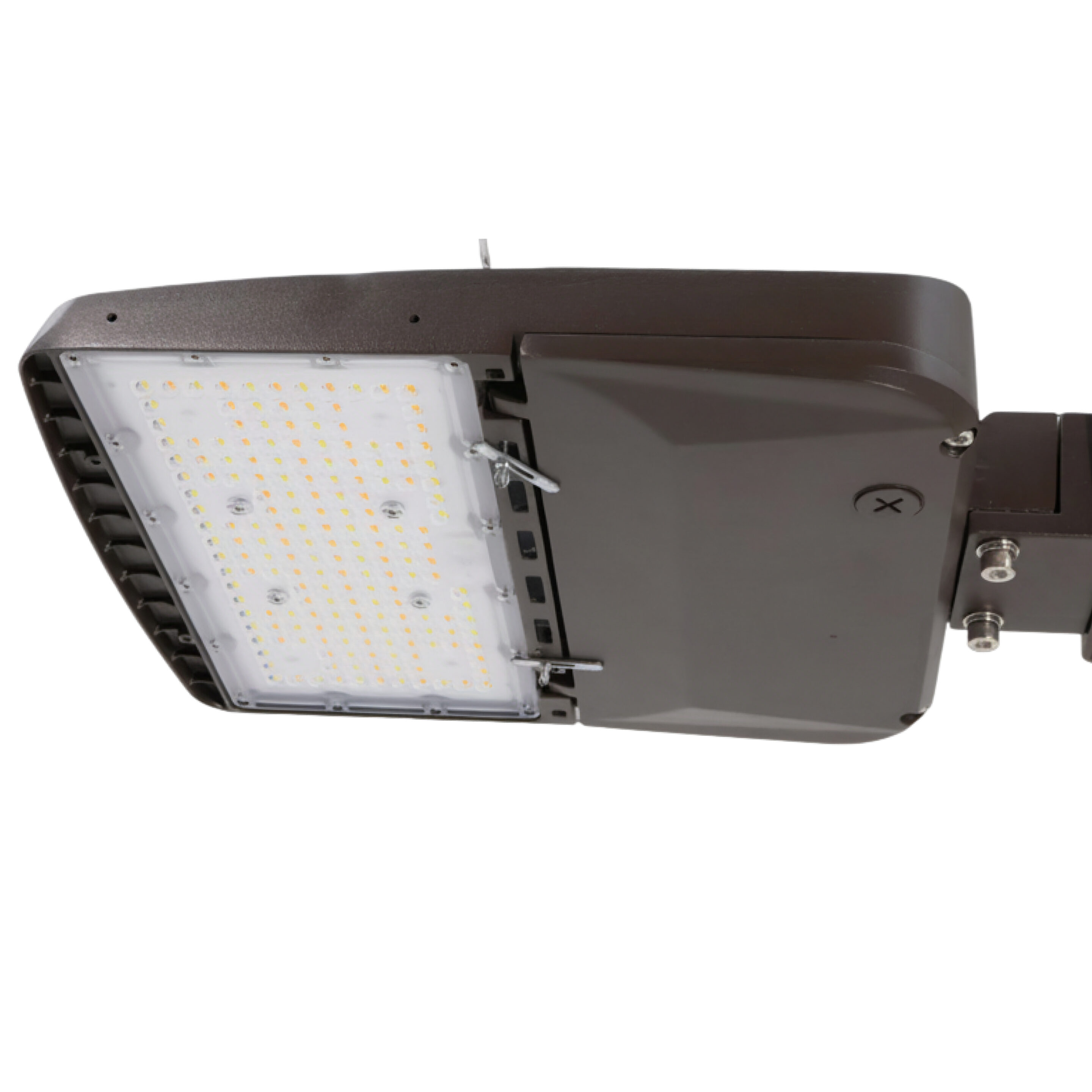

The housing is die-cast aluminum with a bronze finish. A polycarbonate lens protects the optical system.

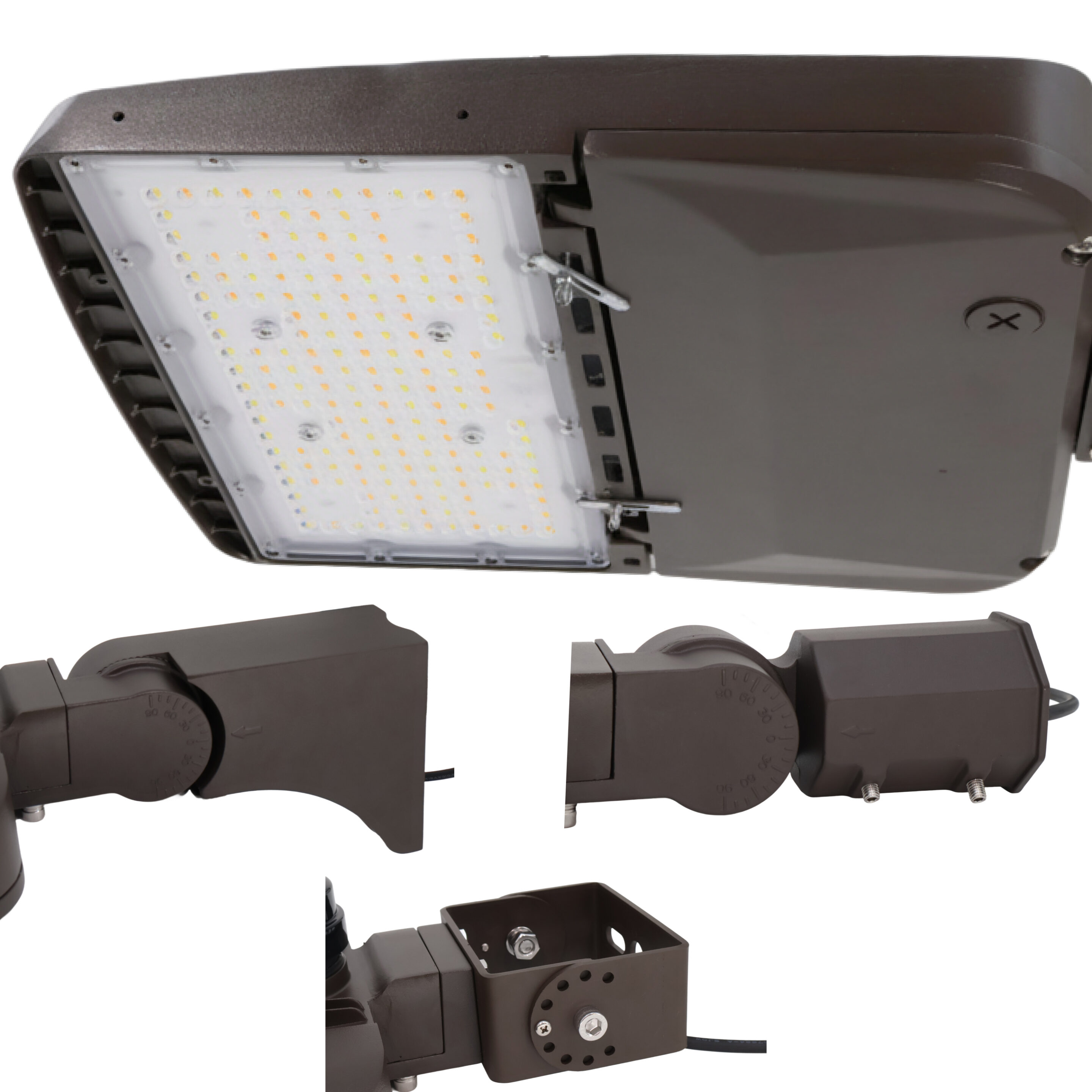

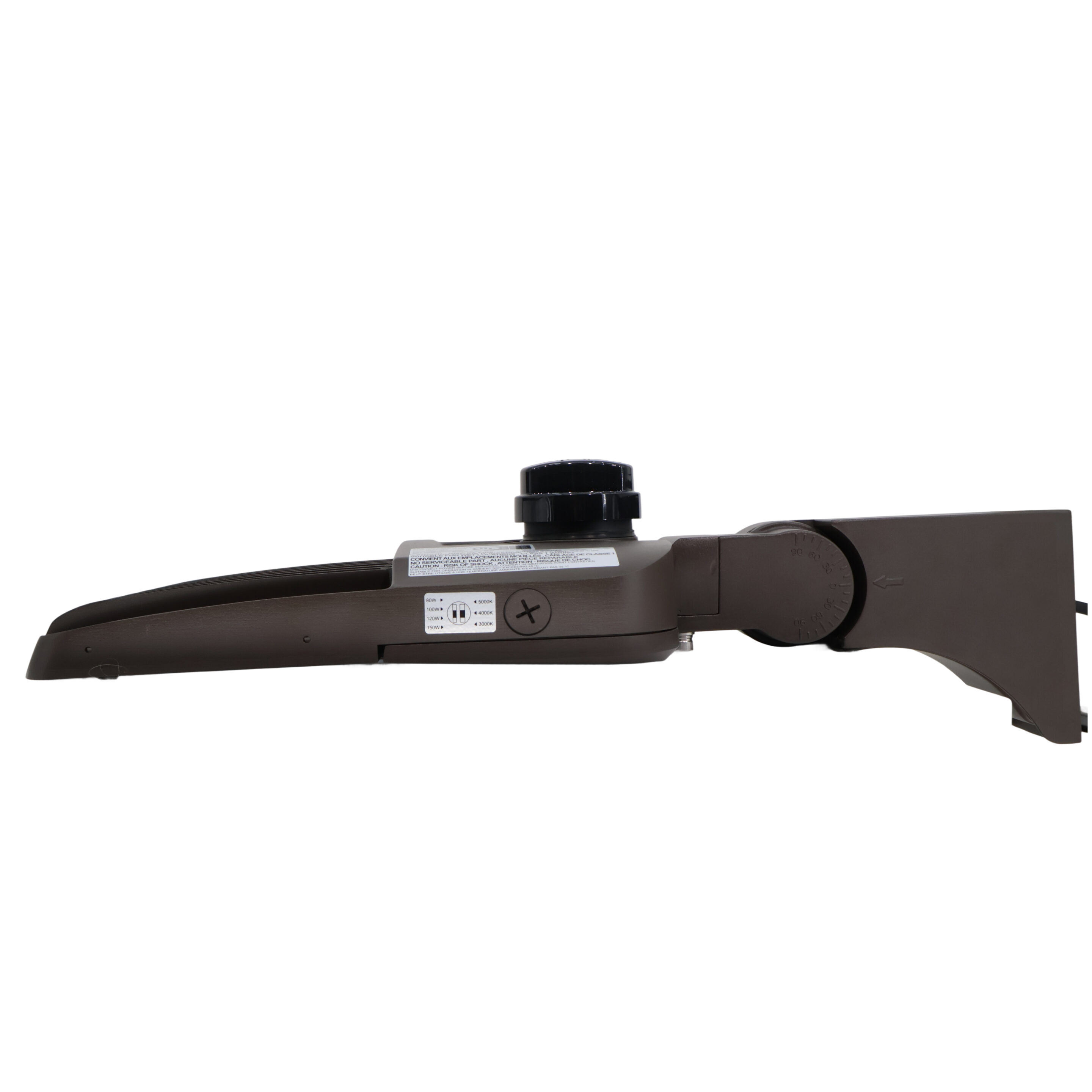

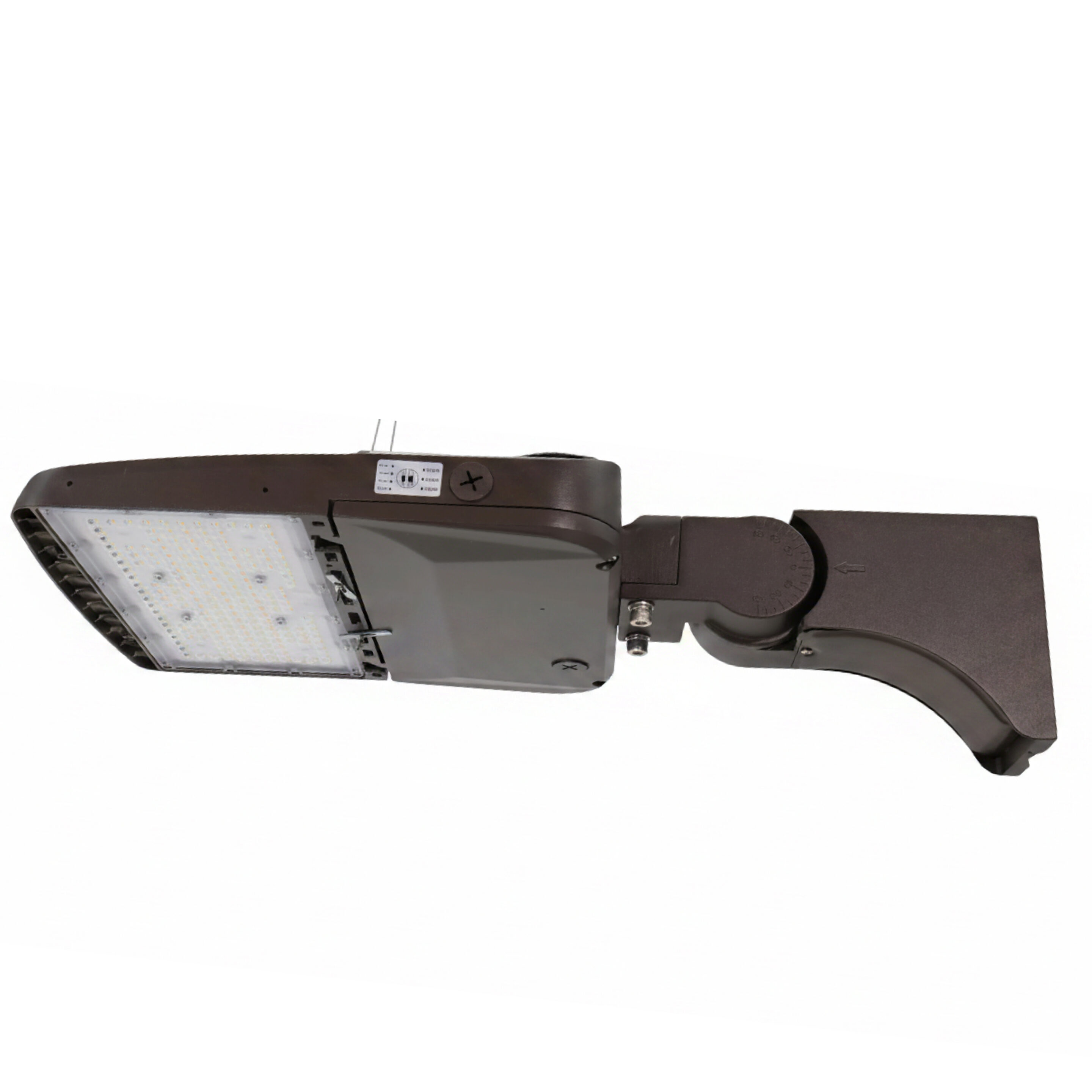

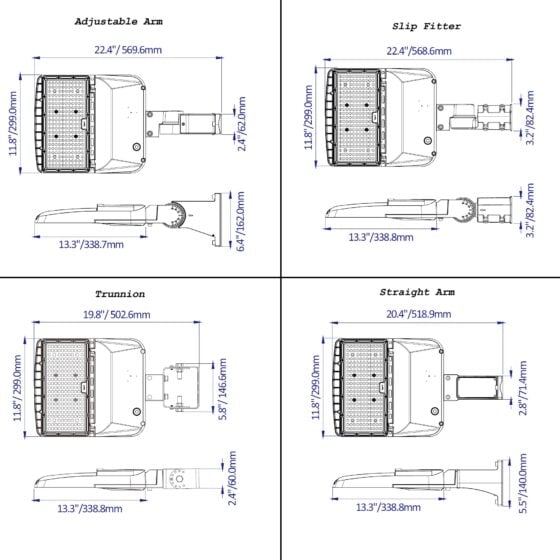

The fixture measures 13.3 inches long by 11.8 inches wide by 3 inches high and weighs 7.2 pounds. Available mounting configurations include wall, yoke, arm, and slip fitter mounting.
Where This Product Fits Best
This shoebox light fits exterior locations requiring directional light distribution from poles, walls, arms, yokes, or slip fitter connections. The adjustable output supports projects with different site light levels using the same fixture form factor.
- parking lot lighting
- commercial site lighting
- area lighting
- roadway perimeter lighting
- campus lighting
- apartment complex lighting
IP65 construction supports outdoor exposure. The -40 degrees F to 113 degrees F operating range and 10kV surge protection address common exterior operating conditions.
Installation and Long-Term Use
Confirm the available voltage before installation because this fixture is offered in 100-277V and 277-480V versions. Select the mounting configuration to match the existing pole, wall, arm, yoke, or slip fitter condition.
Set wattage and color temperature before final commissioning. Verify that the supporting structure and mounting hardware are suitable for the 7.2-pound fixture and its 1.35 EPA rating.
How This Fixture Is Commonly Used
In parking lot lighting and commercial site lighting, the Type 3 distribution is typically aimed to project light across drive lanes, parking areas, and site edges from the mounting location. Mounting height affects forward throw, glare control, and uniformity.
For roadway perimeter lighting, area lighting, campus lighting, and apartment complex lighting, fixtures are arranged along the perimeter or in rows based on the site layout. Spacing varies with the selected wattage, mounting height, target light level, and Type 3 distribution.
Safety, Certifications, and Warranty
UL listed. DLC Premium listed. IP65 rated.
This fixture includes a 5-year warranty. Installation must follow the selected voltage version and mounting configuration.
Frequently Asked Questions
Q: What wattage and lumen settings are available?
A: The fixture is adjustable between 80W, 100W, 120W, and 150W. Output is 12,240, 15,300, 18,360, or 22,950 lumens.
Q: What light distribution does this shoebox light use?
A: The standard distribution is Type 3.
Q: Can this fixture be dimmed?
A: No. This fixture is non-dimming.
Q: What mounting options are available?
A: Wall, yoke, arm, and slip fitter mounting options are available.
Q: What should be considered when planning fixture spacing?
A: Mounting height, selected wattage, target light levels, and the Type 3 distribution affect fixture spacing. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture appropriate for parking lot lighting?
A: Yes. Parking lot lighting is a primary application for this shoebox light. The Type 3 distribution and adjustable 80W through 150W output support site-specific layout requirements.
Q: Can the same fixture configuration be used for campus lighting and apartment complex lighting?
A: Campus lighting and apartment complex lighting are valid secondary applications. Final configuration depends on the selected wattage, color temperature, voltage version, mounting method, and layout requirements.
Q: What environmental information should be checked for commercial site lighting?
A: The fixture is IP65 rated and operates from -40 degrees F to 113 degrees F. Confirm that the site conditions remain within the stated operating range.
