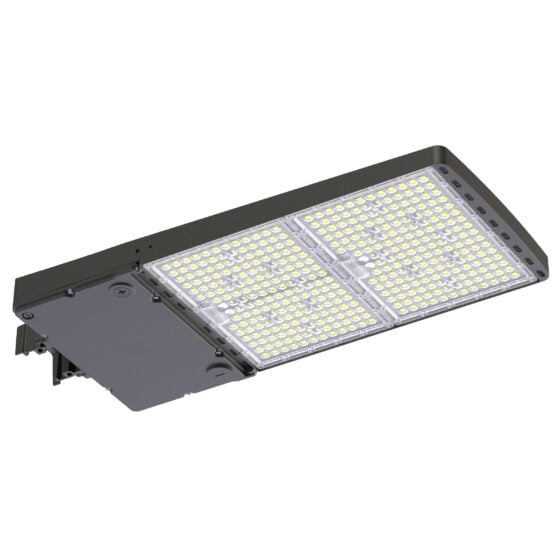

300 / 400 / 500 Watt Adjustable LED Parking Lot Light | 50400 to 84000 Lumens | 3000K / 4000K / 5000K | 100V-277V or 277V-480V | Built-in Photocell
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 300 | 400 | 500 |
| Lumens | 50400 | 67200 | 84000 |
| Lumens Per Watt | 160 |
| Replaces | 1000 or 1500 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | Type 3 |
| Beam Angles (Opt) | Type 5 |
| Optics | Polycarbonate Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting (Opt) | Arm or Slip Fitter |
| EPA Rating | 2.98 |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP66 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 122°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 29.5 L x 12.3 W x 2.75 H |
| Weight (lbs) | 17.5 |
| Cord Length | 4 Feet |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Photocell
Product SKU Variations
- SKU: LLS-AL-SB5A-500A-CC-PC
- SKU: LLS-AL-SB5A-500A-CC-HV-PC
Download IES Files
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview
This adjustable LED shoebox light provides 300W, 400W, or 500W output for large outdoor parking, site, and perimeter lighting layouts. It produces up to 84,000 lumens and uses a Type 3 distribution as standard, with Type 5 available.
The fixture supports selectable wattage and color temperature settings, 1-10V dimming, and a built-in photocell. It is commonly used to replace 1000W or 1500W metal halide parking lot fixtures where existing pole locations and mounting positions are retained.
Core Performance and Output
Selectable output settings provide 50,400, 67,200, or 84,000 lumens at 160 lumens per watt. Available color temperatures are 3000K, 4000K, and 5000K with an 80+ CRI.
The standard Type 3 optic directs light forward from the pole for parking lot lighting, roadway perimeter lighting, and commercial site lighting. Type 5 optics provide a broader distribution where pole placement requires more symmetrical coverage.
This fixture operates on 100V-277V or 277V-480V input power at 50/60Hz. The 500W setting can be excessive at lower mounting heights, while higher mounting positions require layout review to maintain uniformity between poles.
Adjustability and Control Options
Wattage adjustment allows the fixture to operate at 300W, 400W, or 500W. Color temperature adjustment provides 3000K, 4000K, or 5000K selection before commissioning.
1-10V dimming is available for compatible control systems. The built-in photocell supports dusk-to-dawn operation.
Control wiring, voltage selection, and photocell orientation should be confirmed before final installation. The fixture includes a 4-foot cord.
Longevity and Reliability
The LED system is rated for 150,000 L70 hours. This rating supports long-term operation in outdoor site lighting installations where fixture access may require lift equipment.
10kV surge protection is included. The operating temperature range is -40F to 122F.
Build Quality and Physical Characteristics

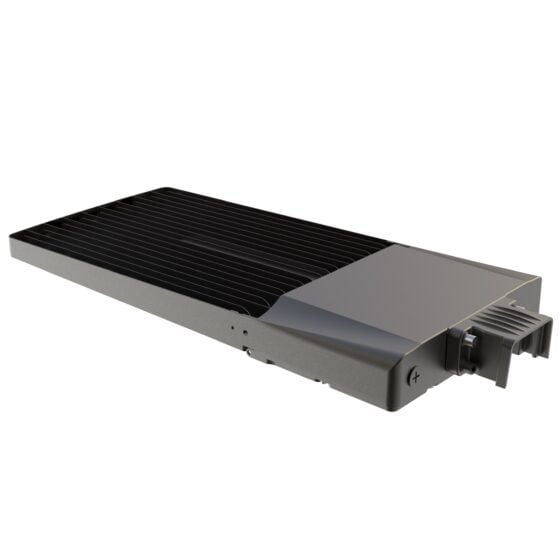

The housing is die-cast aluminum with a bronze finish. A polycarbonate lens protects the optical system.
The fixture is IP66 rated. It measures 29.5 inches long, 12.3 inches wide, and 2.75 inches high, with a fixture weight of 17.5 pounds.
Arm and slip fitter mounting options are available. The fixture has an EPA rating of 2.98, which must be considered with the pole and mounting structure.
Where This Product Fits Best
This shoebox light fits large outdoor areas requiring high output from pole-mounted fixtures. Its selectable wattage, voltage options, and Type 3 or Type 5 distribution support layouts with varied pole spacing and site conditions.
- parking lot lighting
- commercial site lighting
- roadway perimeter lighting
- area lighting
- campus lighting
- industrial yard lighting
The IP66 housing and -40F to 122F operating range support exposed outdoor installations. Pole EPA capacity, fixture mounting method, voltage, and optical distribution require confirmation for each layout.
Installation and Long-Term Use

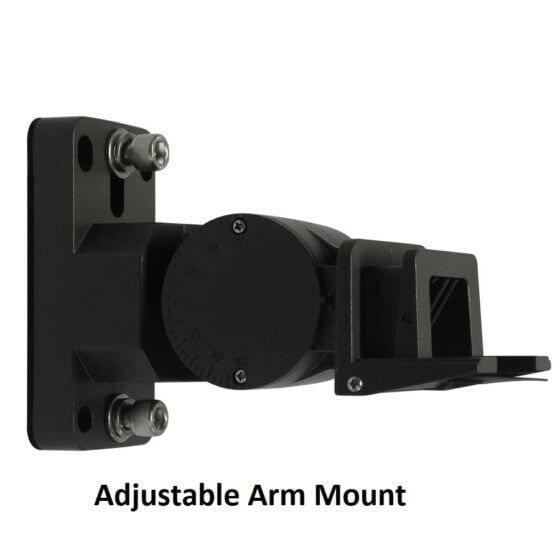

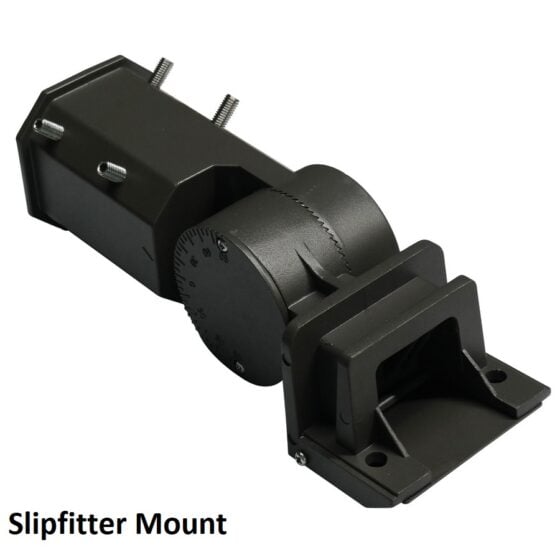

Arm mounting is used where the fixture extends from a pole or structure. Slip fitter mounting is used with compatible tenons and requires secure aiming before final tightening.
Installation should account for the 17.5-pound fixture weight and 2.98 EPA rating. The pole, arm, slip fitter, and mounting structure must support the selected configuration.
Long-term maintenance includes checking the lens condition, mounting hardware, wiring connections, photocell operation, and control wiring where dimming is used.
How This Fixture Is Commonly Used
Parking lot lighting and commercial site lighting layouts typically place fixtures on poles around vehicle areas, drive lanes, and property edges. Roadway perimeter lighting and industrial yard lighting layouts use the forward Type 3 distribution to direct light away from the pole.
Mounting height and pole placement determine the selected wattage, optic, and aiming position. The 300W, 400W, and 500W settings allow output adjustment when field conditions differ between areas of the same site.
Spacing varies with mounting height, target light levels, selected wattage, and optic. Higher output can reduce fixture count, but the layout must control glare and maintain uniformity.
Safety, Certifications, and Warranty
UL listed. Rebate eligible.
The fixture is IP66 rated and includes 10kV surge protection. It operates from -40F to 122F.
This product includes a 5-year warranty.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture has selectable 300W, 400W, and 500W settings producing 50,400, 67,200, and 84,000 lumens.
Q: What optical distributions are available?
A: Type 3 is standard. Type 5 is available as an option.
Q: Can this fixture be dimmed?
A: Yes. It supports 1-10V dimming.
Q: What mounting options are available?
A: Arm and slip fitter mounting options are available.
Q: What should be considered when planning fixture placement?
A: Mounting height, target light levels, selected wattage, optic, pole placement, and layout requirements affect fixture placement. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture appropriate for parking lot lighting?
A: Yes. Parking lot lighting is a primary application for this shoebox light. Type 3 or Type 5 distribution should be selected based on the pole layout.
Q: Can this fixture be used for industrial yard lighting?
A: Industrial yard lighting is a valid secondary application. The selected wattage, optic, mounting method, pole capacity, and site layout affect final configuration.
Q: Which voltage versions are available?
A: The fixture is available in 100V-277V and 277V-480V versions.
Q: What environmental conditions does the fixture support?
A: The fixture is IP66 rated and operates from -40F to 122F.
