300 / 350 / 400 / 450 / 500 Watt Adjustable LED Shoebox Area Light | 48000 to 80000 Lumens | Type 3 | 3000K / 4000K / 5000K | 100-277V
Ideal for replacing 1500 watt metal halide shoebox lights. This model comes standard with a slip fitter for mounting to industry standard 2 and 3/8 inch tenons.
Neil Peterson | CEO and Chief Lighting Specialist
187 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 300 | 350 | 400 | 450 | 500 |
| Lumens | 48000 | 56000 | 64000 | 72000 | 80000 |
| Lumens Per Watt | 160 |
| Replaces | 1000 or 1500 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Slip Fitter |
| Fixture Color | Bronze |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -4°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 24 X 13 X 2.6 |
| Weight (lbs) | 18 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview
This adjustable LED shoebox area light provides 48,000 to 80,000 lumens for exterior site lighting with Type 3 distribution. Wattage and color temperature are field adjustable, allowing one fixture to be set for different output and color requirements.
The fixture operates on 100-277V and includes a slip fitter mount. It is configured as a replacement for 1000W or 1500W metal halide shoebox fixtures where existing pole mounting and site layout support the required output.
Core Performance and Output
Selectable wattage settings include 300W, 350W, 400W, 450W, and 500W. Output ranges from 48,000 to 80,000 lumens at 160 lumens per watt, with 3000K, 4000K, and 5000K color temperature settings.
The Type 3 distribution directs light outward from the mounting location for perimeter and site layouts. Higher output settings can reduce fixture count in a layout, but may create excessive brightness when installed at lower mounting heights.
Adjustability and Control Options
The fixture includes wattage adjustment from 300W through 500W. Color temperature can be set to 3000K, 4000K, or 5000K before final commissioning.
0-10V dimming is supported. Control wiring and dimming operation should be verified during installation when the fixture is connected to an external control system.
Longevity and Reliability
The rated lifespan is 50,000 hours L70. This rating supports long-term operation where relamping access and pole service time affect maintenance planning.
The fixture operates in ambient temperatures from -4F to 113F. Output setting, operating environment, and control use should be confirmed during commissioning.
Build Quality and Physical Characteristics

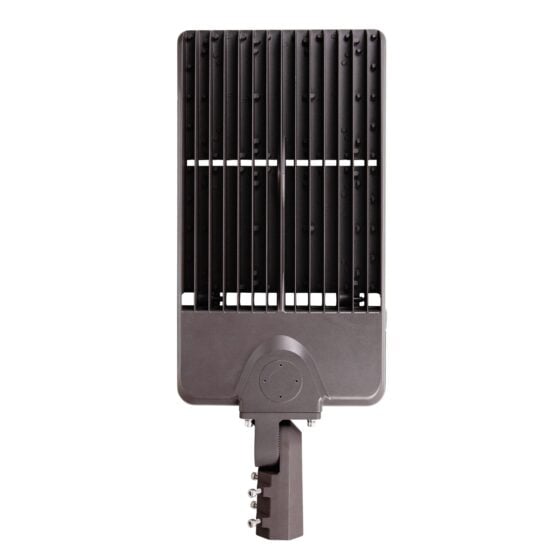

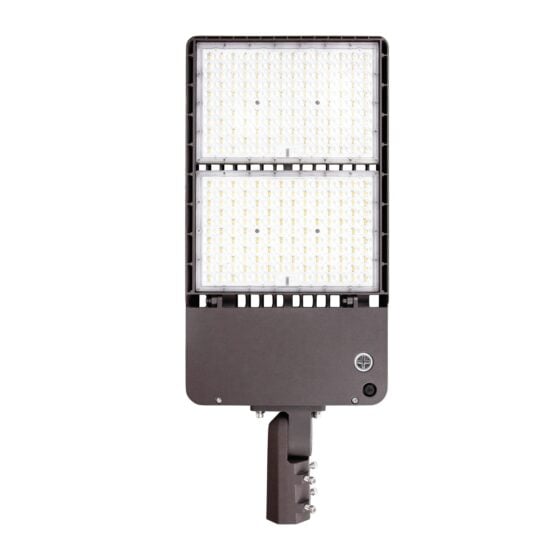

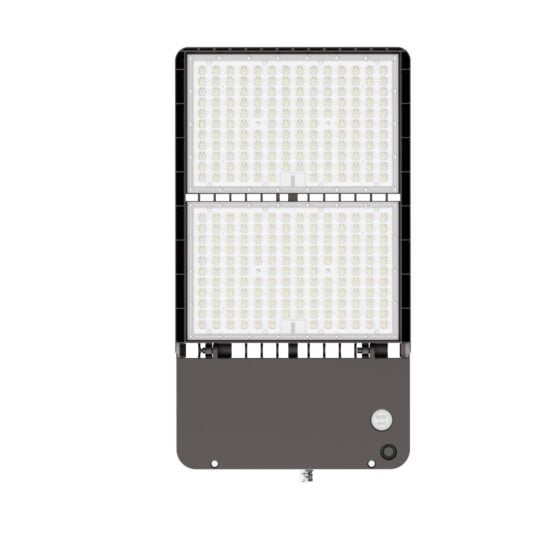

The housing is die-cast aluminum with a bronze finish. A polycarbonate lens protects the Type 3 optical system.

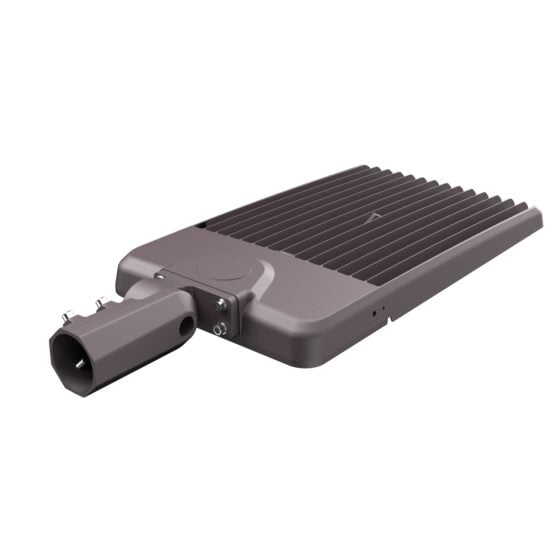

This fixture measures 24 x 13 x 2.6 inches and weighs 18 pounds. The included slip fitter mount is intended for fixture mounting arrangements that accept a slip fitter connection.
Where This Product Fits Best
This high-output shoebox light fits exterior pole-mounted lighting layouts requiring broad forward throw from a Type 3 optic. Its output range supports larger parking, perimeter, and commercial site layouts.
- parking lot lighting
- commercial site lighting
- area lighting
- roadway perimeter lighting
- campus lighting
- dealership lighting
- industrial yard lighting
The IP65 rating supports exposure to outdoor weather conditions. Fixture output, mounting height, pole location, and required light levels remain important layout variables.
Installation and Long-Term Use
The fixture includes a slip fitter mount and operates from 100-277V. Confirm pole mounting dimensions, conductor routing, voltage, and fixture aiming before installation.
Wattage and color temperature settings should be established before final aiming and commissioning. Long-term service access should account for the 18-pound fixture weight and the pole-mounted installation location.
How This Fixture Is Commonly Used
In parking lot lighting, commercial site lighting, and area lighting layouts, fixtures are typically positioned on poles to direct the Type 3 distribution across travel and parking surfaces. Mounting height is determined by the pole, target light levels, and site geometry.
For roadway perimeter lighting, campus lighting, dealership lighting, and industrial yard lighting, fixture aiming follows the perimeter or circulation layout. Spacing varies with the selected wattage, mounting height, required light levels, and Type 3 distribution.
Safety, Certifications, and Warranty
This fixture is UL listed and rebate eligible. It is IP65 rated.
The warranty is 5 years. The fixture is rated for operation from -4F to 113F.
Frequently Asked Questions
Q: What wattage settings are available?
A: The fixture is adjustable to 300W, 350W, 400W, 450W, or 500W.
Q: What light output does this fixture provide?
A: Output ranges from 48,000 lumens at 300W to 80,000 lumens at 500W. Fixture efficacy is 160 lumens per watt.
Q: What mounting method is included?
A: A slip fitter mount is included.
Q: Can the fixture be dimmed?
A: Yes. The fixture supports 0-10V dimming.
Q: What affects fixture layout for parking lot lighting or commercial site lighting?
A: Selected wattage, mounting height, target light levels, pole locations, and the Type 3 distribution affect the layout. The supplied product data does not establish a specific spacing value.
Application Questions and Clarification
Q: Is this fixture configured for parking lot lighting and area lighting?
A: Yes. Parking lot lighting and area lighting are primary applications for this shoebox light category. The Type 3 distribution and 48,000 to 80,000 lumen output should be evaluated against the site layout.
Q: What should be checked before using this fixture for roadway perimeter lighting?
A: Confirm pole mounting conditions, available 100-277V power, required light levels, fixture aiming, and mounting height. The fixture includes a slip fitter mount and Type 3 distribution.
Q: Can the color temperature be changed for campus lighting or dealership lighting?
A: Yes. The fixture is adjustable between 3000K, 4000K, and 5000K.
