200 / 240 / 300 Watt Adjustable LED Parking Lot Light | 28800 to 43400 Lumens | 3000K / 4000K / 5000K | 100V-277V | Built-in Photocell
Neil Peterson | CEO and Chief Lighting Specialist
4764 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 200 | 240 | 300 |
| Lumens | 28800 | 34500 | 43400 |
| Lumens Per Watt | 160 |
| Replaces | 1000 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 70+ |
| Dimming | 0-10V |
| Beam Angles (Std) | Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting (Opt) | Yoke or Arm or Slip Fitter |
| EPA Rating | 1.6 |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | .9 |
| THD | 15% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Surge Protection | 6 KV |
| Operating Temperature | -40°F to 122°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 16.5 X 12.2 X 2.5 |
| Weight (lbs) | 7.2 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Photocell
Download IES Files
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.

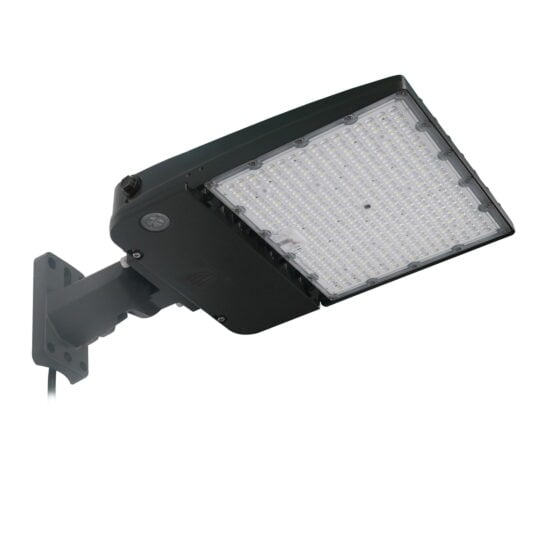

Product Overview
This adjustable LED shoebox light provides 200W, 240W, or 300W output with selectable 3000K, 4000K, or 5000K color temperature. It is built for parking lot lighting, area lighting, commercial site lighting, and roadway perimeter lighting where directional pole-mounted coverage is required.
The fixture produces up to 43,400 lumens and replaces 1000W metal halide fixtures. Type 3 distribution directs light outward from the pole for perimeter and area layouts.
Core Performance and Output
Output settings are 28,800 lumens at 200W, 34,500 lumens at 240W, and 43,400 lumens at 300W. Fixture efficacy is 160 lumens per watt, with a 70+ CRI.
The standard Type 3 distribution supports forward-throw lighting patterns from perimeter poles. Higher output can reduce fixture count in a layout, but it can also produce excessive light at lower mounting heights when output selection is not matched to the site.
The fixture operates on 100V-277V, 50/60Hz power. Power factor is 0.9 and total harmonic distortion is 15%.
Adjustability and Control Options
Field-adjustable wattage allows the fixture to operate at 200W, 240W, or 300W. Color temperature is selectable between 3000K, 4000K, and 5000K.
0-10V dimming is included. A built-in photocell supports dusk-to-dawn operation where photocell control is required.
Longevity and Reliability
The LED system is rated for 150,000 hours L70 life. This rating supports long operating periods in parking lot lighting and commercial site lighting layouts.
Integrated 6 kV surge protection addresses electrical surge exposure. Operating temperature range is -40F to 122F.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a bronze finish. A polycarbonate lens protects the optical system.
The fixture is IP65 rated. Overall dimensions are 16.5 x 12.2 x 2.5 inches, and fixture weight is 7.2 pounds.
Available mounting configurations include yoke, arm, and slip fitter mounting. The fixture has an EPA rating of 1.6.
Where This Product Fits Best
This fixture fits pole-mounted outdoor layouts requiring directional area coverage and selectable output. Its Type 3 distribution is suited to perimeter-oriented lighting patterns.
- parking lot lighting
- commercial site lighting
- area lighting
- roadway perimeter lighting
- campus lighting
- apartment complex lighting
- industrial yard lighting
The IP65 enclosure, die-cast aluminum housing, surge protection, and -40F to 122F operating range support exposed outdoor operating conditions. Pole and mounting structure selection must account for the fixture EPA rating and mounting configuration.
Installation and Long-Term Use

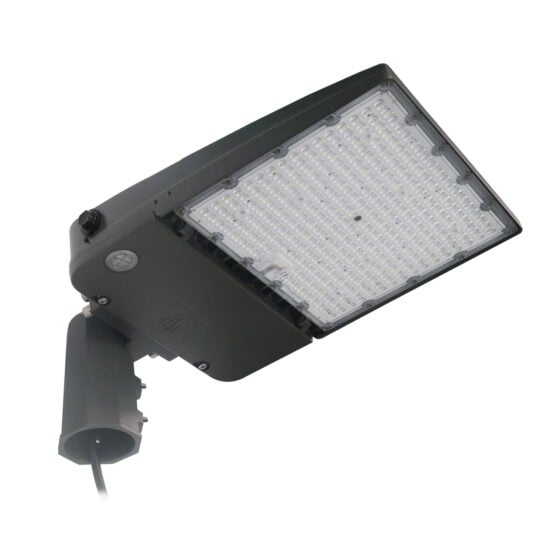

Yoke, arm, and slip fitter mounting options allow the fixture to match different pole-top and bracket arrangements. Confirm the selected mounting method before installation.
The fixture operates on 100V-277V supply voltage and includes 0-10V dimming capability. Photocell operation should be coordinated with any external lighting controls used on the site.
For long-term service, maintain access to the fixture, lens, mounting hardware, and electrical connections. The compact 7.2-pound fixture weight simplifies handling during installation and maintenance.
How This Fixture Is Commonly Used

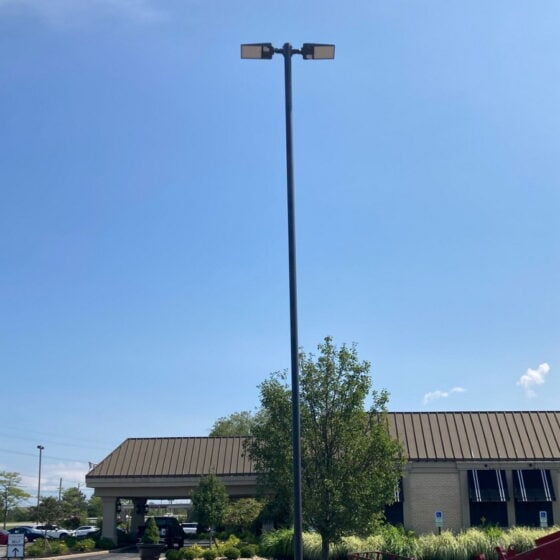

In parking lot lighting and commercial site lighting, fixtures are typically positioned on perimeter poles to direct Type 3 distribution across driving and parking areas. Roadway perimeter lighting layouts use the forward throw to carry light away from the pole line.
Mounting height must be coordinated with the selected wattage, target light levels, pole layout, and coverage direction. Exact mounting height and spacing are not established by the supplied product data.
Higher wattage settings can reduce the number of fixtures needed in an area lighting layout, while lower settings may provide better control where mounting heights or coverage zones are smaller.
Safety, Certifications, and Warranty
This fixture is UL listed. It is rebate eligible.
The fixture is IP65 rated and includes 6 kV surge protection. Warranty coverage is 5 years.
Frequently Asked Questions
Q: What wattage and lumen settings are available?
A: The fixture is adjustable between 200W, 240W, and 300W. Corresponding output levels are 28,800 lumens, 34,500 lumens, and 43,400 lumens.
Q: What light distribution does this shoebox fixture use?
A: The standard distribution is Type 3.
Q: Can the color temperature be changed?
A: Yes. The fixture has selectable 3000K, 4000K, and 5000K color temperature settings.
Q: What mounting options are available?
A: Available mounting options are yoke, arm, and slip fitter mounting.
Q: What should be considered when planning a parking lot lighting layout?
A: Select wattage, mounting height, pole layout, coverage direction, and target light levels must be coordinated. The supplied product data does not establish a specific fixture spacing or fixture count.
Application Questions and Clarification
Q: Is this fixture appropriate for roadway perimeter lighting?
A: Roadway perimeter lighting is a listed primary application. The fixture uses Type 3 distribution for forward-directed coverage from the pole.
Q: What should be reviewed for industrial yard lighting?
A: Industrial yard lighting is a listed secondary application. Output setting, mounting configuration, pole layout, and coverage direction should be reviewed for the project.
Q: Can the photocell be used with adjustable output settings?
A: The fixture includes a built-in photocell and adjustable wattage settings of 200W, 240W, and 300W.
