90 / 120 / 150 Watt Adjustable LED Shoebox Light | 13950 to 23250 Lumens | 3000K / 4000K / 5000K Color Adjustable | 100V-277V
90 | 120 | 150 Wattage Adjustable LED shoebox light – parking lot light has durable die-cast aluminum housing that is powder coated with strong anti-corrosion performance for years of maintenance-free lighting. This LED parking lot light has an optional photocell sensor that allows for further energy savings.
Dwayne Kula | President, CTO and Founder
167 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 90 | 120 | 150 |
| Lumens | 13950 | 18600 | 23250 |
| Lumens Per Watt | 155 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | Type 3 |
| Beam Angles (Opt) | Type 4 or Type 5 |
| Optics | Polycarbonate Lens |
| Lifespan | 100,000 (L70) hours |

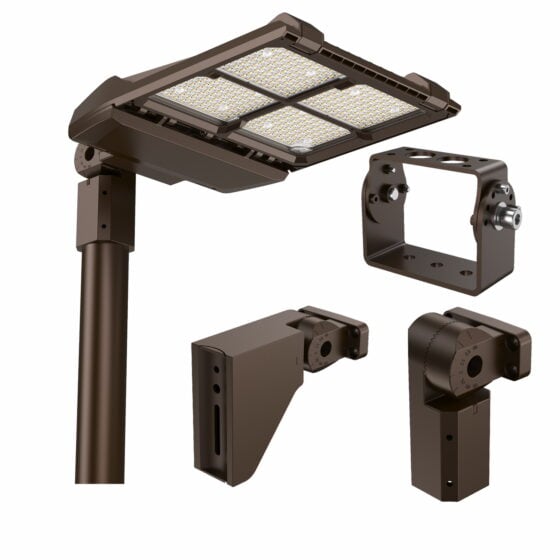

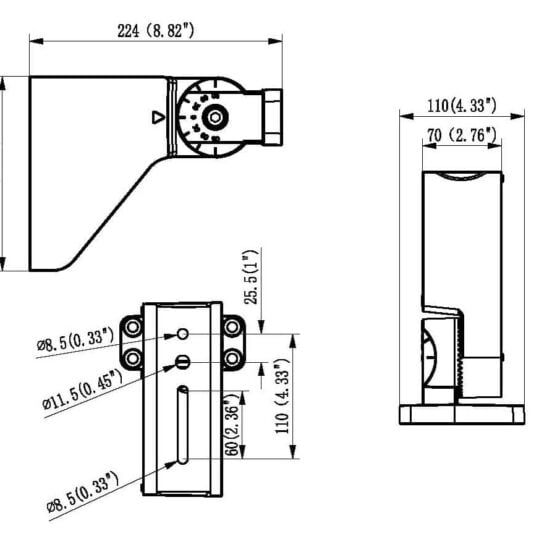

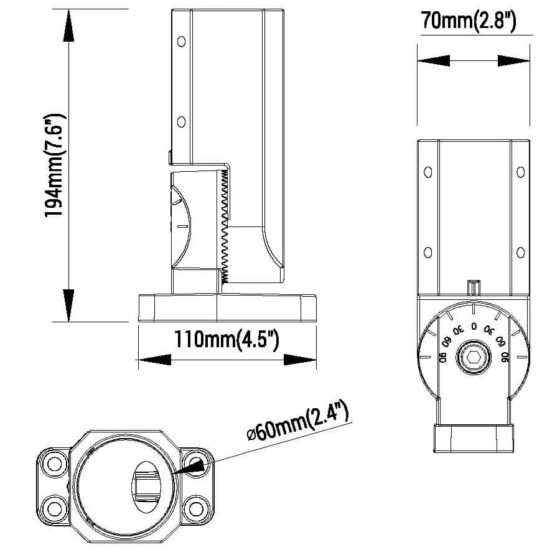

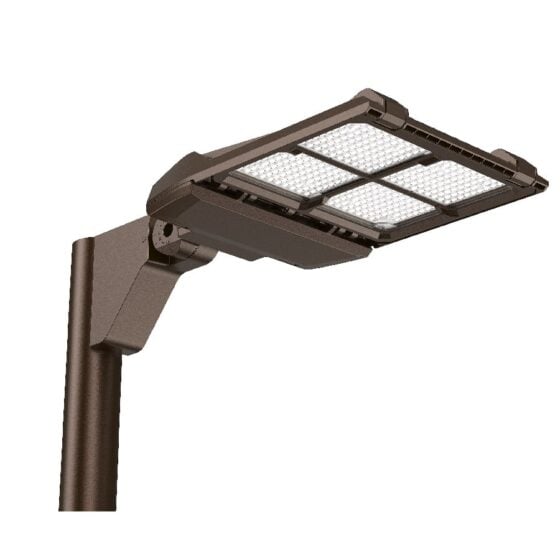

| Mounting | Arm or Slip Fitter |
| EPA Rating | 1.52 |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | > .92 |
| THD | < 15% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Surge Protection | 10kV line-earth |
| Operating Temperature | -22°F to 122°F |
| Certifications | ETL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 18.31 L X 13.15 W X 2.64 H |
| Weight (lbs) | 10 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Motion Sensor
- Optional Photocell
Download IES Files
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview
This adjustable LED shoebox light provides 90W, 120W, or 150W output settings and selectable 3000K, 4000K, or 5000K color temperature. It is configured for exterior pole-mounted lighting with Type 3 distribution as standard and Type 4 or Type 5 optics available.
The fixture delivers up to 23,250 lumens and replaces a 400W metal halide fixture. Arm and slip fitter mounting support common parking lot lighting, roadway perimeter lighting, and commercial site lighting layouts.
Core Performance and Output
Output is adjustable between 13,950, 18,600, and 23,250 lumens at 155 lumens per watt. The fixture operates on 100V-277V, 50/60Hz power with power factor above 0.92 and total harmonic distortion below 15%.
Type 3 optics provide the standard distribution. Type 4 and Type 5 distributions are available for projects requiring different throw patterns. The higher output setting can create excessive light at lower mounting heights if the layout is not matched to the site.
Adjustability and Control Options
Wattage selection allows the fixture to operate at 90W, 120W, or 150W. Color temperature can be set to 3000K, 4000K, or 5000K before installation.
This fixture does not provide dimming. A motion sensor and optional photocell are available for applications requiring occupancy-based or daylight-based operation.
Longevity and Reliability
The LED system is rated for 100,000 hours L70 life. The fixture includes 10kV line-earth surge protection for exterior electrical conditions.
Operating temperature range is -22 degrees F to 122 degrees F. The housing is rated IP65 and IK08 for outdoor exposure and impact resistance.
Build Quality and Physical Characteristics

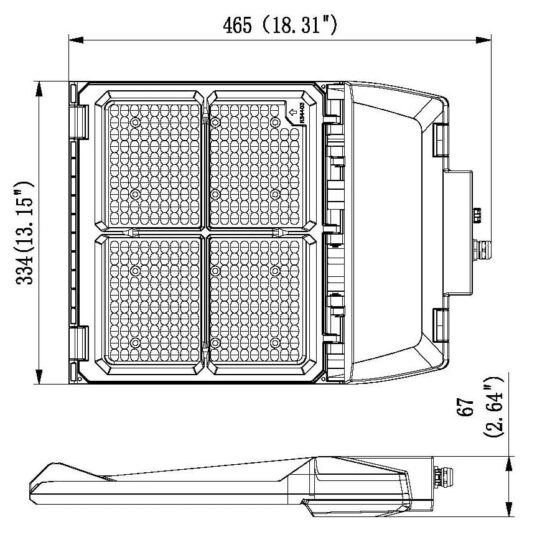

The fixture uses a die-cast aluminum housing with a bronze finish and polycarbonate lens. It measures 18.31 inches long, 13.15 inches wide, and 2.64 inches high.
Fixture weight is 10 pounds. Arm and slip fitter mounting are supported, and the fixture has an EPA rating of 1.52.
Where This Product Fits Best
This shoebox light fits pole-mounted exterior lighting where adjustable output and selectable color temperature are needed. Its optical options support site layouts requiring forward throw, perimeter coverage, or broader area distribution.
- parking lot lighting
- commercial site lighting
- roadway perimeter lighting
- area lighting
- dealership lighting
- campus lighting
- apartment complex lighting
The IP65 rating, IK08 rating, aluminum housing, and -22 degrees F to 122 degrees F operating range support outdoor installation conditions. Pole, mounting arm, and fixture EPA requirements must be evaluated together.
Installation and Long-Term Use
Install the fixture using the arm or slip fitter mounting method specified for the pole or mounting location. Confirm the mounting structure supports the fixture weight and EPA rating of 1.52.
Set wattage and color temperature before commissioning. Verify voltage is within the 100V-277V operating range and confirm whether the optional photocell or motion sensor is required for the control approach.
How This Fixture Is Commonly Used
Parking lot lighting, commercial site lighting, and dealership lighting layouts commonly use pole-mounted fixtures arranged along drive lanes, parking rows, perimeter areas, and site circulation paths. Type 3 distribution is used where forward-directed light is needed, while Type 4 and Type 5 options change the coverage pattern.
Mounting height, pole placement, target light levels, and selected optic determine spacing and layout. Higher wattage can reduce fixture count, but the final arrangement must account for uniformity and glare control.
Safety, Certifications, and Warranty
This fixture is ETL listed and DLC Premium listed. It carries an IP65 rating and IK08 rating.
The fixture includes a 5-year warranty. Surge protection is rated at 10kV line-earth.
Frequently Asked Questions
Q: What wattage settings are available?
A: The fixture is adjustable to 90W, 120W, or 150W.
Q: What color temperatures can be selected?
A: The available color temperature settings are 3000K, 4000K, and 5000K.
Q: Does this shoebox light support dimming?
A: No. This fixture does not provide dimming.
Q: What should be considered when planning fixture spacing?
A: Mounting height, pole placement, target light levels, selected wattage, and optic selection affect spacing and layout. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture appropriate for parking lot lighting?
A: Parking lot lighting is a primary application for this shoebox light. The fixture provides adjustable output, selectable color temperature, and Type 3, Type 4, or Type 5 distribution options.
Q: Which mounting methods are available?
A: The fixture supports arm mounting or slip fitter mounting.
Q: What should be verified for commercial site lighting installations?
A: Verify mounting structure compatibility, fixture weight, EPA rating, operating voltage, selected optic, and required control accessories. The fixture weight is 10 pounds, the EPA rating is 1.52, and operating voltage is 100V-277V.
