150 Watt LED Shoebox Area Light | 24000 Lumens | 5000K | 100V-277V | 10 Year Warranty
The SBHO2 150 Watt fixture is a high-output commercial-grade shoebox-style light ideal for parking lots, tennis courts and other area lighting applications that need an efficient yet powerful fixture. With a 10-year warranty and a variety of optics, this bright light will not disappoint.
Dwayne Kula | President, CTO and Founder
315 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 150 |
| Lumens | 24000 |
| Lumens Per Watt | 160 |
| Replaces | 400 or 1000 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V Optional |
| Color Temperature | 4000K or 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | Type 3 |
| Beam Angles (Opt) | Type 4 or Type 5 |
| Optics | Polycarbonate Lens |
| Lifespan | 244,000 (L70) hours |
| Mounting | Yoke or Arm or Slip Fitter |
| EPA Rating | 1.5 |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | > .92 |
| THD | < 15% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Surge Protection | 6kV line-line, 10kV line-earth |
| Operating Temperature | -22°F to 113°F |
| Certifications | ETL | DLC Premium |
| Warranty | 10 (100-277v) – 5 (277-480v) years |
Measurements
| Dimensions (in) | 15.63 X 11.25 X 3.22 |
| Weight (lbs) | 9.5 |
| Cord Length | 5 Feet |
| Cord Length | 5 Feet |
Features/Accessories
- Motion Sensor
- Optional Photocell
Download IES Files
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.

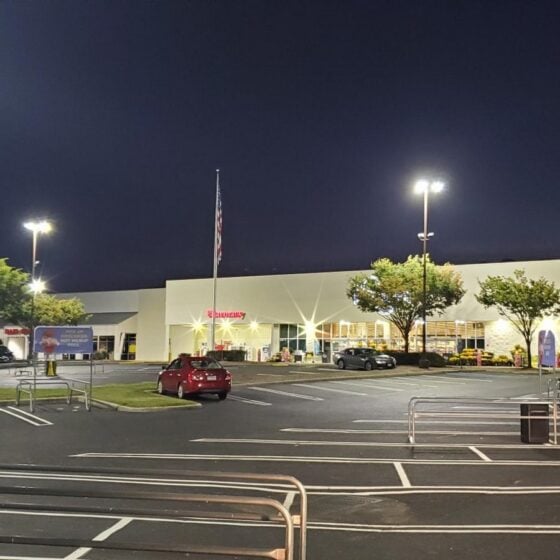

Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.

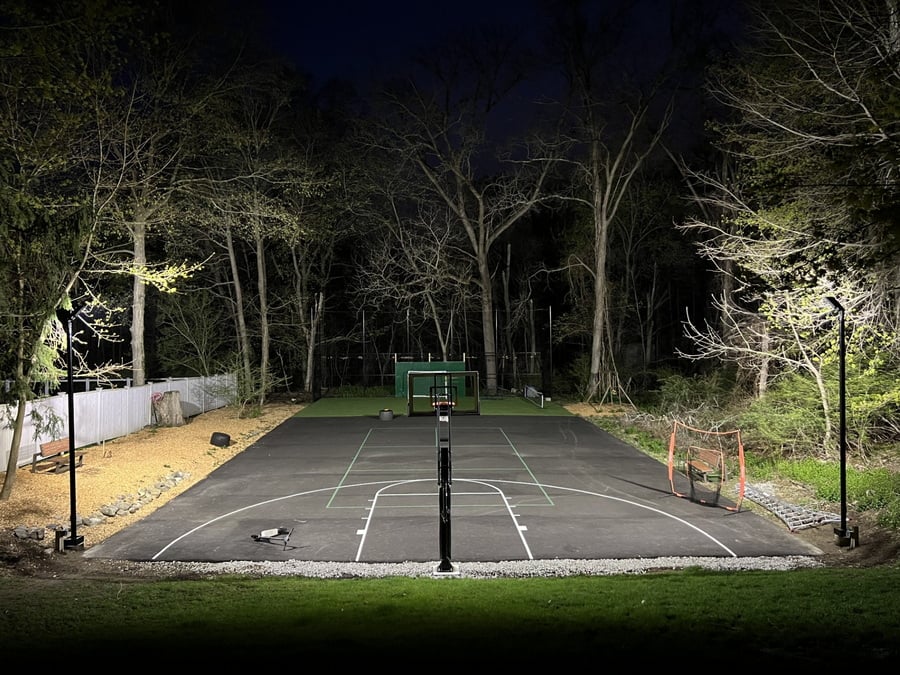

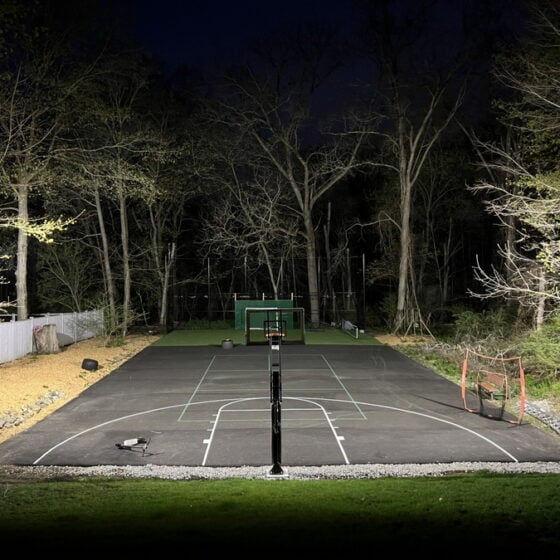

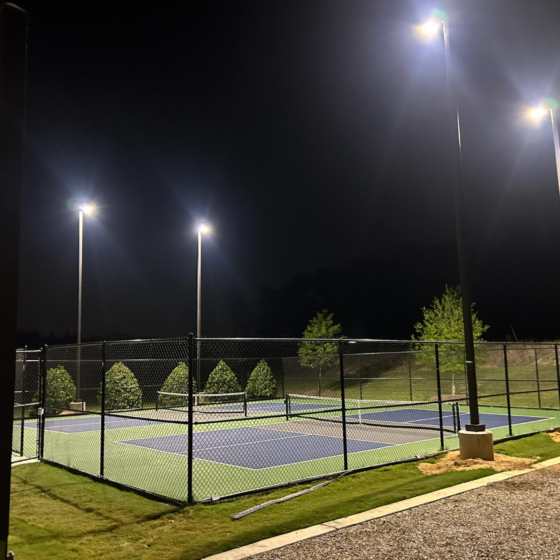

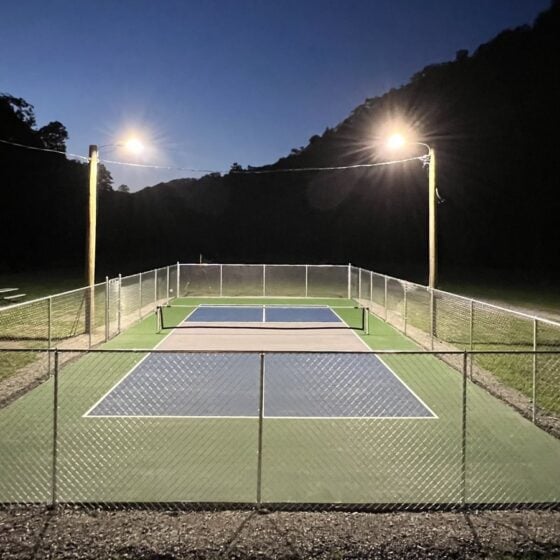

Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview
This 150 watt LED shoebox area light produces 24,000 lumens for exterior site lighting layouts that need a defined pole-mounted distribution. It is available in 4000K or 5000K and uses a standard Type 3 distribution.

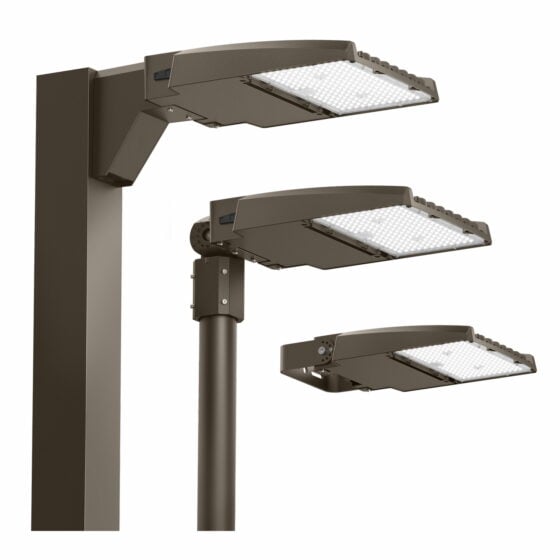

The fixture supports arm, yoke, and slip fitter mounting. It is commonly configured for parking lot lighting, commercial site lighting, and roadway perimeter lighting where pole location and optic selection determine coverage.
Core Performance and Output
This fixture delivers 24,000 lumens at 150 watts, providing 160 lumens per watt. It operates on 100V-277V, with 277V-480V available as an option.
The standard optic is Type 3. Type 4 and Type 5 distributions are available options. The polycarbonate lens protects the optical system.
Power factor is greater than 0.92 and total harmonic distortion is less than 15 percent. The 24,000-lumen output requires a layout that accounts for mounting height, pole placement, and target light levels; the supplied data does not establish spacing values.
Adjustability and Control Options
This shoebox light is available in 4000K and 5000K color temperatures. It is not dimmable.
A motion sensor is available. An optional photocell is also available for installations that require photocell-based operation.
Longevity and Reliability
The rated L70 lifespan is 244,000 hours. Surge protection is rated at 6kV line-line and 10kV line-earth.
The 100V-277V configuration includes a 10-year warranty. The optional 277V-480V configuration includes a 5-year warranty.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a bronze finish. The fixture measures 15.63 x 11.25 x 3.22 inches and weighs 9.5 pounds.
It is IP65 rated and IK08 rated. The operating temperature range is -22 degrees F to 113 degrees F.
The fixture includes a 5-foot cord. Its EPA rating is 1.5.
Where This Product Fits Best
This fixture fits pole-mounted exterior lighting layouts requiring 24,000 lumens, Type 3 distribution, and 100V-277V operation. Type 4 and Type 5 optics support layouts that need alternate distribution patterns.
- parking lot lighting
- commercial site lighting
- area lighting
- roadway perimeter lighting
- dealership lighting
- campus lighting
- apartment complex lighting
Its IP65 rating, IK08 rating, die-cast aluminum housing, and listed operating temperature range support exterior installations within the supplied environmental limits.
Installation and Long-Term Use

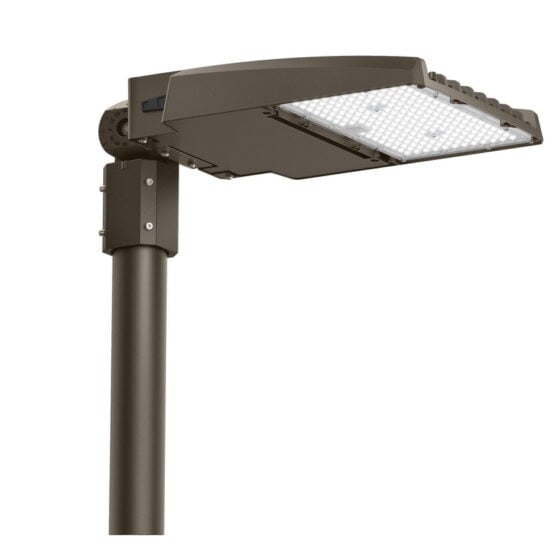

Arm, yoke, and slip fitter mounting options allow the fixture to be matched to the existing pole or mounting arrangement. The selected mounting method must accommodate the fixture dimensions, 9.5-pound weight, and EPA rating of 1.5.
Installers should confirm the required voltage configuration before installation. The standard configuration operates at 100V-277V, while 277V-480V is optional.
Long-term maintenance planning should account for the polycarbonate lens, surge protection rating, and applicable warranty term. The fixture is not dimmable.
How This Fixture Is Commonly Used
Layouts use pole locations, mounting height, and the selected Type 3, Type 4, or Type 5 optic to direct light across the planned area. The supplied product data does not establish a numerical mounting-height range or fixture spacing value.
Parking lot lighting and commercial site lighting layouts commonly use the standard Type 3 distribution where a directional pattern is required. Roadway perimeter lighting and dealership lighting may require review of the alternate optic options.
Higher output can reduce the number of fixture locations required by a layout, but final placement depends on target light levels and the selected distribution.
Safety, Certifications, and Warranty
ETL listed. DLC Premium listed.
IP65 rated. IK08 rated.
The 100V-277V version has a 10-year warranty. The optional 277V-480V version has a 5-year warranty.
Frequently Asked Questions
Q: What is the output of this 150 watt LED shoebox area light?
A: The fixture delivers 24,000 lumens at 150 watts, or 160 lumens per watt.
Q: What voltage configurations are available?
A: The standard voltage is 100V-277V. A 277V-480V configuration is available as an option.
Q: Can this shoebox light be dimmed?
A: No. This fixture is not dimmable.
Q: What mounting options are available?
A: Yoke, arm, and slip fitter mounting options are available.
Q: What should be considered when planning fixture placement?
A: Mounting height, pole location, target light levels, and the selected Type 3, Type 4, or Type 5 distribution affect fixture placement. The supplied product data does not establish a specific spacing value or fixture count.
Application Questions and Clarification
Q: Is this fixture appropriate for parking lot lighting?
A: Parking lot lighting is a primary application for this shoebox light. Final layout depends on mounting height, pole location, target light levels, and optic selection.
Q: Which optic is supplied with the fixture?
A: Type 3 is standard. Type 4 and Type 5 are available options.
Q: Can a photocell be included?
A: An optional photocell is available.
Q: What environmental ratings apply to this fixture?
A: The fixture is IP65 rated and IK08 rated. Its listed operating temperature range is -22 degrees F to 113 degrees F.
