100 / 120 / 150 Watt Adjustable LED Shoebox Light | 16600 to 25000 Lumens | 3000K / 4000K / 5000K | 100V-277V | Built-in Photocell
These are wattage and color adjustable parking lot shoebox fixtures. The wattage can be set to 100 | 120 | 150 watts. The color temperature can be set to 3000K (soft yellow), 4000K (neutral white) or 5000K (cool white). The fixture comes with a built-in photocell which, when enabled will automatically turn the light on when the sun sets.
Dwayne Kula | President, CTO and Founder
297 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 100 | 120 | 150 |
| Lumens | 16600 | 20000 | 25000 |
| Lumens Per Watt | 160 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 70+ |
| Dimming | 0-10V |
| Beam Angles (Std) | Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting (Opt) | Yoke or Arm or Slip Fitter |
| EPA Rating | 1.3 |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | .9 |
| THD | 15% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Surge Protection | 6 KV |
| Operating Temperature | -40°F to 122°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 12.2 X 11.2 X 2.5 |
| Weight (lbs) | 6 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Photocell
Download IES Files
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview
This adjustable LED shoebox light provides 100, 120, or 150 watts and 16,600 to 25,000 lumens for exterior site lighting. Wattage and color temperature are field adjustable, with 3000K, 4000K, and 5000K settings.
The fixture is configured for pole-mounted area lighting with arm, slip fitter, or yoke mounting options. It is commonly used as a 400-watt metal halide replacement where existing site lighting needs improved control and reduced energy use.
Core Performance and Output
Output ranges from 16,600 to 25,000 lumens at 160 lumens per watt. The standard Type 3 distribution directs light outward from the mounting location for roadway perimeter lighting, parking lot lighting, and commercial site lighting.
The fixture operates on 100V-277V, 50/60Hz power, with a 0.9 power factor and 15% THD. The 150-watt setting can produce excessive light at lower mounting heights, while higher mounting heights require layout review to maintain uniformity between fixtures.
Adjustability and Control Options
Field-selectable wattage allows the fixture to operate at 100, 120, or 150 watts. Field-selectable color temperature allows selection of 3000K, 4000K, or 5000K before commissioning.
0-10V dimming is supported for compatible control systems. A built-in photocell provides dusk-to-dawn operation where photocell control is required.
Longevity and Reliability
The rated L70 life is 150,000 hours. This rating supports long-term exterior operation where fixture access may require lift equipment or scheduled site maintenance.
Integrated 6 kV surge protection provides electrical protection for exterior installations. The fixture operates from -40F to 122F.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a bronze finish. A polycarbonate lens protects the optical assembly.
The fixture is IP65 rated. It measures 12.2 by 11.2 by 2.5 inches and weighs 6 pounds, which helps limit arm, slip fitter, and yoke mounting load.
Where This Product Fits Best
This fixture fits exterior locations that need directional pole-mounted lighting and selectable output. Its Type 3 distribution aligns with site, perimeter, and parking layouts.
- parking lot lighting
- commercial site lighting
- area lighting
- roadway perimeter lighting
- campus lighting
- apartment complex lighting
The IP65 enclosure, die-cast aluminum housing, and -40F to 122F operating range support exposed outdoor conditions. The EPA rating is 1.3 and must be considered with the selected pole and mounting arrangement.
Installation and Long-Term Use
Arm, slip fitter, and yoke mounting options allow the fixture to match different pole and structure configurations. Confirm the mounting method, pole capacity, EPA loading, voltage, and control wiring before installation.
Set wattage and color temperature before final aiming and commissioning. For installations using 0-10V dimming or the built-in photocell, verify the control setup during commissioning and retain access for future maintenance.
How This Fixture Is Commonly Used

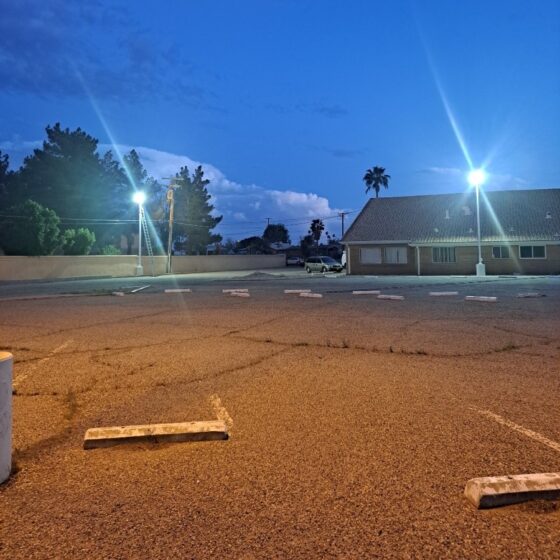

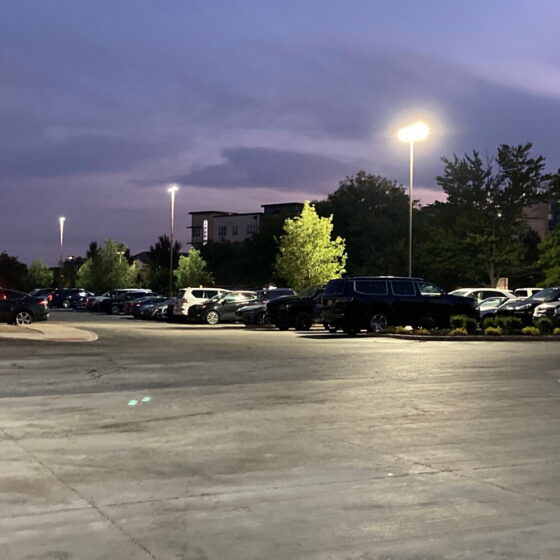

For parking lot lighting and commercial site lighting, fixtures are arranged along poles so the Type 3 distribution projects across traffic and parking areas. Roadway perimeter lighting layouts typically position fixtures to direct output along the perimeter rather than behind the pole.
Mounting height, pole placement, and target light levels determine the final layout for area lighting and campus lighting. Higher output can reduce fixture count, but fixture placement still controls uniformity and glare.
Safety, Certifications, and Warranty
This fixture is UL listed and rebate eligible. It is IP65 rated.
The warranty is 5 years. The fixture includes 6 kV surge protection.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture has 100-watt, 120-watt, and 150-watt settings producing 16,600, 20,000, and 25,000 lumens.
Q: What color temperature settings are available?
A: The field-selectable color temperature settings are 3000K, 4000K, and 5000K.
Q: What mounting options are available?
A: The available mounting options are yoke, arm, and slip fitter mounting.
Q: What should be reviewed when planning a parking lot lighting layout?
A: Review the selected wattage, mounting height, pole placement, Type 3 distribution, and target light levels. The supplied product data does not establish a fixed fixture spacing value.
Application Questions and Clarification
Q: Is this fixture appropriate for roadway perimeter lighting?
A: Roadway perimeter lighting is a listed primary application. The standard optic is Type 3, and final placement depends on the roadway perimeter layout and mounting arrangement.
Q: What should be considered for campus lighting or apartment complex lighting?
A: Campus lighting and apartment complex lighting are listed secondary applications. Confirm mounting method, pole capacity, EPA loading, voltage, selected output, and required control operation for the project.
