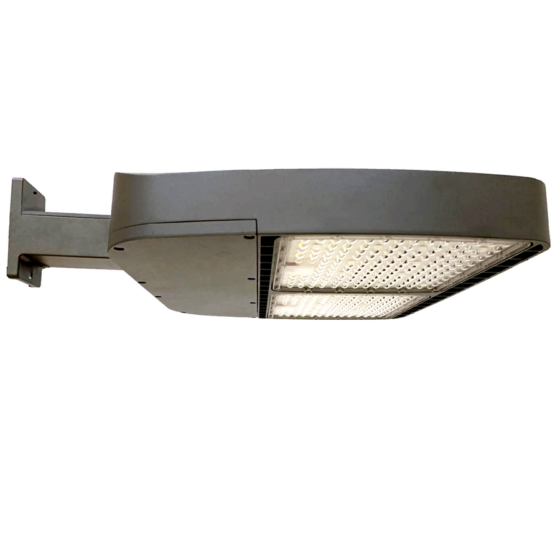

60 Watt LED Shoebox Area Light | 10020 Lumens | 5000K | 100-277V | Arm Mount

Product Overview

This 60 Watt LED Shoebox Area Light is designed for exterior site and area lighting where moderate output and energy efficiency are required. It delivers 10,020 lumens at 5000K, making it suitable for replacing 250W metal halide fixtures in parking lots, commercial sites, and perimeter roadway applications. The fixture is built for pole or arm mounting and is commonly installed at mounting heights between 12 and 20 feet in small to mid-sized lots or site perimeters.

The housing is die-cast aluminum with a polycarbonate lens, providing durability for outdoor environments. The fixture is UL listed, IP67, and IK08 rated, supporting use in exposed locations subject to weather and occasional impact.

Core Performance and Output

This fixture outputs 10,020 lumens at 60 watts, achieving 167 lumens per watt. The standard beam distribution is Type 5, with Type 3 and Type 4 optics available for site-specific requirements. The 5000K color temperature supports high visibility in parking and area lighting applications. Power factor is 0.99, and THD is 15%.

At mounting heights below 12 feet, output may be excessive and increase glare. Uniformity may decrease at mounting heights above 20 feet or when spacing exceeds typical pole layouts for this wattage class.

Adjustability and Control Options

The fixture supports 1-10V dimming for integration with lighting controls or occupancy sensors. Beam angle can be specified at order with Type 5 as standard and Type 3 or 4 as options. The arm mount is fixed and does not provide tilt adjustment after installation.

No integrated motion or photocell is included; external controls can be added as required by the site.

Longevity and Reliability

L70 rated life is 150,000 hours, supporting long-term operation with minimal maintenance. The fixture is designed for continuous outdoor use in a range of climates, with an operating temperature range from -40°F to 140°F.

All components are sealed against dust and water ingress to IP67. The polycarbonate lens and die-cast aluminum housing provide impact resistance to IK08.

Build Quality and Physical Characteristics

The fixture measures 12.75 inches long by 13.75 inches wide by 4 inches high and weighs 11.25 lbs. The housing is bronze-finished die-cast aluminum with a polycarbonate lens. All wiring and driver components are fully enclosed and protected from environmental exposure.

The EPA rating is 2, supporting use on standard area lighting poles. The fixture is designed for arm mounting to square or round poles with compatible brackets.

Where This Product Fits Best

This LED shoebox light is suited for exterior area lighting where moderate output and robust construction are required. Typical environments include small to mid-sized parking lots, commercial site perimeters, and campus or municipal areas where 250W metal halide fixtures are being replaced.

• parking lot lighting
• area lighting
• commercial site lighting
• roadway perimeter lighting
• tennis court lighting
• pickleball court lighting
• horse arena lighting
• dealership lighting

IP67 and IK08 ratings support use in exposed outdoor locations, including areas subject to rain, dust, and occasional impact. The fixture is not intended for high-mast or large-area applications requiring higher output.

Installation and Long-Term Use

The fixture is designed for arm mounting to standard area lighting poles. All mounting hardware is compatible with square or round poles using the appropriate bracket. Typical mounting heights are 12 to 20 feet, with spacing determined by site layout and required light levels.

Routine maintenance is limited to periodic cleaning of the lens and inspection of mounting hardware. The sealed design minimizes internal dust or moisture ingress. No relamping is required over the rated life.

How This Fixture Is Commonly Used

This shoebox light is typically installed on single or double-arm poles in parking lots, site perimeters, and small sports courts. Mounting heights of 12 to 20 feet are standard, with fixtures spaced to achieve uniform coverage and meet local lighting codes.

Layout patterns vary by site, but higher output per fixture can reduce the total number of poles required. However, increased output may also increase glare if not properly spaced or shielded.

Safety, Certifications, and Warranty

This fixture is UL listed and meets IP67 and IK08 ratings. It is suitable for rebate programs where applicable. The product is covered by a 5-year warranty from the date of installation.

All electrical and mechanical components are designed for safe operation in outdoor environments. Installation must comply with local electrical codes and pole loading requirements.

Frequently Asked Questions

Q: What is the recommended mounting height for this 60W shoebox light?

A: Typical mounting heights are 12 to 20 feet for parking lots and area lighting applications.

Q: Can this fixture be used with existing lighting controls?

A: Yes, it supports 1-10V dimming and can be integrated with compatible external controls or sensors.

Q: What type of pole is required for installation?

A: The fixture is designed for arm mounting to standard square or round area lighting poles with an EPA rating suitable for the fixture and local wind loads.

Q: How many fixtures are needed for a small parking lot?

A: Fixture count depends on lot size, pole spacing, and required light levels. Typical layouts use one fixture per pole at 12?20 foot mounting heights, spaced to achieve uniform coverage.

Q: Is the fixture suitable for coastal or corrosive environments?

A: The die-cast aluminum housing and polycarbonate lens provide good resistance to weather, but for highly corrosive or coastal environments, additional protection or marine-rated fixtures may be required.

Application Questions and Clarification

Q: Is this fixture appropriate for tennis court or pickleball court lighting?

A: Yes, it is commonly used for small-scale tennis and pickleball courts, with mounting heights and spacing adjusted to meet court lighting standards.

Q: Can this be used for dealership or campus lighting?

A: Yes, it is suitable for dealership lots and campus area lighting where moderate output and uniform coverage are required.

Q: Is this fixture intended for high-mast or large-area applications?

A: No, the 60W output is best suited for small to mid-sized lots or site perimeters, not for high-mast or large-area installations.

Q: What are the main limitations for this product in area lighting?

A: Output may be excessive at low mounting heights and insufficient for large areas or high-mast applications. Proper pole selection and spacing are required for optimal performance.
