LED Oil and Gas Industry Lighting
- Rated 50,000+ hours to reduce maintenance in hard-to-access locations
- C1D1 and C1D2 certified fixtures matched to your site classification
- Free photometric planning and expert product support included
Get Your Custom Lighting Plan With Product Recommendations
- Professional Layout Designed for Class I/II Division Rated Hazardous Zones & Explosion-Proof Requirements
- Precise Fixture Count & Placement Specifications Meeting ATEX, NEC & OSHA Compliance Standards
- Maximize Safety & Uptime While Reducing Maintenance in Volatile, Corrosive Environments
Our LED Oil and Gas Industry Lighting for Hazardous Locations includes explosion-proof area lights, flood lights, linear fixtures, compact lights, high-temperature fixtures, and marine-grade fixtures. Hazardous-location options include Class I, Division 1 and Class I, Division 2 LED fixtures. Available fixture styles support broad area illumination, directional lighting, elongated light distribution, and localized lighting. Standard industrial and outdoor fixtures are also available for non-classified areas within oil and gas facilities. Product configurations vary by gas group, temperature code, ambient-temperature range, voltage, controls, environmental rating, and hazardous-location listing.
Common applications for these fixtures include drilling and production sites, oil fields, refineries, petrochemical facilities, pipeline stations, terminals, tank farms, and offshore platforms. Area lights are used around process equipment, production skids, pump pads, platforms, loading areas, and outdoor work zones. Flood lights illuminate equipment, tanks, structures, yards, elevated work areas, and loading zones. Linear fixtures are installed along walkways, pipe racks, platforms, maintenance areas, equipment rooms, and enclosed process spaces, while compact fixtures serve stairs, landings, doors, inspection points, instruments, and valves. Marine-grade models are available for offshore platforms, coastal facilities, and marine terminals, while high-temperature models are used near heaters, boilers, hot piping, and compressors.
Lighting for Oil and Gas Facilities
Oil and gas facilities include drilling and production sites, pipeline stations, refineries, terminals, tank farms, offshore platforms, maintenance buildings, storage yards, and administrative areas. Lighting requirements vary across these locations because flammable gases or vapors, temperature, weather, corrosion, vibration, mounting conditions, and required light levels can change from one part of a facility to another. Hazardous process areas may require Class I, Division 1 or Class I, Division 2 LED fixtures. Parking lots, offices, control buildings, warehouses, roadways, and other support areas may use standard industrial or outdoor fixtures when the facility’s electrical drawings show that the mounting location is outside the hazardous zone.
Hazardous-Location Note: Do not select C1D1 or C1D2 lighting based only on the type of facility. Confirm the class, division, gas group, temperature code, ambient-temperature range, wiring method, and product listing assigned to the exact fixture location. The facility engineer, project specifier, authority having jurisdiction, or another qualified professional should approve the final selection.
Oil and Gas Lighting Applications
| Application | Primary Lighting Considerations |
|---|---|
| Oil fields and production sites | Wellheads, separators, tank batteries, drilling equipment, production skids, walkways, and maintenance areas may require hazardous-location fixtures selected for gas exposure, vibration, temperature, weather, and mounting height. |

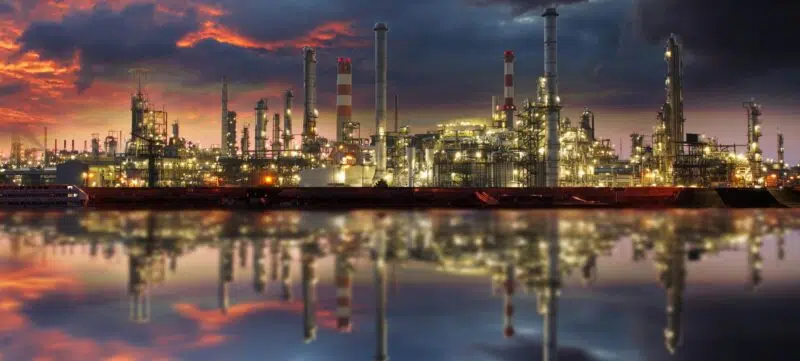

| Oil refineries and petrochemical facilities | Process units, pumps, compressors, tanks, loading racks, pipe racks, platforms, and maintenance zones require area-by-area review because C1D1, C1D2, and non-classified locations may exist within the same facility. |

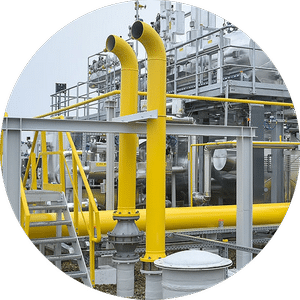

| Pipeline facilities | Pump stations, compressor stations, metering stations, valve sites, pig launching and receiving areas, terminals, and storage sites may require C1D1 or C1D2 fixtures near release sources. |
| Offshore platforms and coastal facilities | Hazardous-location approval may need to be combined with resistance to salt spray, corrosion, moisture, vibration, high winds, and difficult maintenance access. |
| Tank farms and transfer terminals | Lighting should support tank access, valve identification, loading operations, walkways, stairs, security, and emergency response while matching the classification around vents and transfer points. |
| Non-classified support areas | Parking lots, offices, control buildings, warehouses, roadways, and perimeter areas outside the hazardous zones may use standard commercial or industrial fixtures with suitable environmental ratings. |
Class I Division 1 vs Class I Division 2 Lighting
Class I locations are areas where flammable gases or vapors may create an ignitable atmosphere. The division describes how likely that atmosphere is to be present at the fixture location.
| Classification | When It May Apply |
|---|---|
| Class I, Division 1 | Areas where ignitable gases or vapors may be present during normal operation, routine venting, draining, transfer, maintenance, or other expected operating conditions. |
| Class I, Division 2 | Areas where flammable liquids or gases are normally contained within closed equipment and an ignitable atmosphere would generally result from an abnormal leak, rupture, equipment failure, or ventilation problem. |
| Non-Classified | Areas outside the hazardous boundaries shown on the facility’s electrical drawings, such as some offices, warehouses, parking lots, roadways, and support buildings. |
C1D1 and C1D2 describe the hazardous-location approval, not the fixture shape. Area lights, flood lights, linear fixtures, and compact lights may each be available with different classifications and approvals.
Types of LED Lights Used in Oil and Gas Facilities
| Fixture Type | Where It Works Best |
|---|---|
| Explosion-Proof LED Area Lights | General illumination around process equipment, production skids, platforms, loading areas, pump pads, and classified outdoor work zones. |
| Explosion-Proof LED Flood Lights | Directional illumination for equipment, structures, elevated work areas, tanks, yards, loading zones, and distant targets. |
| Explosion-Proof Linear LED Lights | Walkways, pipe racks, enclosed process spaces, maintenance areas, equipment rooms, platforms, and locations requiring elongated light distribution. |
| Compact Explosion-Proof Fixtures | Stairs, landings, doors, inspection points, instruments, valves, and smaller spaces where a large area or flood light is unnecessary. |
| High-Temperature Hazardous-Location Fixtures | Process areas near heaters, boilers, hot piping, compressors, or other equipment where the ambient temperature exceeds the approved range of standard explosion-proof lights. |
| Marine-Grade Hazardous-Location Fixtures | Offshore platforms, marine terminals, and coastal sites that combine flammable-gas hazards with salt, moisture, corrosion, and wind exposure. |
| Standard Industrial and Outdoor Fixtures | Non-classified offices, parking lots, warehouses, roadways, security areas, and support buildings outside the hazardous zones. |
Fixture Selection Note: Fixture style does not determine whether a light is suitable for a hazardous area. Confirm the required class, division, gas group, temperature code, ambient-temperature range, and listing for the exact mounting location.
Oil and Gas Lighting Selection Guidelines
| Selection Factor | What to Confirm |
|---|---|
| Area classification | Confirm whether the mounting location is C1D1, C1D2, Zone-classified, or non-classified. |
| Gas group | Match the fixture approval to the gases or vapors identified for that part of the facility. |
| Temperature code | Verify that the fixture’s maximum surface temperature is suitable for the materials that may be present. |
| Ambient temperature | Check both the minimum and maximum expected temperatures, especially near hot process equipment or in extreme climates. |
| Fixture distribution | Use area lights for broad coverage, flood lights for directional targets, linear fixtures for long work zones, and compact lights for small or obstructed spaces. |
| Mounting height and location | Account for tanks, pipe racks, structures, machinery, platforms, handrails, and other objects that may block light. |
| Environmental exposure | Review water, dust, salt, chemicals, vibration, impact, wind, corrosion, and washdown conditions separately from the hazardous-location rating. |
| Voltage and controls | Confirm supply voltage, dimming, emergency operation, photocells, sensors, and whether all controls are approved for the location. |
| Installation system | Conduit, seals, fittings, cable entries, grounding, junction boxes and lighting controls, and wiring methods must also be suitable for the classified area. |
| Maintenance access | Consider fixture weight, mounting hardware, service clearances, lifts, shutdown requirements, and the cost of accessing elevated or remote lights. |
How LED Lighting Addresses Common Oil and Gas Site Conditions
| Site Condition | Lighting Response |
|---|---|
| Flammable gases and vapors | Properly selected C1D1 or C1D2 fixtures are designed and tested for use in classified locations when installed according to their listing. |
| High ambient temperatures | High-temperature fixtures use components and thermal designs approved for conditions that exceed standard fixture limits. |
| Salt, moisture, and chemicals | Corrosion-resistant housings, coatings, hardware, and sealed construction help protect fixtures in coastal, offshore, washdown, and chemically aggressive areas. |
| Vibration and equipment movement | Heavy-duty construction and suitable mounting systems help reduce problems near pumps, compressors, drilling equipment, machinery, and elevated structures. |
| Shadows from equipment and structures | A combination of area, flood, linear, and compact fixtures can place light around tanks, pipe racks, skids, platforms, and machinery. |
| Difficult maintenance access | Long-life LED fixtures reduce lamp and ballast replacement work in remote, elevated, or restricted-access locations. |
| Poor visibility of gauges and valves | Directional and localized lighting can improve vertical illumination on instruments, controls, labels, valves, and equipment surfaces. |
| Emergency response needs | Instant-on LED output provides immediate illumination after switching and can support approved emergency or backup systems where required. |
Photometric Planning for Oil and Gas Facilities
Process equipment, pipe racks, tanks, platforms, structural steel, and machinery can block light and create shadows. A photometric plan can help evaluate fixture quantity, mounting height, distribution, aiming, average and minimum foot-candles, uniformity, vertical illumination, glare, and dark areas before installation. The hazardous-area classification should be established before the final lighting layout is completed. This allows the plan to use appropriately approved fixtures at each mounting location.
Common Oil and Gas Lighting Mistakes
- Using C1D2 fixtures where C1D1 is required: Confirm the classification assigned to the exact fixture location before ordering.
- Using standard fixtures in hazardous areas: Standard high bays, flood lights, area lights, wall lights, and panels are not substitutes for properly approved hazardous-location fixtures.
- Assuming every C1D1 fixture fits every C1D1 location: Gas group, temperature code, ambient-temperature range, voltage, and installation requirements must also match.
- Choosing fixtures by facility type alone: A refinery, oil field, or pipeline station may contain C1D1, C1D2, and non-classified areas.
- Ignoring heat near process equipment: Fixtures installed near heaters, boilers, compressors, or hot piping may require higher ambient-temperature ratings.
- Skipping corrosion review: Offshore platforms, coastal terminals, chemical areas, sulfur-processing zones, and washdown locations may require additional corrosion protection.
- Overlooking vibration: Pumps, compressors, drilling equipment, and rotating machinery can affect fixtures, brackets, conduit, and electrical connections.
- Choosing fixtures by wattage alone: Lumens, optics, mounting height, classification, voltage, beam distribution, and photometric performance are more important than matching old wattage.
- Creating dark areas around equipment: Tanks, pipe racks, platforms, machinery, and structures can block light when fixture placement is based on estimates alone.
- Ignoring vertical illumination: Floor-level foot-candles do not show whether gauges, labels, valves, ladders, hoses, and equipment faces are visible.
- Forgetting the rest of the electrical system: Conduit, seals, fittings, junction boxes, controls, and wiring methods must also meet the requirements of the classified area.
- Skipping a photometric plan: Complex process sites often require multiple fixture types and mounting positions to achieve useful coverage.
Need Help Choosing Oil and Gas Lighting?
Contact us about LED lighting for oil and gas facilities, and our Product Specialists can help review the classification assigned to each fixture location, fixture type, lumen output, mounting height, optics, voltage, operating temperature, environmental exposure, and photometric requirements.
LED Oil and Gas Industry Lighting FAQs
Does Every Area Of An Oil And Gas Facility Need Hazardous-Location Lighting?
No. C1D1 or C1D2 fixtures may be required in classified process areas, while offices, warehouses, parking lots, roadways, and other locations outside hazardous boundaries may use standard industrial or outdoor fixtures with suitable environmental ratings.
How Do I Choose Between Area, Flood, Linear, And Compact Hazardous-Location Lights?
Choose the fixture distribution based on the task and physical layout: area lights provide broad coverage, flood lights target equipment or distant surfaces, linear fixtures suit long work zones, and compact fixtures fit small or obstructed spaces. The selected fixture must also match the classification and conditions at its exact mounting location.
What Should Be Confirmed Before Selecting A C1D1 Or C1D2 Fixture?
Confirm the exact location classification, gas group, temperature code, ambient-temperature range, wiring method, and product listing before selecting a fixture. Voltage, controls, environmental exposure, mounting conditions, and the suitability of conduit, seals, fittings, and junction boxes also require review.
How Can A Photometric Plan Help With Oil And Gas Lighting?
A photometric plan can evaluate fixture quantity, mounting height, distribution, aiming, foot-candles, uniformity, vertical illumination, glare, and dark areas before installation. This is particularly useful where tanks, pipe racks, platforms, structural steel, and machinery can block light.
What Should Be Considered For Offshore Or Coastal Oil And Gas Lighting?
Offshore and coastal locations may need hazardous-location approval combined with resistance to salt spray, moisture, corrosion, vibration, high winds, and difficult maintenance access. These environmental conditions should be reviewed separately from the hazardous-location rating.
