240 Watt Round Explosion Proof LED Light | 33600 Lumens | Class 1 Div 2 | 5000K | 100-277V
This 240W explosion proof fixture is a practical choice for hazardous locations and paint booths requiring 33,600 lumens, 120 degree distribution, and 100-277V operation. Its UL844, Class I/II/III, ATEX, and IECEx ratings support use across listed hazardous classifications, while IP66, IK08, 10kV surge protection, and a -40F to 149F operating range suit demanding environments. Yoke and 3/4 in NPT pendant mounting provide installation flexibility.
Neil Peterson | CEO and Chief Lighting Specialist
338 in stock (can be backordered)
Product Specifications
UL Specs
- Class 1 Division 2, Group A,B,C,D
- Class 2, Division 1, Groups E,F,G
- Class 2, Division 2, Groups F,G
- Class 3
- Class l, Zone 2, Group IlC
- Zone 20 and Zone 21
- Zone 22
- UL844, Wet Locations (UL 1598 / UL1598A)
- CSA, ATEX, IECEX
Key Features
| Brand | LED Lighting Supply |
| Watts | 240 |
| Lumens | 33600 |
| Lumens Per Watt | 140 |
| Replaces | 1000 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting | Yoke or 3/4 in NPT Pendant |
| Mounting (Opt) | Pendant or Surface |
| Fixture Color | Gray |
| Frequency (Hz) | 50/60 |
| Power Factor | >.90 |
| THD | < 10% |
Durable Construction
| Housing | Powder Coated Aluminum |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 149°F |
| Certifications | UL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 14.96 W X 14.37 H |
| Weight (lbs) | 20 |
| Cord Length | No Cord |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

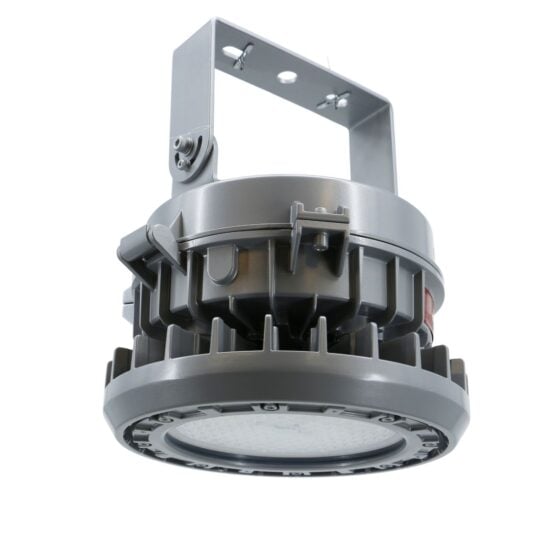

This 240-watt round explosion proof LED light produces 33,600 lumens at 5000K for hazardous location lighting where a high-output fixture is required. It uses a 120-degree beam distribution, tempered glass lens, and gray powder-coated aluminum housing.
The fixture is rated for Class 1 Division 2, Class 2 Division 1 and 2, Class 3, Class 1 Zone 2, and Zones 20, 21, and 22 locations. It is commonly evaluated for hazardous location lighting, paint booth lighting, chemical processing facility lighting, and explosion proof lighting.
Core Performance and Output
This fixture delivers 33,600 lumens from 240 watts, with an efficacy of 140 lumens per watt. The 5000K color temperature and 70+ CRI provide a cool white output for task visibility and general area illumination.
The standard 120-degree beam angle distributes output broadly from overhead mounting positions. At lower mounting heights, 33,600 lumens can create excessive brightness if fixture placement and dimming are not considered.
The fixture operates on 100-277V, 50/60Hz power. Power factor is greater than 0.90, and total harmonic distortion is less than 10%.
Adjustability and Control Options
1-10V dimming is included for applications requiring adjustable output. Dimming should be coordinated with the installed control system and hazardous-location requirements.

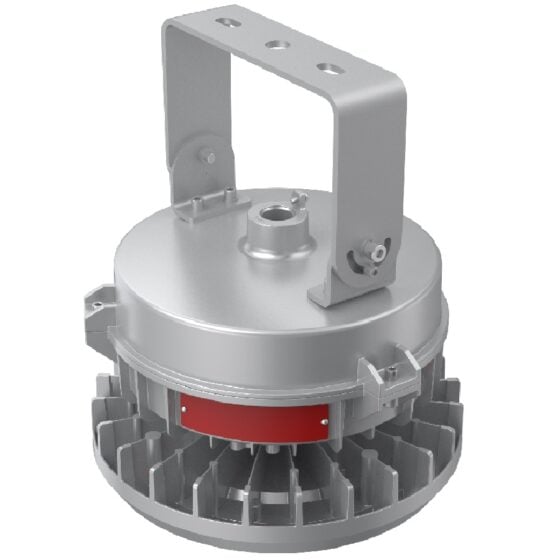

Yoke and 3/4-inch NPT pendant mounting are standard options. Pendant and surface mounting are optional configurations.
Longevity and Reliability
The rated life is 150,000 hours L70. This supports long service intervals in locations where fixture access can require planned maintenance windows.
The fixture includes 10kV surge protection. Its operating temperature range is -40 degrees F to 149 degrees F.
Build Quality and Physical Characteristics

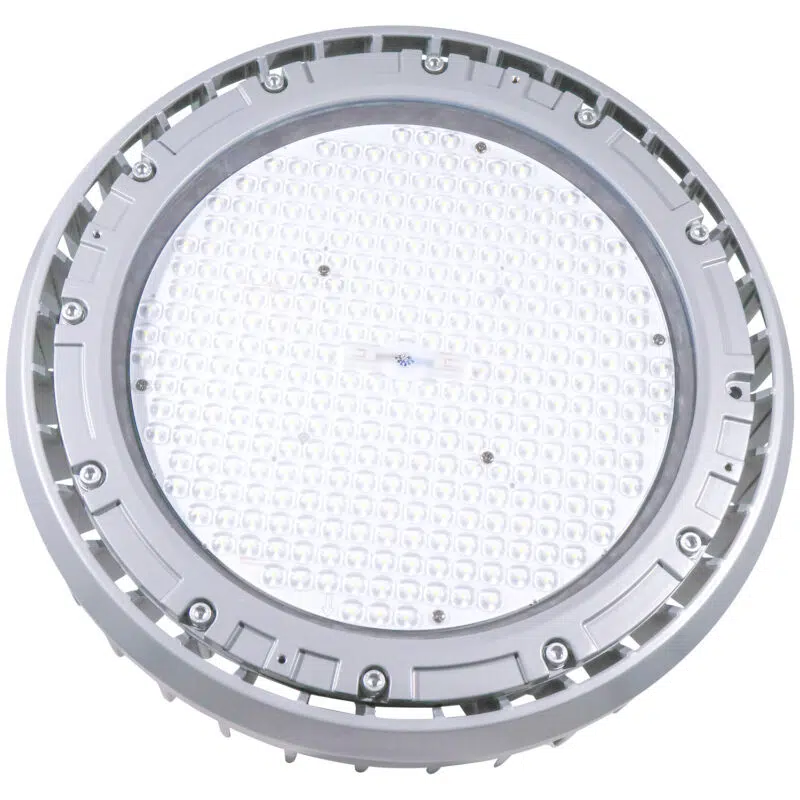

The housing is powder-coated aluminum with a tempered glass lens. The fixture has an IP66 rating and IK08 impact rating.
Fixture dimensions are 14.96 inches wide by 14.37 inches high. Weight is 20 pounds, and the fixture is supplied without a cord.
Where This Product Fits Best
This fixture fits hazardous and classified locations where the supplied location classification matches the fixture ratings. Its high output and broad beam pattern suit overhead layouts requiring substantial light output.
- hazardous location lighting
- explosion proof lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
Its IP66 enclosure, aluminum housing, tempered glass lens, and -40 degrees F to 149 degrees F operating range support demanding environmental conditions. The final fixture selection must match the location classification, group, division, or zone requirements.
Installation and Long-Term Use
Yoke mounting allows direct attachment to a suitable structure, while the 3/4-inch NPT pendant option supports pendant-mounted layouts. The mounting structure must support the 20-pound fixture weight.
The fixture operates on 100-277V and has no factory-installed cord. Verify branch voltage, dimming wiring, mounting method, and hazardous-location requirements before installation.
How This Fixture Is Commonly Used
In hazardous location lighting and explosion proof lighting layouts, fixtures are positioned overhead to provide broad 120-degree distribution across the work area. Mounting height, target light level, and obstructions determine the final layout.
Paint booth lighting and chemical processing facility lighting installations typically use a coordinated fixture pattern rather than isolated fixture placement. Higher output can reduce fixture count, but it can also increase brightness directly below the fixture.
Safety, Certifications, and Warranty
UL 844, UL 1598, UL 1598A, CSA, ATEX, and IECEx.
Class 1 Division 2 Groups A, B, C, D. Class 2 Division 1 Groups E, F, G. Class 2 Division 2 Groups F, G. Class 3. Class 1 Zone 2 Group IIC. Zone 20, Zone 21, and Zone 22.
Wet Locations. IP66. IK08.
The warranty period is 5 years.
Frequently Asked Questions
Q: What light output does this explosion proof fixture provide?
A: The fixture produces 33,600 lumens while operating at 240 watts.
Q: What voltage does this fixture use?
A: The fixture operates on 100-277V, 50/60Hz power.
Q: Is dimming available?
A: Yes. The fixture includes 1-10V dimming.
Q: What mounting options are available?
A: Standard mounting options are yoke and 3/4-inch NPT pendant mounting. Pendant and surface mounting are optional configurations.
Q: What should be considered when planning fixture placement?
A: Mounting height, the 120-degree beam distribution, target light levels, and layout requirements affect fixture placement. The supplied data does not establish a specific spacing value or fixture quantity.
Application Questions and Clarification
Q: Can this fixture be used for hazardous location lighting?
A: The fixture is rated for Class 1 Division 2 Groups A, B, C, D; Class 2 Division 1 Groups E, F, G; Class 2 Division 2 Groups F, G; Class 3; Class 1 Zone 2 Group IIC; and Zones 20, 21, and 22. The installed location classification must match the fixture rating.
Q: What should be confirmed for paint booth lighting?
A: Confirm the paint booth classification, available voltage, mounting method, and required fixture layout. This fixture operates on 100-277V and has yoke or 3/4-inch NPT pendant mounting options.
Q: Is this fixture suitable for chemical processing facility lighting?
A: Chemical processing facility lighting is a valid application. Confirm the required location classification and environmental conditions against the fixture ratings before installation.
Q: What environmental ratings apply to this fixture?
A: The fixture is IP66 rated, IK08 rated, and operates from -40 degrees F to 149 degrees F.
