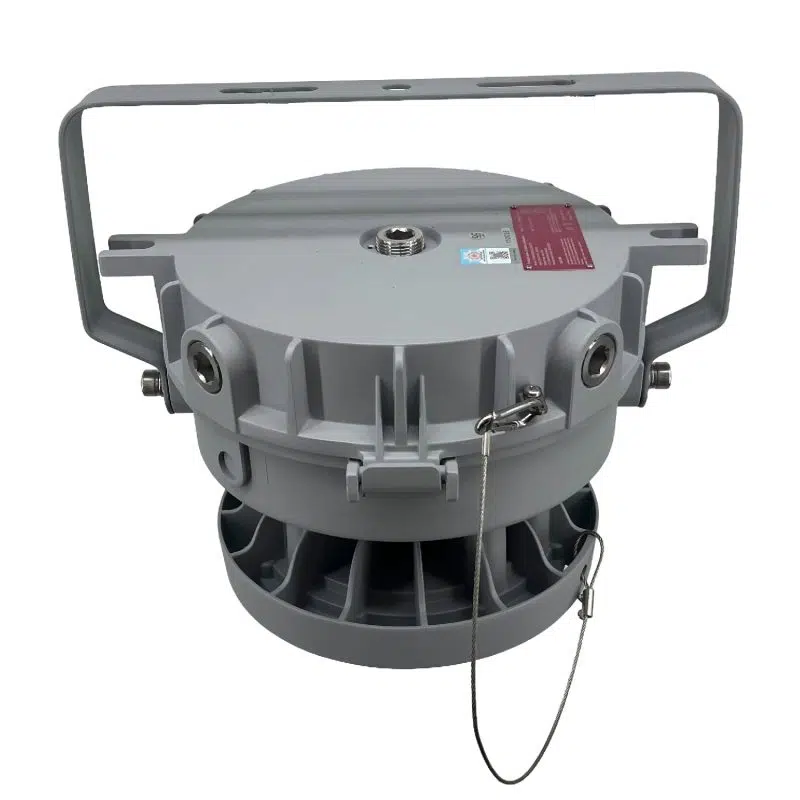

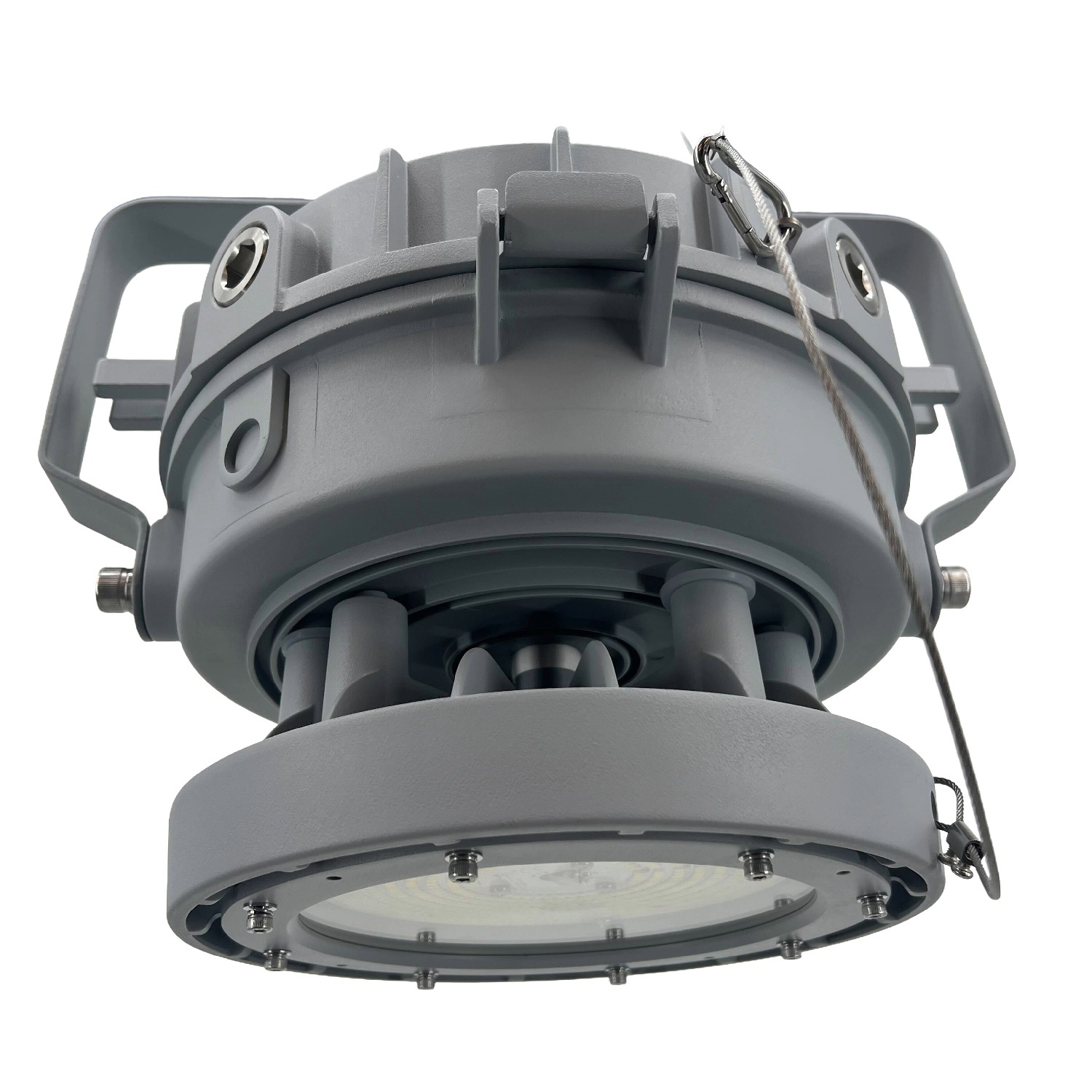

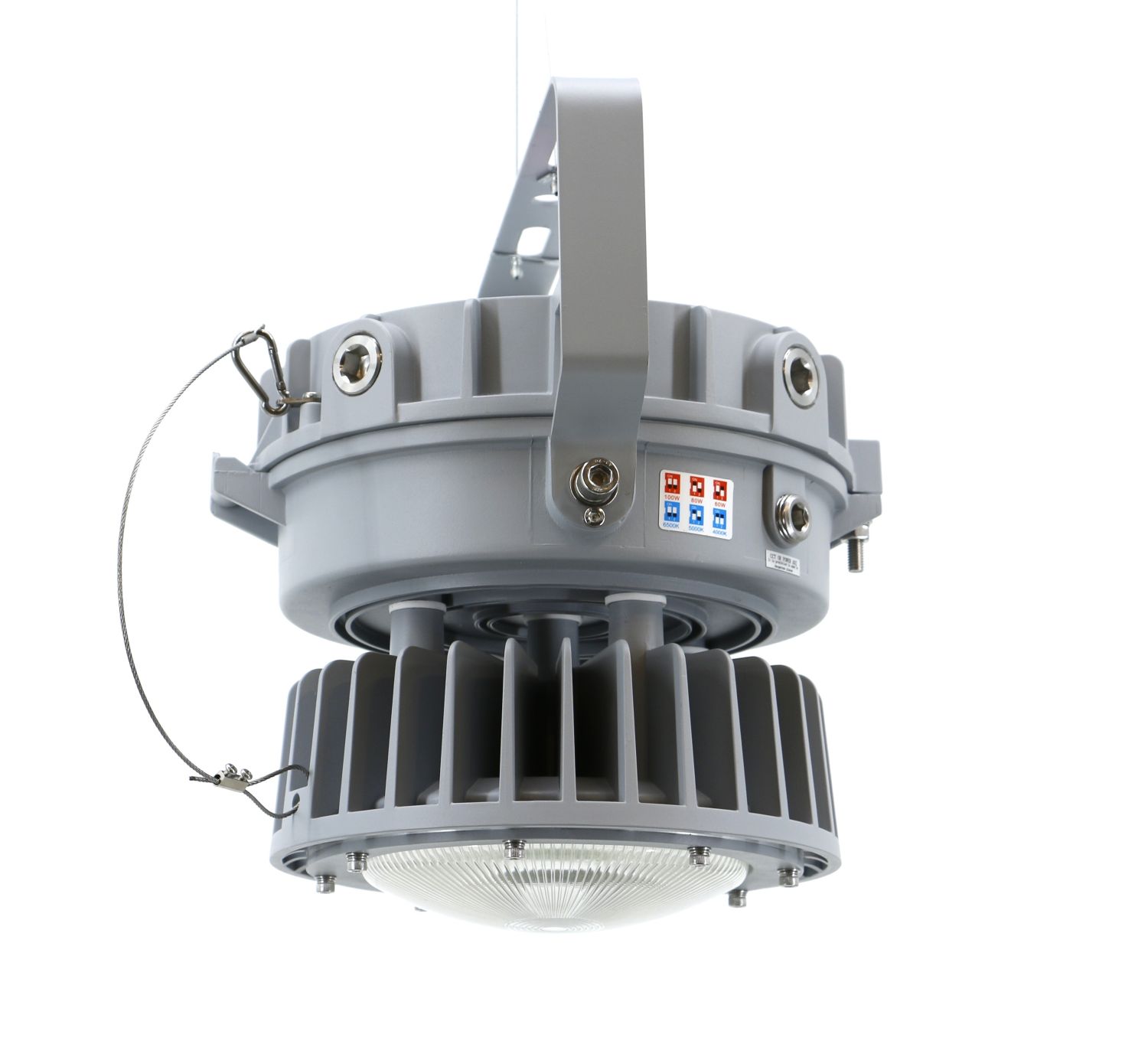

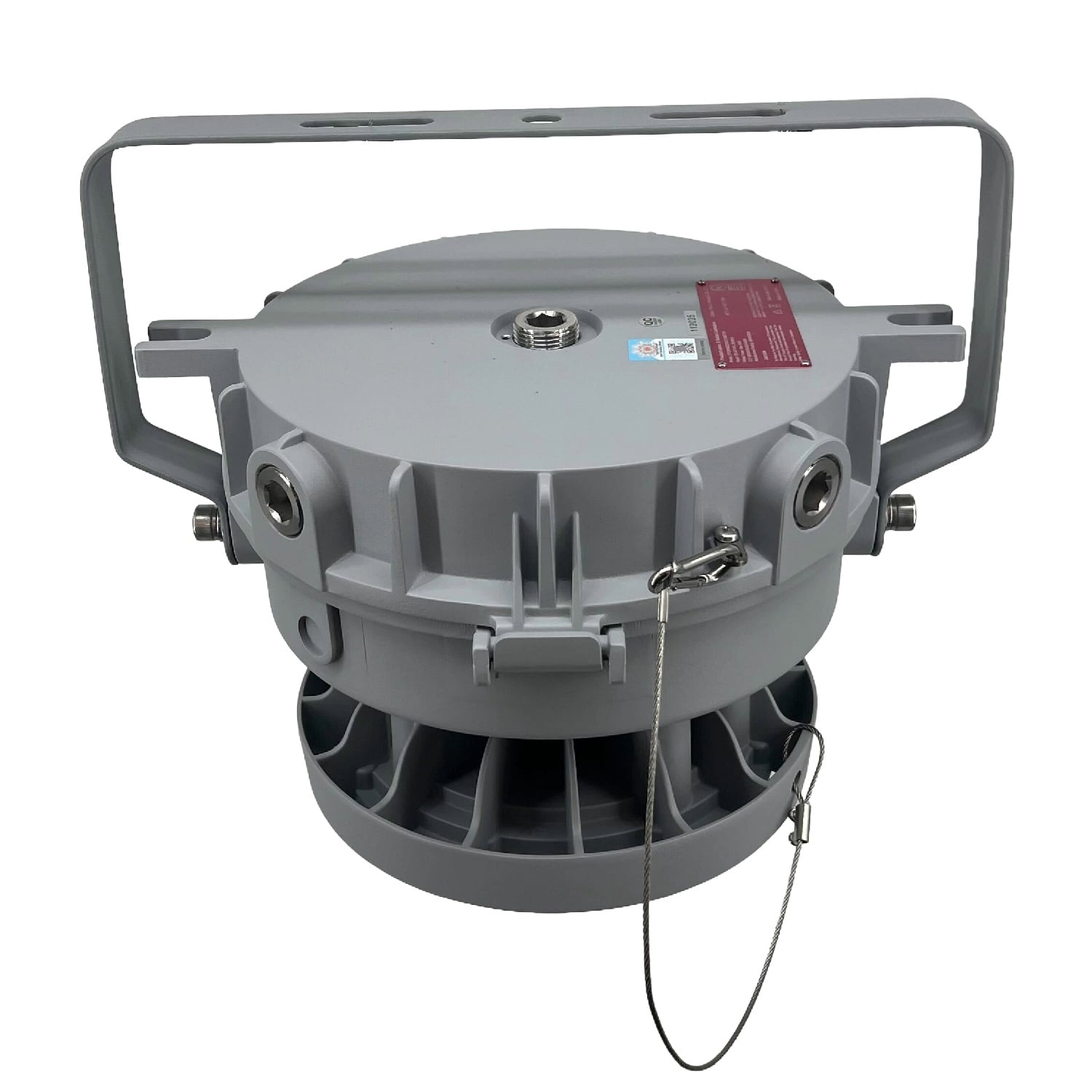

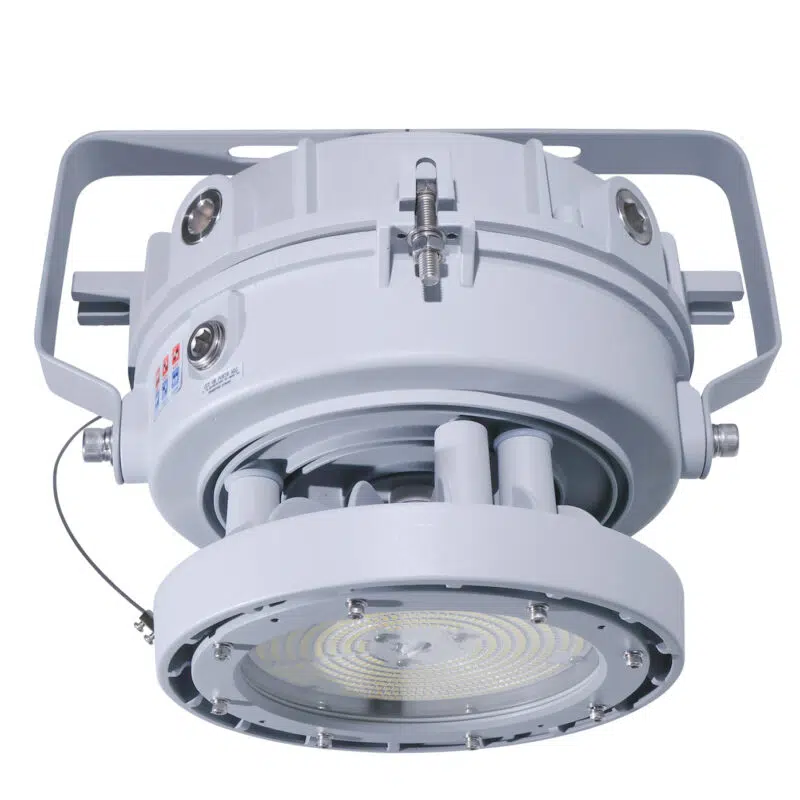

40 / 60 / 80 Watt Adjustable Round Explosion Proof LED Light | 6400 to 12800 Lumens | Class 1 Div 2 | 4000K / 5000K / 6500K | 100-277V

Product Overview

This is an adjustable round explosion proof LED fixture designed for hazardous location lighting, paint booth lighting, and chemical processing facility lighting. The fixture supports selectable wattages of 40, 60, or 80 watts, delivering 6,400 to 12,800 lumens. It is suitable for use in environments requiring Class I Division 2, Class II Division 1 and 2, and Class III compliance.

Typical installations include areas with flammable gases, vapors, dust, or fibers, such as oil and gas facilities, refineries, and solvent storage areas. The fixture is compatible with 100-277V power and offers selectable color temperatures of 4000K, 5000K, or 6500K. Mounting options include surface, yoke, or 3/4" NPT pendant.

Core Performance and Output

This fixture provides three selectable output levels: 6,400 lumens at 40W, 9,600 lumens at 60W, and 12,800 lumens at 80W. Efficacy is 160 lumens per watt. The 120° beam angle supports wide area coverage in hazardous environments. Power factor is greater than 0.95, and total harmonic distortion is less than 10%.

Uniformity is consistent at standard mounting heights for hazardous location applications. Excessive output may occur at mounting heights below 10 feet, and uniformity may decrease at heights above 25 feet without additional fixtures or optics.

Adjustability and Control Options

Wattage and color temperature are field adjustable, allowing adaptation to changing requirements or site conditions. The fixture supports 1-10V dimming for integration with compatible control systems. Standard beam angle is 120°, with a tempered glass lens for optical protection.

Adjustments are made via onboard switches, accessible during installation. No remote control or wireless adjustment is provided.

Longevity and Reliability

L70 rated life is 50,000 hours. The fixture is designed for continuous operation in hazardous and corrosive environments. Surge protection is rated at 10kV.

Operating temperature range is -40°F to 131°F. The fixture is vibration rated to 3G and is suitable for marine and outdoor use. No scheduled maintenance is required beyond periodic inspection for debris or buildup on the lens.

Build Quality and Physical Characteristics

The housing is die-cast aluminum with a gray finish. The fixture is IP66 and NEMA4X rated for dust and water ingress. IK08 impact rating provides resistance to mechanical impact.

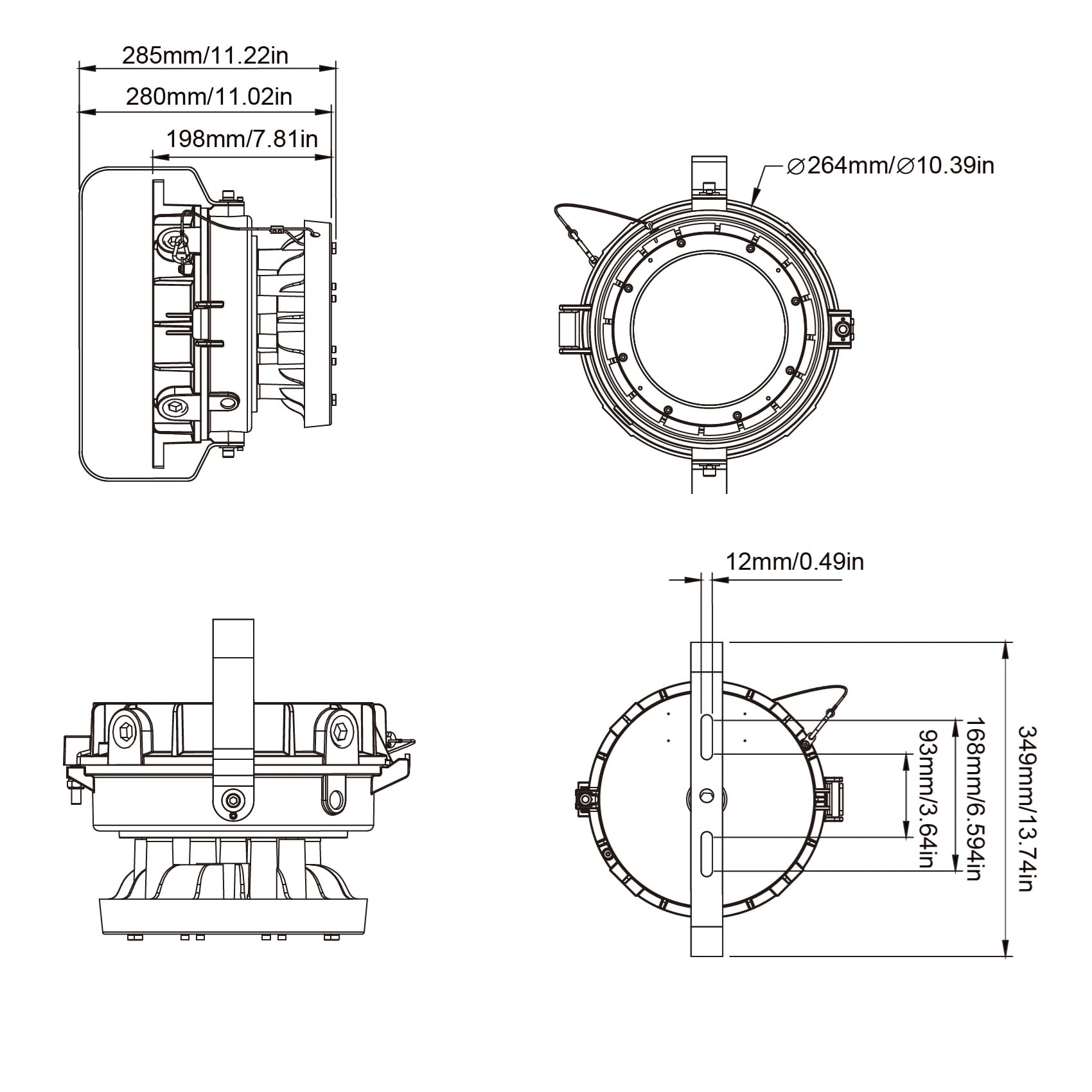

Dimensions are 11.22 x 10.39 inches, and weight is 14.5 lbs. The tempered glass lens is standard. No cord is supplied; field wiring is required. Mounting options include surface, yoke, or pendant using 3/4" NPT.

Where This Product Fits Best

This fixture is designed for hazardous locations where explosive gases, vapors, dust, or fibers may be present. It is suitable for both indoor and outdoor hazardous environments, including marine and offshore sites.

• hazardous location lighting
• explosion proof lighting
• paint booth lighting
• chemical processing facility lighting
• oil and gas facility lighting
• refinery lighting
• marine environment lighting
• solvent storage area lighting

Environmental characteristics include resistance to water, dust, vibration, and corrosive atmospheres. The fixture is suitable for wet locations and marine outside type environments.

Installation and Long-Term Use

Mounting options support surface, yoke, or pendant installation. The fixture is compatible with standard 3/4" NPT conduit for pendant mounting. Field wiring is required; no cord is supplied.

Routine inspection is recommended to ensure lens cleanliness and verify mounting integrity. The fixture is designed for minimal maintenance in hazardous and corrosive environments. All adjustments must be made with power off and in accordance with hazardous location safety protocols.

How This Fixture Is Commonly Used

Common mounting heights range from 10 to 25 feet, depending on output setting and area coverage requirements. Fixtures are typically spaced to provide uniform illumination in classified areas, with closer spacing in paint booths or areas with obstructions.

Layout patterns vary by application, with linear or grid arrangements in process areas and perimeter mounting in storage or solvent areas. Higher output settings reduce fixture count but may increase glare in confined spaces.

Safety, Certifications, and Warranty

This fixture is certified to UL 844, UL 1598, UL 1598A, and ABS. It meets Class I Division 2, Class II Division 1 and 2, and Class III requirements. NEMA4X, IP66, and IK08 ratings are standard. Vibration rating is 3G.

Warranty is 5 years. All certifications apply as listed. The fixture is suitable for wet locations and marine outside type environments.

Frequently Asked Questions

Q: What hazardous location classifications does this fixture meet?

A: This fixture meets Class I Division 2, Class II Division 1 and 2, and Class III hazardous location classifications.

Q: What mounting options are available?

A: Surface, yoke, and 3/4" NPT pendant mounting options are supported.

Q: Can the wattage and color temperature be adjusted in the field?

A: Yes, both wattage and color temperature are field adjustable using onboard switches.

Q: What is the recommended mounting height for this fixture?

A: Typical mounting heights range from 10 to 25 feet, depending on output setting and area coverage requirements.

Q: How should fixtures be spaced for uniform coverage?

A: Spacing depends on output setting and area geometry; closer spacing is required in areas with obstructions or for higher uniformity.

Application Questions and Clarification

Q: Is this fixture suitable for marine or offshore hazardous locations?

A: Yes, the fixture is UL 1598A Marine Outside Type and ABS certified for marine and offshore hazardous environments.

Q: Can this fixture be used in solvent storage areas?

A: Yes, it is suitable for solvent storage area lighting where hazardous location compliance is required.

Q: Is this fixture appropriate for use in paint booths?

A: Yes, it is commonly used in paint booth lighting applications requiring explosion proof certification.

Q: Does the fixture require any special maintenance in hazardous environments?

A: No special maintenance is required beyond routine inspection for lens cleanliness and mounting integrity.
