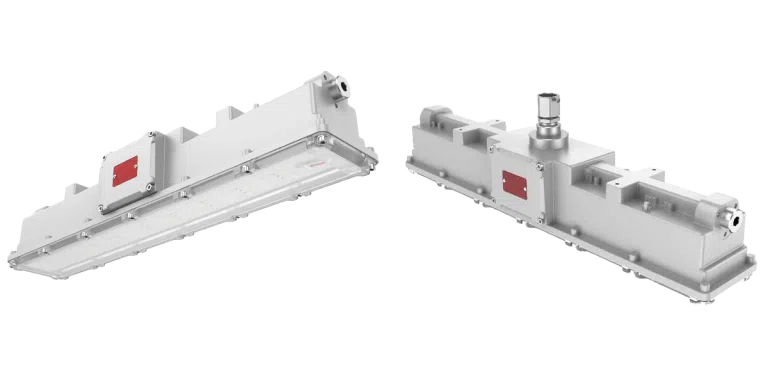

Explosion Proof LED Linear Lights
- ETL, UL & DLC Premium Listed for the highest quality performance
- All of our products come with a hassle free 5-year warranty
- Trusted by Contractors with over 500 5-star reviews
-
Professionally Designed Lighting Layout
-
Fixture Count & Recommendation
-
Improved Energy Efficiency & Reduced Maintenance
Shop for Hazardous Area Linear Lights available in Class 1 Division 1 and Class 1 Division 2. All are certified and tested under UL844 certification. These lights are all IP66 wet location-rated for both indoor and outdoor use.
View MoreFind Faster - Try Filters!
Showing 1–12 of 21 results
SKU:LLS-EXPLH-2-30-5-C1D2 | Web ID:2680Availability: 98 In Stock Ships 3-5 Days- Watts: 30
- Lumens: 4800
- Lumens/Watt: 160
- Replaces: 175 Watt Metal Halide
- Color Temp: 5000K
- CRI: 70+
- IP Rating: IP66
- IK Rating: IK08
- Voltage: 100V-277V
- Surge Protection: 6kV
- Operating Temp: -31°F to 131°F
- Rated Life: 150,000 (L70) hours
- Dimmable: 1-10V
- Beam Angle (Std): 120°
- Optics: Frosted Polycarbonate Lens
- Housing: Fiberglass reinforced polycarbonate
- Fixture Color: Gray
- Mount: Surface | Trunnion | 3/4 in NPT Pendant
- Dimensions: 24.3 x 4.7 x 4.8
- Cord Length: No Cord
- Weight: 7.7 lbs
Starting At$457.80
- SKU:LLS-EXPLH-2-50-5-C1D2 | Web ID:2315Availability: 138 In Stock Ships 3-5 Days
- Watts: 50
- Lumens: 8000
- Lumens/Watt: 160
- Replaces: 250 Watt Metal Halide
- Color Temp: 5000K
- CRI: 70+
- IP Rating: IP66
- IK Rating: IK08
- Voltage: 100V-277V
- Surge Protection: 6kV
- Operating Temp: -40°F to 113°F
- Rated Life: 150,000 (L70) hours
- Dimmable: 1-10V
- Beam Angle (Std): 120°
- Optics: Frosted Polycarbonate Lens
- Housing: Fiberglass reinforced polycarbonate
- Fixture Color: Gray
- Mount: Surface | Trunnion | 3/4 in NPT Pendant
- Dimensions: 24.3 x 4.7 x 4.8
- Cord Length: No Cord
- Weight: 7.7 lbs
Starting At$475.00 - SKU:LLS-EXPLH-4-80-5-C1D2 | Web ID:2681Availability: 150 In Stock Ships 3-5 Days
- Watts: 80
- Lumens: 12800
- Lumens/Watt: 160
- Replaces: 250 Watt Metal Halide
- Color Temp: 5000K
- CRI: 70+
- IP Rating: IP66
- IK Rating: IK08
- Voltage: 100V-277V
- Surge Protection: 10kV
- Operating Temp: -31°F to 131°F
- Rated Life: 150,000 (L70) hours
- Dimmable: 1-10V
- Beam Angle (Std): 120°
- Optics: Frosted Polycarbonate Lens
- Housing: Fiberglass reinforced polycarbonate
- Fixture Color: Gray
- Mount: Surface | Trunnion | 3/4 in NPT Pendant
- Dimensions: 48.5 x 4.7 x 4.8
- Cord Length: No Cord
- Weight: 11.2 lbs
Starting At$599.20 - SKU:LLS-EXPLH-4-100-5-C1D2 | Web ID:2316Availability: 248 In Stock Ships 3-5 Days
- Watts: 100
- Lumens: 16000
- Lumens/Watt: 160
- Replaces: 250 Watt Metal Halide
- Color Temp: 5000K
- CRI: 70+
- IP Rating: IP66
- IK Rating: IK08
- Voltage: 100V-277V
- Surge Protection: 10kV
- Operating Temp: -40°F to 104°F
- Rated Life: 150,000 (L70) hours
- Dimmable: 1-10V
- Beam Angle (Std): 120°
- Optics: Frosted Polycarbonate Lens
- Housing: Fiberglass reinforced polycarbonate
- Fixture Color: Gray
- Mount: Surface | Trunnion | 3/4 in NPT Pendant
- Dimensions: 48.5 x 4.7 x 4.8
- Cord Length: No Cord
- Weight: 11.2 lbs
Starting At$630.20 - SKU:MLLG-LN-LED-EXPL-60-50-120-C1D2 | Web ID:1898Availability: 185 In Stock Ships 3-5 Days
- Watts: 60
- Lumens: 7800
- Lumens/Watt: 130
- Replaces: 250 Watt Metal Halide
- Color Temp: 5000K
- CRI: 70+
- IP Rating: IP66
- Voltage: 100V-277V
- Surge Protection: 4kV
- Operating Temp: -40°F to 131°F
- Rated Life: 50,000 (L70) hours
- Dimmable: No
- Beam Angle (Std): 120°
- Mount: Bracket | Surface | Wall
- Dimensions: 48.4 x 4.9 x 3.5
- Weight: 17 lbs
Starting At$545.45 - SKU:MLLG-LED-EXPLF2-40-50-C1D2-V2 | Web ID:2012Availability: 207 In Stock Ships 3-5 Days
- Watts: 40
- Lumens: 5600
- Lumens/Watt: 140
- Replaces: 175 Watt Metal Halide
- Color Temp: 5000K
- CRI: 70+
- IP Rating: IP66
- Voltage: 100V-277V
- Operating Temp: -40°F to 131°F
- Rated Life: 50,000 (L70) hours
- Dimmable: 1-10V
- Beam Angle (Std): 120°
- Fixture Color: Gray
- Mount: Bracket | Surface | Wall
- Dimensions: 26.4 x 4.5 x 6.3
- Weight: 17 lbs
Starting At$416.36 - SKU:MLLG-LED-EXPLF4-60-50-C1D2 | Web ID:2013Availability: 191 In Stock Ships 3-5 Days
- Watts: 60
- Lumens: 8400
- Lumens/Watt: 140
- Replaces: 250 Watt Metal Halide
- Color Temp: 5000K
- CRI: 70+
- IP Rating: IP66
- Voltage: 100V-277V
- Operating Temp: -40°F to 131°F
- Rated Life: 50,000 (L70) hours
- Dimmable: 1-10V
- Beam Angle (Std): 120°
- Fixture Color: Gray
- Mount: Bracket | Surface | Wall
- Dimensions: 50 x 4.5 x 6.3
- Weight: 30 lbs
Starting At$621.82 - SKU:MLLG-LED-EXPLF4-80-50-C1D2-V2 | Web ID:2014Availability: 152 In Stock Ships 3-5 Days
- Watts: 80
- Lumens: 11200
- Lumens/Watt: 140
- Replaces: 250 Watt Metal Halide
- Color Temp: 5000K
- CRI: 70+
- IP Rating: IP66
- IK Rating: IK10
- Voltage: 100V-277V
- Operating Temp: -22°F to 122°F
- Rated Life: 50,000 (L70) hours
- Dimmable: 1-10V
- Beam Angle (Std): 120°
- Fixture Color: Gray
- Mount: Bracket | Surface | Wall
- Dimensions: 47 x 4.7 x 9.5
- Weight: 20 lbs
Starting At$698.18 - SKU:MLLG-LED-EXPLR2-20-50-C1D2 | Web ID:1632Built to Order 6 Weeks
- Watts: 20
- Lumens: 2800
- Lumens/Watt: 140
- Replaces: 70 Watt Metal Halide
- Color Temp: 5000K
- CRI: 70+
- IP Rating: IP66
- IK Rating: IK10
- Voltage: 100V-277V
- Operating Temp: -40°F to 122°F
- Rated Life: 50,000 (L70) hours
- Dimmable: 1-10V
- Beam Angle (Std): 120°
- Optics: Polycarbonate Lens
- Mount: Surface
- Dimensions: 28.9 X 8.2 X 4.7 in
- Weight: 11 lbs
Starting At$492.28 - SKU:MLLG-LED-EXPLR2-30-50-C1D2 | Web ID:1633Availability: 38 In Stock Ships 3-5 Days
- Watts: 30
- Lumens: 4200
- Lumens/Watt: 140
- Replaces: 150 Watt Metal Halide
- Color Temp: 5000K
- CRI: 80+
- IP Rating: IP66
- IK Rating: IK10
- Voltage: 100V-277V
- Operating Temp: -40°F to 122°F
- Rated Life: 50,000 (L70) hours
- Dimmable: 1-10V
- Beam Angle (Std): 120°
- Optics: Polycarbonate Lens
- Mount: Surface
- Dimensions: 28.9 in X 8.2 in X 4.7 in
- Weight: 11 lbs
Starting At$531.58 - SKU:MLLG-LED-EXPLR2-40-50-C1D2 | Web ID:2659Availability: 148 In Stock Ships 3-5 Days
- Watts: 40
- Lumens: 5600
- Lumens/Watt: 140
- Replaces: 150 Watt Metal Halide
- Color Temp: 5000K
- CRI: 80+
- IP Rating: IP66
- IK Rating: IK10
- Voltage: 100V-277V
- Operating Temp: -40°F to 122°F
- Rated Life: 50,000 (L70) hours
- Dimmable: 1-10V
- Beam Angle (Std): 120°
- Optics: Polycarbonate Lens
- Mount: Surface
- Dimensions: 28 in X 8.6 in X 5.3 in
- Weight: 11 lbs
Starting At$541.23 - SKU:MLLG-LED-EXPLR4-50-50-C1D2 | Web ID:1768Availability: 5 In Stock Ships 3-5 Days
- Watts: 50
- Lumens: 7000
- Lumens/Watt: 140
- Replaces: 250 Watt Metal Halide
- Color Temp: 5000K
- CRI: 80+
- IP Rating: IP66
- IK Rating: IK10
- Voltage: 100V-277V
- Operating Temp: -40°F to 122°F
- Rated Life: 50,000 (L70) hours
- Dimmable: 1-10V
- Beam Angle (Std): 120°
- Optics: Polycarbonate Lens
- Mount: Surface
- Dimensions: 53 X 8.2 X 4.7 in
- Weight: 16 lbs
Starting At$688.79
What is Hazardous Area LED Linear Lighting?
Hazardous Area Linear lights replace fluorescent-style hazardous lighting. These lights are ceiling or wall-mounted and are long and thin fixtures. They resemble what you would expect if a fluorescent light were installed inside. They are sometimes referred to as a hazardous area strip light. These lights are commonplace in hazardous environments and hazardous locations where explosive gas and dust are found.
Where Does it Make Sense to Use Hazardous Area Linear Lighting Instead of Round or Square Style Fixtures for Hazardous Areas?
By design, linear fixtures have better distribution because the LEDs are spread out over a wider area. Also, a linear fixture works well when the mounting heights are below 15 feet or for replacing a fluorescent fixture.
What Color Temperature is Best to Use for Hazardous Area Linear Lights?
We advise that 5000K is a good choice for a hazardous area linear light. This color temperature is a perfect replacement for metal halide lighting.
Are There Any Special Installation Instructions for Hazardous Area Linear Lighting?
We always recommend a certified electrician. Find one familiar with hazardous and explosive environments to install the fixtures. Our fixtures come with complete instructions on how to install them.
Can Hazardous Area Linear Lights Withstand Being in Harsh Environments?
Yes, it can. Our fixtures are certified to work in harsh environments. They are weatherproof and have the highest impact rating available.
Where Can You Mount a Hazardous Area Linear Light Fixture?
You can install these lights with either a wall mounting or a ceiling mounting.
