100 Watt Explosion Proof Linear LED Light | 14000 Lumens | Class 1 Div 1 | 5000K | 100-277V or 277-480V
Dwayne Kula | President, CTO and Founder
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 1, Groups C,D
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ABS
Key Features
| Brand | LED Lighting Supply |
| Watts | 100 |
| Lumens | 14000 |
| Lumens Per Watt | 140 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 50,000 (L70) hours |

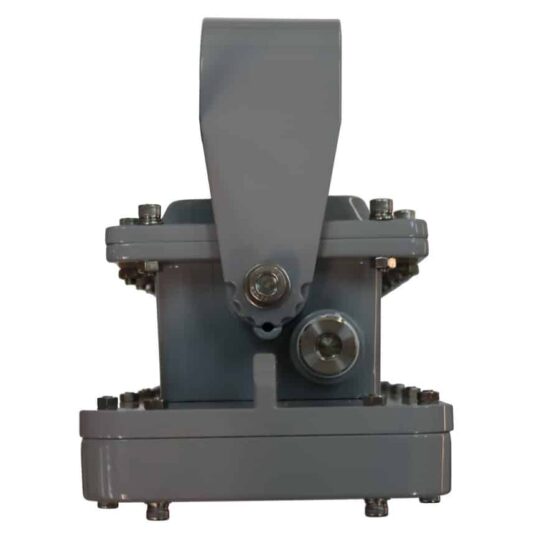

| Mounting | Yoke or 3/4 in NPT Pendant |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Copper Free Aluminum |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Operating Temperature | -22°F to 122°F |
| Certifications | ETL | Rebate Eligible | NSF Rated |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 47 X 5.5 X 8.1 |
| Weight (lbs) | 26 |
Product SKU Variations
- SKU: MLLG-E-LED-EXPLI-100-50-U-C1D1
- SKU: MLLG-E-LED-EXPLI-100-50-HV-C1D1
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

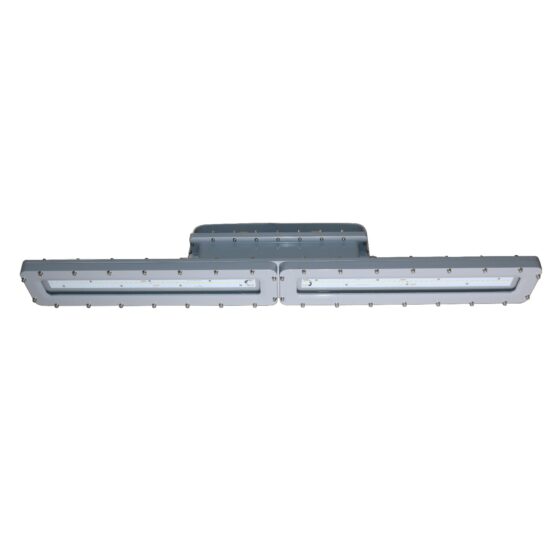

The 100 Watt Explosion Proof Linear LED Light is engineered for environments where safety and durability are paramount. Designed for hazardous locations, this fixture delivers 14,000 lumens at a color temperature of 5000K. It operates efficiently across a voltage range of 100-277V or 277-480V, making it versatile for various industrial applications. This fixture is particularly suitable for replacing traditional 400 Watt metal halide lights, offering a robust solution for areas requiring explosion-proof lighting.
With certifications including UL 844, Class I/II/III, UL 1598, UL 1598A, and ABS, this fixture is built to withstand challenging conditions. Its IP66 and IK10 ratings ensure protection against dust, water, and impact, making it ideal for use in paint booths and chemical processing facilities. The fixture’s dimensions and mounting options, including yoke or 3/4 in NPT pendant, provide flexibility in installation.
Core Performance and Output
This explosion-proof LED light delivers a high output of 14,000 lumens with an efficiency of 140 lumens per watt. The fixture’s 120° beam angle ensures broad and even light distribution, suitable for large areas. It operates with a power factor greater than 0.95 and a total harmonic distortion of less than 10%, ensuring stable and efficient performance.
While the fixture is designed for high-output applications, it is important to consider mounting heights to avoid excessive glare. At lower mounting heights, the light output may be too intense, requiring careful planning to achieve optimal uniformity and comfort.
Adjustability and Control Options
The fixture includes 1-10V dimming capabilities, allowing for adjustable light levels to suit specific tasks or preferences. This feature is particularly useful in environments where varying light intensities are required throughout the day. The dimming function also contributes to energy savings and extended fixture life.
Control options are straightforward, with compatibility across standard dimming systems. This ensures seamless integration into existing lighting control setups, providing flexibility in managing light output and energy consumption.
Longevity and Reliability
With a lifespan of 50,000 hours (L70), this explosion-proof LED light offers long-term reliability, reducing the need for frequent replacements. Its robust construction and high-quality components ensure consistent performance even in harsh environments.
The fixture’s reliability is further supported by a 5-year warranty, providing peace of mind and assurance of quality. Its durable design minimizes maintenance requirements, making it a cost-effective solution for hazardous location lighting.
Build Quality and Physical Characteristics
Constructed from copper-free aluminum, this fixture is designed to resist corrosion and withstand challenging conditions. Its IP66 rating ensures protection against dust and powerful water jets, while the IK10 rating indicates high impact resistance.
The fixture’s operating temperature range of -22°F to 122°F allows it to function effectively in a variety of climates. Its gray finish and tempered glass lens contribute to its durability and aesthetic appeal, making it suitable for industrial settings.
Where This Product Fits Best
This explosion-proof LED light is ideal for environments where safety and durability are critical. It is particularly suited for hazardous locations and areas with potential exposure to explosive gases or dust.
- hazardous location lighting
- explosion proof lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
The fixture’s robust construction and certifications make it suitable for use in marine environments and offshore rigs, where exposure to corrosive elements is a concern.
Installation and Long-Term Use

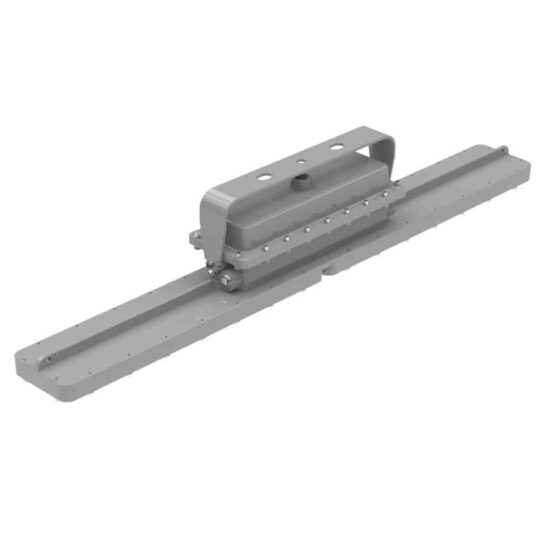

Installation options include yoke or 3/4 in NPT pendant mounting, providing flexibility for various setups. The fixture’s dimensions (47 x 5.5 x 8.1 inches) and weight (26 lbs) should be considered during installation to ensure proper support and alignment.
For long-term use, regular inspection and cleaning are recommended to maintain optimal performance. The fixture’s design minimizes maintenance needs, but periodic checks can help identify any potential issues early.
How This Fixture Is Commonly Used
This fixture is typically mounted at heights suitable for its high lumen output, ensuring effective illumination without causing glare. In hazardous locations, careful planning of spacing and layout is essential to achieve uniform light distribution and meet safety standards.
While higher output can reduce the number of fixtures needed, it may also increase the risk of glare if not properly managed. Adjusting the mounting height and using dimming controls can help balance light levels and comfort.
Safety, Certifications, and Warranty
This explosion-proof LED light is certified for use in hazardous locations, meeting UL 844, Class I/II/III, UL 1598, UL 1598A, and ABS standards. Its IP66 and IK10 ratings ensure protection against environmental factors and impact.
The fixture is backed by a 5-year warranty, providing assurance of quality and reliability. Its certifications and robust construction make it a safe choice for environments with potential exposure to explosive gases or dust.
Frequently Asked Questions
Q: What is the voltage range for this fixture?
A: The fixture operates on a voltage range of 100-277V or 277-480V.
Q: Can this fixture be used in marine environments?
A: Yes, it is suitable for marine environments, as indicated by its UL 1598A Marine Outside Type certification.
Q: What mounting options are available?
A: The fixture can be mounted using a yoke or 3/4 in NPT pendant.
Q: How does the dimming function work?
A: The fixture supports 1-10V dimming, allowing for adjustable light levels.
Q: What is the expected lifespan of this fixture?
A: The fixture has a lifespan of 50,000 hours (L70).
Application Questions and Clarification
Q: Is this fixture suitable for use in paint booths?
A: Yes, it is designed for paint booth lighting, providing safe and effective illumination.
Q: Can this fixture be used in oil and gas facilities?
A: Yes, it is suitable for oil and gas facility lighting, meeting necessary safety standards.
Q: What environments are best suited for this fixture?
A: It is ideal for hazardous locations, explosion-proof lighting, and chemical processing facilities.
Q: How should the fixture be spaced for optimal performance?
A: Spacing should be planned based on mounting height and desired light levels to ensure uniform distribution.
