60 Watt Explosion Proof Linear LED Light | 7800 Lumens | Class 1 Div 2 | 5000K | 100-277V | 4 Foot
This 60 watt LED linear fixture is a strong choice for hazardous locations requiring reliable, efficient lighting, as it delivers 7800 lumens at 130 lumens per watt and directly replaces 250 watt metal halide units. Its UL844 Class 1 Division 2 and IP66 ratings ensure safe operation in environments with flammable gases, dust, or water exposure, such as chemical processing plants, refineries, and industrial sites. The die-cast aluminum housing, 4kV surge protection, and 50,000 hour (L70) lifespan support long-term durability and minimal maintenance, while flexible mounting options simplify installation on walls, ceilings, or surfaces.
Dwayne Kula | President, CTO and Founder
121 in stock
Product Specifications
UL Specs
- UL844 Hazardous Locations
- Class 1 Division 2: Group A,B,C,D
- Wet Locations (UL 1598)
Key Features
| Brand | LED Lighting Supply |
| Watts | 60 |
| Lumens | 7800 |
| Lumens Per Watt | 130 |
| Replaces | 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | 120° |
| Lifespan | 50,000 (L70) hours |
| Mounting | Bracket or Surface or Wall |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP66 |
| Surge Protection | 4kV |
| Operating Temperature | -22°F to 122°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 48.4 x 4.9 x 3.5 |
| Weight (lbs) | 17 |
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

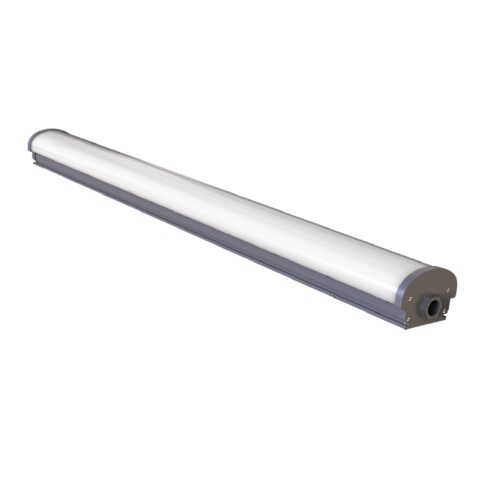

This 4-foot explosion proof linear LED light delivers 7,800 lumens at 60 watts with a 5000K color temperature. It is built for Class I Division 2 hazardous locations and wet location installations.
The linear form factor supports bracket, surface, and wall mounting. It replaces a 250-watt metal halide fixture where the existing hazardous-location classification and mounting arrangement are compatible.
Core Performance and Output
The fixture produces 7,800 lumens at 130 lumens per watt. Its 120-degree beam distribution provides broad light from a linear housing, with a 70+ CRI and 5000K color temperature.
Input voltage is 100-277V at 50-60Hz. Power factor is greater than 0.95 and THD is less than 10 percent. The 7,800-lumen output can be excessive where fixtures are mounted close to the work area, while higher mounting positions require layout review to maintain uniformity.
Adjustability and Control Options
This fixture is non-dimming. It operates on 100-277V input voltage without a dimming control option.
Mounting configuration can be selected for bracket, surface, or wall installation. The 120-degree standard beam angle is fixed.
Longevity and Reliability
Rated life is 50,000 hours L70. The fixture includes 4kV surge protection for electrical transient protection.
Operating temperature range is -22F to 122F. Long-term performance depends on maintaining the approved hazardous-location installation conditions and keeping mounting hardware secure.

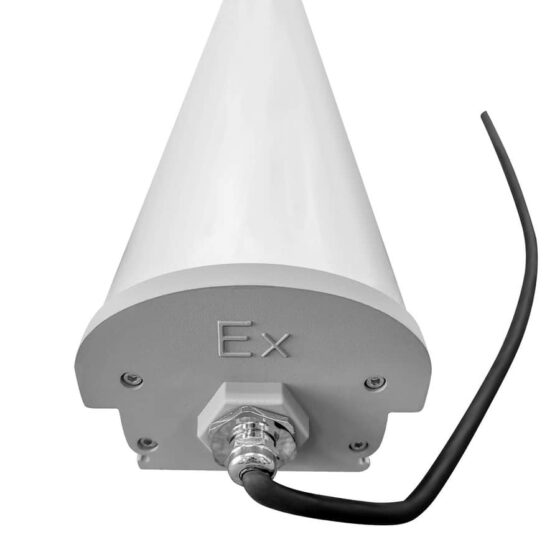

Build Quality and Physical Characteristics
The housing is die-cast aluminum with an IP66 rating. The fixture measures 48.4 x 4.9 x 3.5 inches and weighs 17 pounds.
The narrow linear body works where a surface-mounted or wall-mounted fixture is required instead of a round hazardous-location fixture. Mounting surfaces and brackets must support the fixture weight and maintain the intended mounting position.
Where This Product Fits Best
This fixture fits Class I Division 2 Group A, B, C, and D hazardous locations where a linear wet-location fixture is needed. The 60-watt output is suited to localized hazardous-area lighting layouts and linear mounting locations.
- hazardous location lighting
- paint booth lighting
- chemical processing facility lighting
- explosion proof lighting
- oil and gas facility lighting
- refinery lighting
- solvent storage area lighting
UL 844 hazardous location classification, UL 1598 wet location listing, and IP66 construction support installations exposed to wet conditions. Final use must match the Class I Division 2 Group A, B, C, and D classification.
Installation and Long-Term Use
Install the fixture using the bracket, surface, or wall mounting option that matches the available structure and lighting direction. Confirm the 100-277V supply voltage, fixture weight, and mounting surface before installation.
Use the fixture within its -22F to 122F operating temperature range. Maintain access for inspection, cleaning, and replacement work without changing the hazardous-location installation conditions.
How This Fixture Is Commonly Used
In hazardous location lighting, paint booth lighting, and chemical processing facility lighting, the linear housing is positioned to direct its 120-degree distribution across the required work area. Mounting height is determined by the physical layout, target light level, and available mounting structure.
Oil and gas facility lighting, refinery lighting, and solvent storage area lighting layouts commonly use multiple fixtures arranged along hazardous work zones or equipment areas. Higher output can reduce fixture count, but layout spacing must be reviewed to avoid uneven light levels and glare.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. Class I Division 2 Group A, B, C, D. UL 1598 Wet Locations. IP66.
This fixture is UL certified and rebate eligible. Warranty is 5 years.
Frequently Asked Questions
Q: What light output does this explosion proof linear fixture produce?
A: The fixture produces 7,800 lumens at 60 watts, for 130 lumens per watt.
Q: What hazardous location classification is listed for this fixture?
A: The fixture is UL 844 listed for Class I Division 2 Group A, B, C, and D hazardous locations.
Q: What mounting options are available?
A: The fixture supports bracket, surface, and wall mounting.
Q: Does this fixture support dimming?
A: No. This fixture is non-dimming.
Application Questions and Clarification
Q: Is this fixture appropriate for paint booth lighting?
A: Paint booth lighting is a listed application. Installation must match the Class I Division 2 Group A, B, C, and D classification.
Q: What should be reviewed when planning fixture placement?
A: Review the mounting height, required light levels, fixture orientation, and 120-degree beam distribution. The supplied product data does not establish a specific spacing value.
Q: Can this fixture be used in wet locations?
A: Yes. The fixture is UL 1598 listed for wet locations and has an IP66 rating.
