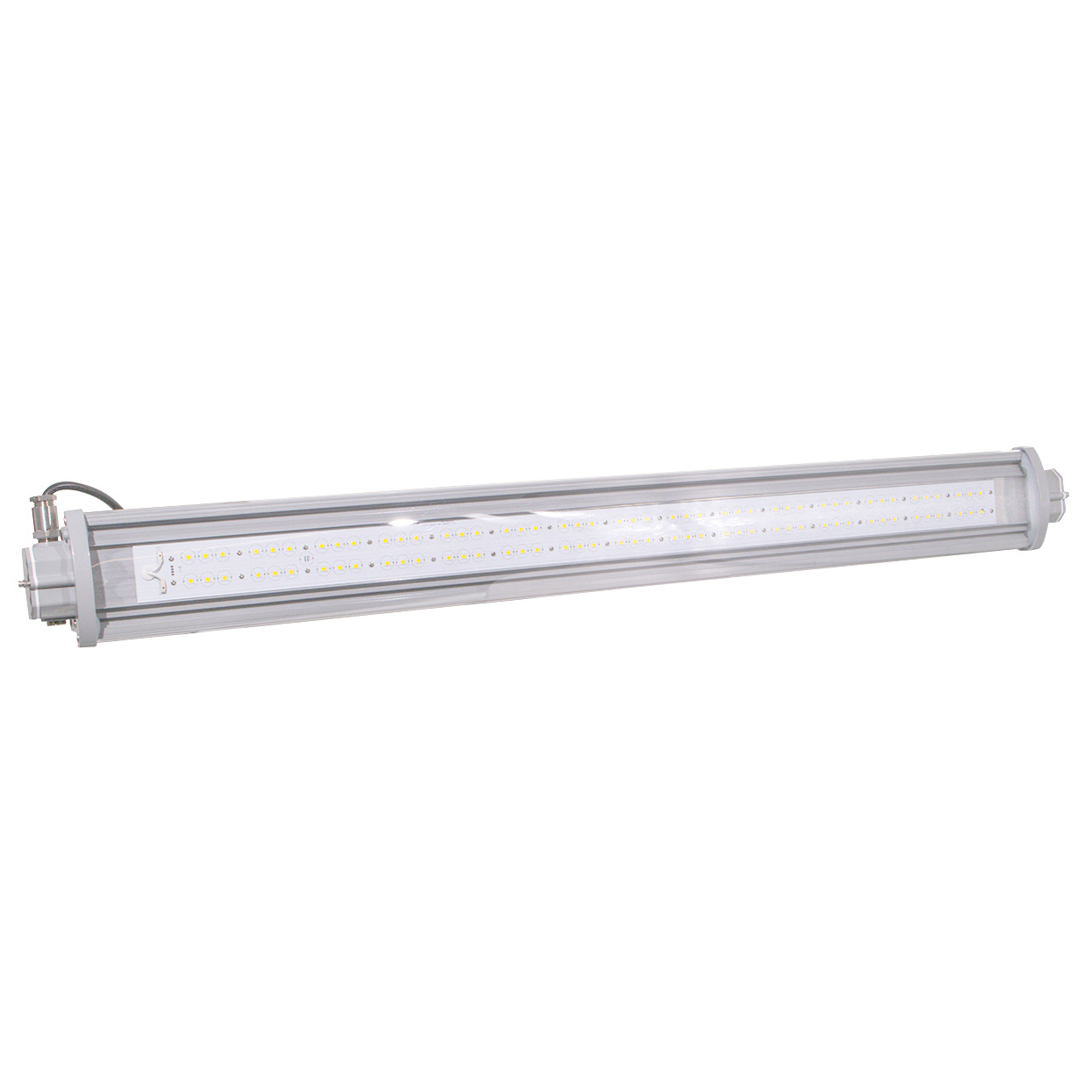

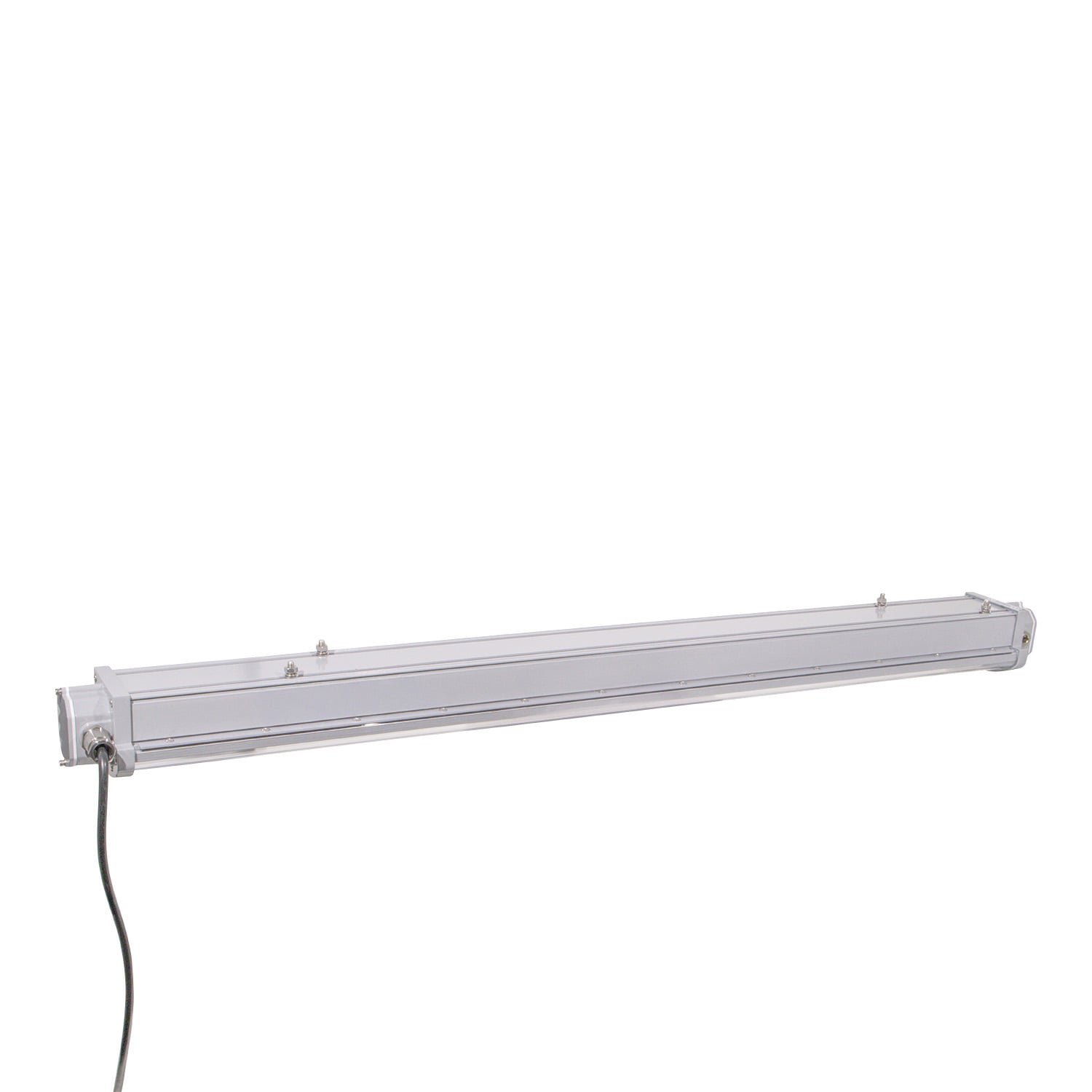

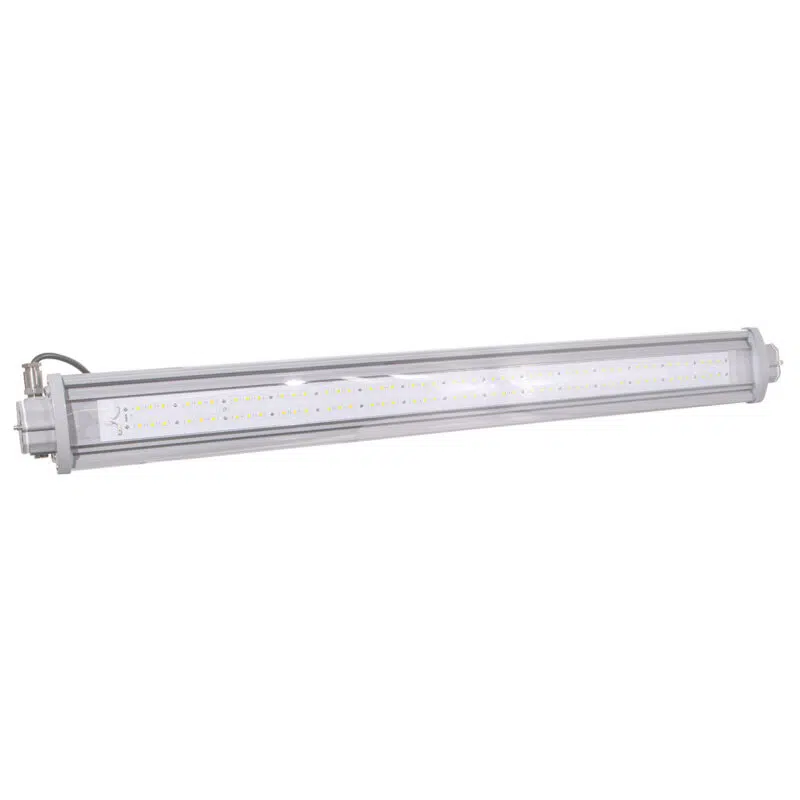

80 Watt Low Profile Explosion Proof Linear LED Light | 11200 Lumens | Class 1 Div 2 | 5000K | 100-277V | 4 Foot
The 80 Watt 4 Foot Low Profile Explosion Proof Linear LED Light is an excellent choice for hazardous environments, offering 11200 lumens at 5000K with a robust IP66 and IK10 rating, ensuring durability against dust, water, and impact. Its Class I Div 2 and Class II Div 2 certifications make it ideal for paint booths and other hazardous locations. With a lifespan of 50,000 hours and versatile mounting options, it efficiently replaces 250W metal halides, providing reliable, energy-efficient lighting in challenging industrial settings.
Dwayne Kula | President, CTO and Founder
312 in stock
Product Specifications
UL Specs
- Class 1 Division 2, Group B,C,D
- Class 2, Division 2, Groups F,G
- Class 3
- Wet Locations (UL 1598 / UL1598A)
- UL844
- CSA / ATEX / IECEX
Key Features
| Brand | LED Lighting Supply |
| Watts | 80 |
| Lumens | 11200 |
| Lumens Per Watt | 140 |
| Replaces | 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Lifespan | 50,000 (L70) hours |
| Mounting | Bracket or Surface or Wall |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Copper Free Aluminum |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Operating Temperature | -22°F to 122°F |
| Certifications | ETL | Rebate Eligible | NSF Rated |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 47 x 4.7 x 9.5 |
| Weight (lbs) | 20 |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 4-foot low profile explosion proof linear LED light delivers 11,200 lumens from 80 watts. It is configured for hazardous location lighting, explosion proof lighting, paint booth lighting, and chemical processing facility lighting.
The fixture operates on 100-277V and produces 5000K light through a 120-degree distribution. Its linear form factor supports bracket, surface, or wall mounting where a sealed fixture is required.
This model replaces a 250-watt metal halide fixture. The 80-watt output is better suited to controlled fixture layouts than low mounting heights where 11,200 lumens may be excessive.
Core Performance and Output
The fixture produces 11,200 lumens at 140 lumens per watt. The 5000K color temperature and 70+ CRI provide a bright industrial light appearance.
A standard 120-degree beam spreads light across a broad area. Layout uniformity depends on mounting height, fixture location, and the required light level for the application.
Electrical operation is 100-277V, 50-60Hz, with power factor greater than 0.95 and THD below 10 percent. The fixture supports 1-10V dimming.
At lower mounting heights, the broad distribution and 11,200-lumen output can create excessive brightness directly below the fixture. Higher mounting locations may require closer fixture placement to maintain uniformity.
Adjustability and Control Options
This fixture supports 1-10V dimming. Dimming controls must be compatible with the 1-10V control method.
Bracket, surface, and wall mounting provide installation flexibility for different fixture orientations. The 120-degree beam angle is the standard optical distribution.
Longevity and Reliability
Rated life is 50,000 hours at L70. The fixture carries a 5-year warranty.
The operating temperature range is -22F to 122F. IP66 protection supports wet-location installations, and the IK10 rating addresses impact resistance.
Build Quality and Physical Characteristics
The housing is copper-free aluminum with a gray finish. The fixture measures 47 x 4.7 x 9.5 inches and weighs 20 pounds.
The low profile linear body fits installations where fixture depth and mounting orientation need to be managed. Mounting structure must support the fixture weight and selected bracket, surface, or wall configuration.
Where This Product Fits Best
This fixture fits classified and wet-location installations requiring a linear explosion proof light with broad distribution. Its 80-watt output and 4-foot housing support layouts in hazardous and process-oriented areas.
- hazardous location lighting
- paint booth lighting
- chemical processing facility lighting
- explosion proof lighting
- oil and gas facility lighting
- refinery lighting
- solvent storage area lighting
Class I Division 2 Groups B, C, and D; Class II Division 2 Groups F and G; and Class III classifications apply. The fixture is rated for wet locations and has an IP66 rating.
Installation and Long-Term Use
Install the fixture using the bracket, surface, or wall mounting method that matches the available structure and intended light direction. Confirm the supply voltage is within the 100-277V operating range.
Fixture placement should account for the 120-degree beam pattern, mounting height, and required light levels. The 20-pound fixture weight must be considered when preparing the mounting surface.
For long-term operation, maintain the sealed housing and inspect mounting points and wiring connections during scheduled maintenance. The stated operating range is -22F to 122F.
How This Fixture Is Commonly Used
In hazardous location lighting and explosion proof lighting layouts, the linear fixture is mounted to direct its broad beam across the work area. Bracket mounting allows aiming adjustment, while surface and wall mounting place the fixture close to the supporting structure.
Paint booth lighting and chemical processing facility lighting layouts commonly use multiple fixtures arranged along the illuminated area rather than relying on a single high-output unit. Mounting height and fixture orientation determine how the 120-degree beam overlaps.
Oil and gas facility lighting, refinery lighting, and solvent storage area lighting require placement based on the applicable classified area and the available mounting structure. Higher output can reduce fixture count, but spacing still needs to maintain uniform light levels.
Safety, Certifications, and Warranty
UL844, CSA, ATEX, IECEx, ETL, NSF Rated, and rebate eligible.
Class I Division 2 Groups B, C, and D. Class II Division 2 Groups F and G. Class III.
Wet Locations UL 1598 / UL1598A. IP66. IK10.
The warranty period is 5 years.
Frequently Asked Questions
Q: What are the light output and efficacy of this fixture?
A: The fixture produces 11,200 lumens at 80 watts, or 140 lumens per watt.
Q: What voltage does this explosion proof linear light require?
A: It operates on 100-277V at 50-60Hz.
Q: Can this fixture be dimmed?
A: Yes. It supports 1-10V dimming.
Q: What mounting methods are available?
A: The fixture supports bracket, surface, and wall mounting.
Q: What should be considered when planning fixture layout?
A: Mounting height, fixture orientation, the 120-degree beam distribution, and required light levels affect layout. The supplied data does not establish a fixed spacing value or fixture count.
Application Questions and Clarification
Q: Is this fixture classified for hazardous location lighting?
A: Yes. It is rated Class I Division 2 Groups B, C, and D; Class II Division 2 Groups F and G; and Class III.
Q: Can this fixture be used for paint booth lighting?
A: Paint booth lighting is a listed application for this explosion proof light. Final placement depends on the mounting structure, light layout, and applicable area classification.
Q: What environmental ratings apply to chemical processing facility lighting?
A: The fixture is rated IP66, IK10, wet locations UL 1598 / UL1598A, and -22F to 122F operating temperature.
Q: What information affects mounting selection for refinery lighting?
A: Available mounting structure, fixture orientation, the 20-pound fixture weight, and the selected bracket, surface, or wall mounting method affect mounting selection.
