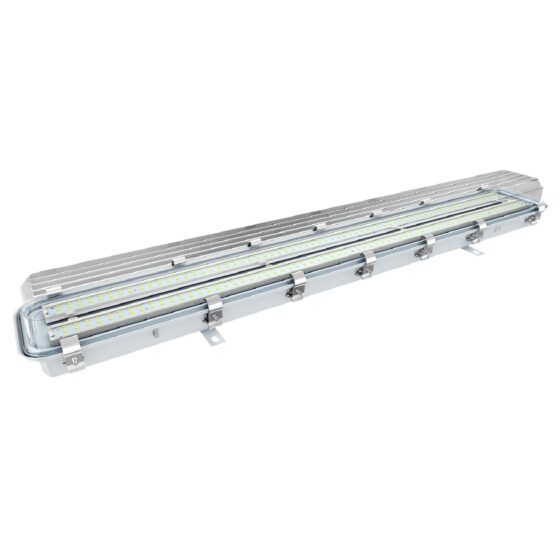

60 Watt Explosion Proof Vapor Tight LED Light | 8400 Lumens | Class 1 Div 2 | 5000K | 100-277V | 4 Foot
This 60 Watt Explosion Proof Vapor Tight LED fixture is a strong choice for hazardous and demanding environments due to its certified suitability for Class I Division 2, Class II Division 1 and 2, and Class III locations, as well as its IP66 and IK10 ratings for dust, water, and impact resistance. Its 8400 lumen output at 140 lumens per watt, 5000K color temperature, and 120° beam angle provides broad, efficient illumination ideal for industrial, manufacturing, processing, and marine areas where explosive gases, dust, or moisture are present.
Neil Peterson | CEO and Chief Lighting Specialist
84 in stock
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ABS
Key Features
| Brand | LED Lighting Supply |
| Watts | 60 |
| Lumens | 8400 |
| Lumens Per Watt | 140 |
| Replaces | 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Surface |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Stainless Steel |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Operating Temperature | -40°F to 122°F |
| Certifications | ETL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 52 x 8.2 X 4.7 |
| Weight (lbs) | 16 |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 4-foot explosion proof vapor tight LED light provides 8,400 lumens from a 60-watt linear fixture. It is built for hazardous location lighting, explosion proof lighting, paint booth lighting, and chemical processing facility lighting.
The fixture operates on 100-277V and produces 5000K light with an 80+ CRI. Its 60-watt LED system replaces a 250-watt metal halide fixture where the existing light level and layout support that replacement.
Core Performance and Output
The fixture delivers 140 lumens per watt with a standard 120-degree beam distribution. The polycarbonate lens provides broad linear distribution across the illuminated area.
Electrical performance includes 100-277V operation, 50-60Hz frequency, power factor above 0.95, and THD below 10 percent. At lower mounting heights, 8,400 lumens may create excessive brightness if fixture placement is not coordinated with the work area.
Adjustability and Control Options
This fixture supports 1-10V dimming. Dimming control wiring should be planned with the branch circuit and control system before installation.
The fixture has a fixed 120-degree beam angle and does not list alternate optical distributions. Output adjustment through dimming does not change the physical beam pattern.
Longevity and Reliability
The LED system is rated for 50,000 hours L70 life. The fixture carries a 5-year warranty.
Its listed operating temperature range is -40 degrees F to 122 degrees F. Long-term performance depends on maintaining the housing, lens, wiring entries, and surface mounting points.
Build Quality and Physical Characteristics
The fixture uses a stainless steel housing with a polycarbonate lens. It measures 52 x 8.2 x 4.7 inches and weighs 16 pounds.
IP66 and IK10 ratings are listed. Surface mounting is the specified mounting method, so the mounting surface and supporting structure must carry the fixture weight.
Where This Product Fits Best
This linear fixture fits classified and demanding locations where hazardous location ratings, wet-location suitability, and a sealed vapor tight construction are required.
- hazardous location lighting
- paint booth lighting
- chemical processing facility lighting
- explosion proof lighting
- oil and gas facility lighting
- refinery lighting
- marine environment lighting
UL 844 Hazardous Locations, UL 1598 Suitable for Wet Locations, UL 1598A Marine Outside Type, ABS, ETL, IP66, and IK10 are listed.
Installation and Long-Term Use
Install the fixture by surface mounting it to a structure that supports its 16-pound weight. Confirm the supplied voltage is within the 100-277V operating range and route 1-10V control conductors where dimming is required.
Mounting height, fixture spacing, target light levels, and the physical layout must be established for the specific hazardous location lighting or paint booth lighting project. The supplied data does not establish a fixed mounting height or spacing pattern.
How This Fixture Is Commonly Used
In hazardous location lighting, paint booth lighting, chemical processing facility lighting, and refinery lighting, the fixture is typically arranged in linear rows or placed to follow the working layout. Surface mounting keeps the 4-foot housing close to the supporting structure.
Mounting height affects delivered light levels and uniformity across the layout. Wider spacing can reduce fixture count, but it can also reduce uniformity between fixtures.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. Class I, Division 2, Groups A, B, C, D. Class II, Division 1, Groups E, F, G. Class II, Division 2, Groups F, G. Class III.
UL 1598 Suitable for Wet Locations. UL 1598A Marine Outside Type. ABS. ETL. IP66. IK10. Rebate Eligible. Warranty: 5 years.
Frequently Asked Questions
Q: What light output does this explosion proof vapor tight fixture provide?
A: The fixture uses 60 watts and produces 8,400 lumens at 140 lumens per watt.
Q: What voltage does this fixture require?
A: The fixture operates on 100-277V at 50-60Hz.
Q: Does this fixture support dimming?
A: Yes. It supports 1-10V dimming.
Q: What mounting method is specified?
A: Surface mounting is specified for this fixture.
Q: What hazardous location classifications are listed?
A: UL 844 Hazardous Locations is listed with Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F, G; and Class III.
Application Questions and Clarification
Q: Is this fixture applicable to paint booth lighting?
A: Paint booth lighting is a listed primary application for this explosion proof light.
Q: Can this fixture be used for marine environment lighting?
A: Marine environment lighting is a listed secondary application. UL 1598A Marine Outside Type and ABS are listed.
Q: What should be reviewed when planning fixture placement?
A: Mounting height, target light levels, fixture spacing, and the physical layout affect placement. The supplied product data does not establish fixed spacing or mounting-height values.
