100 Watt Explosion Proof Linear LED Light | 16000 Lumens | Class 1 Div 2 | 5000K | 100-277V | 4 Foot
This 100 watt, 4 foot explosion proof linear LED fixture is a strong choice for hazardous and demanding environments due to its certified ratings for Class 1 Division 2, Class 2 Division 2, and Class 3 locations, along with UL, CSA, ATEX, and IECEX certifications. Its IP66 and IK08 ratings ensure reliable operation in areas exposed to water jets, dust, and moderate impacts, while the fiberglass reinforced polycarbonate housing resists corrosion. With 16,000 lumens at 160 lumens per watt, 1-10V dimming, and multiple mounting options, it is well suited for industrial facilities, chemical plants, refineries, wastewater plants, and marine environments.
Dwayne Kula | President, CTO and Founder
139 in stock
Product Specifications
UL Specs
- UL 844
- Class 1 Division 2, Group B, C, D
- Class 2, Division 2, Groups F, G
- Class 3
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- CSA / ATEX / IECEX
Key Features
| Brand | LED Lighting Supply |
| Watts | 100 |
| Lumens | 16000 |
| Lumens Per Watt | 160 |
| Replaces | 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Frosted Polycarbonate Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting | Surface or Trunnion or 3/4 in NPT Pendant |
| Fixture Color | Gray |
| Frequency (Hz) | 50/60 |
| Power Factor | >.90 |
| THD | < 10% |
Durable Construction
| Housing | Fiberglass reinforced polycarbonate |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 10kV |
| Certifications | UL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 48.5 L X 4.7 W X 4.8 H |
| Weight (lbs) | 11.2 |
| Cord Length | No Cord |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 4-foot linear LED explosion proof fixture provides 16,000 lumens from 100 watts at 5000K. It is built for hazardous location lighting where a sealed linear form factor, high output, and multiple mounting methods are required.
The fixture operates on 100-277V and replaces a 250-watt metal halide fixture. Surface, trunnion, and 3/4-inch NPT pendant mounting support different structural and layout conditions.
Core Performance and Output
The fixture delivers 16,000 lumens at 160 lumens per watt with a 120-degree beam distribution. A frosted polycarbonate lens spreads light across the fixture length and reduces direct lamp image visibility.
It operates at 50/60 Hz with a power factor above 0.90 and total harmonic distortion below 10 percent. The 100-watt output can be excessive where mounting heights are low or where close fixture spacing creates overlapping light.
Adjustability and Control Options
This fixture supports 1-10V dimming. Dimming wiring and controls must be compatible with the fixture’s 100-277V electrical configuration.

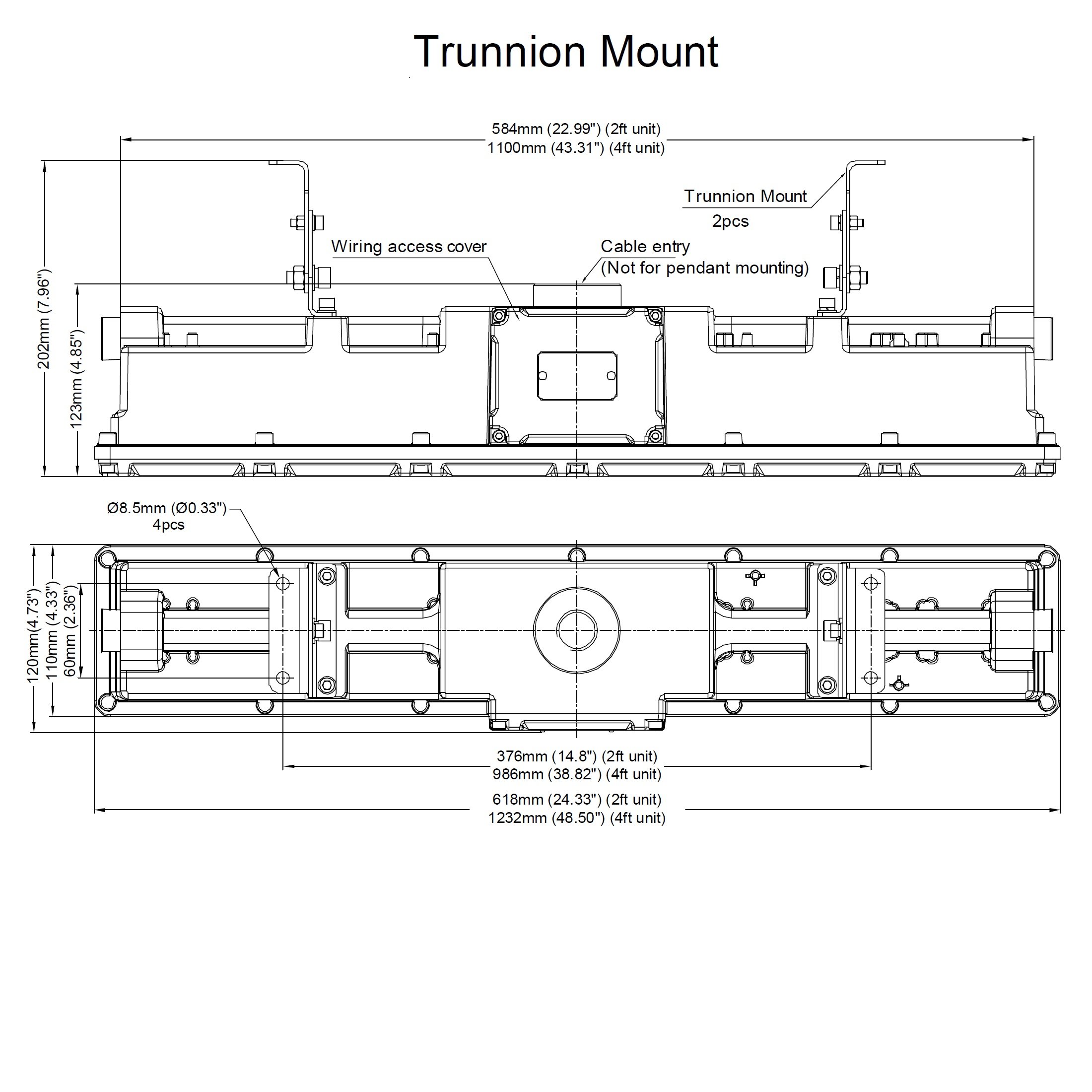

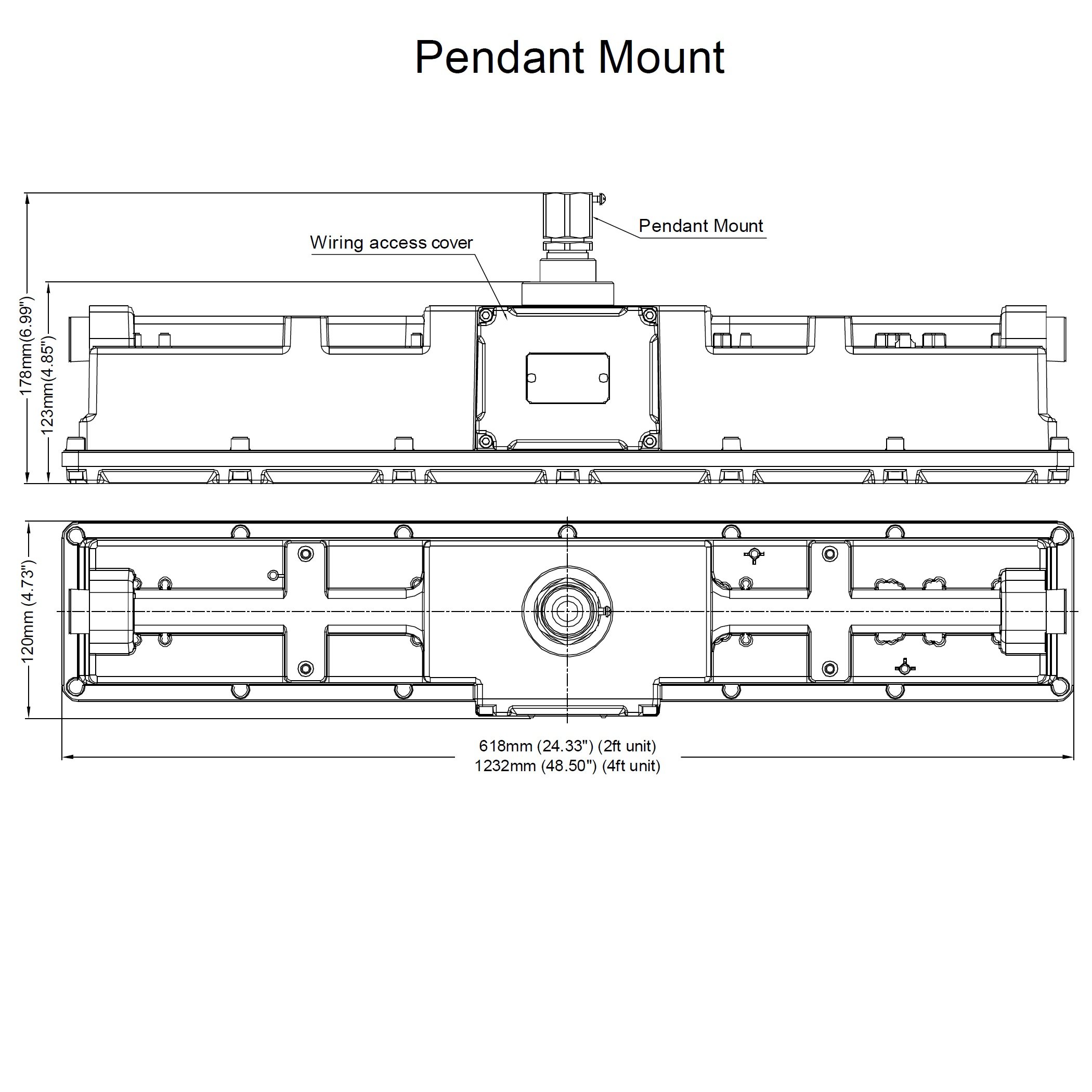

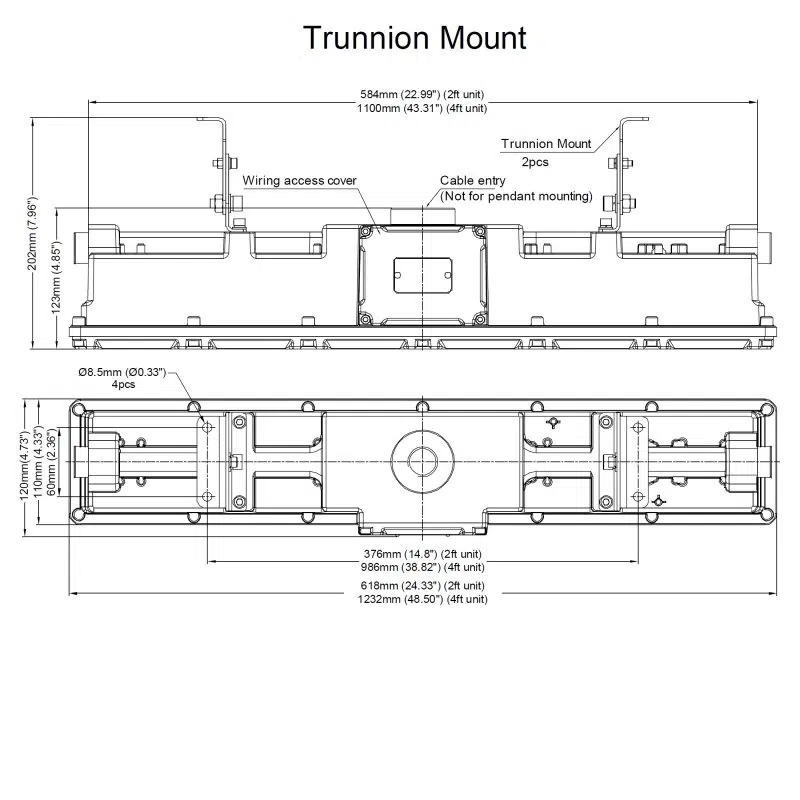

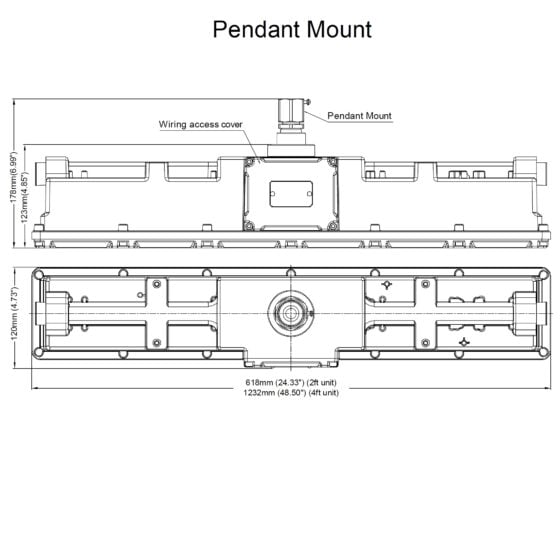

Surface mounting places the fixture directly against the mounting structure. Trunnion mounting allows directional adjustment, while the 3/4-inch NPT pendant option supports suspended installation.
Longevity and Reliability
The rated L70 life is 150,000 hours. This rating identifies the point at which light output is expected to reach 70 percent of initial output.
A 10kV surge protection device helps protect the fixture from electrical surge events. The fixture carries a 5-year warranty.
Build Quality and Physical Characteristics
The housing is fiberglass reinforced polycarbonate with a gray finish. The fixture measures 48.5 inches long by 4.7 inches wide by 4.8 inches high and weighs 11.2 pounds.
The fixture is IP66 rated and IK08 rated. It is supplied without a cord, so field wiring is required.
Where This Product Fits Best
This fixture fits classified and hazardous operating areas that need linear illumination, wet-location construction, and available surface, trunnion, or pendant mounting. Its 16,000-lumen output supports installations where fixture placement and mounting elevation are established as part of the lighting layout.
- hazardous location lighting
- explosion proof lighting
- chemical processing facility lighting
- paint booth lighting
- oil and gas facility lighting
- refinery lighting
- marine environment lighting
The IP66 enclosure, fiberglass reinforced polycarbonate housing, and UL 1598A Marine Outside Type listing support use in wet and marine conditions. Final placement should account for the classified area designation, mounting structure, and required light distribution.
Installation and Long-Term Use
Installers can use surface, trunnion, or 3/4-inch NPT pendant mounting based on the available structure and required fixture orientation. The fixture has no attached cord and requires field electrical connection.
Mounting height, fixture orientation, and the 120-degree beam angle affect light distribution across the installed area. Trunnion mounting is useful where the fixture must be aimed rather than installed in a fixed linear position.
How This Fixture Is Commonly Used

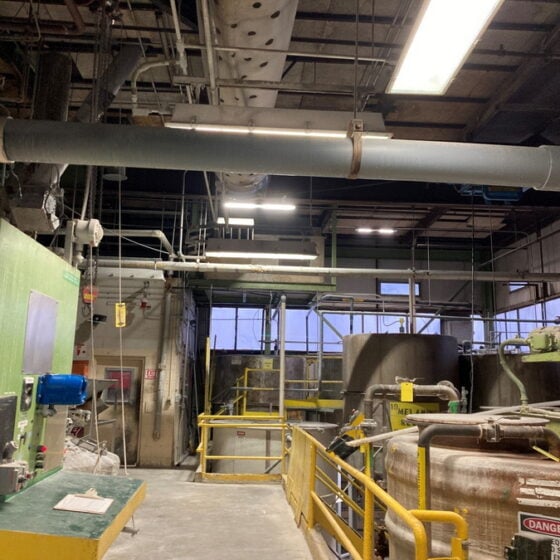

In hazardous location lighting, chemical processing facility lighting, and oil and gas facility lighting, fixtures are arranged along equipment areas, access paths, and process spaces based on the established lighting layout. Surface and pendant mounting are used where the fixture needs to follow the available structure.
Paint booth lighting, refinery lighting, and marine environment lighting may require different mounting orientations based on the structure and task area. Higher output can reduce fixture count, but placement and mounting height still determine uniformity and glare control.
Safety, Certifications, and Warranty
UL 844. Class I, Division 2, Groups B, C, and D. Class II, Division 2, Groups F and G. Class III.
UL 1598 Suitable for Wet Locations. UL 1598A Marine Outside Type. CSA. ATEX. IECEx. IP66. IK08.
The fixture includes a 5-year warranty.
Frequently Asked Questions
Q: What light output does this explosion proof fixture provide?
A: The fixture produces 16,000 lumens while operating at 100 watts. Its efficacy is 160 lumens per watt.
Q: What mounting options are available?
A: The fixture supports surface mounting, trunnion mounting, and 3/4-inch NPT pendant mounting.
Q: What should be considered when planning fixture placement?
A: Mounting height, fixture orientation, target light levels, and the 120-degree beam distribution affect fixture placement. The supplied product data does not establish a specific spacing value or fixture quantity.
Application Questions and Clarification
Q: Is this fixture classified for hazardous location lighting?
A: The fixture is UL 844 listed for Class I, Division 2, Groups B, C, and D; Class II, Division 2, Groups F and G; and Class III.
Q: Can this fixture be used for marine environment lighting?
A: The fixture is UL 1598A Marine Outside Type listed and IP66 rated. Final installation requirements depend on the mounting structure and project conditions.
