60 Watt Low Profile Explosion Proof Linear LED Light | 8400 Lumens | Class 1 Div 2 | 5000K | 100-277V

Product Overview

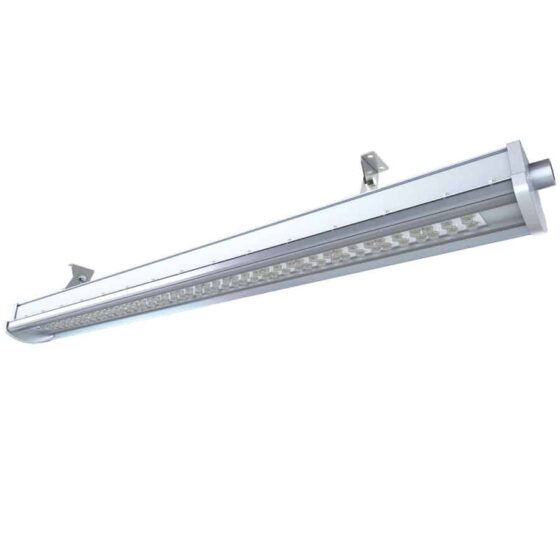

This 60 Watt Low Profile Explosion Proof Linear LED Light is designed for hazardous location lighting where flammable gases, vapors, or combustible dusts are present. The fixture delivers 8400 lumens at 5000K and operates on 100-277V. It is suitable for use in environments requiring Class 1 Division 2, Class 2 Division 2, and Class 3 protection, including paint booths and chemical processing areas. The linear form factor and low profile allow for installation in areas with limited overhead clearance or where surface, bracket, or wall mounting is required.

This fixture is commonly used as a 250W metal halide replacement in hazardous and classified spaces. The housing is constructed from copper-free aluminum and rated for wet locations, supporting deployment in both indoor and outdoor hazardous environments.

Core Performance and Output

The fixture outputs 8400 lumens at 60 watts, providing 140 lumens per watt efficiency. The 120° beam angle delivers wide, uniform coverage suitable for general area illumination in hazardous locations. Color temperature is 5000K with a CRI above 70, supporting clear visibility in work areas. Power factor is greater than 0.95, and total harmonic distortion is below 10%.

Performance is optimized for mounting heights between 10 and 20 feet. At lower mounting heights, output may be excessive for confined spaces. At higher mounting heights, uniformity may decrease and additional fixtures may be required for consistent coverage.

Adjustability and Control Options

This fixture supports 1-10V dimming for integration with compatible dimming controls. Dimming allows for adjustment of light levels to match operational requirements or energy management protocols. The wide beam angle is fixed and not field adjustable.

Mounting options include bracket, surface, or wall mounting. The fixture can be oriented horizontally or vertically to suit the installation layout. There are no integrated occupancy or daylight sensors; external controls must be specified separately if required.

Longevity and Reliability

L70 rated life is 50,000 hours, supporting long-term operation in demanding environments. The fixture is designed for continuous use in hazardous locations, with robust thermal management to maintain performance over time. Operating temperature range is -22°F to 122°F.

Ingress protection is rated at IP66, providing complete protection against dust and high-pressure water jets. The fixture is suitable for both indoor and outdoor hazardous environments where exposure to moisture or contaminants is expected.

Build Quality and Physical Characteristics

The housing is constructed from copper-free aluminum for corrosion resistance and durability in harsh environments. The fixture is finished in gray and weighs 30 lbs. Dimensions are 50 x 4.5 x 6.3 inches, supporting installation in areas with limited space.

All hardware and gasketing are designed for hazardous location use. The fixture is NSF rated, supporting use in environments where food safety or cleanability is required. The lens and seals are engineered to prevent ingress of dust, water, and contaminants.

Where This Product Fits Best

This fixture is intended for classified hazardous locations where explosion proof or vapor-tight lighting is required. It is suitable for environments with flammable gases, vapors, combustible dusts, or fibers. The linear form factor and mounting options support installation in process areas, paint booths, and chemical storage spaces.

• hazardous location lighting
• explosion proof lighting

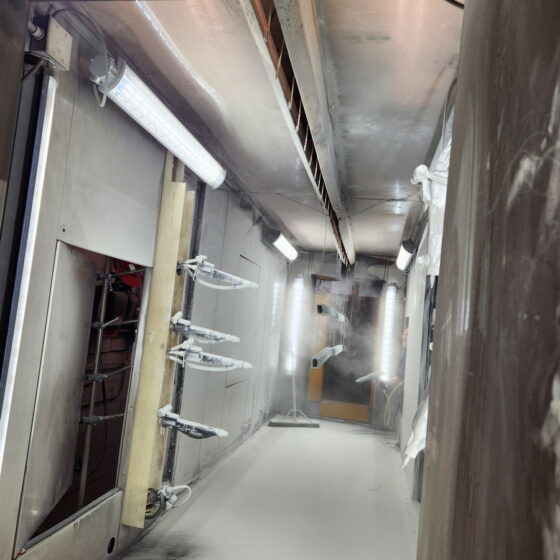

• paint booth lighting
• chemical processing facility lighting
• oil and gas facility lighting
• refinery lighting
• wastewater treatment lighting
• solvent storage area lighting

Environmental characteristics include resistance to water, dust, and corrosive agents. The fixture is suitable for wet locations and can be installed in both indoor and outdoor hazardous areas. NSF rating supports use in clean or food-related environments where required.

Installation and Long-Term Use

Mounting options include bracket, surface, or wall installation. The fixture can be oriented to match the geometry of the space or process area. All wiring and connections must comply with hazardous location requirements and local codes.

Routine maintenance is minimized due to the sealed design and long LED life. The fixture is designed for easy access during installation, but all servicing should be performed by qualified personnel familiar with hazardous location protocols. Weight and size should be considered when planning mounting points and support structures.

How This Fixture Is Commonly Used

Typical mounting heights range from 10 to 20 feet, depending on the area and required light levels. Fixtures are often spaced to provide uniform coverage along process lines, walkways, or within paint booths. Linear layout supports continuous row or perimeter mounting in larger spaces.

Spacing and fixture count are determined by the size of the area and the required illumination levels. Higher output can reduce fixture count but may increase glare in confined spaces. Layout should account for obstructions and hazardous area zoning requirements.

Safety, Certifications, and Warranty

This fixture is certified for Class 1 Division 2, Groups B, C, D; Class 2 Division 2, Groups F, G; and Class 3 hazardous locations. It is UL844, CSA, ATEX, IECEx, and NSF rated. Wet location and IP66 ratings are included.

The product is covered by a 5-year warranty. All certifications and ratings are documented for code compliance and inspection requirements.

Frequently Asked Questions

Q: What is the recommended mounting height for this fixture?

A: Recommended mounting height is between 10 and 20 feet for optimal coverage and uniformity.

Q: Can this fixture be used in outdoor hazardous locations?

A: Yes, the fixture is IP66 rated and suitable for both indoor and outdoor hazardous environments.

Q: What mounting options are available?

A: Bracket, surface, and wall mounting options are supported. The fixture can be oriented horizontally or vertically.

Q: Is this fixture compatible with dimming controls?

A: Yes, it supports 1-10V dimming with compatible external controls.

Q: How many fixtures are needed for a typical paint booth?

A: Fixture count depends on booth size, mounting height, and required light levels. Layout should be planned based on area dimensions and target illumination.

Application Questions and Clarification

Q: Is this fixture suitable for use in chemical processing facilities with combustible dust?

A: Yes, it is certified for Class 2 Division 2 hazardous locations and is suitable for areas with combustible dust.

Q: Can this fixture be installed in a wastewater treatment plant classified as a hazardous location?

A: Yes, the fixture is suitable for hazardous location lighting in wastewater treatment environments.

Q: Does the NSF rating allow use in food or beverage processing areas?

A: Yes, the NSF rating supports installation in environments where food safety or cleanability is required.

Q: Is this fixture appropriate for marine or offshore hazardous locations?

A: The fixture is certified for hazardous locations and can be used in marine environments where such ratings are required.
