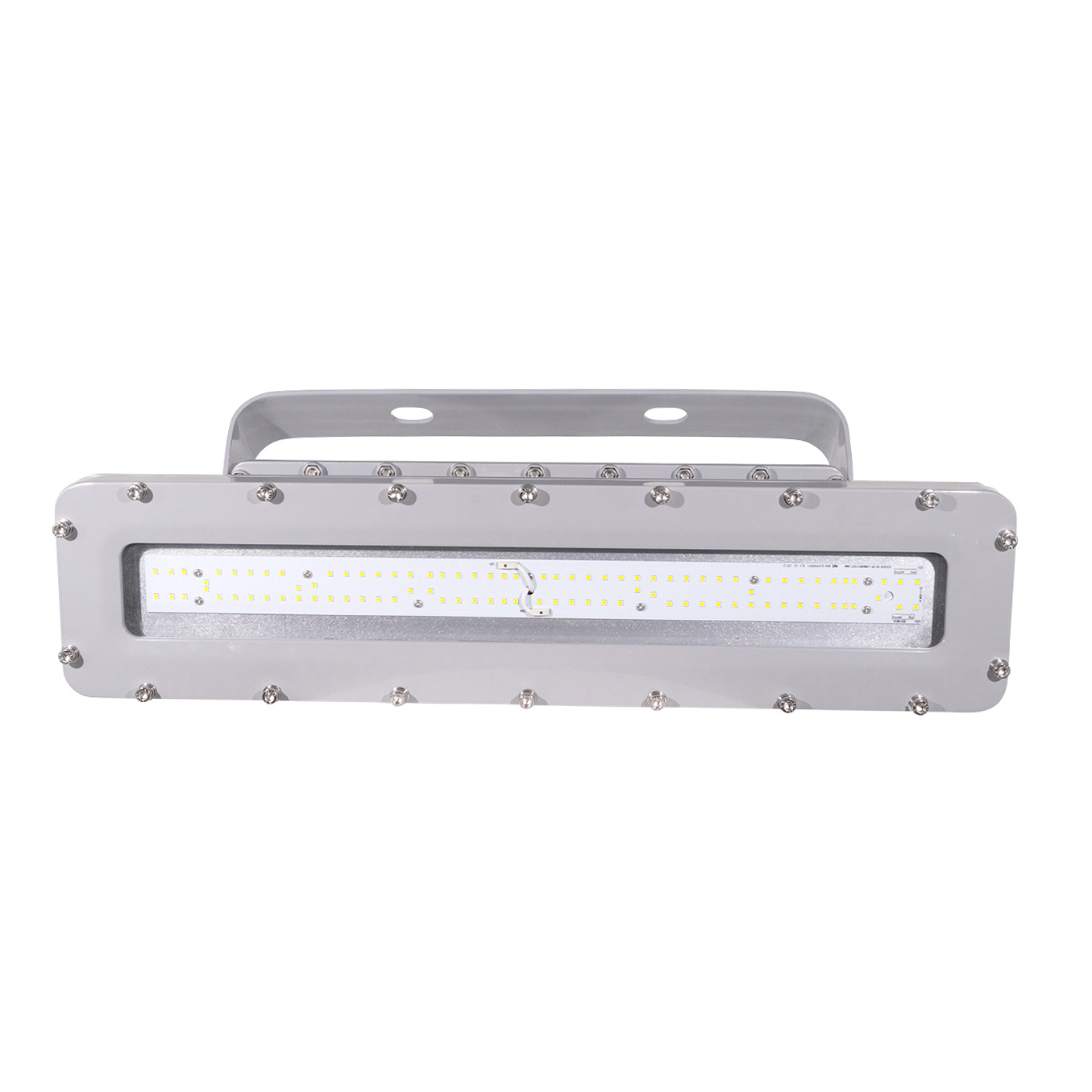

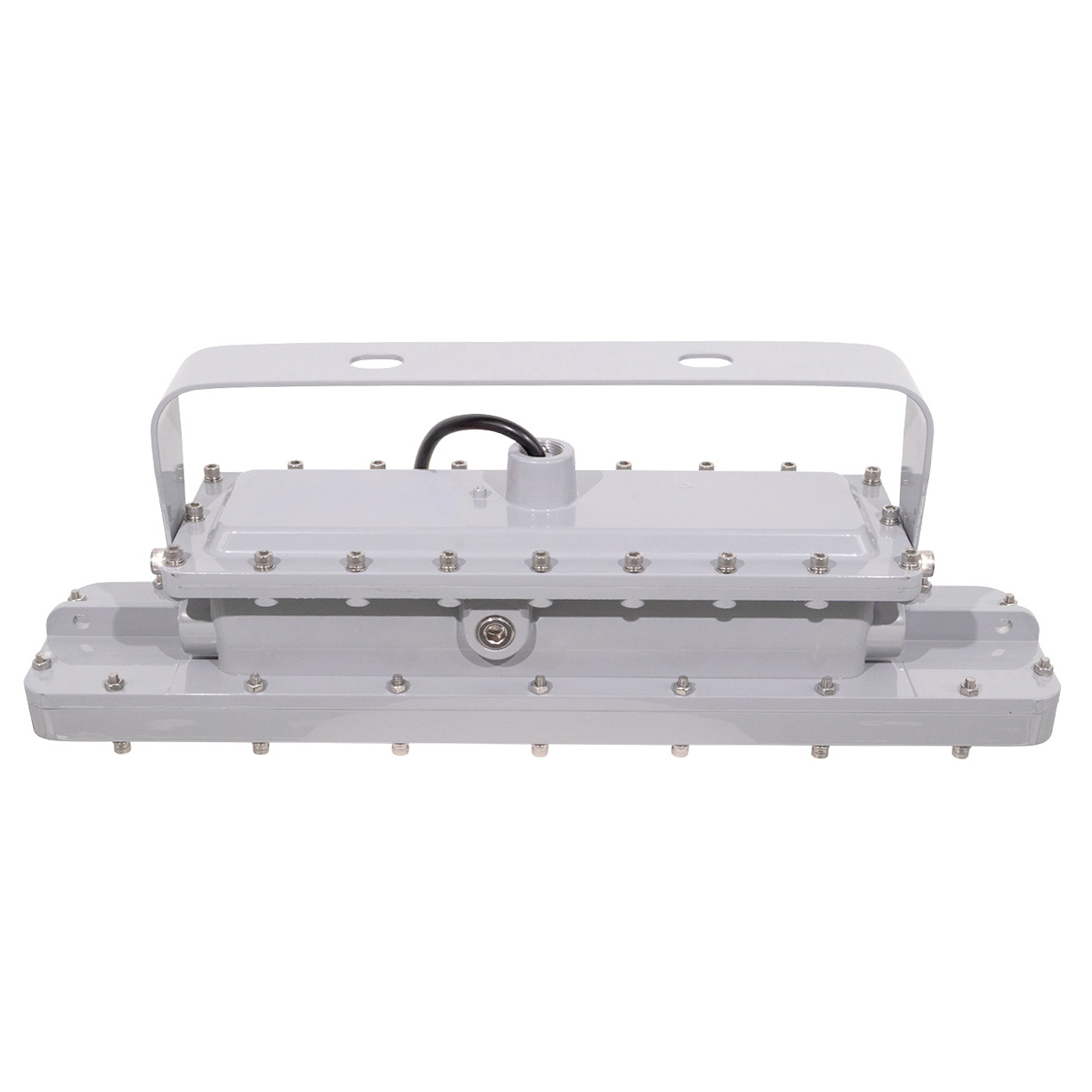

50 Watt Explosion Proof Linear LED Light | 7000 Lumens | Class 1 Div 1 | 5000K | 100-277V
Dwayne Kula | President, CTO and Founder
145 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 50 |
| Lumens | 7000 |
| Lumens Per Watt | 140 |
| Replaces | 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Yoke or 3/4 in NPT Pendant |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Copper Free Aluminum |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Operating Temperature | -22°F to 122°F |
| Certifications | ETL | Rebate Eligible | NSF Rated |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 24 x 5.5 x 8.1 |
| Weight (lbs) | 20 |
Product Description
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 1, Groups C,D
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ABS
Key Features
- Brand: LED Lighting Supply
- Watts: 50
- Lumens: 7000
- Lumens Per Watt: 140
- Replaces: 250 Watt Metal Halide
- Voltage: 100V-277V
- Color Temperature: 5000K
- CRI: 70+
- Dimming: 1-10V
- Beam Angles (Std): 120°
- Optics: Tempered Glass Lens
- Lifespan: 50,000 (L70) hours
- Mounting: Yoke or 3/4 in NPT Pendant
- Fixture Color: Gray
- Frequency (Hz): 50-60Hz
- Power Factor: >.95
- THD: < 10%
Durable Construction
- Housing: Copper Free Aluminum
- IP Rating: IP66
- IK Rating: IK10
- Operating Temperature: -22°F to 122°F
- Certifications: ETL | Rebate Eligible | NSF Rated
- Warranty: 5 years
Measurements
- Dimensions (in): 24 x 5.5 x 8.1
- Weight (lbs): 20
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This is a simplified room utilization factor. It accounts for room reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual floor-level light distribution. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces. Actual light levels may vary based on fixture optics, mounting conditions, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 50 Watt Explosion Proof Linear LED Light is designed for hazardous location lighting, offering a robust solution for environments where safety is paramount. Delivering 7000 lumens at a color temperature of 5000K, it operates efficiently across a voltage range of 100-277V. This fixture is particularly suited for use in paint booths and other hazardous locations, providing reliable illumination where traditional lighting solutions may not suffice.
With certifications including UL 844, Class I/II/III, UL 1598, UL 1598A, ABS, and an IP66 rating, this fixture is built to withstand challenging conditions. Its durable construction and versatile mounting options, including yoke or 3/4 in NPT pendant, make it adaptable to various installation scenarios.
Core Performance and Output
The fixture provides a luminous efficacy of 140 lumens per watt, ensuring high efficiency in energy consumption. Its 120° beam angle offers broad coverage, suitable for evenly illuminating large areas. The fixture's electrical performance is stable, with a power factor greater than 0.95 and a total harmonic distortion of less than 10%.
While the fixture is effective at standard mounting heights, excessive output may occur if installed at lower heights, potentially leading to glare. It is optimized for environments requiring consistent and reliable lighting under hazardous conditions.
Adjustability and Control Options
This explosion-proof LED light supports 1-10V dimming, allowing for adjustable light levels to suit specific application needs. The dimming capability provides flexibility in managing energy consumption and adapting to varying lighting requirements within hazardous environments.
The fixture's design accommodates both yoke and pendant mounting, offering versatility in installation and ensuring compatibility with existing infrastructure.
Longevity and Reliability
With a lifespan of 50,000 hours (L70), this fixture is engineered for long-term performance, minimizing maintenance needs and ensuring consistent operation in demanding environments. Its robust construction and high-quality components contribute to its reliability.
The fixture's copper-free aluminum housing and tempered glass lens enhance its durability, making it suitable for use in environments where exposure to corrosive elements is a concern.
Build Quality and Physical Characteristics
The fixture's housing is constructed from copper-free aluminum, providing excellent resistance to corrosion. Its IP66 and IK10 ratings ensure protection against dust, water ingress, and mechanical impact, making it suitable for harsh environments.
Operating within a temperature range of -22°F to 122°F, this fixture is designed to perform reliably in both cold and hot conditions. Its compact dimensions (24 x 5.5 x 8.1 inches) and weight (20 lbs) facilitate straightforward installation and integration into existing systems.
Where This Product Fits Best
This explosion-proof LED light is ideal for environments where safety and reliability are critical. It is particularly suited for hazardous locations and paint booths, where traditional lighting solutions may not be viable.
- hazardous location lighting
- explosion proof lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
The fixture's robust construction and certifications make it suitable for use in environments with potential exposure to explosive gases, dust, and other hazardous materials.
Installation and Long-Term Use
Installation options include yoke or 3/4 in NPT pendant mounting, providing flexibility to accommodate various structural configurations. The fixture's design allows for straightforward integration into existing systems, minimizing installation complexity.
Long-term use is supported by its durable construction and high-quality components, ensuring reliable performance in demanding environments. Regular maintenance is minimized due to its extended lifespan and robust design.
How This Fixture Is Commonly Used
This fixture is typically mounted at heights that optimize its 120° beam angle, ensuring even light distribution across the target area. Spacing and layout patterns may vary based on specific application requirements and environmental conditions.
In hazardous environments, higher output levels can reduce the number of fixtures needed, though care should be taken to manage potential glare at lower mounting heights.
Safety, Certifications, and Warranty
This fixture is certified under UL 844 for hazardous locations, with additional certifications including Class I, Division 1 and 2, Class II, Division 1 and 2, Class III, UL 1598, UL 1598A, and ABS. It is also NSF rated, ensuring compliance with safety standards for use in specific environments.
The fixture comes with a 5-year warranty, providing assurance of its quality and reliability over time. Its certifications and robust construction make it a dependable choice for hazardous location lighting.
Frequently Asked Questions
Q: What is the beam angle of this fixture?
A: The fixture has a 120° beam angle, providing broad coverage for even illumination.
Q: Can this fixture be dimmed?
A: Yes, it supports 1-10V dimming, allowing for adjustable light levels.
Q: What are the mounting options available?
A: The fixture can be mounted using a yoke or 3/4 in NPT pendant.
Q: Is this fixture suitable for outdoor use?
A: Yes, it is rated IP66, making it suitable for wet locations and outdoor use.
Q: What is the expected lifespan of this fixture?
A: The fixture has an expected lifespan of 50,000 hours (L70).
Application Questions and Clarification
Q: What environments are best suited for this fixture?
A: This fixture is ideal for hazardous locations, paint booths, and chemical processing facilities.
Q: Can this fixture be used in marine environments?
A: Yes, it is UL 1598A Marine Outside Type certified, making it suitable for marine environments.
Q: How does the fixture perform in extreme temperatures?
A: It operates reliably within a temperature range of -22°F to 122°F.
Q: What is the fixture's resistance to impact?
A: The fixture has an IK10 rating, indicating high resistance to mechanical impact.
