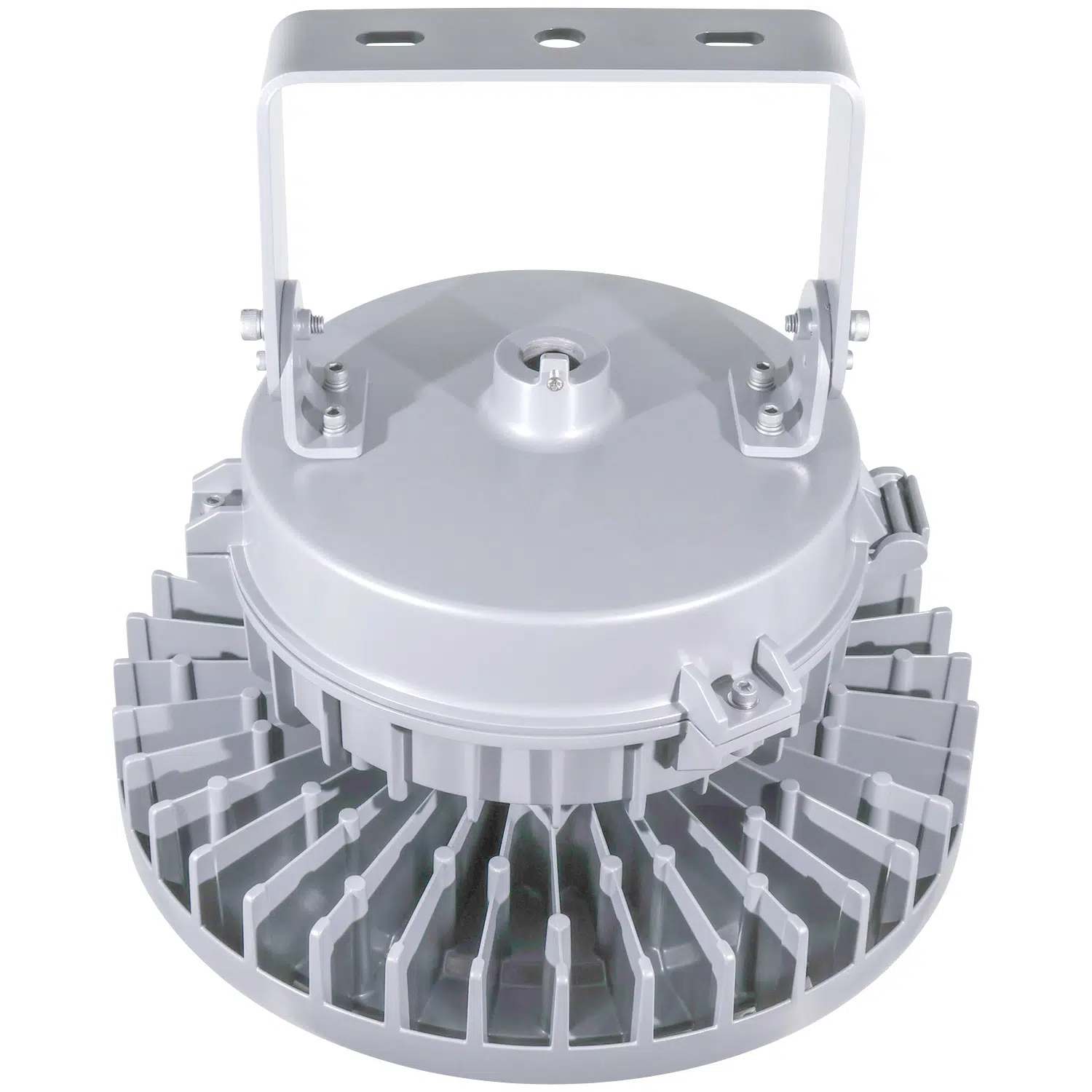

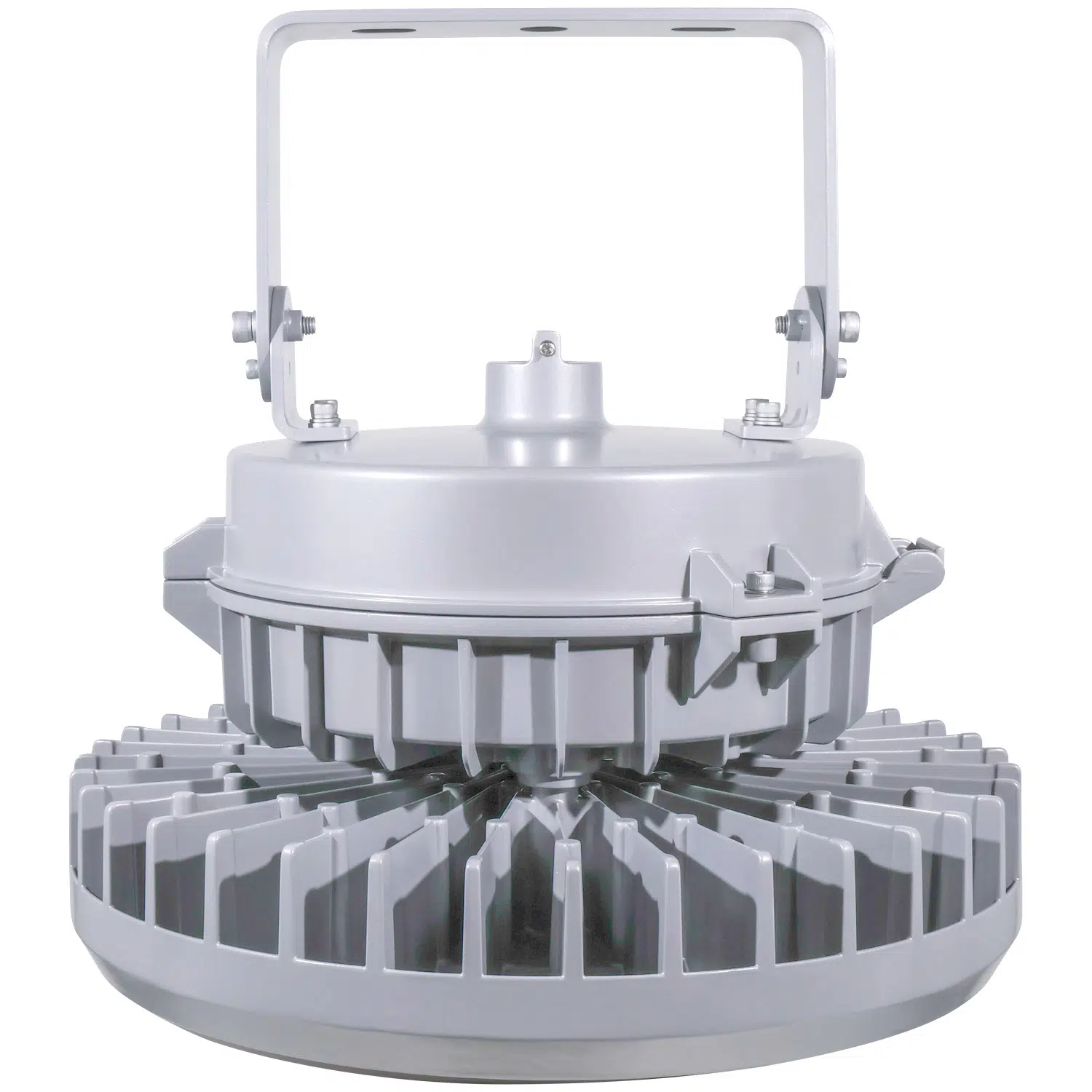

150 Watt Round Explosion Proof LED Light | 21000 Lumens | Class 1 Div 2 | 5000K | 100-277V
This 150W round explosion proof LED fixture is a strong choice for hazardous locations due to its certified ratings for Class 1 Division 2, Class 2 Division 1 and 2, and Class 3 environments, as well as IP66 and IK08 protection for dust, water, and moderate impact resistance. It's 21,000 lumen output at 140 lumens per watt efficiently replaces 400W metal halide fixtures, while the 120 degree beam angle ensures wide, even coverage. Ideal for chemical plants, refineries, grain processing, and washdown areas.
Neil Peterson | CEO and Chief Lighting Specialist
121 in stock (can be backordered)
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 150 |
| Lumens | 21000 |
| Lumens Per Watt | 140 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting | Yoke or 3/4 in NPT Pendant |
| Mounting (Opt) | Surface or Wall |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.90 |
| THD | < 10% |
Durable Construction
| Housing | Powder Coated Aluminum |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 149°F |
| Certifications | UL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 14.96 W X 14.37 H |
| Weight (lbs) | 20 |
| Cord Length | No Cord |
IES Files
Product Description
UL Specs
- UL 844 Hazardous Locations
- Class 1 Division 2, Group A,B,C,D
- Class 2, Division 1, Groups E,F,G
- Class 2, Division 2, Groups F,G
- Class 3
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- CSA, ATEX, IECEX
Key Features
- Brand: LED Lighting Supply
- Watts: 150
- Lumens: 21000
- Lumens Per Watt: 140
- Replaces: 400 Watt Metal Halide
- Voltage: 100V-277V
- Color Temperature: 5000K
- CRI: 70+
- Dimming: 1-10V
- Beam Angles (Std): 120°
- Optics: Tempered Glass Lens
- Lifespan: 150,000 (L70) hours
- Mounting: Yoke or 3/4 in NPT Pendant
- Mounting (Opt): Surface or Wall
- Fixture Color: Gray
- Frequency (Hz): 50-60Hz
- Power Factor: >.90
- THD: < 10%
Durable Construction
- Housing: Powder Coated Aluminum
- IP Rating: IP66
- IK Rating: IK08
- Surge Protection: 10kV
- Operating Temperature: -40°F to 149°F
- Certifications: UL
- Warranty: 5 years
Measurements
- Dimensions (in): 14.96 W X 14.37 H
- Weight (lbs): 20
- Cord Length: No Cord
You may also like...
-
100 Watt Round Explosion Proof LED Light | 14000 Lumens | Class 1 Div 2 | 5000K | 100-277V | Optional 10 Year Warranty
Availability: 105 In Stock Ships 2-3 DaysRetail Price: $638.89 -
240 Watt Round Explosion Proof LED Light | 33600 Lumens | Class 1 Div 2 | 5000K | 100-277V | Optional 10 Year Warranty
Availability: 350 In Stock Ships 2-3 DaysRetail Price: $843.56 -
70 Watt Round Explosion Proof LED Light | 9800 Lumens | Class 1 Div 1 | 5000K | 100-277V
Availability: 79 In Stock Ships 3-5 DaysRetail Price: $681.78
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This is a simplified room utilization factor. It accounts for room reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual floor-level light distribution. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces. Actual light levels may vary based on fixture optics, mounting conditions, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
The 150 Watt Round Explosion Proof LED Light is engineered for environments where safety and durability are paramount. Designed to deliver 21,000 lumens at a color temperature of 5000K, this fixture is suitable for hazardous locations, including oil and gas facilities. It operates efficiently within a voltage range of 100-277V, making it versatile for various industrial applications. The fixture's robust construction and explosion-proof certification ensure reliable performance in challenging conditions.
This LED light serves as a direct replacement for 400 Watt metal halide fixtures, offering significant energy savings and reduced maintenance costs. Its compact, round form factor allows for flexible installation options, including yoke or 3/4 inch NPT pendant mounting, making it adaptable to different structural setups.
Core Performance and Output
With an output of 21,000 lumens and an efficacy of 140 lumens per watt, this explosion-proof LED light provides high-intensity illumination suitable for demanding environments. The fixture features a 120° beam angle, ensuring broad and even light distribution. It supports 1-10V dimming, allowing for adjustable light levels to meet specific application needs.
The fixture's electrical performance is optimized for stability, with a power factor greater than 0.90 and a total harmonic distortion of less than 10%. While the light is designed for high mounting heights typical in industrial settings, excessive output may occur at lower heights, necessitating careful planning of installation height and spacing.
Adjustability and Control Options
This LED fixture includes 1-10V dimming capabilities, providing flexibility in light output to suit various operational requirements. The dimming feature allows for energy savings and enhanced control over the lighting environment, which is particularly beneficial in settings where lighting needs fluctuate.
Installation options include yoke or 3/4 inch NPT pendant mounting, with additional surface or wall mounting available. These options provide adaptability to different structural and spatial constraints, ensuring the fixture can be securely and effectively installed in a variety of hazardous locations.
Longevity and Reliability
Designed for longevity, this explosion-proof LED light boasts a lifespan of 150,000 hours (L70), significantly reducing the frequency of replacements and maintenance interventions. The fixture's robust construction and high-quality components contribute to its reliability in harsh environments.
With a wide operating temperature range from -40°F to 149°F, the fixture is suitable for both extreme cold and high-temperature conditions, ensuring consistent performance across diverse industrial settings.
Build Quality and Physical Characteristics
The fixture's housing is constructed from powder-coated aluminum, providing durability and resistance to corrosion. It is rated IP66 for protection against dust and water ingress, and IK08 for impact resistance, making it suitable for challenging environments.
Additional features include 10kV surge protection, ensuring the fixture's resilience against electrical surges and fluctuations. The fixture's gray color and compact dimensions (14.96 inches wide by 14.37 inches high) allow for unobtrusive integration into various industrial settings.
Where This Product Fits Best
This explosion-proof LED light is ideal for hazardous environments where safety and reliability are critical. It is particularly suited for use in oil and gas facilities, chemical processing plants, and other locations requiring explosion-proof lighting solutions.
- hazardous location lighting
- explosion proof lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
The fixture's robust construction and certifications, including UL 844, Class I/II/III, ATEX, and IECEx, ensure it meets stringent safety standards for use in hazardous environments. Its IP66 and IK08 ratings further enhance its suitability for challenging conditions.
Installation and Long-Term Use
Installation of this fixture is straightforward, with options for yoke or 3/4 inch NPT pendant mounting. These mounting methods provide flexibility to accommodate various structural configurations and ensure secure installation in hazardous locations.
For long-term use, the fixture's durable construction and high-quality components minimize maintenance requirements. Its long lifespan and robust design make it a reliable choice for facilities where safety and performance are paramount.
How This Fixture Is Commonly Used
This explosion-proof LED light is typically mounted at heights suitable for industrial settings, ensuring optimal light distribution and coverage. The fixture's high output allows for wider spacing between units, reducing the overall number of fixtures required while maintaining adequate illumination levels.
Spacing and layout patterns may vary based on specific application needs and environmental conditions. While higher output can reduce the fixture count, it may also increase glare if not properly managed, necessitating careful planning of installation height and spacing.
Safety, Certifications, and Warranty
This fixture is certified for use in hazardous locations, meeting UL 844, Class I/II/III, ATEX, and IECEx standards. It is also rated for wet locations (UL 1598) and marine outside type (UL 1598A), ensuring suitability for a wide range of challenging environments.
The fixture includes a 5-year warranty, providing assurance of its quality and reliability. Its certifications and robust construction make it a dependable choice for facilities requiring explosion-proof lighting solutions.
Frequently Asked Questions
Q: What is the beam angle of this fixture?
A: The fixture features a 120° beam angle, providing broad and even light distribution.
Q: Can this fixture be dimmed?
A: Yes, it supports 1-10V dimming, allowing for adjustable light levels.
Q: What mounting options are available?
A: The fixture can be mounted using a yoke or 3/4 inch NPT pendant, with additional surface or wall mounting options available.
Q: What is the expected lifespan of this LED light?
A: The fixture has a lifespan of 150,000 hours (L70), ensuring long-term reliability.
Q: Is this fixture suitable for outdoor use?
A: Yes, it is rated IP66 for protection against dust and water ingress, making it suitable for outdoor use.
Application Questions and Clarification
Q: What environments are best suited for this explosion-proof LED light?
A: This fixture is ideal for hazardous locations such as oil and gas facilities, chemical processing plants, and refineries.
Q: Can this fixture be used in marine environments?
A: Yes, it is certified for marine outside type (UL 1598A) and is suitable for marine environments.
Q: How does the fixture perform in extreme temperatures?
A: The fixture operates effectively in temperatures ranging from -40°F to 149°F, ensuring reliable performance in extreme conditions.
Q: What is the power factor of this fixture?
A: The fixture has a power factor greater than 0.90, indicating efficient electrical performance.
