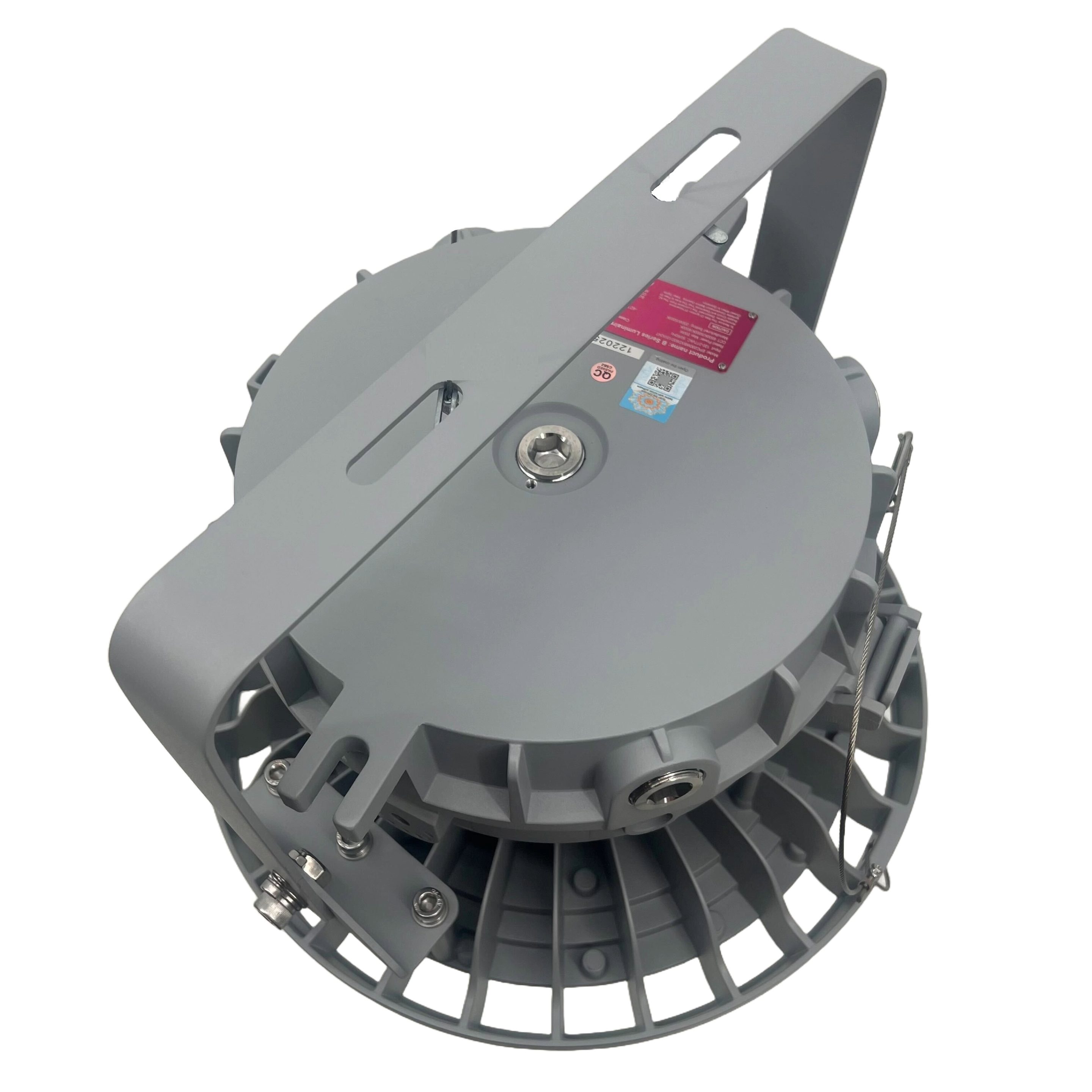

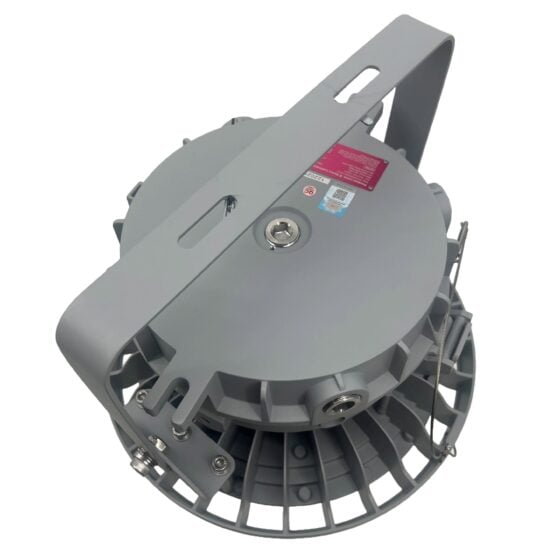

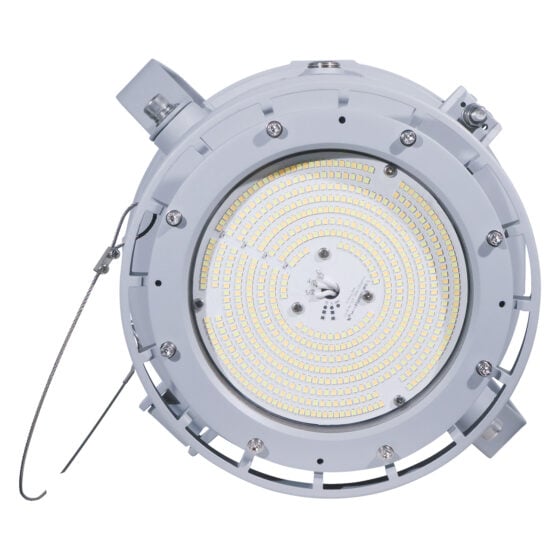

120 / 150 / 200 Watt Adjustable Round Explosion Proof LED Light | 19200 to 32000 Lumens | Class 1 Div 2 | 4000K / 5000K / 6500K | 100-277V
This adjustable round explosion proof LED fixture is a strong choice for hazardous and demanding environments due to its selectable wattage (120, 150, or 200 watts) and lumen output (19200 to 32000 lumens), allowing tailored replacement of 400 watt metal halide systems. Its UL 844, UL 1598, UL 1598A, and ABS certifications, along with Class I Division 2, Class II Division 1 and 2, and Class III ratings, ensure suitability for chemical plants, refineries, wastewater facilities, grain processing, and marine locations. The fixture is not supplied with a cord, so all wiring must be completed on site.
Dwayne Kula | President, CTO and Founder
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ABS
- Vibration 3G
- NEMA4X
Key Features
| Brand | LED Lighting Supply |
| Watts | 120 | 150 | 200 |
| Lumens | 19200 | 24000 | 32000 |
| Lumens Per Watt | 160 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 4000K or 5000K or 6500K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Surface or Yoke or 3/4 in NPT Pendant |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 10kV |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 11.97 x 14.67 |
| Weight (lbs) | 38 |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable round explosion proof LED light is designed for hazardous location lighting where Class I, II, or III classifications apply. It provides selectable 120W, 150W, or 200W output and selectable 4000K, 5000K, or 6500K color temperature.
The fixture produces up to 32,000 lumens with a standard 120 degree beam angle. It is a replacement for 400W metal halide fixtures where the supplied classification, mounting method, and electrical conditions match the project requirements.
Core Performance and Output
Output settings are 19,200 lumens at 120W, 24,000 lumens at 150W, and 32,000 lumens at 200W. Fixture efficacy is 160 lumens per watt with a CRI of 70+.
The standard 120 degree distribution provides broad light coverage through the tempered glass lens. Higher output can reduce fixture count in a layout, but it can produce excessive light at lower mounting heights.
The fixture operates on 100-277V, 50-60Hz power. Power factor is greater than 0.95 and total harmonic distortion is below 10%.
Adjustability and Control Options

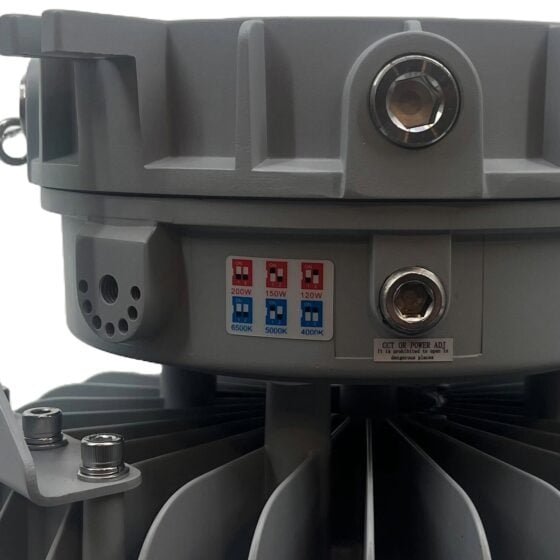

Wattage is adjustable between 120W, 150W, and 200W. Color temperature is adjustable between 4000K, 5000K, and 6500K.
1-10V dimming is included. Dimming control wiring and control-system compatibility need to be confirmed during installation planning.
Longevity and Reliability
The LED system is rated for 50,000 hours at L70. This rating identifies the point at which light output is maintained at 70 percent of initial output.
10kV surge protection is included. The fixture is rated for vibration at 3G.
A 5-year warranty is included.
Build Quality and Physical Characteristics

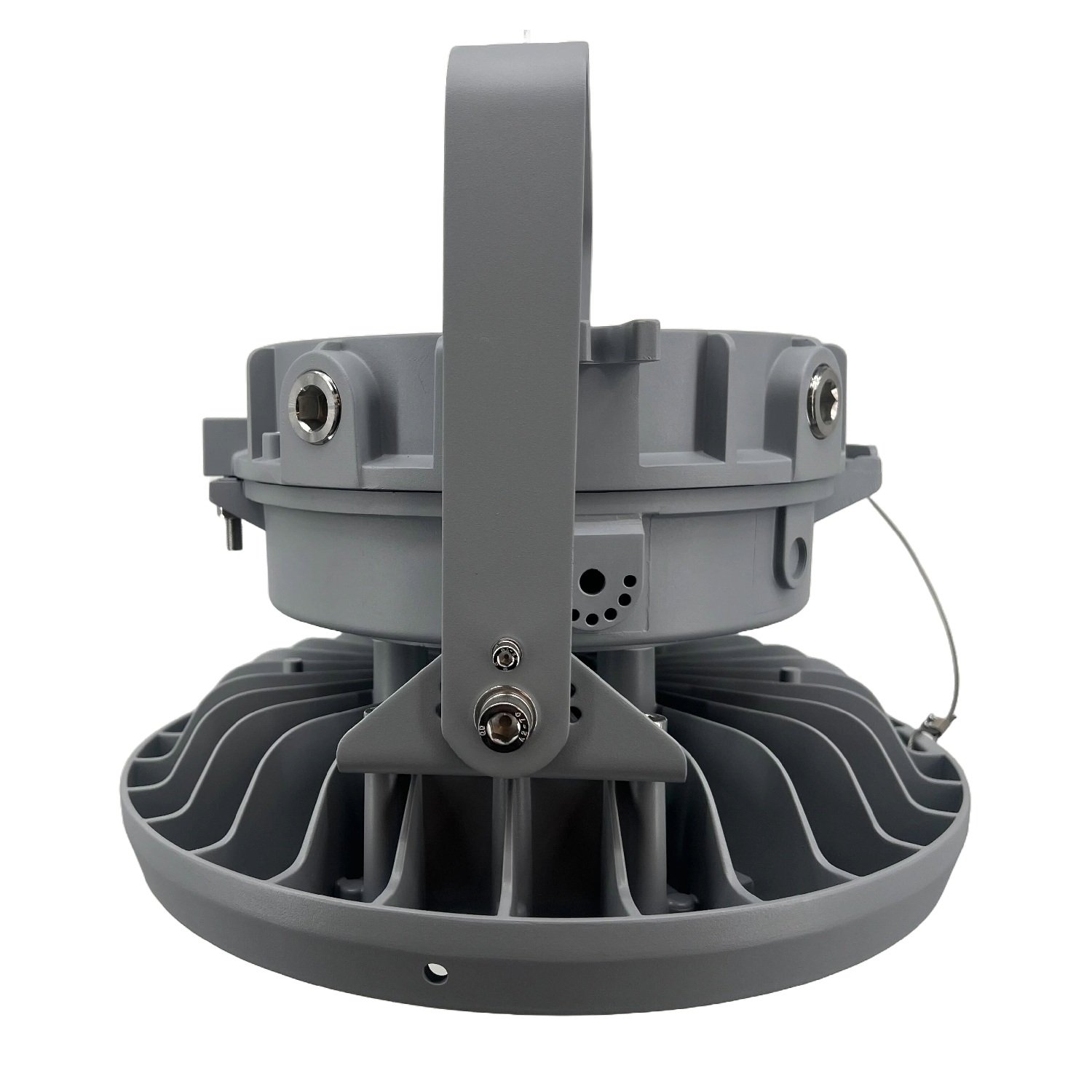

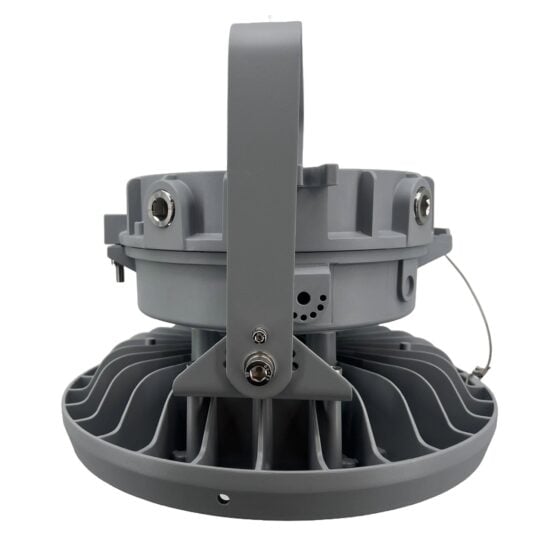

The housing is die-cast aluminum with a gray finish. The fixture measures 11.97 by 14.67 inches and weighs 38 pounds.

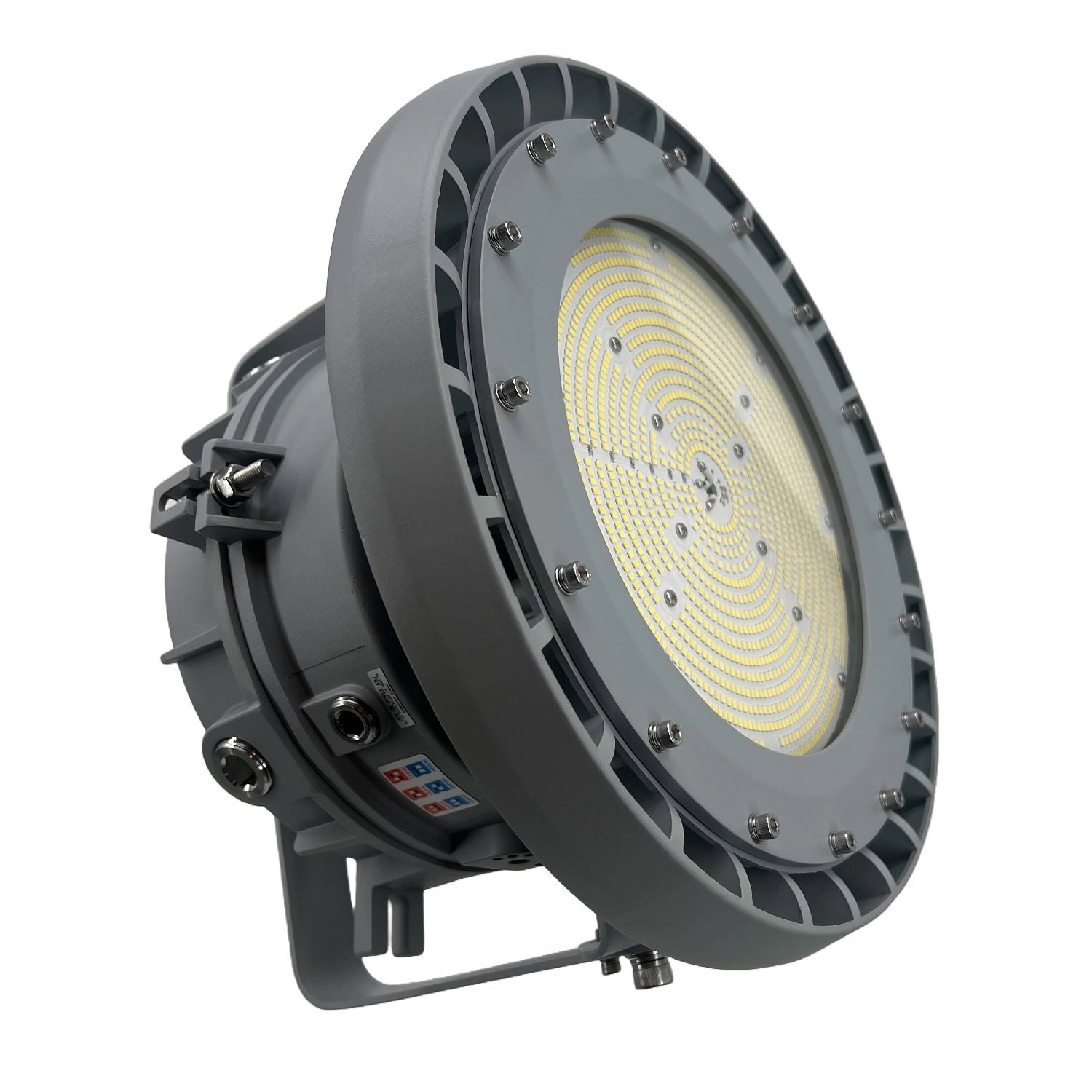

A tempered glass lens protects the optical assembly. The fixture carries IP66 and IK08 ratings.

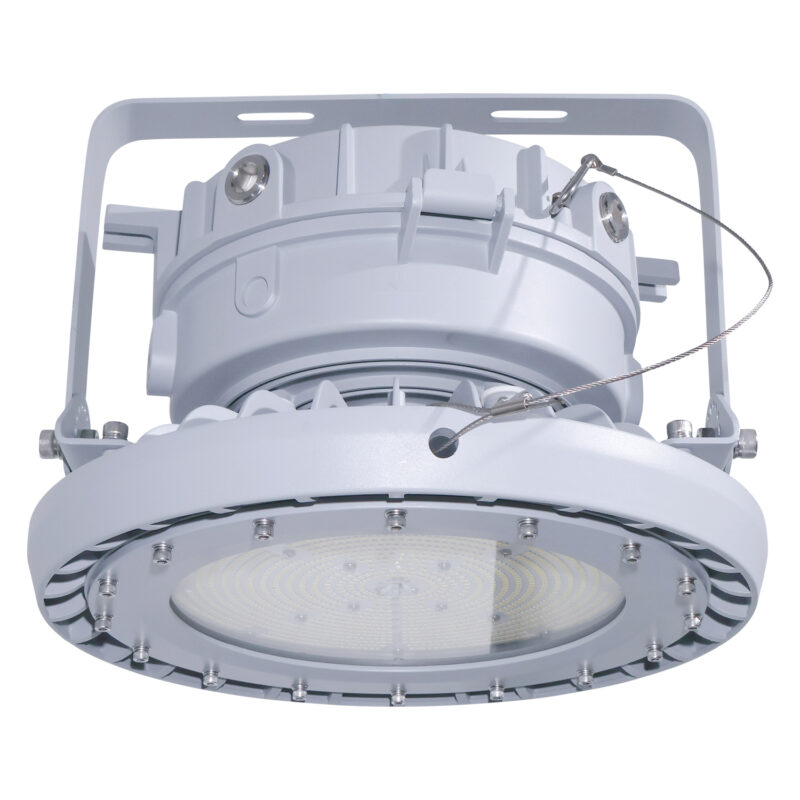

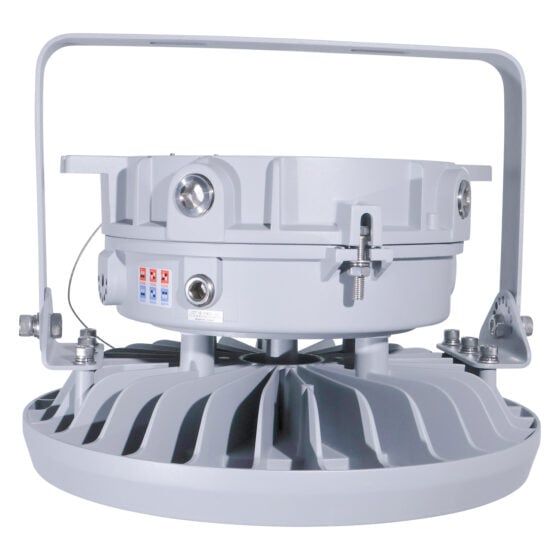

Mounting options are surface mount, yoke mount, and 3/4 inch NPT pendant mount. No cord is included.
Where This Product Fits Best
This fixture fits classified lighting installations that require the listed hazardous location ratings and a sealed, heavy-duty enclosure. Its 120W to 200W output range supports installations requiring substantial general illumination.
- hazardous location lighting
- explosion proof lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
- marine environment lighting
UL 844 hazardous location listings cover Class I, Division 2, Groups A, B, C, and D; Class II, Division 1, Groups E, F, and G; Class II, Division 2, Groups F and G; and Class III. UL 1598 wet location suitability, UL 1598A Marine Outside Type, ABS, NEMA4X, and IP66 ratings are stated certifications and ratings.
Installation and Long-Term Use
Installation requires selection of the correct surface, yoke, or 3/4 inch NPT pendant mounting method. The 38-pound fixture weight and mounting structure need to be accounted for before installation.
The 100-277V input range must match the available electrical supply. The fixture has no cord, so field wiring is required.
Set wattage and color temperature before final commissioning. Verify the hazardous location classification against the fixture listing before placing the fixture into service.
How This Fixture Is Commonly Used
In hazardous location lighting and explosion proof lighting layouts, fixtures are positioned around the mounting height, required light level, and available mounting points. Surface, yoke, and pendant mounting allow the fixture to be aligned with the installation structure.
Paint booth lighting and chemical processing facility lighting layouts commonly use the broad 120 degree beam pattern to distribute light across the intended work area. Spacing varies with the selected wattage, mounting height, and target light levels.
For oil and gas facility lighting, refinery lighting, and marine environment lighting, the enclosure rating and listed classification must align with the project conditions. Higher output settings can reduce fixture count, while layout review is still needed to maintain uniformity.
Safety, Certifications, and Warranty
UL 844 hazardous locations. Class I, Division 2, Groups A, B, C, D. Class II, Division 1, Groups E, F, G. Class II, Division 2, Groups F, G. Class III.
UL 1598 suitable for wet locations. UL 1598A Marine Outside Type. ABS. NEMA4X. IP66. IK08. Rebate eligible.
The fixture includes a 5-year warranty.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture is adjustable between 120W, 150W, and 200W. Output is 19,200, 24,000, or 32,000 lumens respectively.
Q: Can the color temperature be changed?
A: Yes. Available color temperature settings are 4000K, 5000K, and 6500K.
Q: What mounting methods are available?
A: The fixture supports surface mounting, yoke mounting, and 3/4 inch NPT pendant mounting.
Q: Does this fixture support dimming?
A: Yes. The fixture supports 1-10V dimming.
Q: What factors affect fixture layout for hazardous location lighting?
A: Selected wattage, mounting height, target light levels, and the 120 degree beam angle affect layout. The supplied product data does not establish a specific spacing value or fixture quantity.
Application Questions and Clarification
Q: Can this fixture be used for paint booth lighting?
A: Paint booth lighting is a listed primary application. Final use depends on verification that the applicable hazardous location classification matches the fixture listing.
Q: Is this fixture listed for marine environment lighting?
A: Marine environment lighting is a listed secondary application. The fixture has UL 1598A Marine Outside Type, ABS, NEMA4X, and IP66 ratings.
Q: What should be confirmed before selecting a mounting method?
A: Confirm the available mounting structure, the required mounting orientation, and whether surface, yoke, or 3/4 inch NPT pendant mounting is appropriate. The fixture weight is 38 pounds.
