60 / 80 / 100 Watt Adjustable Round Explosion Proof LED Light | 8700 to 14500 Lumens | Class 1 Div 2 | 4000K / 5000K / 6500K | 100-277V
This adjustable round explosion proof LED fixture stands out for hazardous and demanding environments, offering up to 14,500 lumens at selectable wattages and color temperatures. Its UL844, Class 1 Div 2, and marine ratings, along with IP66 and NEMA 4X protection, ensure reliable operation in hazardous, wet, or corrosive locations. The robust die-cast aluminum housing, tempered glass lens, and IK08 impact rating support durability, while flexible mounting options simplify installation. With 1-10V dimming and a 100,000-hour lifespan, this fixture is well-suited for chemical plants, refineries, marine facilities, and industrial sites requiring certified safety and longevity.
Dwayne Kula | President, CTO and Founder
46 in stock
Product Specifications
UL Specs
- UL844 Hazardous Locations
- Class 1 Division 2, Group A,B,C,D
- Class 2, Division 1, Groups E,F,G
- Class 2, Division 2, Groups F,G
- Class 3
- UL 1598 Suitable for Wet Locations
- UL1598A Marine Outside Type
- NEMA 4X
- ABS
Key Features
| Brand | LED Lighting Supply |
| Watts | 60 | 80 | 100 |
| Lumens | 8700 | 11600 | 14500 |
| Lumens Per Watt | 145 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V Optional |
| Color Temperature | 4000K or 5000K or 6500K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 100,000 (L70) hours |
| Mounting | Surface or Yoke or 3/4 in NPT Pendant |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60 |
| Power Factor | >.90 |
| THD | < 10% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 131°F |
| Certifications | UL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 10.98 x 9.77 |
| Weight (lbs) | 23.15 |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
Notes
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable round explosion proof LED light provides 60W, 80W, or 100W output with selectable 4000K, 5000K, or 6500K color temperature settings. It is built for hazardous location lighting, explosion proof lighting, paint booth lighting, and chemical processing facility lighting.
The fixture delivers up to 14,500 lumens through a 120-degree distribution and tempered glass lens. It can replace a 400W metal halide fixture where the existing light level, mounting position, and hazardous-location classification align with the project requirements.
Core Performance and Output
Output settings are 8,700 lumens at 60W, 11,600 lumens at 80W, and 14,500 lumens at 100W. Fixture efficacy is 145 lumens per watt. The standard 120-degree beam angle provides a broad distribution from the round fixture body.
The fixture operates on 100-277V at 50-60Hz. Optional 277-480V operation is available. Power factor is greater than 0.90 and THD is less than 10%.
The 100W setting can produce excessive light at lower mounting heights when fixtures are closely spaced. Higher mounting heights and wider layouts require confirmation of target light levels and distribution uniformity.
Adjustability and Control Options

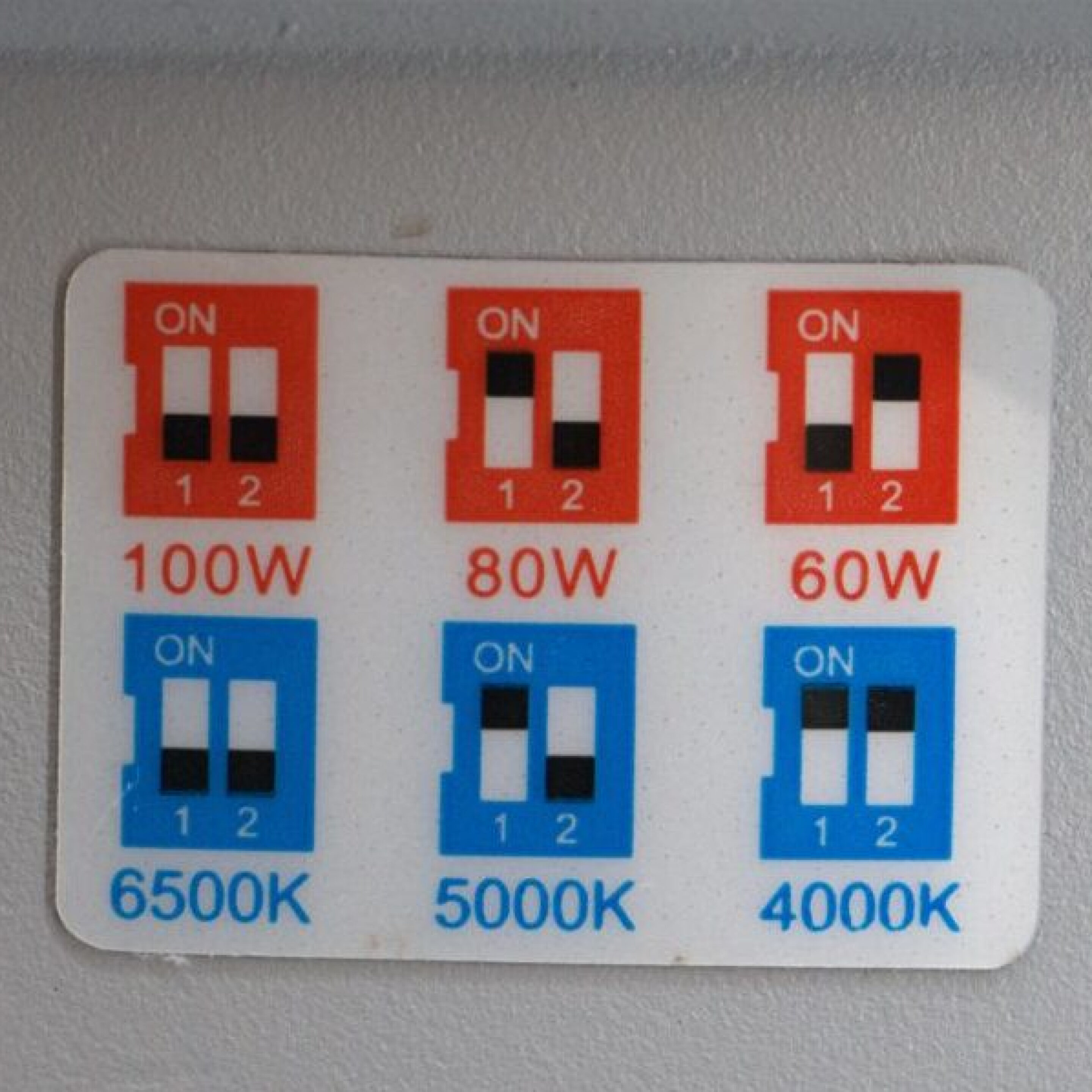

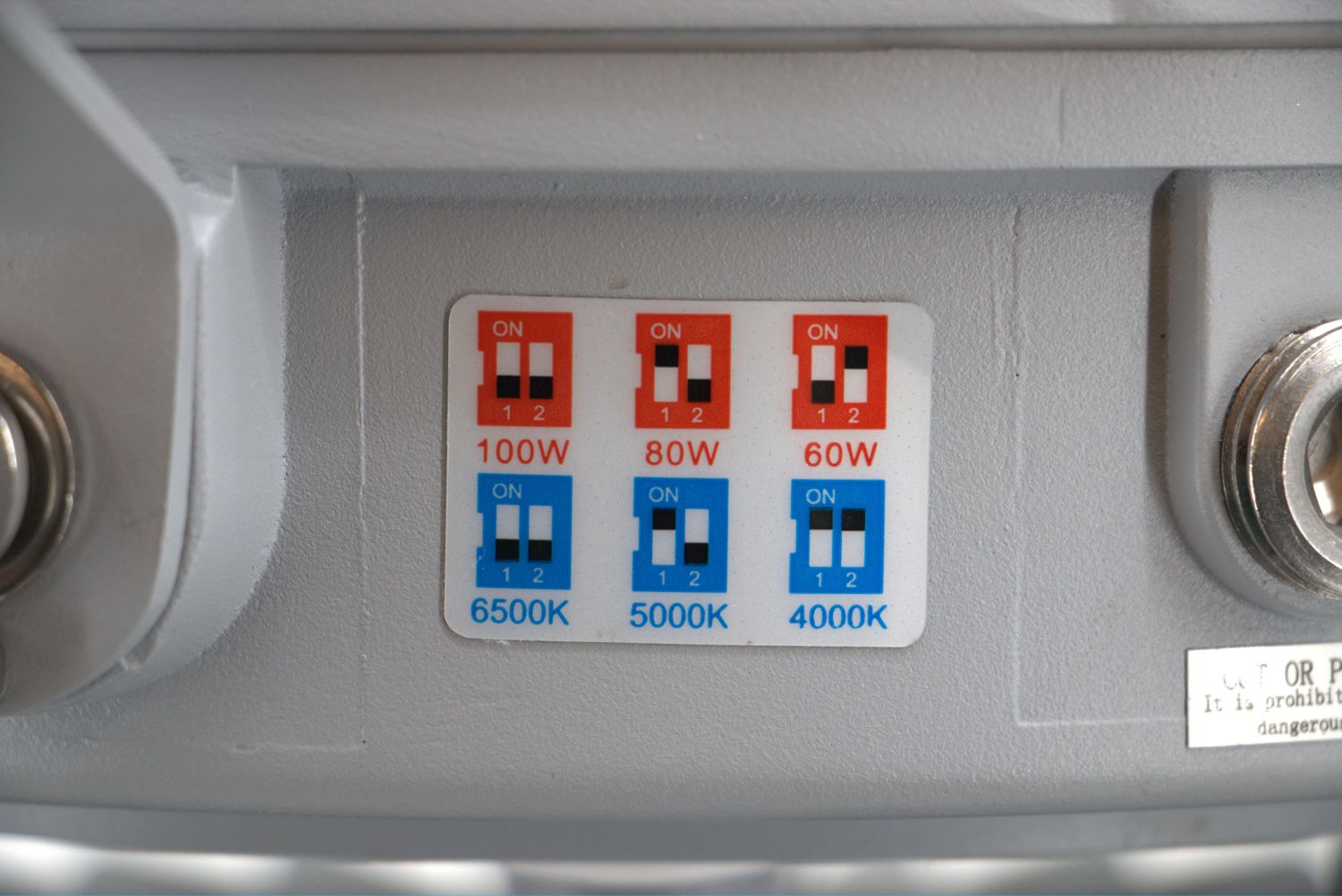

Field-adjustable wattage settings include 60W, 80W, and 100W. Color temperature settings include 4000K, 5000K, and 6500K.
1-10V dimming is available. Dimming control wiring and control-system compatibility must be confirmed for the installation.
Longevity and Reliability
The LED system is rated for 100,000 hours L70 life. The fixture includes 10kV surge protection.
Operating temperature range is -40F to 131F. The sealed construction is rated IP66 and impact resistance is rated IK08.
Build Quality and Physical Characteristics

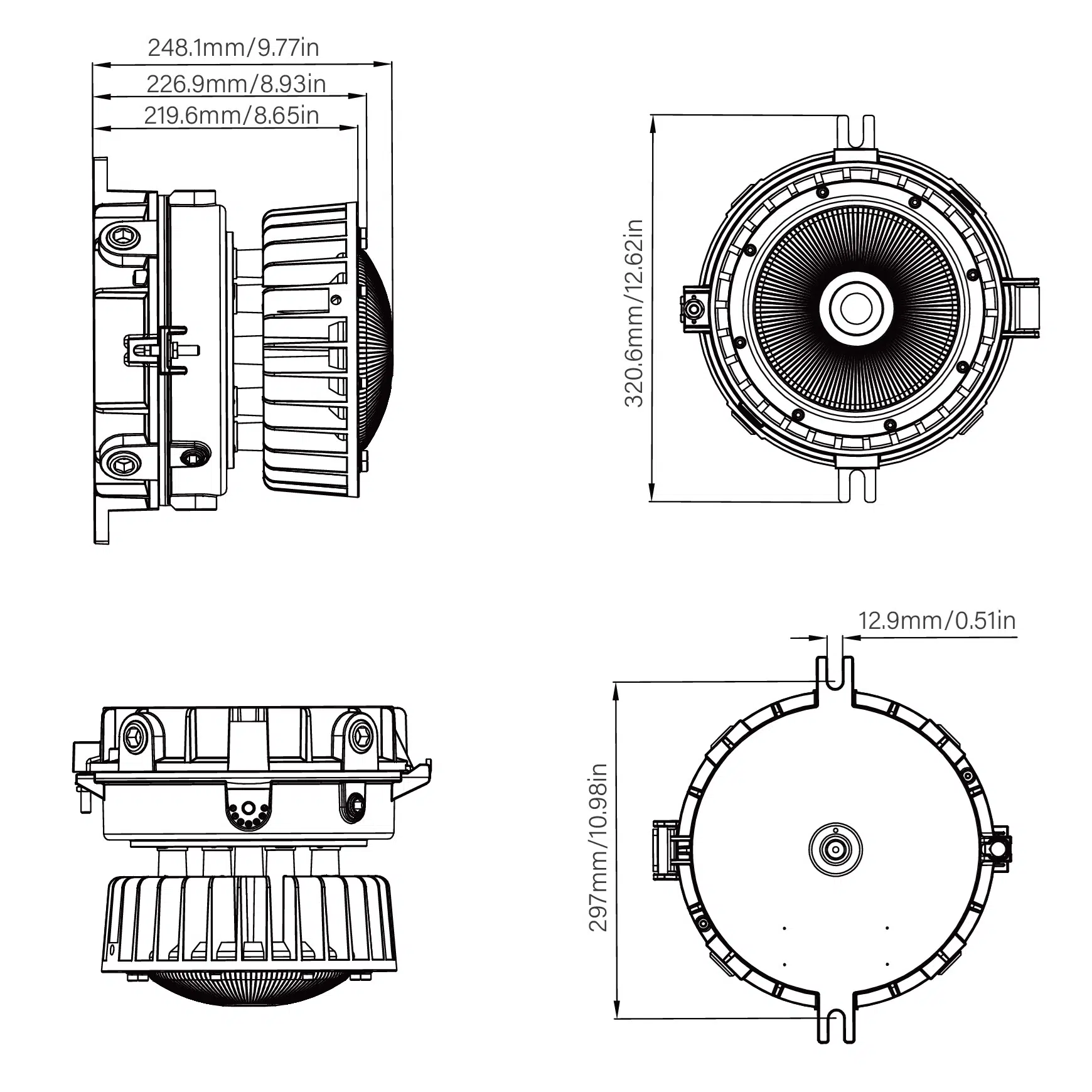

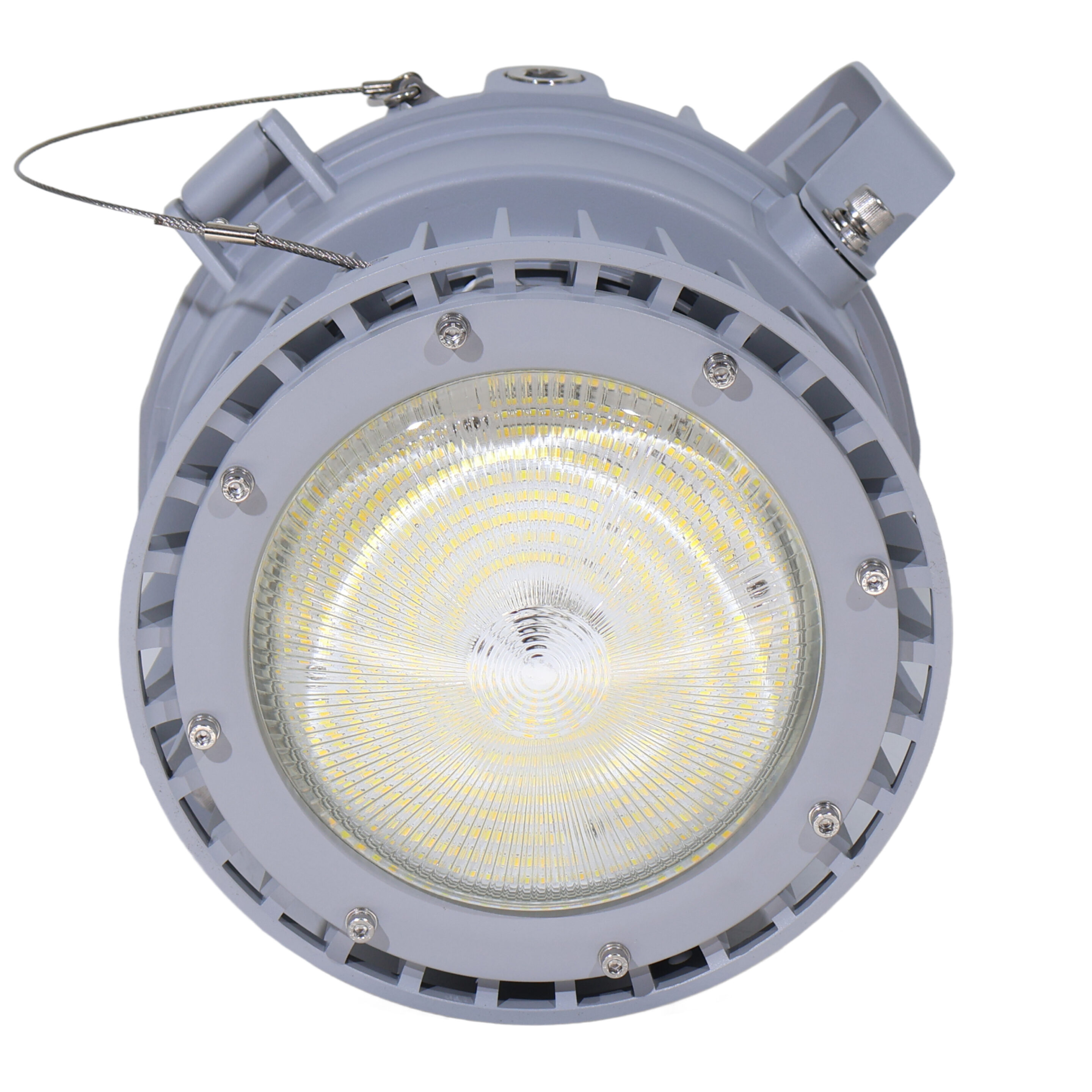

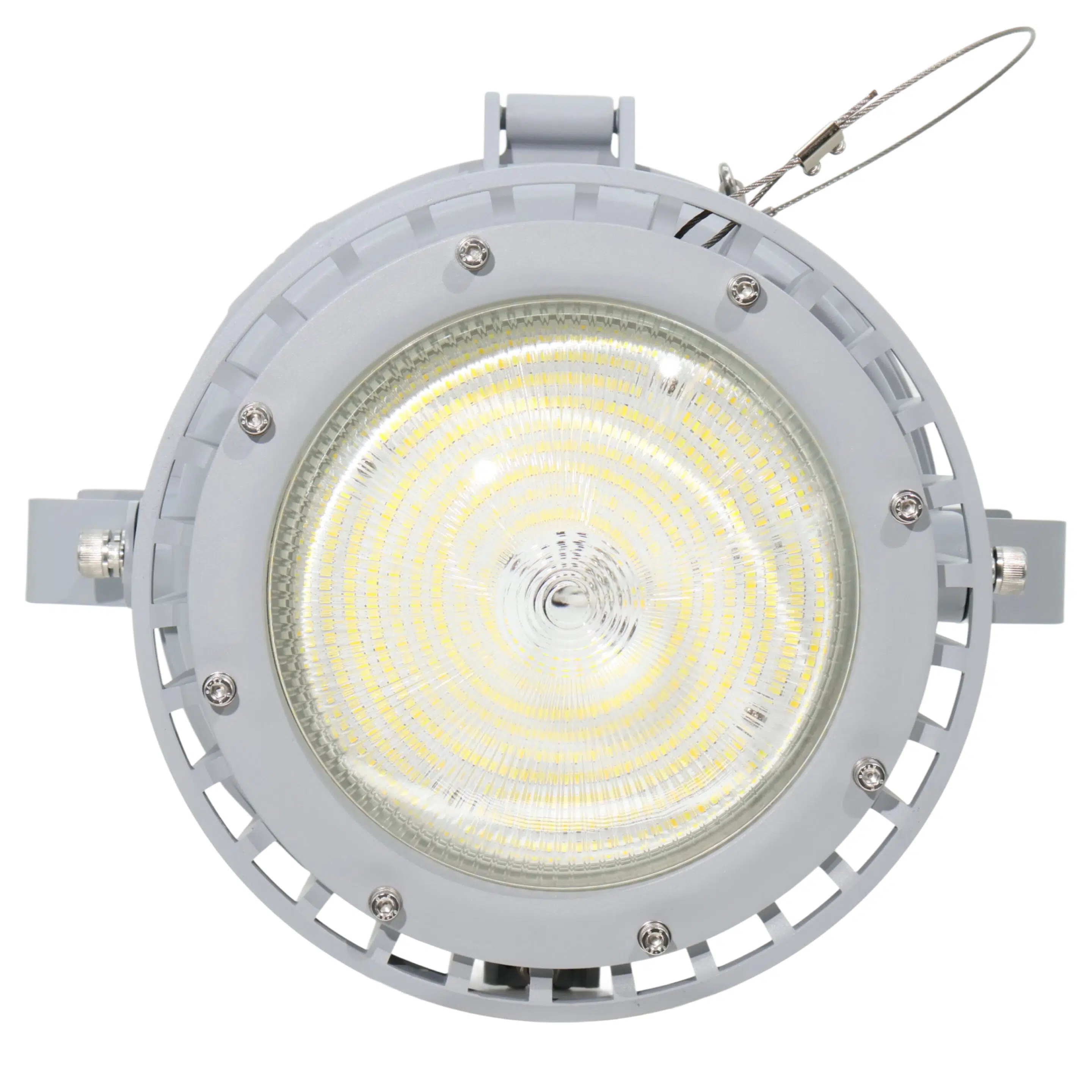

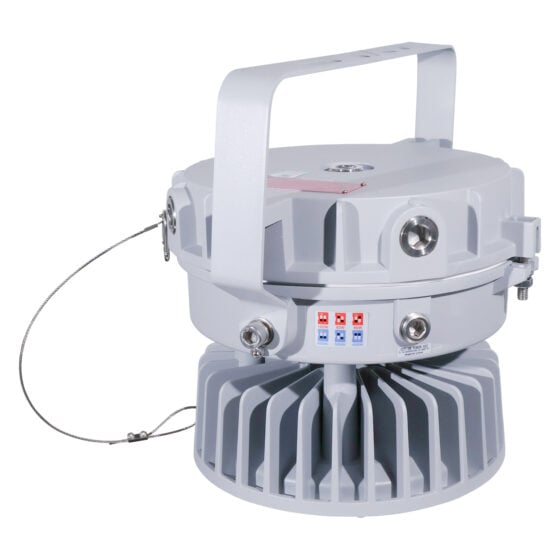

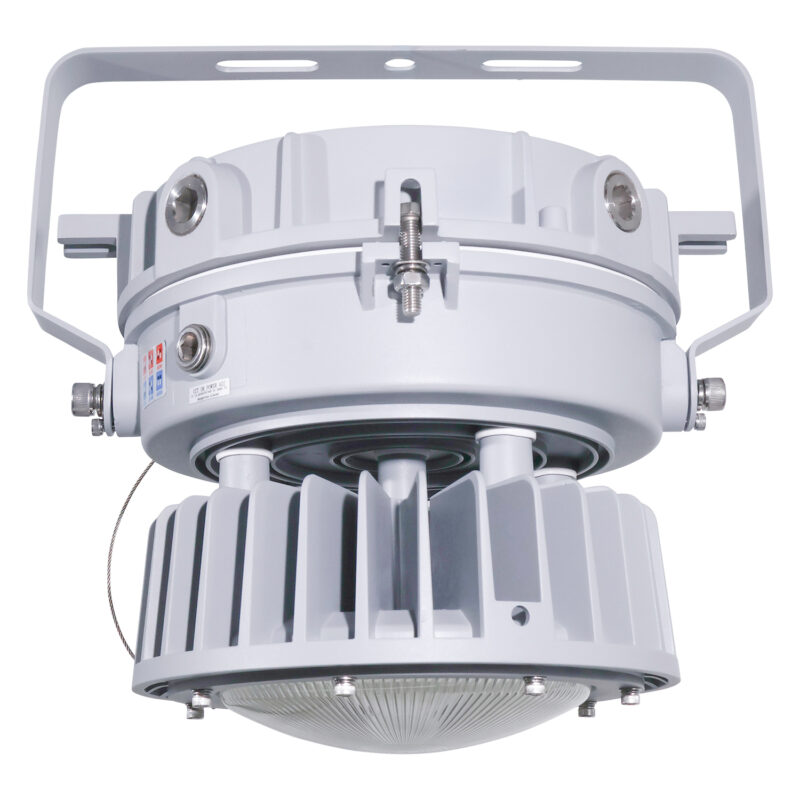

The fixture uses a gray die-cast aluminum housing and tempered glass lens. It measures 10.98 inches by 9.77 inches and weighs 23.15 pounds.

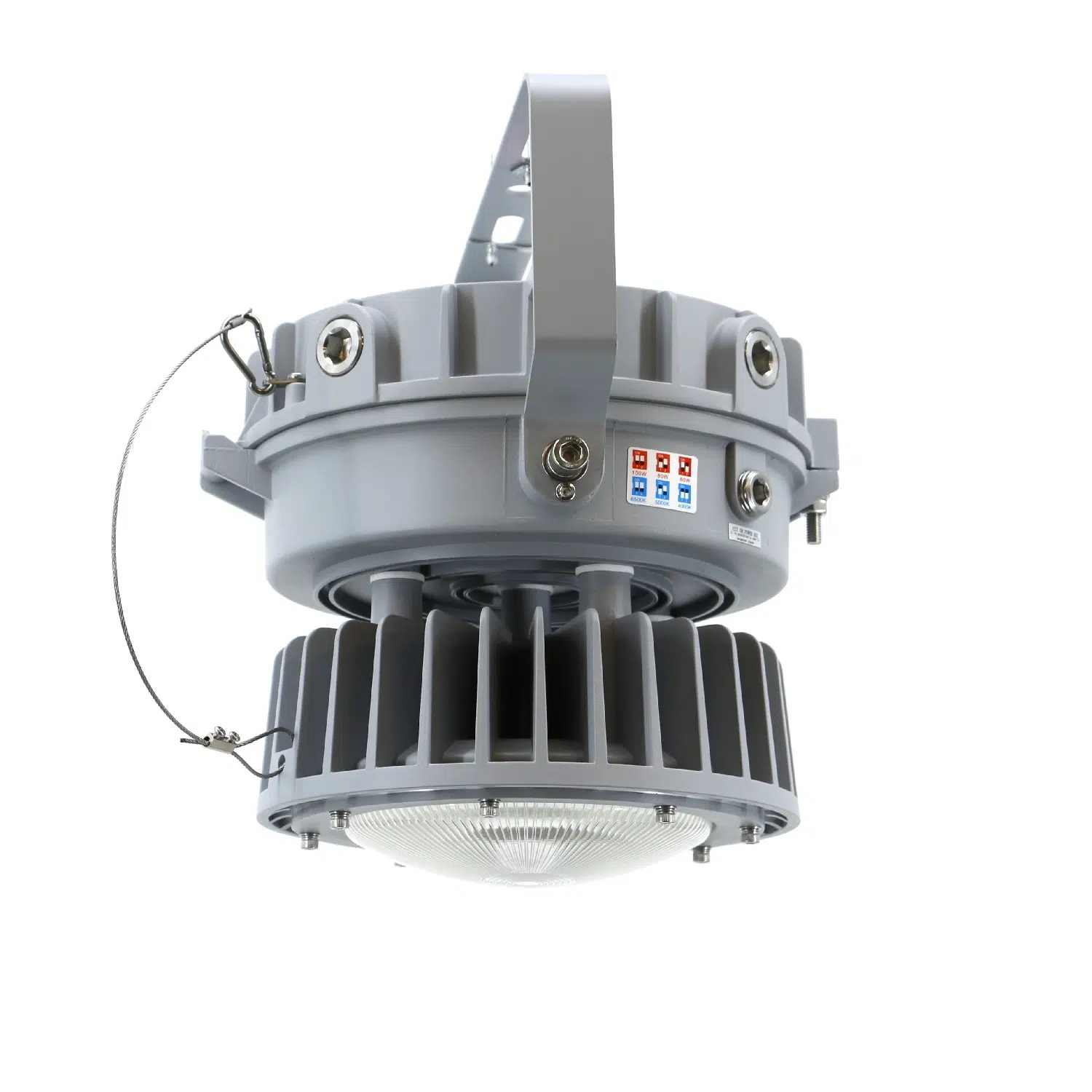

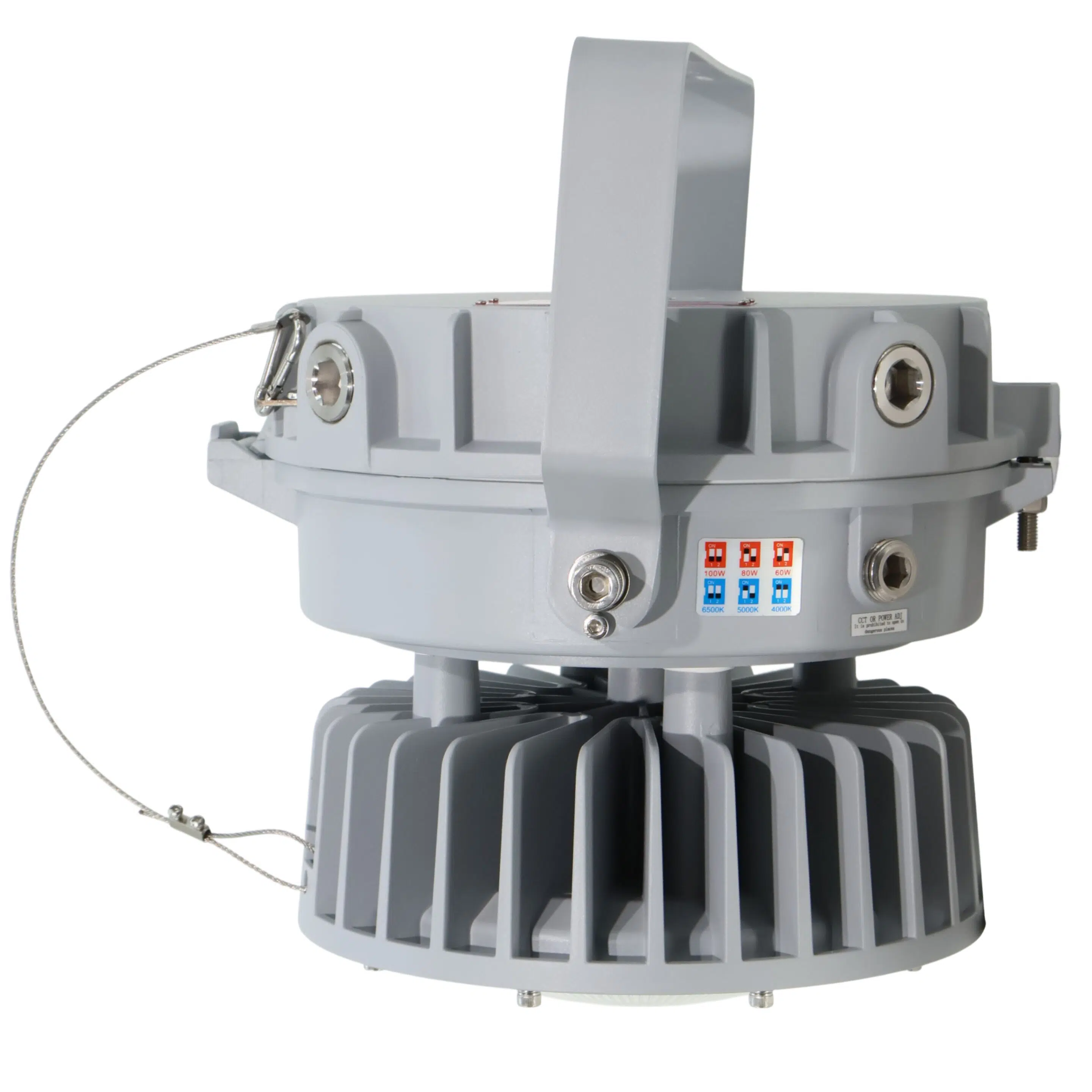

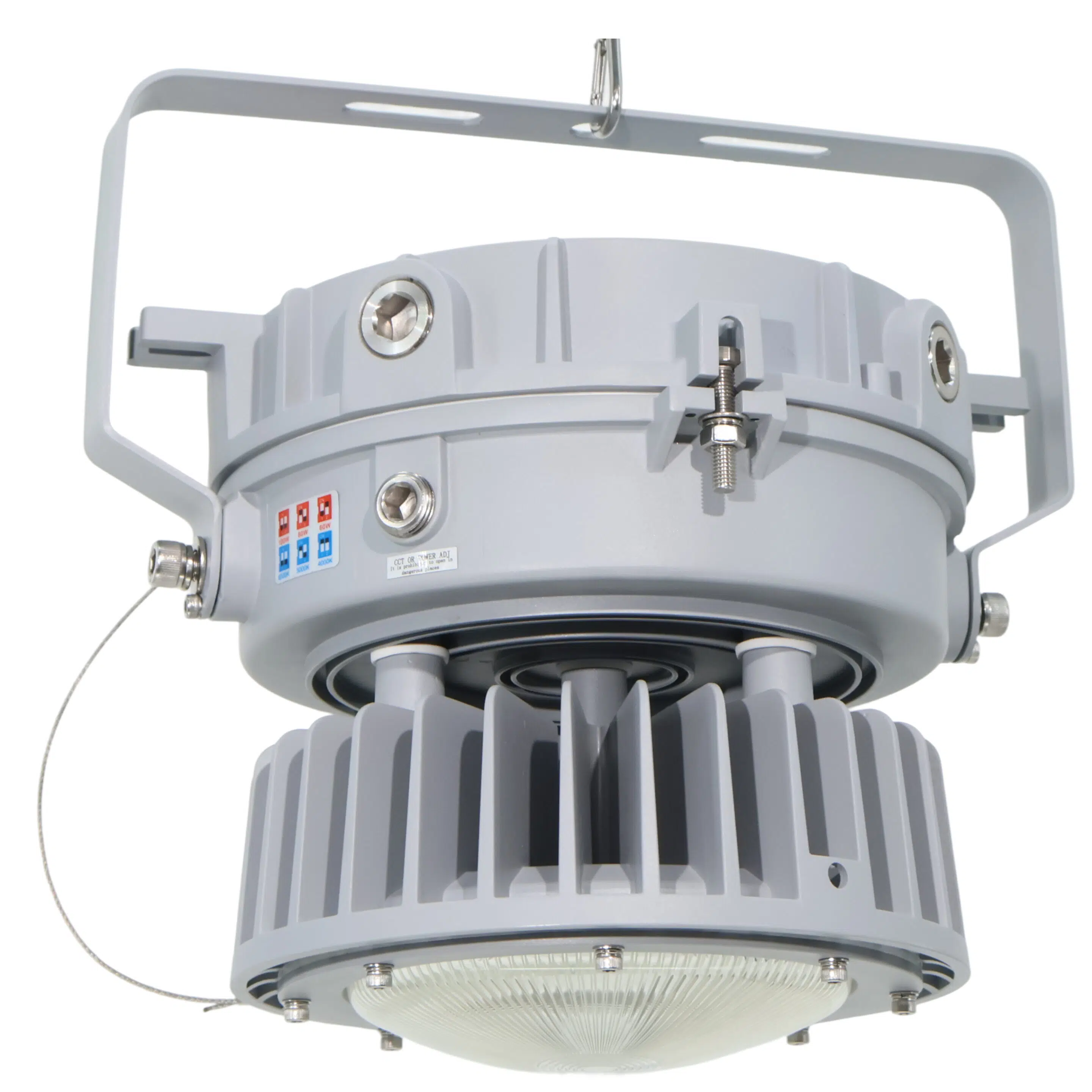

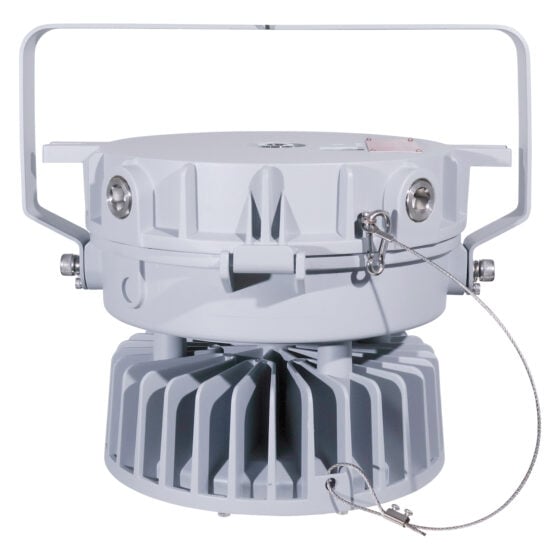

Mounting options include surface mount, yoke mount, and 3/4 inch NPT pendant mount. The fixture is supplied without a cord.
Where This Product Fits Best
This fixture fits hazardous and classified areas requiring a compact round luminaire with selectable output, broad distribution, and wet-location construction. It is suited to installations where the environmental classification and mounting arrangement are established before installation.
- hazardous location lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
- marine environment lighting
Its Class I, II, and III classifications, NEMA 4X rating, IP66 rating, and UL1598A Marine Outside Type listing support use within the applicable listed conditions. Final application fit depends on the area classification, voltage, mounting method, and required light level.
Installation and Long-Term Use
Surface, yoke, and 3/4 inch NPT pendant mounting allow the fixture to be matched to the available mounting structure. The 23.15-pound fixture weight should be considered when confirming the mounting point and support method.
Mounting height should be established from the lighting layout, target light levels, and 120-degree beam distribution. Wattage selection should be set before commissioning so output matches the planned fixture arrangement.
For long-term service, maintain access to the fixture for inspection, cleaning, and control wiring checks. The fixture has no attached cord, so field wiring is required.
How This Fixture Is Commonly Used
In hazardous location lighting and explosion proof lighting layouts, fixtures are positioned around the defined classified area using the available surface, yoke, or pendant mounting method. Mounting height is determined by the project layout and required illumination across the area.
For paint booth lighting and chemical processing facility lighting, fixture placement follows the established work area layout and applicable classification requirements. The broad 120-degree distribution supports wider coverage patterns from each mounting point.
Spacing varies with the selected wattage, mounting height, target light level, and layout requirements. Higher output can reduce fixture count, but it can also increase light concentration where mounting heights are lower.
Safety, Certifications, and Warranty
UL844 Hazardous Locations. Class I Division 2, Groups A, B, C, D. Class II Division 1, Groups E, F, G. Class II Division 2, Groups F, G. Class III.
UL 1598 Suitable for Wet Locations. UL1598A Marine Outside Type. NEMA 4X. ABS. UL.
The fixture includes a 5-year warranty.
Frequently Asked Questions
Q: What wattage and lumen settings are available?
A: The selectable settings are 60W at 8,700 lumens, 80W at 11,600 lumens, and 100W at 14,500 lumens.
Q: What voltage does this explosion proof fixture use?
A: Standard operation is 100-277V at 50-60Hz. Optional operation is 277-480V.
Q: What mounting methods are available?
A: The fixture supports surface mounting, yoke mounting, and 3/4 inch NPT pendant mounting.
Q: Can the fixture output and color temperature be adjusted?
A: Yes. Wattage is adjustable between 60W, 80W, and 100W. Color temperature is adjustable between 4000K, 5000K, and 6500K.
Q: What should be considered when planning fixture placement?
A: Mounting height, selected wattage, target light levels, and the 120-degree beam distribution affect fixture placement. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture listed for hazardous location lighting?
A: Yes. It is UL844 Hazardous Locations and rated Class I Division 2, Groups A, B, C, D; Class II Division 1, Groups E, F, G; Class II Division 2, Groups F, G; and Class III.
Q: What should be confirmed for paint booth lighting?
A: Confirm the area classification, available voltage, mounting method, required light level, and fixture layout before installation.
Q: What fixture characteristics apply to marine environment lighting?
A: The fixture is UL1598A Marine Outside Type, NEMA 4X, IP66, and ABS.
