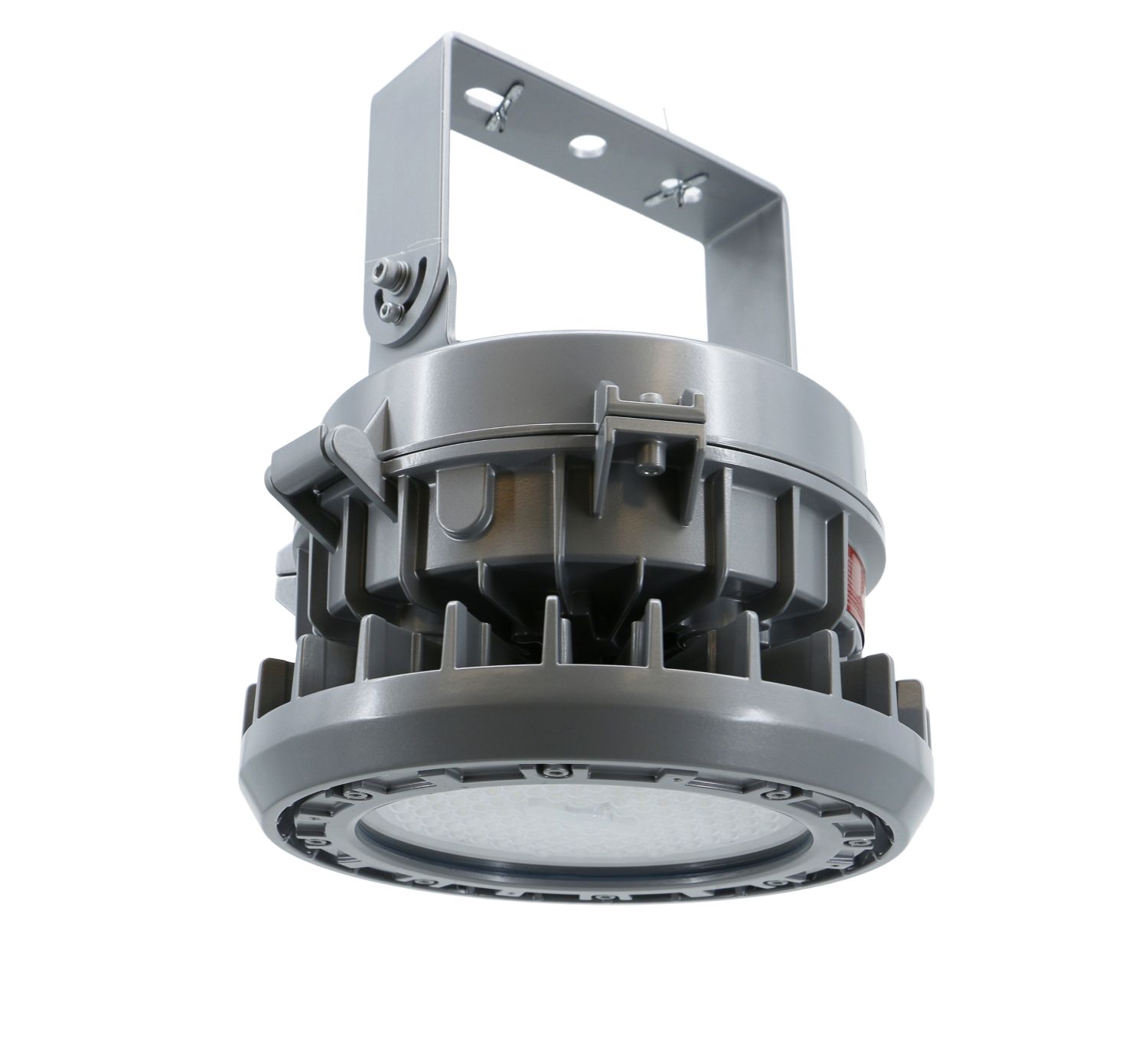

100 Watt Round Explosion Proof LED Light | 14000 Lumens | Class 1 Div 2 | 5000K | 100-277V | Optional 10 Year Warranty
This 100 watt round explosion proof LED fixture is a strong choice for hazardous industrial environments requiring Class 1 Division 2, Class 2 Division 1 or 2, or Class 3 ratings, as it delivers 14,000 lumens at 5000K with a wide 120 degree beam for broad area coverage. Its IP66 and IK08 ratings, tempered glass lens, and powder coated aluminum housing ensure durability against dust, water jets, and moderate impacts, making it suitable for chemical plants, refineries, grain processing, and similar classified areas.
Neil Peterson | CEO and Chief Lighting Specialist
105 in stock (can be backordered)
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class 1 Division 2, Group A,B,C,D
- Class 2, Division 1, Groups E,F,G
- Class 2, Division 2, Groups F,G
- Class 3
- UL 1598 Suitable for Wet Locations
- UL1598A Marine Outside Type
- CSA, ATEX, IECEX
Key Features
| Brand | LED Lighting Supply |
| Watts | 100 |
| Lumens | 14000 |
| Lumens Per Watt | 140 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting | Yoke or 3/4 in NPT Pendant |
| Mounting (Opt) | Surface or Wall |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.90 |
| THD | < 10% |
Durable Construction
| Housing | Powder Coated Aluminum |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 149°F |
| Certifications | UL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 11.8 W X 13.7 H |
| Weight (lbs) | 13 |
| Cord Length | No Cord |
Notes
Notes:
- An optional 10 Year Warranty is available
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 100 watt round explosion proof LED light delivers 14,000 lumens at 5000K for classified hazardous locations. It is built for Class I, II, and III environments and supports 100-277V electrical systems.
The fixture replaces a 400 watt metal halide light while reducing connected load. Its round high bay form, 120 degree distribution, and available yoke or 3/4 inch NPT pendant mounting support overhead lighting layouts in hazardous location lighting and paint booth lighting.
Core Performance and Output
This fixture produces 14,000 lumens at 140 lumens per watt. The standard 120 degree beam angle provides broad distribution from an overhead mounting position, and the 5000K color temperature provides a cool white appearance.
Electrical performance includes 100-277V operation, 50-60Hz frequency, power factor above 0.90, and THD below 10 percent. It supports 1-10V dimming.
The 14,000-lumen output can be excessive at low mounting heights. Higher mounting locations require layout review because the standard wide beam can reduce light concentration at the work plane.
Adjustability and Control Options
1-10V dimming is supported for output control where a compatible control system is provided. The fixture operates across a 100-277V voltage range.

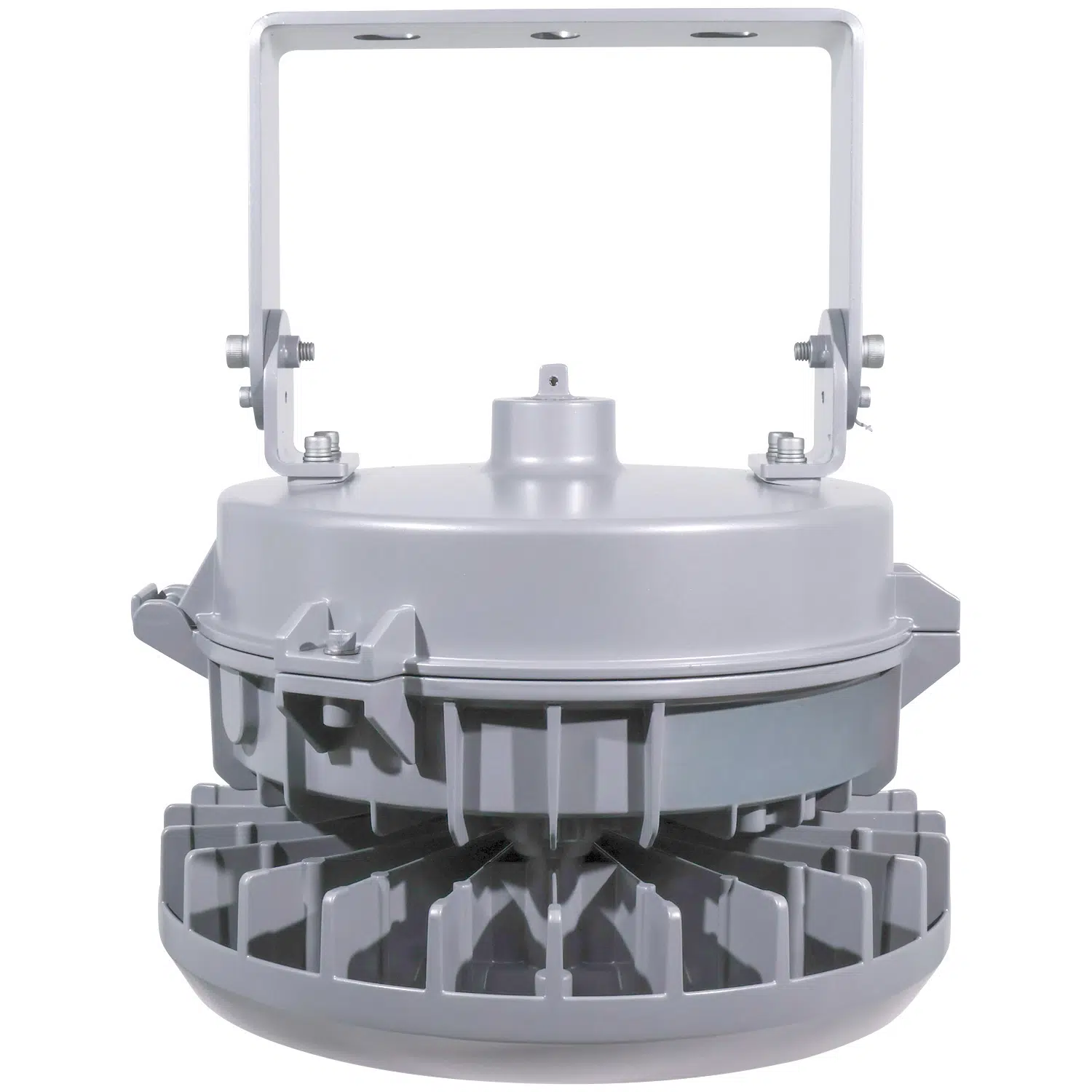

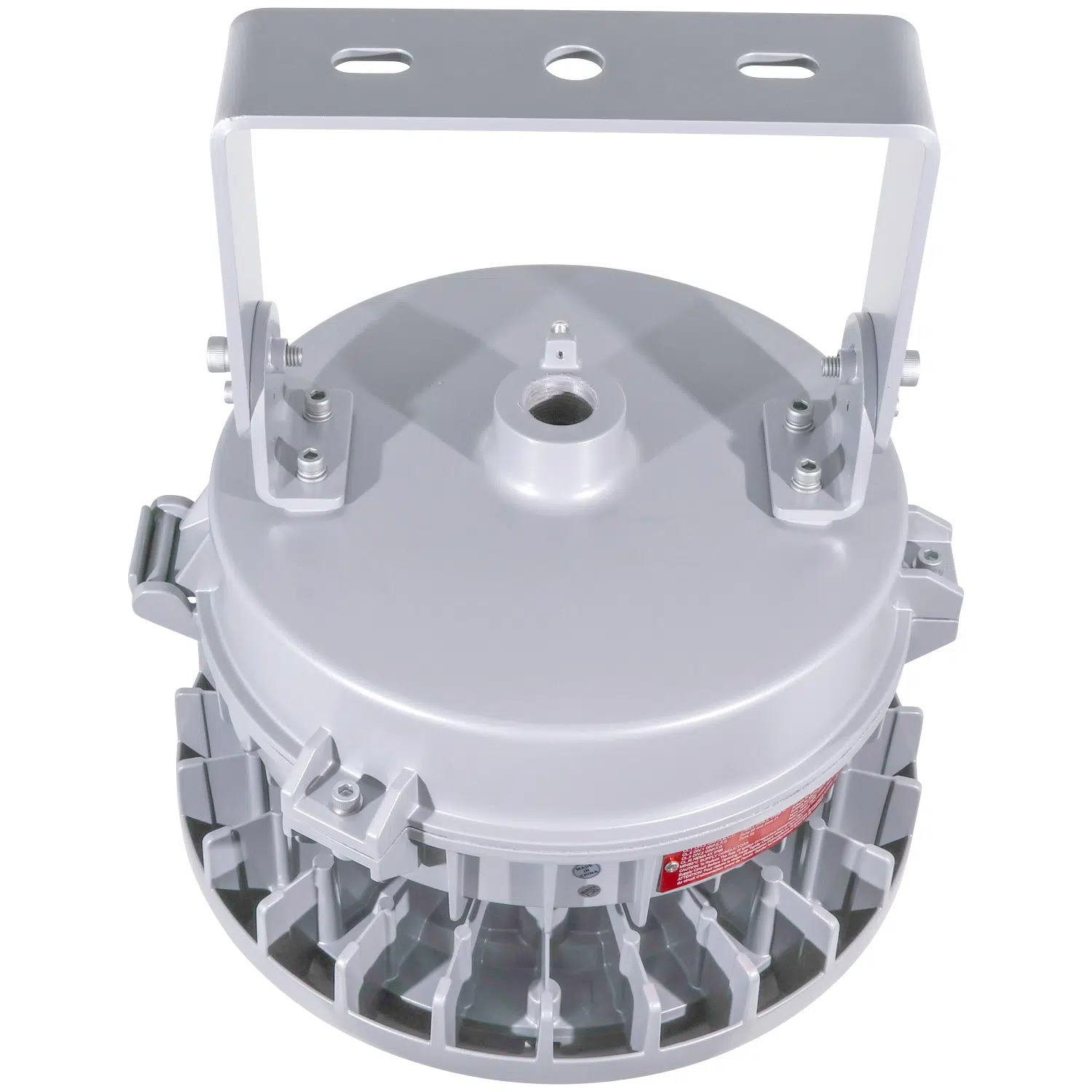

Yoke and 3/4 inch NPT pendant mounting are standard options. Surface and wall mounting are optional configurations.
Longevity and Reliability
The LED system is rated for 150,000 L70 hours. This rating supports long operating intervals in locations where fixture access requires planned maintenance.
Integrated 10kV surge protection helps protect the fixture from electrical surge events. The rated operating temperature range is -40 degrees F to 149 degrees F.
Build Quality and Physical Characteristics

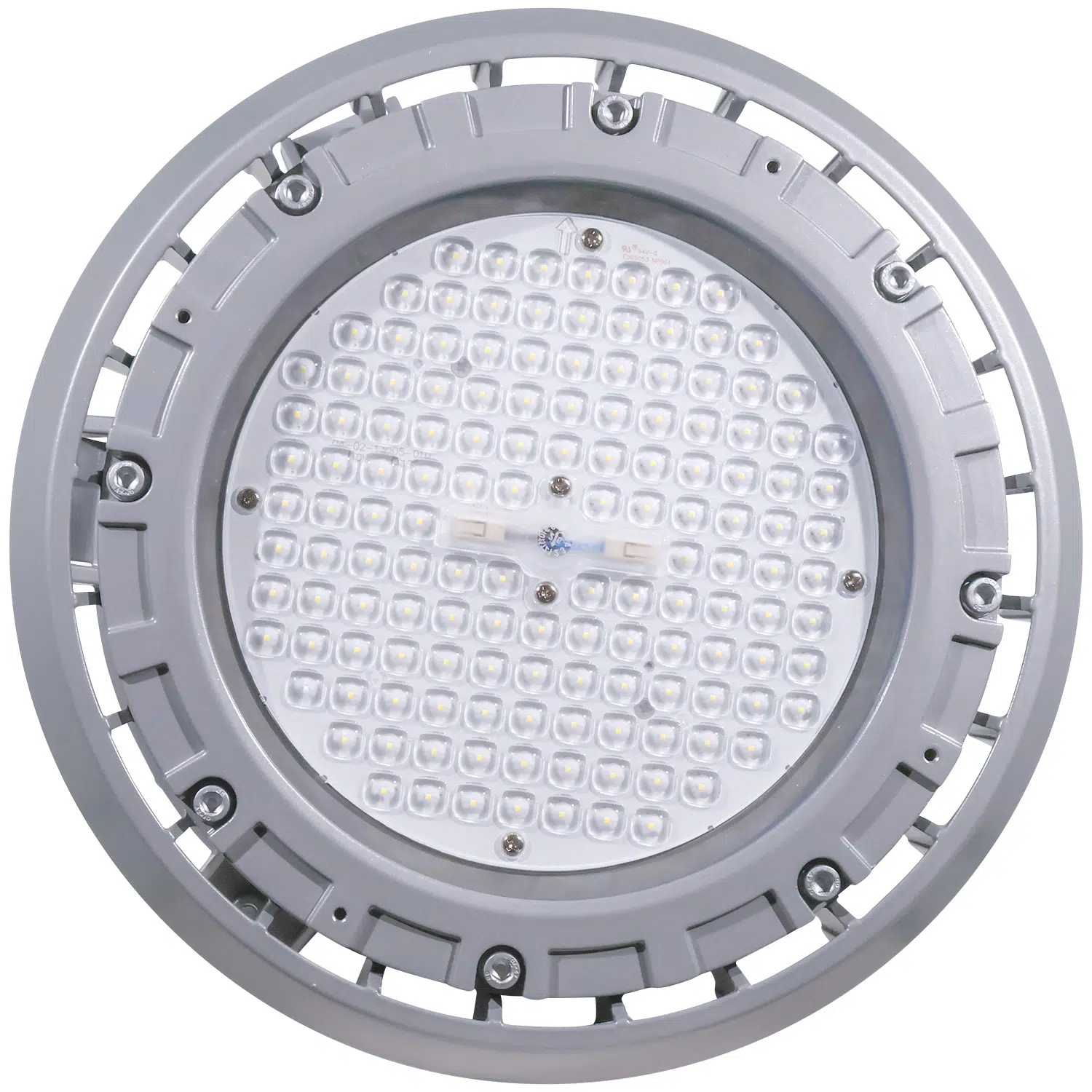

The fixture uses a powder coated aluminum housing with a tempered glass lens. The gray housing is rated IP66 and IK08.
It measures 11.8 inches wide by 13.7 inches high and weighs 13 pounds. The fixture is supplied without a cord.
Where This Product Fits Best
This fixture fits classified locations requiring overhead LED illumination with hazardous-location ratings. Its construction and mounting options support fixed installations in demanding industrial environments.
- hazardous location lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
- solvent storage area lighting
IP66, IK08, wet-location suitability, and the -40 degrees F to 149 degrees F operating range support use where exposure, impact, and temperature conditions must be considered. Classification requirements must match the specific installed location.
Installation and Long-Term Use
Install the fixture using the yoke, 3/4 inch NPT pendant, optional surface, or optional wall mounting configuration selected for the project. The mounting structure must support the 13-pound fixture weight.
Use the 100-277V input range and 1-10V dimming provisions as applicable to the electrical design. The fixture has no cord, so field wiring is required.
Long-term service planning should account for fixture access, mounting method, and the hazardous-location requirements of the installation area. The tempered glass lens and powder coated aluminum housing should be inspected as part of routine site maintenance.
How This Fixture Is Commonly Used
In hazardous location lighting, paint booth lighting, and chemical processing facility lighting, the fixture is mounted overhead using pendant or yoke mounting where the light can distribute across the required area. Surface or wall mounting may be used when the installation layout requires those optional configurations.
Layout planning considers mounting height, target light levels, fixture orientation, and the 120 degree beam distribution. Spacing varies with mounting height and required light levels.
In oil and gas facility lighting, refinery lighting, and solvent storage area lighting, fixture placement must also align with the applicable classification for the installed location. Higher output can reduce fixture count, but layout review is needed to maintain uniformity.
Safety, Certifications, and Warranty
This fixture is UL 844 Hazardous Locations listed. It is rated Class I Division 2 Groups A, B, C, and D; Class II Division 1 Groups E, F, and G; Class II Division 2 Groups F and G; and Class III.
It is UL 1598 suitable for wet locations and UL 1598A Marine Outside Type. CSA, ATEX, and IECEx certifications are included.
The standard warranty is five years. An optional 10 year warranty is available.
Frequently Asked Questions
Q: What is the light output of this explosion proof LED fixture?
A: The fixture delivers 14,000 lumens at 100 watts, with an efficacy of 140 lumens per watt.
Q: What mounting options are available?
A: Standard mounting options are yoke and 3/4 inch NPT pendant mounting. Surface and wall mounting are optional.
Q: Does this fixture support dimming?
A: Yes. The fixture supports 1-10V dimming.
Q: What information affects fixture layout planning?
A: Mounting height, target light levels, fixture orientation, and the 120 degree beam distribution affect layout planning. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture rated for paint booth lighting?
A: Paint booth lighting is a listed primary application for this explosion proof light.
Q: What should be verified for hazardous location lighting?
A: Verify that the installed location matches the fixture classification. This fixture is rated Class I Division 2 Groups A, B, C, and D; Class II Division 1 Groups E, F, and G; Class II Division 2 Groups F and G; and Class III.
Q: Can this fixture be considered for refinery lighting?
A: Refinery lighting is a listed secondary application. The location classification, mounting arrangement, and layout requirements need to be determined for the specific installation.
