What are LED Lighting Supply Linear High Bays?

LED linear high bay fixtures are panel-style indoor fixtures that replace F54/T5/HO or T8 fluorescent systems in high-ceiling applications. These rectangular fixtures feature LED strips embedded on the back panel to deliver uniform illumination throughout large spaces. Wire or chain mounting provides the most secure installation, though pendant options work well for specific layouts.

Wide light distribution characterizes linear high bays, creating even coverage without hot spots or dark areas. The panel design doesn't accommodate narrow beam optics like UFO fixtures, making them ideal for ceiling heights up to 35 feet. We offer these fixtures in 100-277V standard voltage and 277-480V high voltage configurations, plus color-adjustable and wattage-adjustable models for maximum flexibility.

Customer had fluorescent high bays, and got tired of the poor light quality. We converted the fixtues over one-for-one to LED Linear High Bays and made the lighting brighter and more balanced.

LED Linear High Bays vs Fluorescent Fixtures

Linear LED high bays deliver significant advantages over fluorescent systems across energy consumption, maintenance, and performance metrics:

Energy savings: Expect 50% or greater energy cost reduction compared to fluorescent linear lighting. Motion sensors can boost savings to 70-80% in intermittently occupied spaces.

Superior light quality: High CRI 80+ LED sources maintain consistent brightness and color rendering throughout their 50,000+ hour lifespan.

Eliminated maintenance: No bulb replacements, no ballast failures, no flickering end-of-life issues that plague fluorescent systems.

Silent operation: Fluorescent ballasts create annoying hums that worsen over time. LED drivers operate silently throughout their service life.

Instant illumination: Full brightness immediately upon startup, even in cold environments where fluorescents struggle.

Motion sensor compatibility: Rapid on/off cycling and smooth dimming work perfectly with occupancy controls without special ballasts.

Standard dimming capability: Most models include 0-10V dimming for energy savings during low-activity periods.

No hazardous materials: LEDs contain no mercury, eliminating expensive disposal requirements and environmental concerns.

Simplified installation: Direct wire connection with line, neutral, and ground – no ballast wiring complexity.

110 / 165 / 220 Watt Adjustable Linear LED High Bay | 15400 to 30800 Lumens was the perfect fixture for this customers large outdoor storage building

Best Applications for LED Linear High Bays

Rectangular LED high bays excel in large indoor spaces where uniform illumination across wide areas is essential. Based on our customer installations, these fixtures perform exceptionally well in:

Manufacturing facilities get exceptional coverage with wire or chain mounting for heavy-duty environments. Wide distribution eliminates shadows around machinery and workstations.

Distribution centers benefit from uniform light across aisles and sorting areas. 277-480V models integrate seamlessly with industrial electrical systems.

Aircraft hangars require wide, even coverage for detailed maintenance work. Panel design handles high ceilings while maintaining consistent illumination.

Food processing facilities appreciate the silent operation and mercury-free construction. NSF certification ensures compliance with health codes.

School gymnasiums need reliable, instant-on lighting for sports and events. Motion sensors provide 70-80% energy savings during low-activity periods.

Convention centers demand consistent lighting across massive floor areas. Color-adjustable models switch between 3000K, 4000K, and 5000K for different events.

Fitness centers benefit from flicker-free operation during high-motion activities. Emergency backup options maintain safety lighting during power outages.

Big box retail spaces get uniform product visibility without hot spots or dark corners. Dimming capability reduces energy costs during off-peak hours.

Customer built a karge indoor riding arena and used our LED Linear High Bays inside to provide bright, balanced lighting.

LED Replacement Guide for Fluorescent Systems

Replacing F54/T5/HO fluorescent fixtures with LED linear high bays follows straightforward one-for-one replacement ratios. The LED lumens needed depend on mounting height and specific application requirements. We typically recommend these replacement levels:

• 4 tube F54/T5/HO: 12,000 to 18,000 LED lumens
• 6 tube F54/T5/HO: 18,000 to 24,000 LED lumens
• 8 tube F54/T5/HO: 24,000 to 40,000 LED lumens

Installation mirrors existing fluorescent mounting – pendant, chain, or wire cable suspension connects to the same mounting points. Three-wire connection (line, neutral, ground) eliminates ballast complexity and reduces installation time significantly.

Interior space converted over to LED using our Linear High Bays

Choosing the Right LED Linear High Bay Style

Dimmable LED Linear High Bay: Features 0-10V or 1-10V dimming drivers for energy savings and light level control. Essential for spaces with varying occupancy or daylight contribution. Note that motion sensor models may use dimming wires for sensor operation.

Motion Sensor Linear High Bay LED: Available with microwave or PIR infrared sensors. We recommend microwave sensors for dusty environments since they're unaffected by airborne particles. All motion sensor fixtures require dimmable drivers for proper operation.

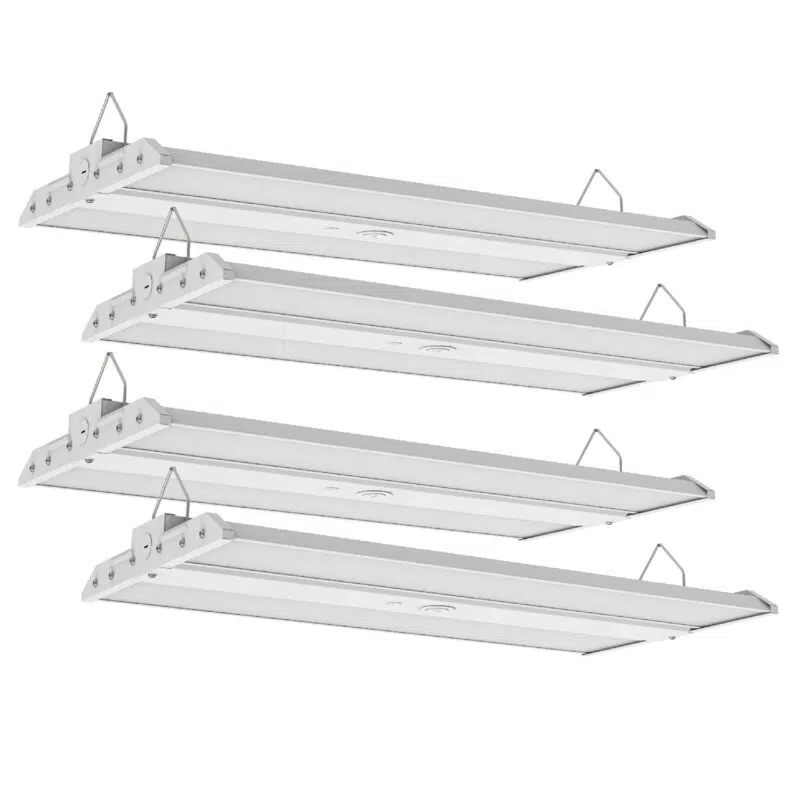

Wattage Adjustable LED Linear High Bay: Onboard switches allow field adjustment of wattage and lumen output to match specific lighting requirements without changing fixtures.

Color Adjustable LED Linear High Bays: Selectable color temperatures of 3000K, 4000K, and 5000K via onboard switches. Choose 3000K for warm environments, 5000K to match metal halide color temperature.

High Voltage LED Linear High Bays: 277-480V drivers automatically detect incoming voltage and accommodate both single-phase and three-phase power systems.

Emergency Backup LED Linear High Bays: Integrated battery backup maintains illumination during power outages, meeting egress lighting requirements.

Large indoor truck maintenance bay converted to our LED Linear High Bays

LED Linear vs UFO High Bay Comparison

Shared Capabilities

• Excellent performance in warehouses, gymnasiums, workshops, and aircraft hangars
• Wattage-adjustable and color-adjustable configurations available
• Emergency backup and motion sensor options
• 100-277V standard and 277-480V high voltage models
• Energy-efficient, maintenance-free operation
• DLC qualified for utility rebates, UL/ETL safety listed
• 5-year warranty with USA-based support

Key Differences

• UFO fixtures suit metal halide replacements; linear high bays replace fluorescent systems
• UFO models carry IP65+ wet location ratings; linear fixtures are dry location only
• UFO fixtures feature IK08+ impact resistance; linear models lack impact ratings
• UFO fixtures offer narrow beam optics for mounting heights above 30 feet; linear fixtures maintain wide distribution only

Expert Consultation for LED Linear High Bay Selection

Choosing the optimal linear high bay configuration requires balancing mounting height, space layout, occupancy patterns, and energy goals. Our sales engineers bring 17 years of commercial lighting experience to every project consultation. We analyze your specific requirements and recommend the most cost-effective solution for your application.

Our complimentary lighting design service includes photometric analysis to ensure proper illumination levels and uniform distribution throughout your space. This eliminates guesswork and guarantees optimal performance from your LED investment.

Safety and Performance Certifications

All our fixtures carry essential certifications, including DLC Premium, UL Listed, and ETL Listed approvals. These certifications ensure safety, performance, and energy efficiency while qualifying your project for utility rebates and tax incentives. DLC Premium certification guarantees the highest efficiency standards and maximum rebate eligibility.

Warranty and Warranty Support

All our lights come with at least a 5-year warranty, and all warranty support is based in the USA. We take customer support seriously, and helping you with a warranty claim is important to us. Our experienced support team understands the importance of keeping your lighting operational and will work quickly to resolve any warranty issues.

LED Linear High Bays FAQ

What are Linear LED High Bays?

Linear LED high bays are rectangular panel-style fixtures designed to replace F54/T5/HO fluorescent systems in warehouses and industrial spaces. They feature embedded LED strips on the fixture back and provide wide distribution patterns for uniform coverage at mounting heights up to 35 feet. Available in wire, chain, or pendant mounting configurations with 100-77V or 277V-480V auto-sensing drivers.

How Many Linear High Bay Lights Do You Need?

Start by determining your required foot-candle levels, then create a photometric lighting plan using industry software. The plan models your space to calculate exact fixture quantities and placement for balanced illumination. For retrofit projects, one-for-one replacement typically works while leveraging existing electrical infrastructure and delivering immediate energy savings.

What Benefits Should I Expect When Using Linear High Bay Lights?

Expect 60-70% energy reduction compared to fluorescent or HID systems with zero maintenance for years. These fixtures eliminate ballast replacements, reduce HVAC loads through lower heat output, and provide flicker-free operation. UL Listed fixtures deliver consistent light quality without the hum or color shift of aging fluorescent tubes.

How Can You Select the Best Linear High Bay For Your Application?

Determine your foot-candle requirements and create a lighting layout for proper fixture selection. Key specifications include auto-sensing voltage drivers (100-277V or 277-480V), mounting type preference, and control integration needs. Consider adjustable wattage options with onboard switches, motion sensor compatibility, dimming requirements, and color temperature preferences from 4000K to 5000K.

How Many LED Lumens to Replace Fluorescent High Bays?

• 4 tube F54/T5/HO: 12,000 to 18,000 LED lumens
• 6 tube F54/T5/HO: 18,000 to 24,000 LED lumens
• 8 tube F54/T5/HO: 24,000 to 40,000 LED lumens

How High Should You Hang Linear Lights?

Mount linear high bays between 20-35 feet for optimal performance. Above 35 feet, the lack of focusing optics reduces light effectiveness on work surfaces. For mounting heights above 35 feet, choose UFO high bays with 60 degree optics that concentrate light output where needed.

What Types of Controls are Commonly Used on Linear High Bays?

Occupancy sensors are the most popular control, switching fixtures to full output when motion is detected and dimming to 10-20% during vacancy periods. Photocell integration and 0-10V dimming compatibility provide additional energy optimization in daylit spaces.

Are Emergency Backup Batteries Available on Linear High Bays?

Yes, integrated emergency battery packs provide up to 90 minutes of emergency illumination during power outages. These systems automatically activate and maintain adequate light levels for safe egress in compliance with life safety codes.

What are Wattage Adjustable and Color Adjustable Linear LED High Bay Lights?

These fixtures feature onboard DIP switches for field-adjustable wattage selection and color temperature changes between 4000K-5000K. This eliminates ordering mistakes and allows fine-tuning of light output and color after installation based on actual space requirements.
