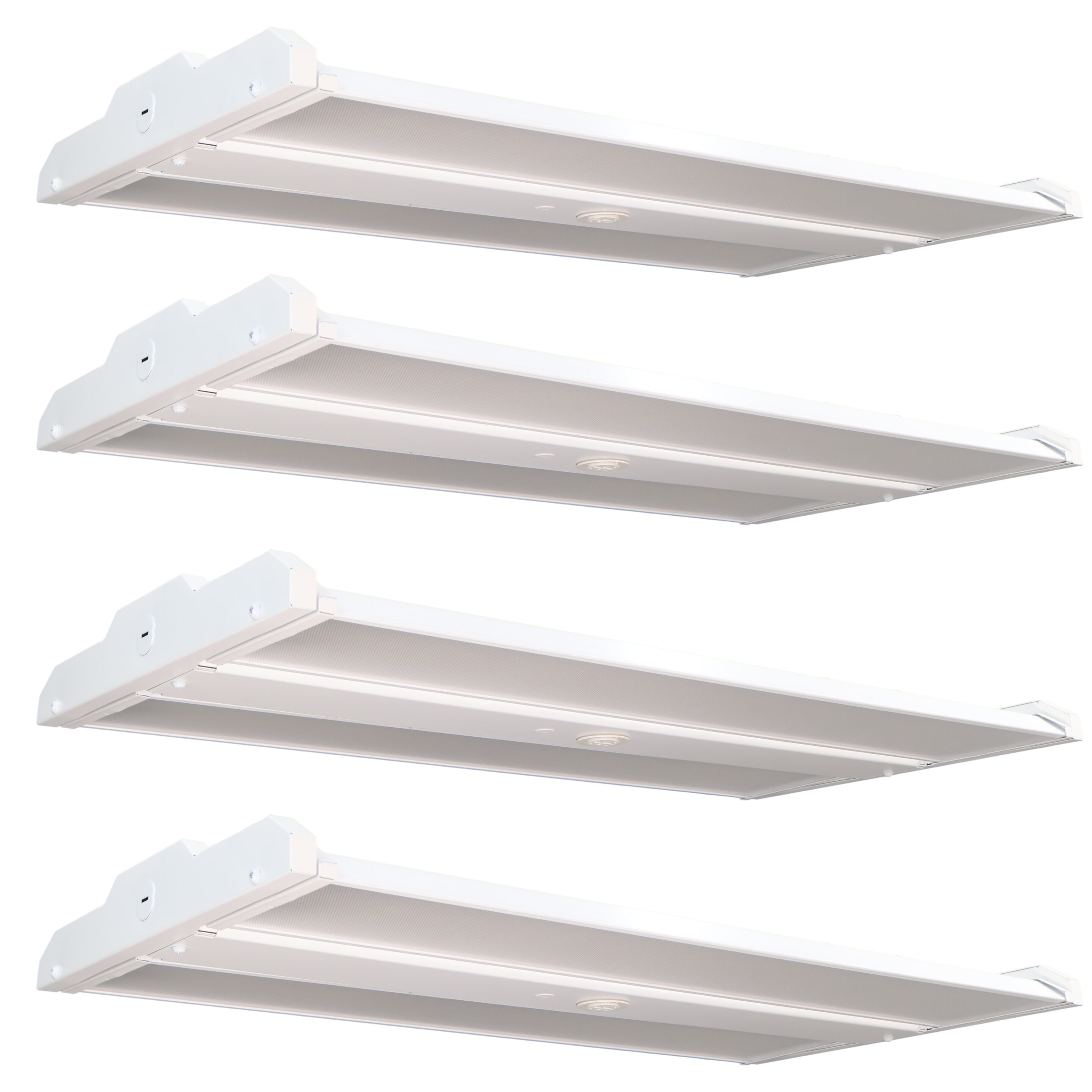

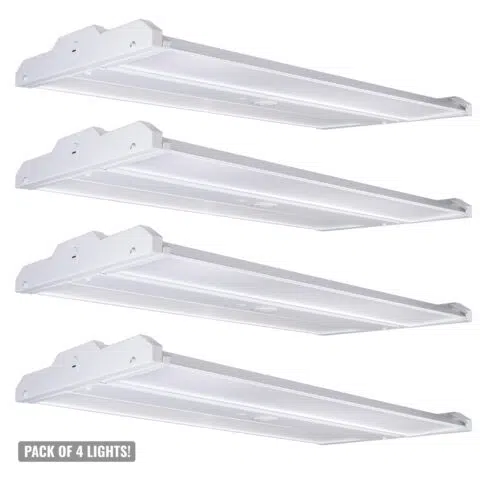

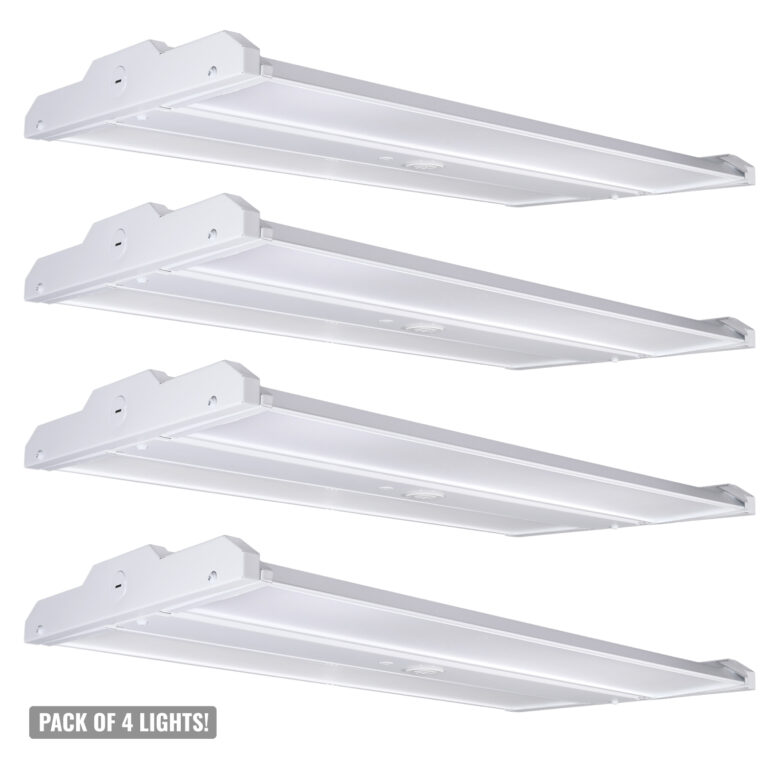

90 / 120 / 165 Watt Adjustable LED Linear High Bay Light | 13,500 to 24,750 Lumens | 4000K / 5000K | 100-277V | 2 Foot | Rotatable Lens | 4-Pack
The adjustable LED Linear High Bay Light is an excellent choice for warehouses and manufacturing facilities, offering flexibility with wattage and color temperature adjustments. Delivering up to 24,750 lumens with a high efficacy of 150 lumens per watt, it efficiently replaces 250 or 400-watt metal halides. Its rotatable lens and dimming capability enhance lighting distribution, while UL certification and 6kV surge protection ensure reliability. The 50,000-hour lifespan and versatile mounting options further support long-term, adaptable installations.
Dwayne Kula | President, CTO and Founder
799 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 90 | 120 | 165 |
| Lumens | 13500 | 18000 | 24750 |
| Lumens Per Watt | 150 |
| Replaces | 250 or 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 90° |
| Optics | Frosted Polycarbonate Lens |
| Lifespan | 50,000 hours |

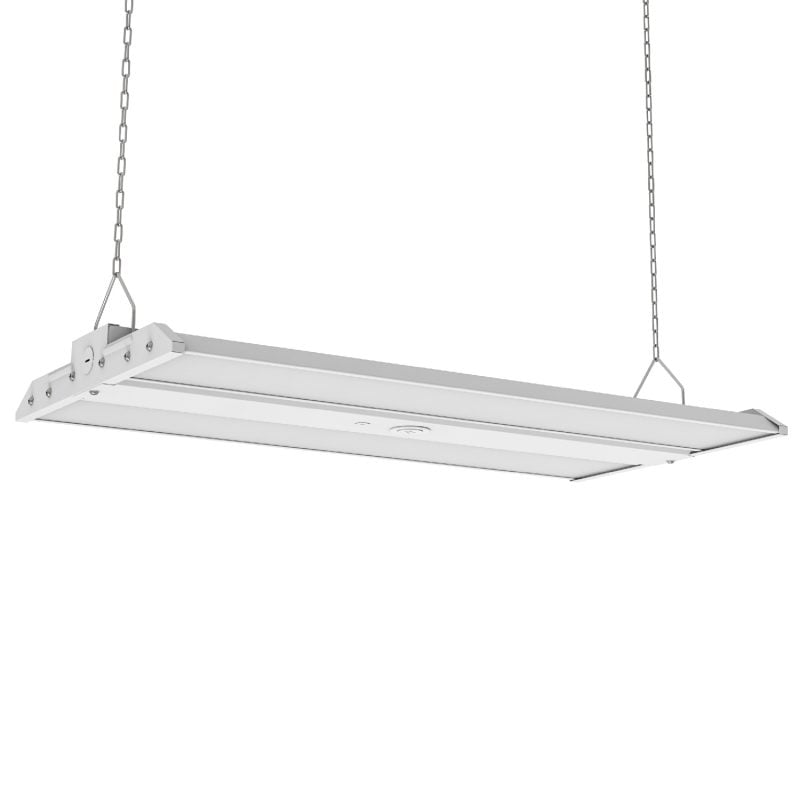

| Mounting | Chain-Cable |
| Mounting (Opt) | Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
Durable Construction
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 122°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements

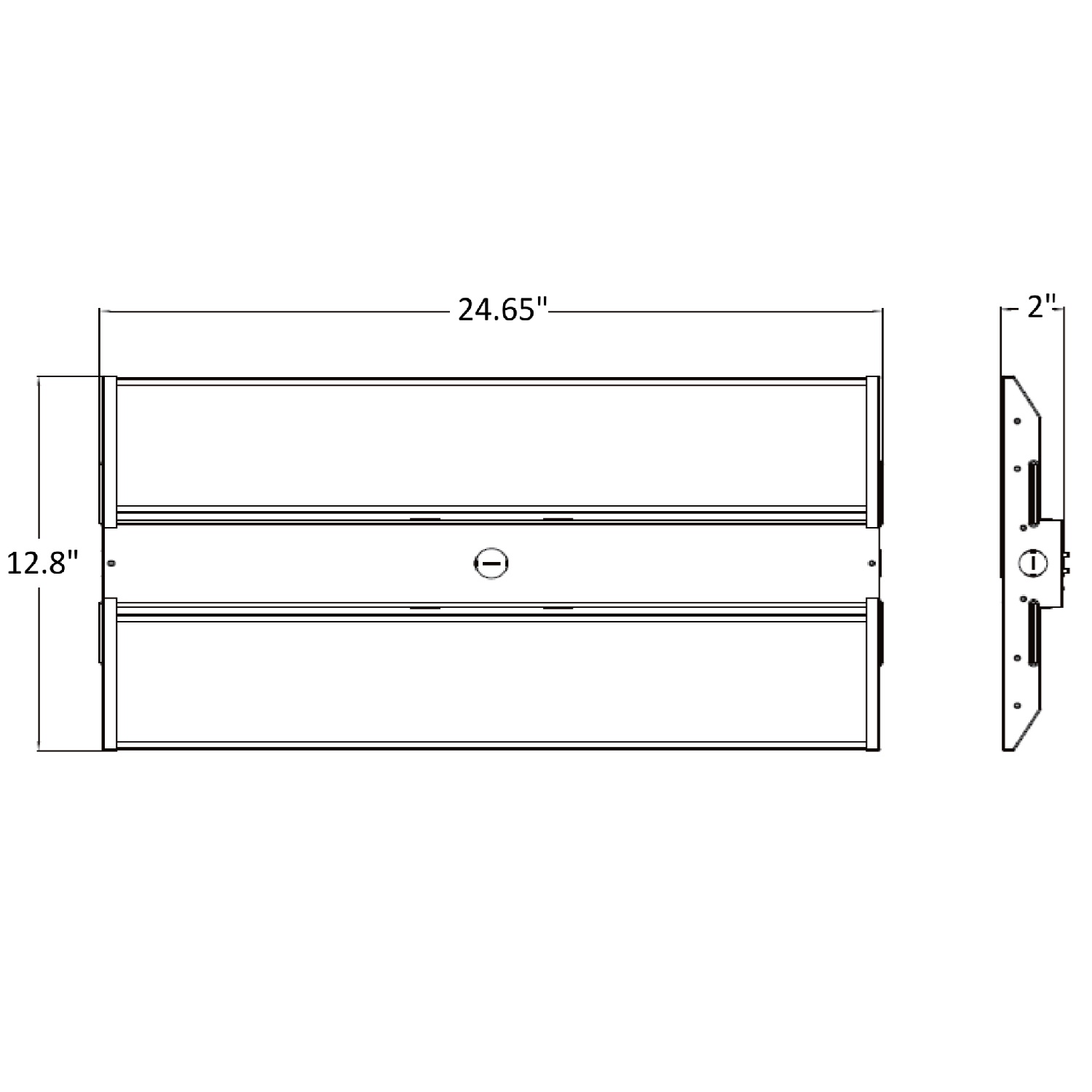

| Dimensions (in) | 24.65 L X 12.8 W X 2 H |
| Weight (lbs) | 6 |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable

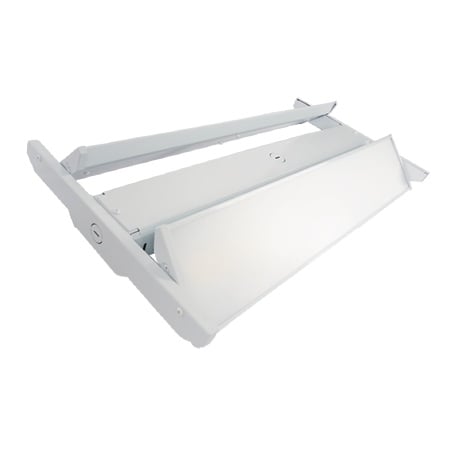

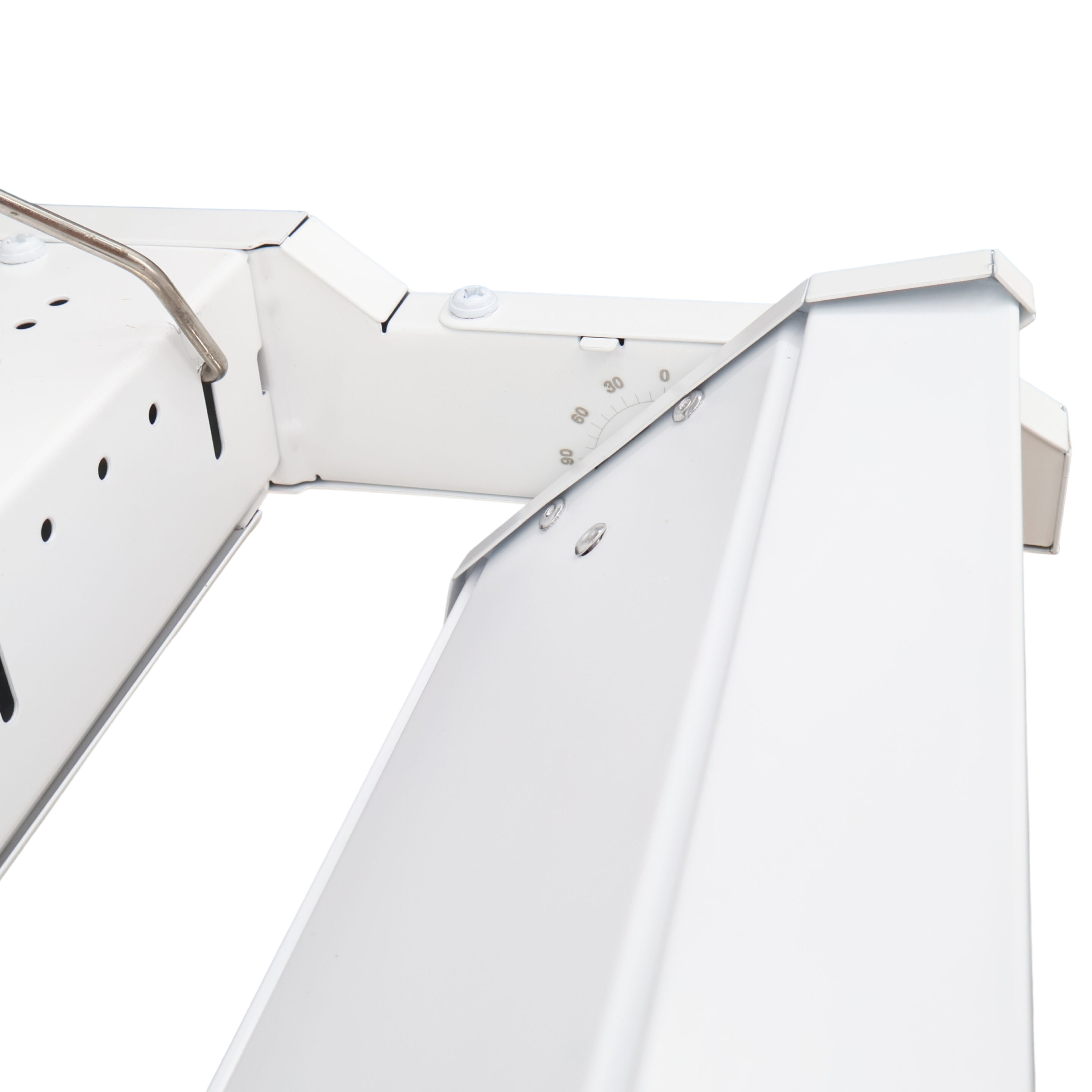

- 130° Lens Rotation
Download IES Files
Additional Resources
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable LED linear high bay provides selectable 90W, 120W, and 165W output in a 2-foot linear housing. It is configured for warehouse aisle lighting, manufacturing facility lighting, and distribution center lighting where fixture output and color temperature need adjustment during installation.
The fixture produces 13,500 to 24,750 lumens with selectable 4000K or 5000K color temperature. Its linear form, frosted polycarbonate lens, and 130 degree lens rotation support row-oriented layouts.
Core Performance and Output
Selectable output levels are 13,500 lumens at 90W, 18,000 lumens at 120W, and 24,750 lumens at 165W. Fixture efficacy is 150 lumens per watt.
The standard beam angle is 90 degrees. The lens rotates 130 degrees to change distribution orientation. Higher output can reduce fixture count, but may create excessive light levels at lower mounting heights.
The fixture operates on 100-277V, 50/60Hz power and supports 0-10V dimming. It is listed as replacing 250W or 400W metal halide fixtures.
Adjustability and Control Options
Wattage is field selectable at 90W, 120W, or 165W. Color temperature is selectable between 4000K and 5000K.
The fixture supports 0-10V dimming. The rotatable lens allows the 90 degree distribution to be oriented for the installed layout.
Longevity and Reliability
Rated life is 50,000 hours. The fixture includes 6kV surge protection.
Operating temperature range is -40F to 122F. Long-term performance depends on maintaining suitable electrical connections and keeping the lens area clear.
Build Quality and Physical Characteristics
The white fixture housing measures 24.65 inches long, 12.8 inches wide, and 2 inches high. Fixture weight is 6 pounds.

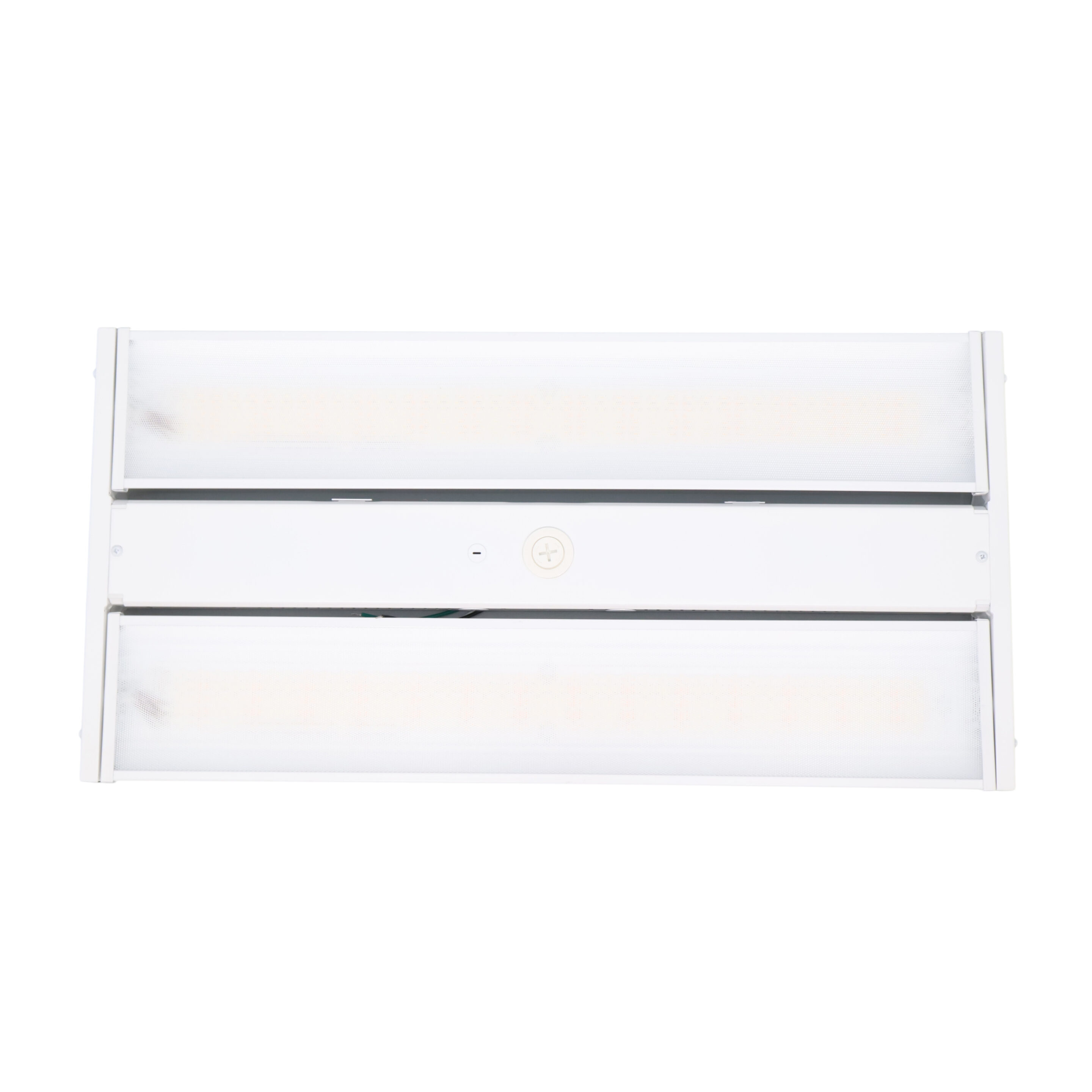

A frosted polycarbonate lens covers the optics. The fixture is supplied without a cord.
Where This Product Fits Best
This linear high bay fits interior high-ceiling installations that need adjustable output, selectable color temperature, and row-oriented light distribution.
- warehouse aisle lighting
- distribution center lighting
- manufacturing facility lighting
- retail warehouse lighting
- storage facility lighting
- commercial interior high ceiling lighting
The 100-277V input, 0-10V dimming, and adjustable 90W to 165W output support projects with differing lighting requirements across the listed applications.
Installation and Long-Term Use
Chain-cable mounting is standard. Surface mounting is available as an option. The fixture should be secured to a structure suitable for its 6-pound weight and mounting method.

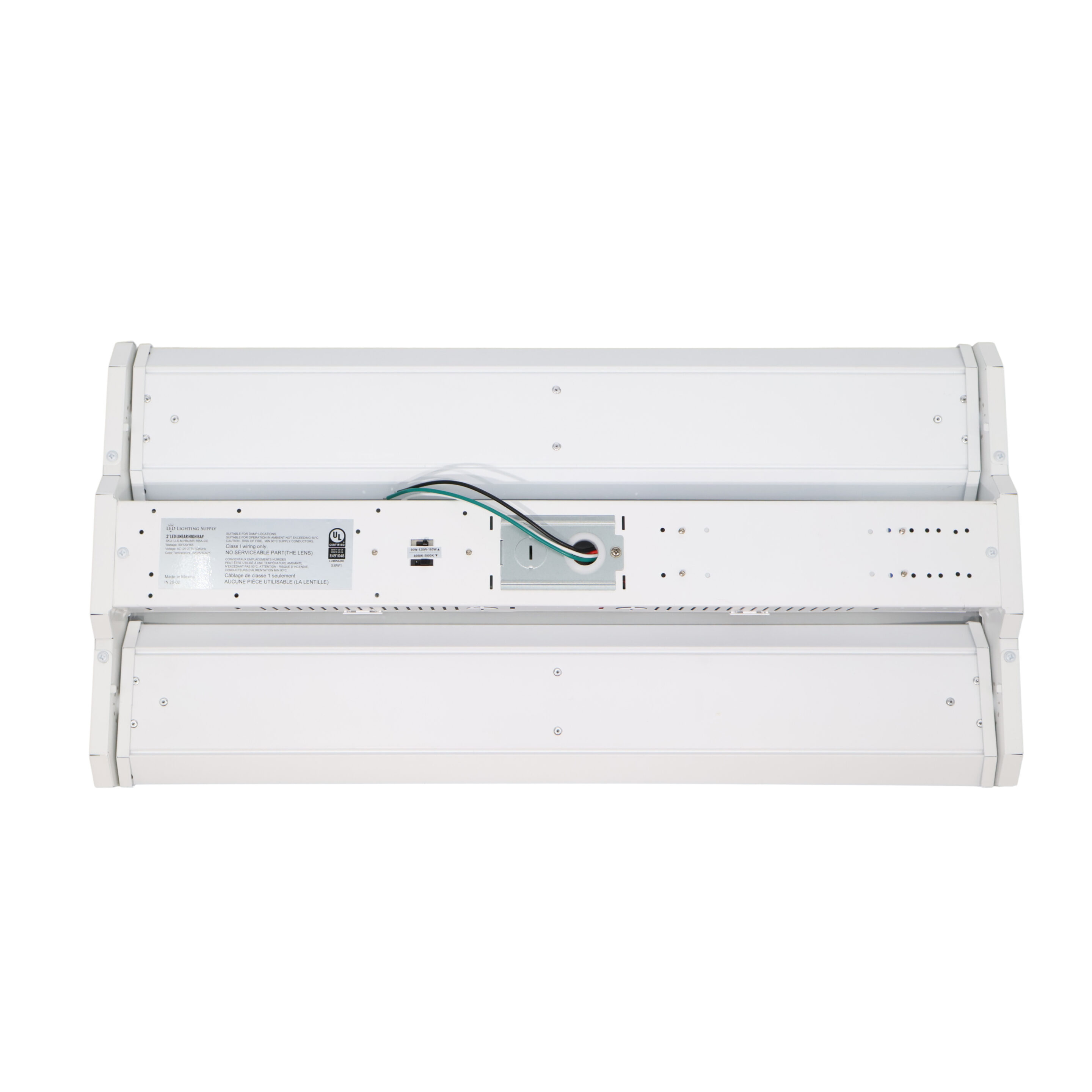

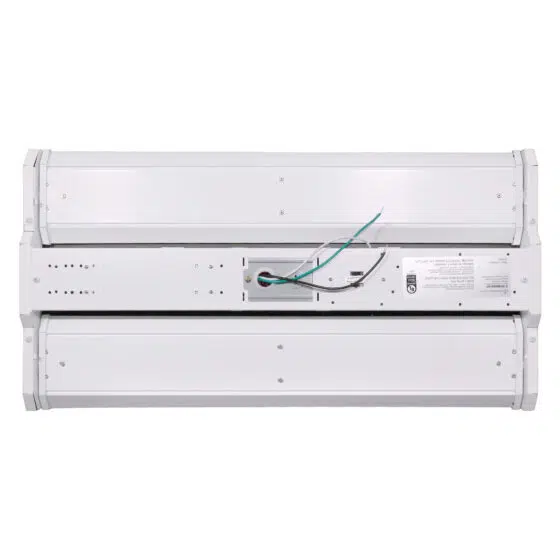

Lens orientation, wattage setting, and color temperature should be set before final commissioning. The fixture operates without a supplied cord, so field electrical connection must be planned for the installation.
How This Fixture Is Commonly Used
In warehouse aisle lighting and distribution center lighting, the linear housing is typically arranged in rows with the lens rotated to match the lighting layout. Mounting height affects the selected wattage and the resulting distribution on the work area.
For manufacturing facility lighting, output selection is set around the required light level and fixture layout. Higher output can reduce fixture quantity, while lower output may provide more controlled light levels at lower mounting heights.
Safety, Certifications, and Warranty
UL listed. DLC Premium.
The fixture includes 6kV surge protection and a 5-year warranty.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture has selectable 90W, 120W, and 165W settings producing 13,500, 18,000, and 24,750 lumens.
Q: Can the color temperature be changed?
A: Yes. The fixture has selectable 4000K and 5000K color temperature settings.
Q: Does this linear high bay support dimming?
A: Yes. It supports 0-10V dimming.
Q: What mounting methods are available?
A: Chain-cable mounting is standard. Surface mounting is available as an option.
Application Questions and Clarification
Q: Which listed applications fit this fixture?
A: This fixture fits warehouse aisle lighting, manufacturing facility lighting, distribution center lighting, retail warehouse lighting, storage facility lighting, and commercial interior high ceiling lighting.
Q: What should be considered when planning fixture placement?
A: Mounting height, target light levels, lens orientation, wattage selection, and layout requirements affect placement. A specific spacing value is not established by the supplied product data.
Q: How does lens rotation affect the installation layout?

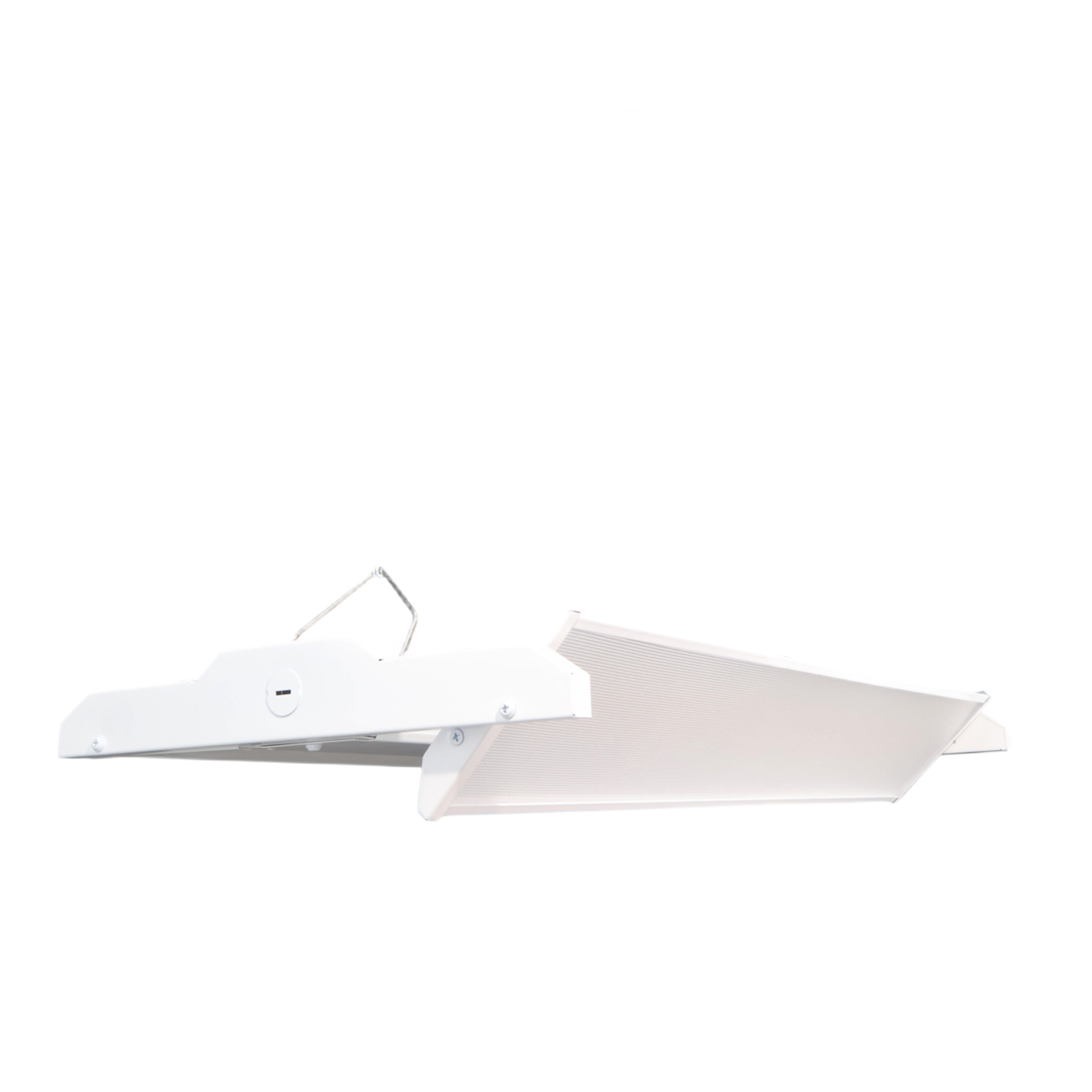

A: The lens rotates 130 degrees. Lens orientation should be evaluated against the planned aisle and fixture layout.
