175 / 195 / 225 Watts Adjustable Linear LED High Bay | 26250 to 33750 Lumens | 4000K / 5000K Adjustable | 100-277V or 277-480V | 3 Foot 8 Inches
The adjustable linear LED high bay fixture is an excellent choice for warehouse and manufacturing facility lighting due to its versatile wattage and color temperature options, delivering up to 33,750 lumens with high efficiency at 150 lumens per watt. Its robust die-cast aluminum housing and 6kV surge protection ensure durability in demanding environments. The fixture’s UL and DLC Premium listings guarantee quality and performance, while the motion sensor enhances energy savings. With a lifespan of 100,000 hours and flexible mounting options, it is ideal for large spaces requiring reliable, efficient illumination.
Cory Peterson | VP of Marketing and Sales Operations
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 175 | 195 | 225 |
| Lumens | 26250 | 29250 | 33750 |
| Lumens Per Watt | 150 |
| Replaces | 400 or 1000 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 120° |
| Optics | Frosted Lens |
| Lifespan | 100,000 (L70) hours |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | .90 |
| THD | 20% Max |
Durable Construction
| Housing | Die-Cast Aluminum |
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements

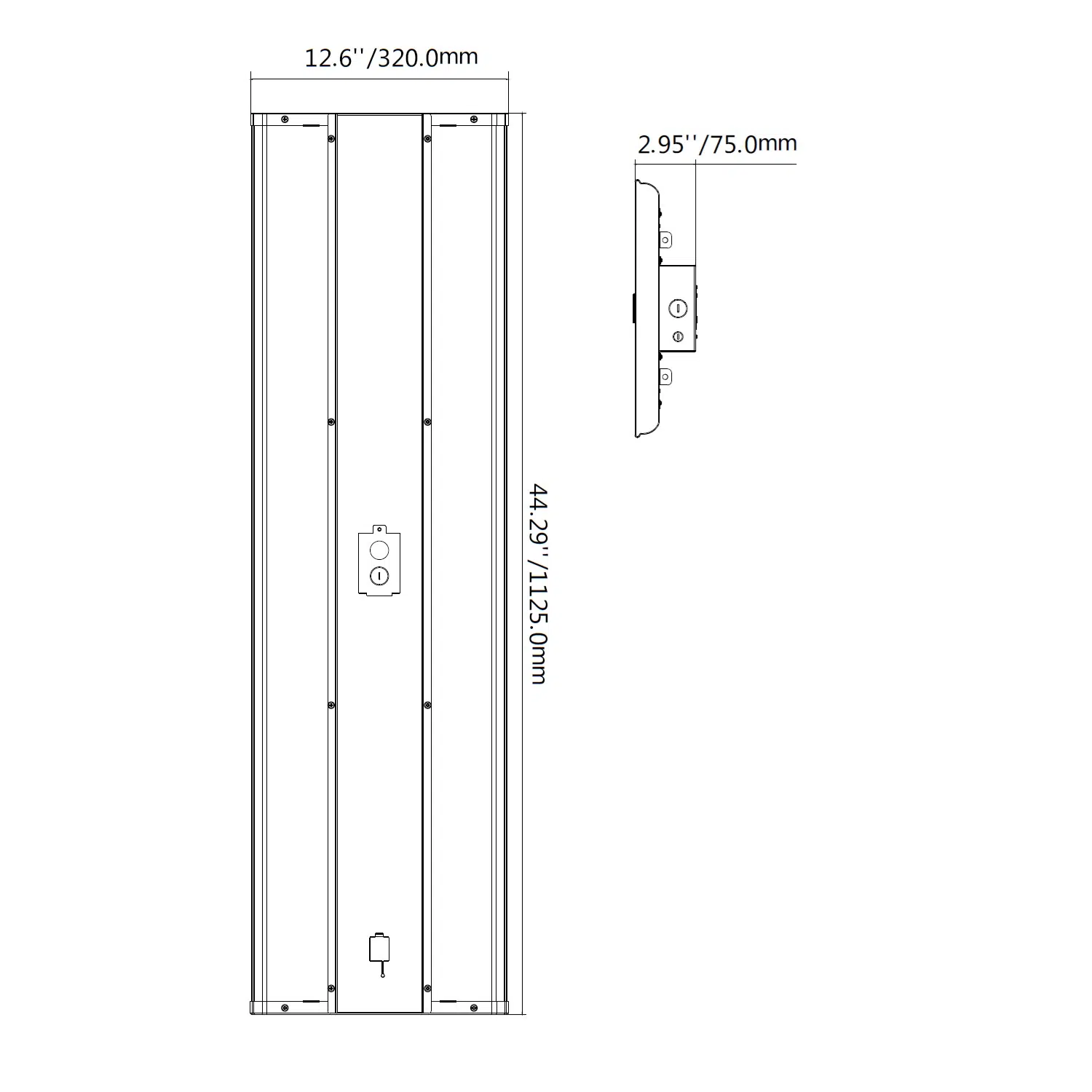

| Dimensions (in) | 44.3 L X 12.6 W X 3 H |
| Weight (lbs) | 11 |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Motion Sensor
Notes
Motion sensor remote control is required to change the default sensor settings. 1 remote per project.
Default Motion Sensor Configuration
- Detection Area: 100%
- Hold Time: 30 seconds
- Standby period: 60 seconds
- Standby Dimming Level: 10% brightness
Product SKU Variations
- SKU: LLS-X-HBLIN8-4-225/195/175-CC
- SKU: LLS-X-HBLIN8-4-225/195/175-CCHV
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable linear LED high bay provides 175W, 195W, or 225W output with selectable 4000K or 5000K color temperature. Its 44.3-inch linear form factor supports surface or suspended mounting in high-ceiling interior lighting layouts.
The fixture produces 26,250 to 33,750 lumens and is commonly used for warehouse aisle lighting, manufacturing facility lighting, and distribution center lighting. It can replace 400W to 1000W metal halide fixtures depending on the selected output and existing lighting layout.
Core Performance and Output
Selectable wattage settings provide 26,250 lumens at 175W, 29,250 lumens at 195W, and 33,750 lumens at 225W. Fixture efficacy is 150 lumens per watt with an 80+ CRI.
The standard 120-degree distribution and frosted lens provide broad illumination from the linear housing. Higher output can reduce fixture count in larger layouts, while lower mounting heights may require reduced wattage to control excessive brightness.
This fixture operates on 100-277V or 277-480V power at 50/60Hz. It has a 0.90 power factor, 20% maximum THD, and 0-10V dimming capability.
Adjustability and Control Options
Wattage and color temperature are adjustable at the fixture. Available selections are 175W, 195W, or 225W and 4000K or 5000K.
The fixture supports 0-10V dimming and includes a motion sensor. Default sensor settings are 100% detection area, 30-second hold time, 60-second standby period, and 10% standby dimming level.
A motion sensor remote control is required to change the default sensor settings. One remote is required per project.
Longevity and Reliability
The LED system is rated for 100,000 hours at L70. This rating supports long operating periods where relamping access and maintenance interruptions need to be limited.
The fixture operates from -40 degrees F to 113 degrees F. Integrated 6kV surge protection supports electrical transient protection.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a white finish. The fixture measures 44.3 inches long, 12.6 inches wide, and 3 inches high.
Fixture weight is 11 pounds. No cord is included.
Where This Product Fits Best
This linear high bay fits interior spaces with high ceilings, long lighting rows, and aisle-oriented layouts. The selectable output supports projects where fixture output needs to match the installed mounting arrangement.
- warehouse aisle lighting
- distribution center lighting
- manufacturing facility lighting
- retail warehouse lighting
- storage facility lighting
- commercial interior high ceiling lighting
The die-cast aluminum housing, broad 120-degree distribution, and 100-277V or 277-480V input options support commercial and industrial interior installations. Surface or suspended mounting can be selected based on the ceiling structure and lighting layout.
Installation and Long-Term Use
This fixture supports surface mounting or suspended mounting. The mounting method should match the ceiling structure, fixture row arrangement, and service access requirements.
Confirm the available branch voltage before installation because the fixture is offered in 100-277V and 277-480V versions. No cord is included, so field wiring must be planned as part of the installation.
For long-term operation, retain access to the wattage selector, color temperature selector, and motion sensor settings. Sensor changes require the motion sensor remote control.
How This Fixture Is Commonly Used

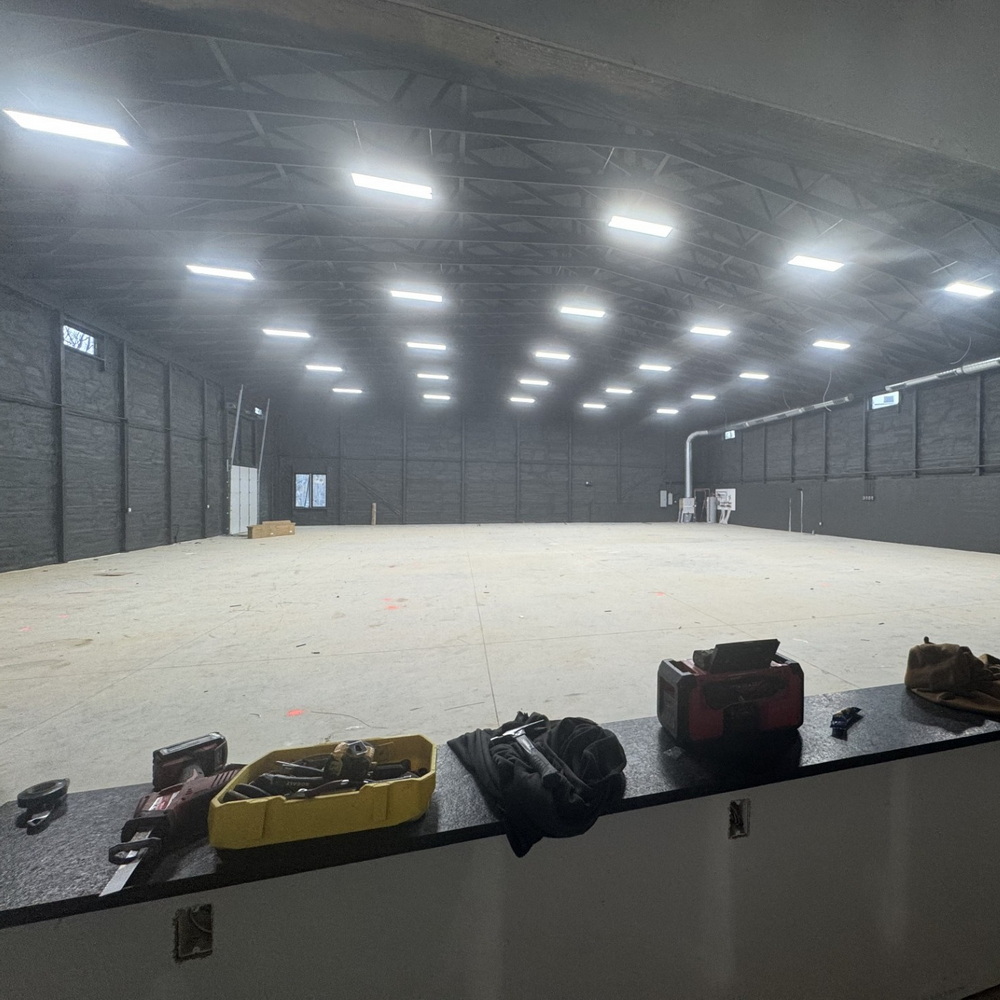

In warehouse aisle lighting and distribution center lighting, linear fixtures are commonly arranged in rows that follow aisles and storage paths. Mounting height and row placement should align with the required light distribution across the layout.

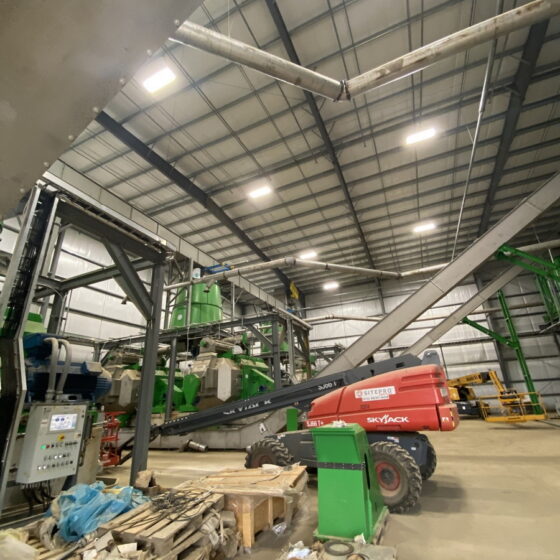

In manufacturing facility lighting and commercial interior high ceiling lighting, fixtures are commonly positioned in consistent rows over the working layout. Spacing varies with selected wattage, mounting height, target light levels, and the 120-degree beam distribution.
The 175W, 195W, and 225W settings allow output to be matched to the final layout. Higher output can reduce fixture count, but it can also increase brightness where fixtures are mounted closer to the occupied area.
Safety, Certifications, and Warranty
UL listed. DLC Premium listed.
The fixture includes a 5-year warranty.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture has selectable 175W, 195W, and 225W settings producing 26,250, 29,250, and 33,750 lumens respectively.
Q: What color temperatures are available?
A: The fixture has selectable 4000K and 5000K color temperature settings.
Q: Can this linear high bay be dimmed?
A: Yes. It supports 0-10V dimming.
Q: What mounting methods are supported?
A: The fixture supports surface mounting or suspended mounting.
Q: What should be considered when planning fixture spacing?
A: Mounting height, selected wattage, target light levels, and the 120-degree beam distribution affect fixture spacing. The supplied product data does not establish a specific spacing value.
Application Questions and Clarification
Q: Is this fixture appropriate for warehouse aisle lighting?
A: Warehouse aisle lighting is a primary application for this linear high bay. Final layout should account for mounting height, selected wattage, and target light levels.
Q: Can the fixture be used for manufacturing facility lighting?
A: Manufacturing facility lighting is a primary application. The selectable 175W, 195W, and 225W settings allow output selection based on the project layout.
Q: What is required to change the motion sensor settings?
A: A motion sensor remote control is required to change the default sensor settings. One remote is required per project.
Q: Which voltage versions are available?
A: The fixture is available in 100-277V or 277-480V versions.
