130 / 140 / 165 Watt Adjustable Linear LED High Bay | 19500 to 24750 Lumens | 4000K / 5000K Adjustable | 100-277V | 2 Foot
The 130-165 Watt Adjustable Linear LED High Bay is an excellent choice for warehouse and manufacturing facility lighting due to its high efficiency, delivering up to 24750 lumens with a 150 lumens per watt ratio. Its adjustable wattage and color temperature (4000K/5000K) offer flexibility, while the robust die-cast aluminum housing ensures durability. With UL and DLC Premium certifications, a 100,000-hour lifespan, and versatile mounting options, this fixture is ideal for environments requiring reliable, adaptable, and energy-efficient lighting solutions.
Dwayne Kula | President, CTO and Founder
1346 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 130 | 140 | 165 |
| Lumens | 19500 | 21000 | 24750 |
| Lumens Per Watt | 150 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 120° |
| Optics | Frosted Lens |
| Lifespan | 100,000 (L70) hours |
| Mounting | Chain-Cable |
| Mounting (Opt) | Pendant or Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | .90 |
| THD | 20% Max |
Durable Construction
| Housing | Die-Cast Aluminum |
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 23.2 L X 12.6 W X 3 H |
| Weight (lbs) | 6.75 |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Motion Sensor
Notes
Motion sensor remote control is required to change the default sensor settings. 1 remote per project.
Default Motion Sensor Configuration
- Detection Area: 100%
- Hold Time: 30 seconds
- Standby period: 60 seconds
- Standby Dimming Level: 10% brightness
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 2-foot linear LED high bay provides adjustable 130W, 140W, or 165W output with selectable 4000K or 5000K color temperature. It is configured for high-ceiling interior lighting where a wide 120-degree distribution and linear fixture form are needed.
The fixture produces 19,500 to 24,750 lumens and is listed as a replacement for 400W metal halide fixtures. Chain-cable mounting is standard, with pendant and surface mounting options available.
Core Performance and Output
Output settings are 19,500 lumens at 130W, 21,000 lumens at 140W, and 24,750 lumens at 165W. Fixture efficacy is 150 lumens per watt.
The frosted lens uses a standard 120-degree beam distribution for broad illumination across aisle and open-area layouts. Higher output settings can reduce fixture count in larger layouts, but may create excessive light levels where mounting heights are low.
The fixture operates on 100-277V, 50/60 Hz power. Power factor is 0.90, and total harmonic distortion is 20% maximum.
Adjustability and Control Options

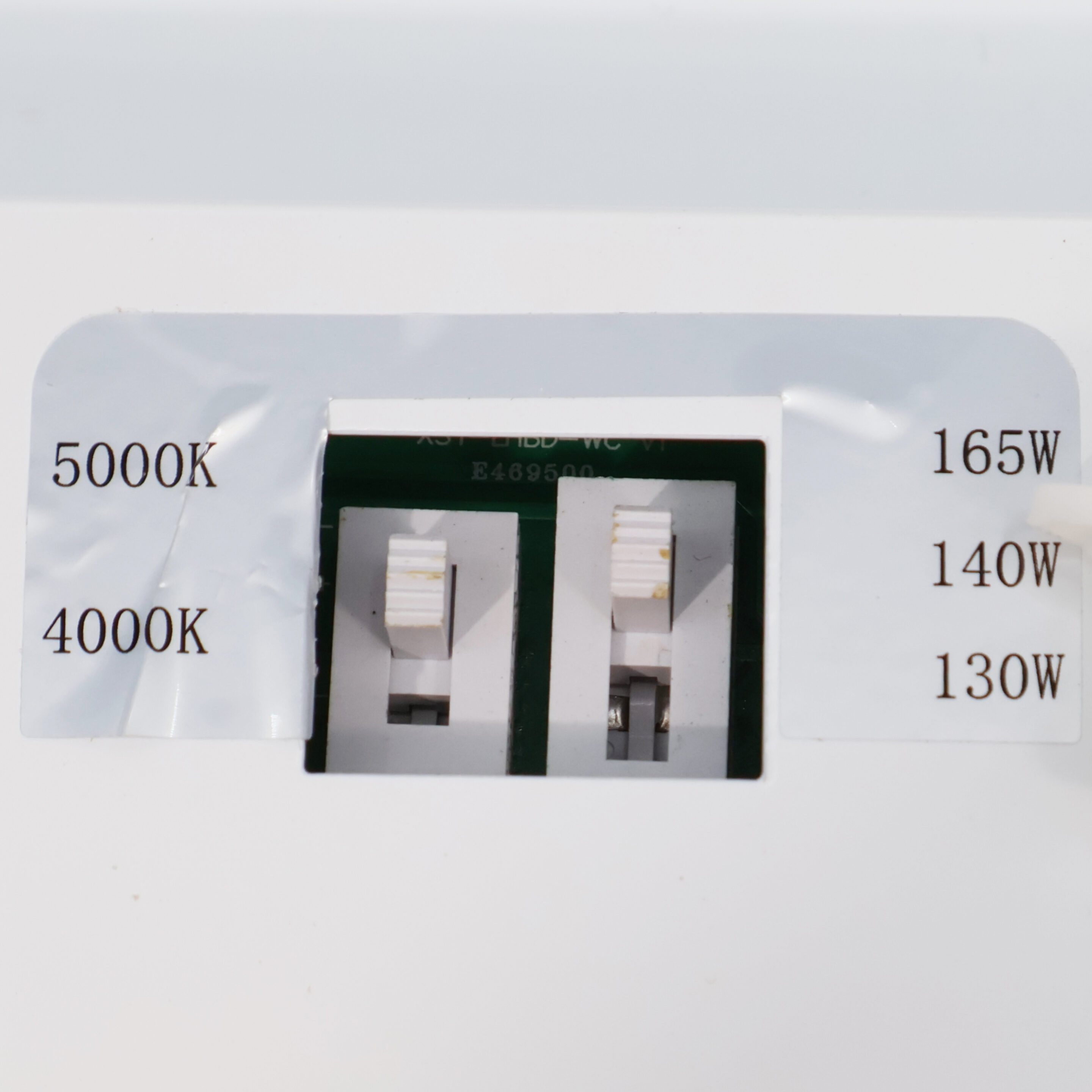

Wattage is adjustable between 130W, 140W, and 165W. Color temperature is adjustable between 4000K and 5000K.
0-10V dimming is supported. A motion sensor is available, and a motion sensor remote control is required to change the default sensor settings.
Default motion sensor settings use 100% detection area, a 30-second hold time, a 60-second standby period, and 10% standby dimming level.
Longevity and Reliability
Rated life is 100,000 hours L70. The fixture carries a 5-year warranty.
Operating temperature range is -40 degrees F to 113 degrees F. Integrated 6kV surge protection supports operation on commercial electrical systems.
Build Quality and Physical Characteristics

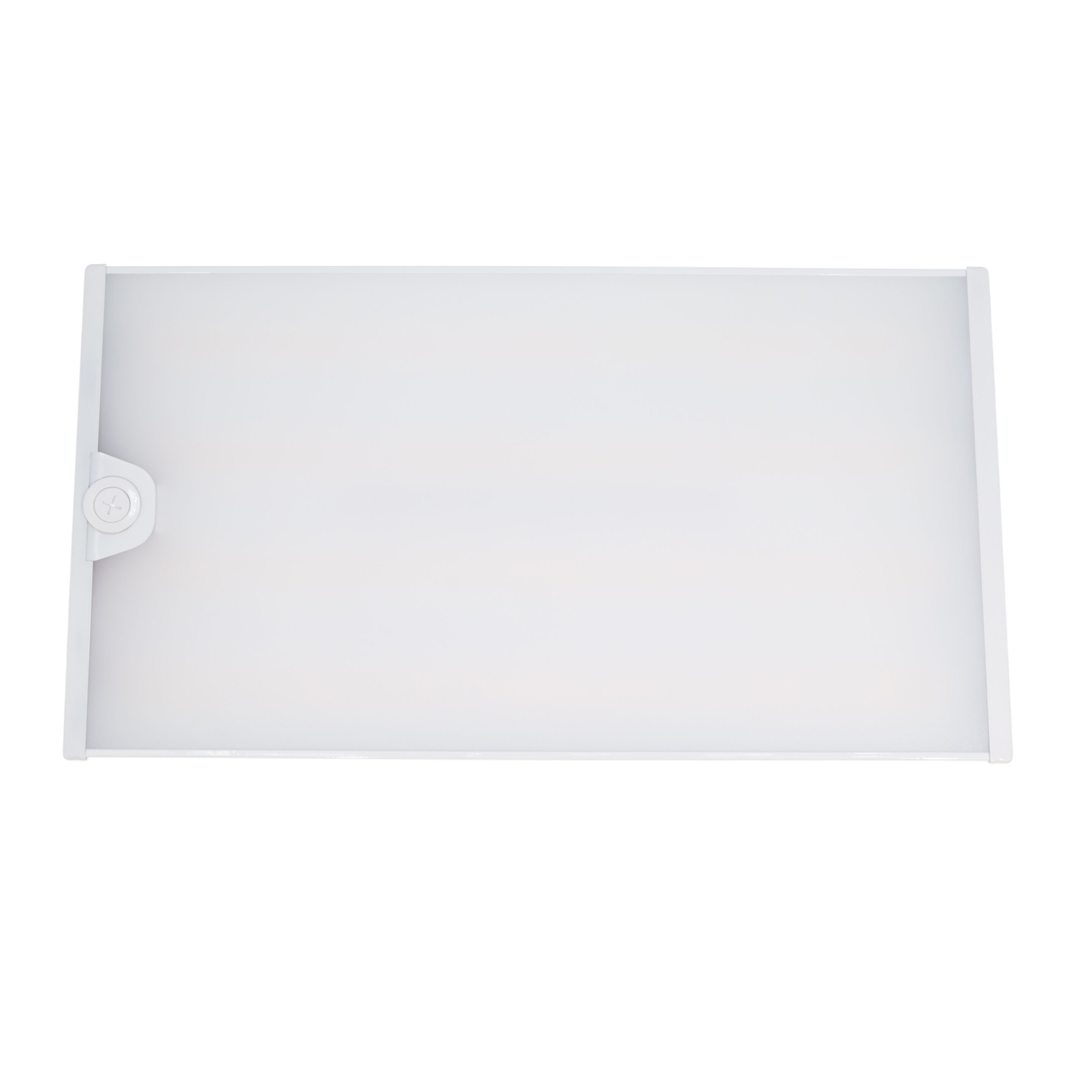

The housing is die-cast aluminum with a white finish. The frosted lens softens the 120-degree distribution.

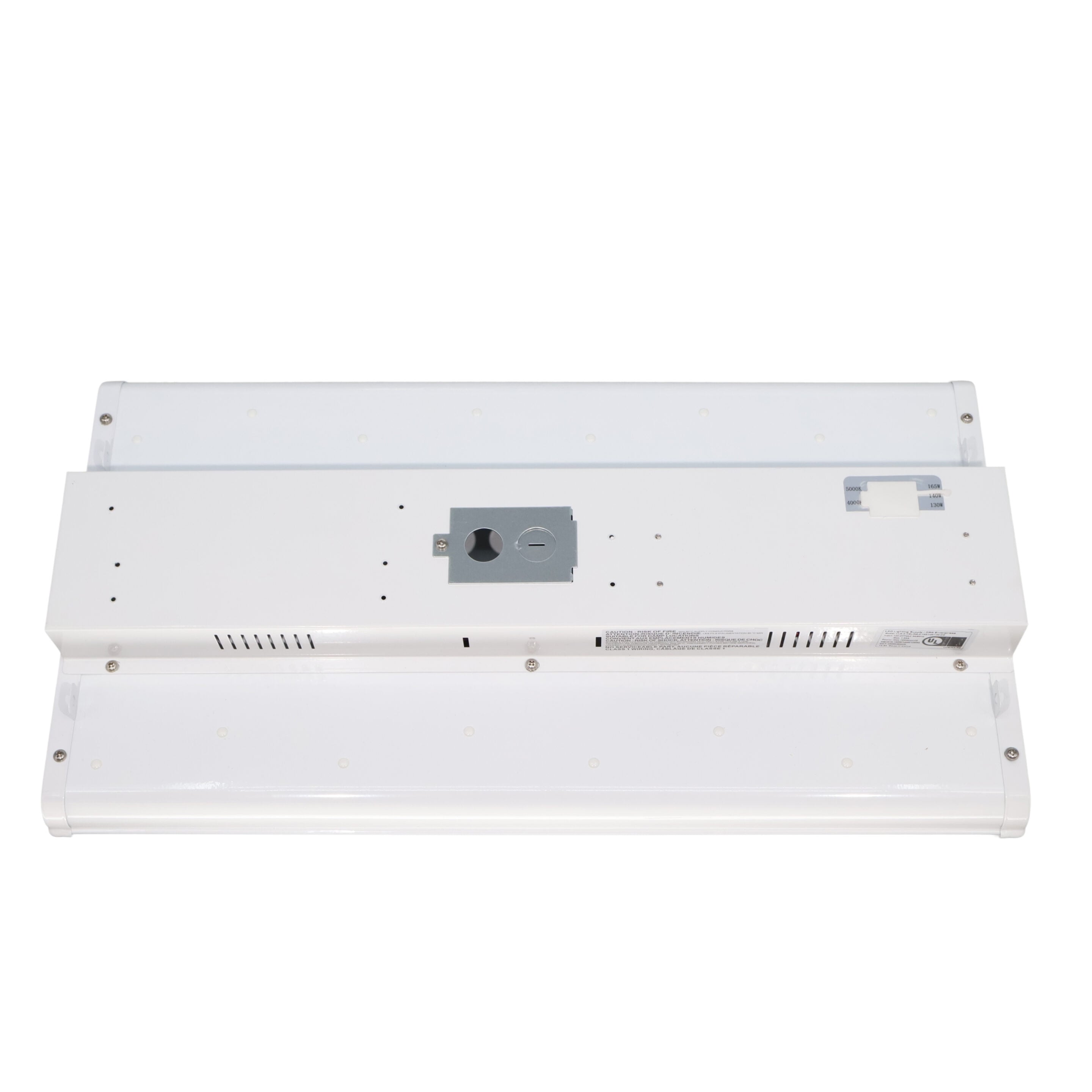

Fixture dimensions are 23.2 inches long by 12.6 inches wide by 3 inches high. Fixture weight is 6.75 pounds.

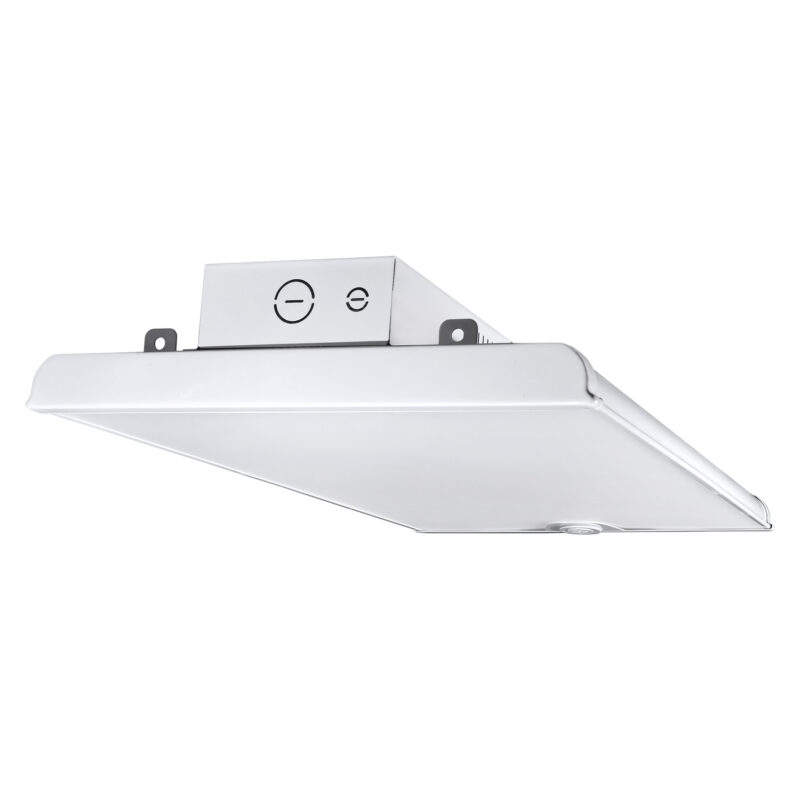

No cord is included. Standard mounting is chain-cable, with pendant and surface mounting options available.
Where This Product Fits Best
This linear high bay fits interior high-ceiling layouts that benefit from row-based fixture placement and broad light distribution. Its adjustable output and selectable color temperature allow configuration around the lighting requirements of the space.
- warehouse aisle lighting
- distribution center lighting
- manufacturing facility lighting
- retail warehouse lighting
- storage facility lighting
- commercial interior high ceiling lighting
The fixture is rated for operation from -40 degrees F to 113 degrees F. Final placement should account for mounting height, target light levels, and the 120-degree beam distribution.
Installation and Long-Term Use

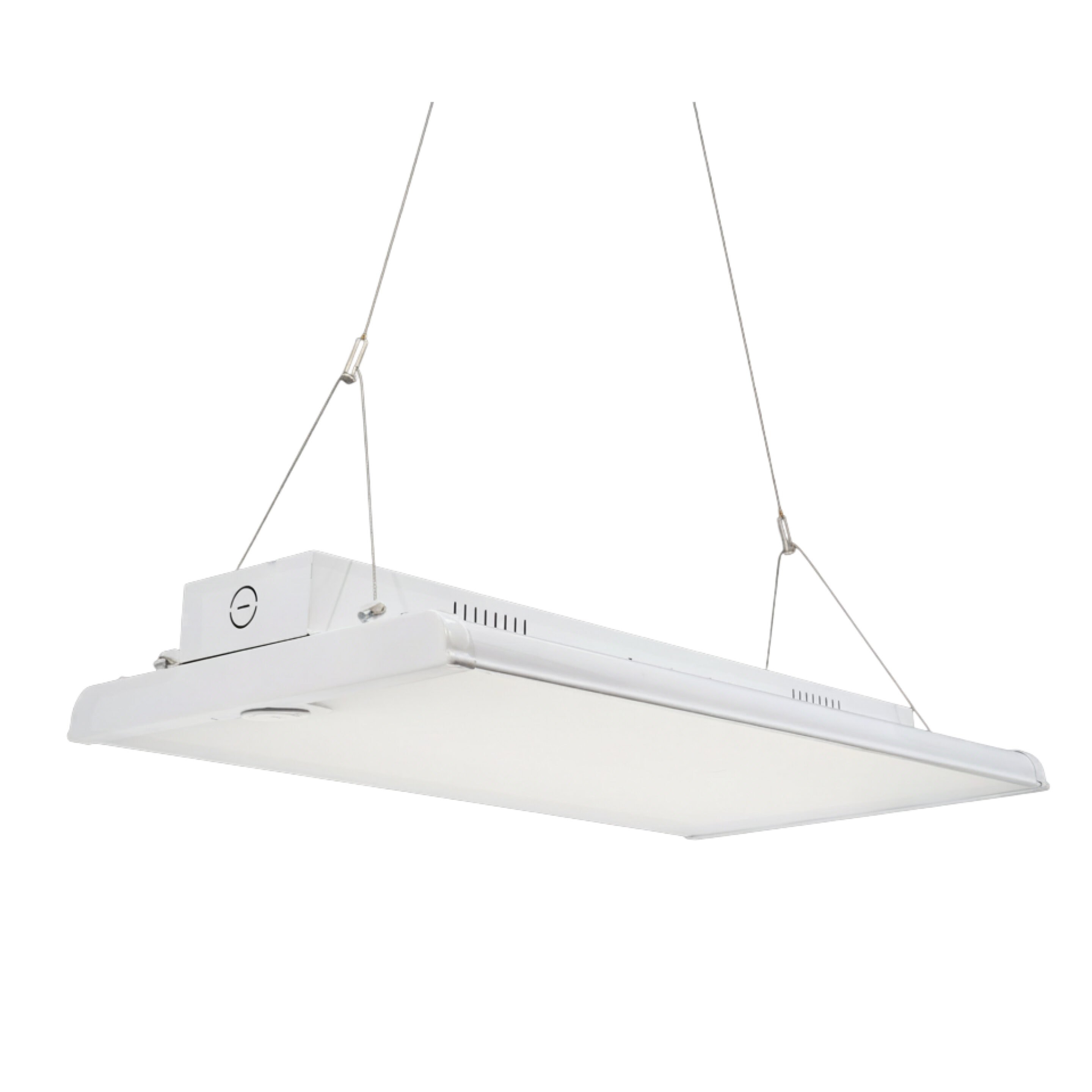

Chain-cable mounting is standard for suspended installations. Pendant and surface mounting options support alternate mounting arrangements where those methods are required.
Confirm the selected wattage, color temperature, supply voltage, and mounting method before installation. The fixture operates on 100-277V and does not include a cord.
For motion sensor operation, default settings remain in place unless adjusted with the required sensor remote control.
How This Fixture Is Commonly Used
In warehouse aisle lighting and distribution center lighting, linear fixtures are commonly arranged in rows that follow aisle direction and storage layout. Mounting height and target light levels determine the final row spacing and output setting.
For manufacturing facility lighting, layouts are typically organized around the working area and ceiling structure. Higher output can reduce fixture count, while lower output settings can better match lower mounting heights or lower required light levels.
Retail warehouse lighting and storage facility lighting commonly use the broad 120-degree distribution for open interior coverage. Final layout should account for the selected wattage setting and the required light uniformity.
Safety, Certifications, and Warranty
UL listed. DLC Premium listed.
The fixture includes 6kV surge protection and carries a 5-year warranty.
Frequently Asked Questions
Q: What wattage and lumen settings are available?
A: The fixture is adjustable to 130W, 140W, or 165W. Corresponding output is 19,500, 21,000, or 24,750 lumens.
Q: What color temperatures are available?
A: Color temperature is adjustable between 4000K and 5000K.
Q: Does this linear high bay support dimming?
A: Yes. The fixture supports 0-10V dimming.
Q: What mounting methods are available?
A: Chain-cable mounting is standard. Pendant and surface mounting are available options.
Q: What should be considered when planning fixture placement?
A: Mounting height, target light levels, selected wattage, and the 120-degree beam distribution affect fixture placement. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture configured for warehouse aisle lighting?
A: Yes. Warehouse aisle lighting is a primary application for this linear high bay product family. Row layout, mounting height, and required light levels determine the final fixture placement.
Q: Can the output be adjusted for manufacturing facility lighting?
A: Yes. The fixture provides 130W, 140W, and 165W settings with outputs from 19,500 to 24,750 lumens.
Q: What needs to be confirmed for motion sensor use?
A: A motion sensor remote control is required to change the default sensor settings. The default configuration includes 100% detection area, 30-second hold time, 60-second standby period, and 10% standby dimming level.
