90 / 105 / 130 Wattage Adjustable Linear LED High Bay | 13860 to 20020 Lumens | 4000K / 5000K Adjustable | 100-277V | 1 Foot 2 Inches
This adjustable linear LED high bay fixture is an excellent choice for warehouse and manufacturing facility lighting due to its versatility and efficiency. With wattage and color temperature adjustability, it delivers 13860 to 20020 lumens, replacing 400W metal halides while offering significant energy savings. Its durable die-cast aluminum housing, 10kV surge protection, and wide operating temperature range ensure reliability in demanding environments. UL and DLC Premium certifications further guarantee quality, making it ideal for industrial applications requiring robust, adaptable lighting solutions.
Cory Peterson | VP of Marketing and Sales Operations
3078 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 90 | 105 | 130 |
| Lumens | 13860 | 16170 | 20020 |
| Lumens Per Watt | 150 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 90° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 hours |
| Mounting | Chain-Cable |
| Mounting (Opt) | Pendant or Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | .90 |
| THD | 20% Max |
Durable Construction
| Housing | Die-Cast Aluminum |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 122°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 14 L X 11.5 W X 2.1 H |
| Weight (lbs) | 6 |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Emergency Backup Battery
- Motion Sensor
Notes
Motion sensor remote control is required to change the default sensor settings. 1 remote per project.
Default Motion Sensor Configuration
- Detection Area: 100%
- Hold Time: 30 seconds
- Standby period: 60 seconds
- Standby Dimming Level: 10% brightness
Options:
Emergency Battery Backup – call us for details and pricing
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable linear LED high bay is a compact 1 foot 2 inch fixture for warehouse aisle lighting, manufacturing facility lighting, and distribution center lighting. It provides selectable wattage and color temperature in a low-profile linear housing.

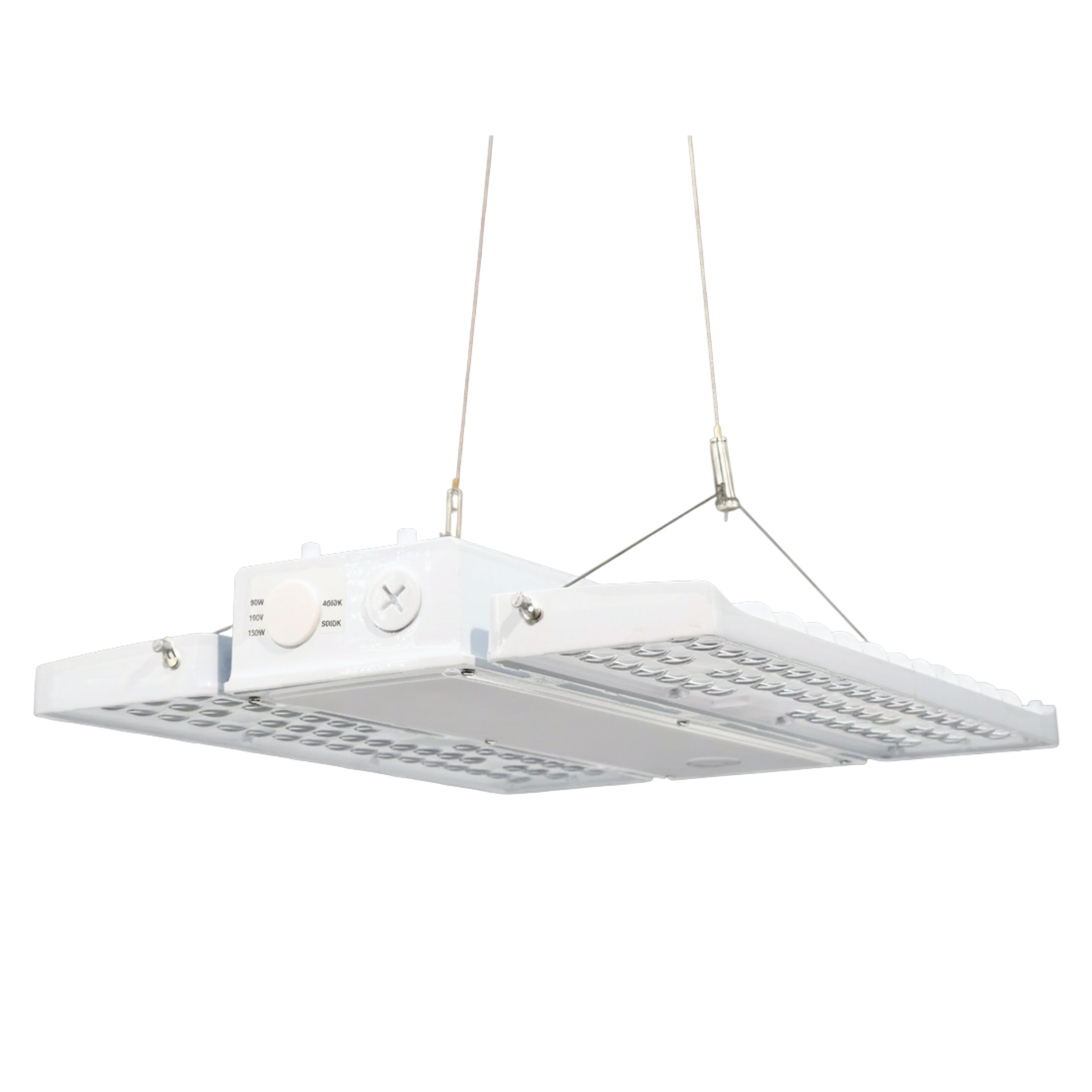

The fixture operates from 100-277V and can replace a 400 watt metal halide fixture where the existing layout and light levels support the change. Chain-cable mounting is standard, with pendant and surface mounting available.
Core Performance and Output
Selectable output includes 13,860 lumens at 90 watts, 16,170 lumens at 105 watts, and 20,020 lumens at 130 watts. Efficacy is 150 lumens per watt. The standard 90 degree beam distribution provides broad downward coverage through a polycarbonate lens.
The fixture uses 100-277V, 50/60Hz input power, with a minimum 0.90 power factor and 20% maximum THD. The 130 watt setting can produce excessive light at lower mounting heights, while higher mounting heights require layout review to maintain uniformity.
Adjustability and Control Options
Wattage selection allows the fixture to operate at 90, 105, or 130 watts. Color temperature is selectable between 4000K and 5000K. The fixture supports 0-10V dimming.

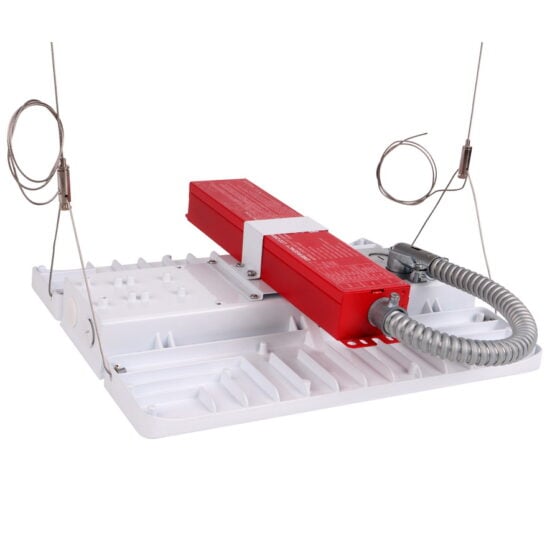

A motion sensor and emergency backup battery are available. The motion sensor default settings are 100% detection area, 30 second hold time, 60 second standby period, and 10% standby dimming level. A motion sensor remote control is required to change the default sensor settings.
Longevity and Reliability
Rated life is 50,000 hours. The fixture includes 10kV surge protection for electrical transient protection.
Operating temperature range is -40 degrees F to 122 degrees F. Long-term performance depends on maintaining suitable electrical connections, mounting support, and fixture access for service.
Build Quality and Physical Characteristics

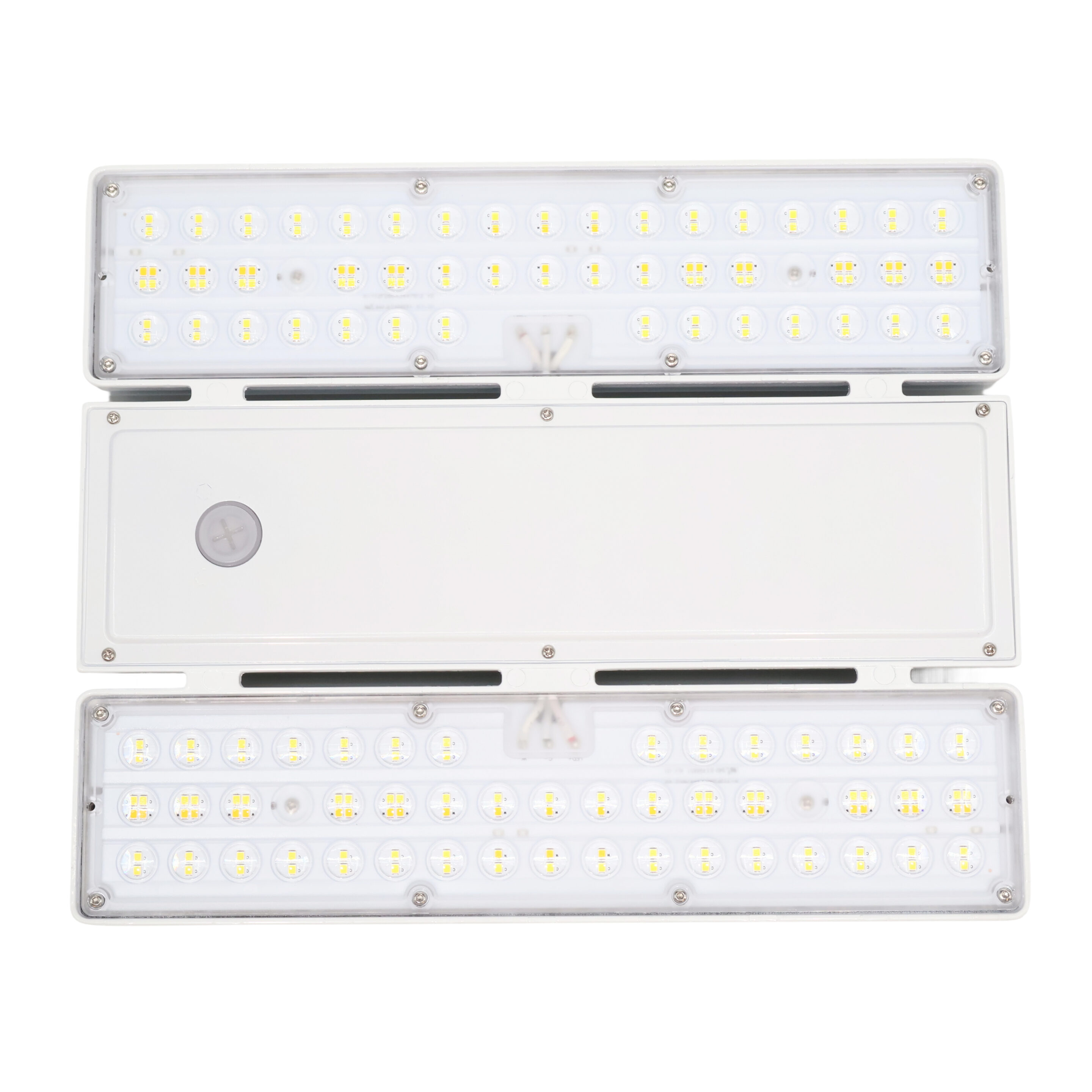

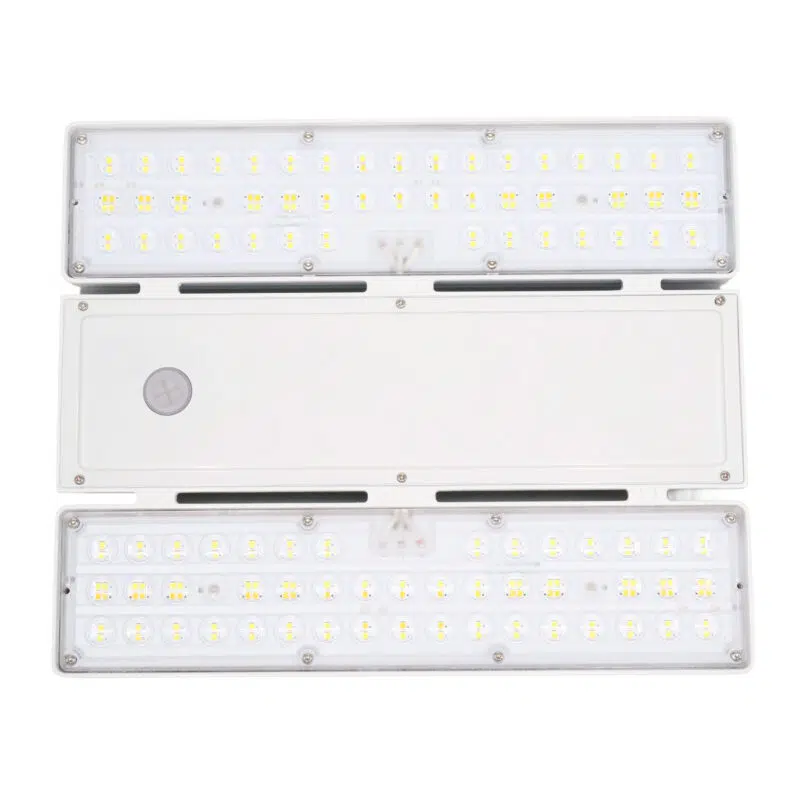

The housing is die-cast aluminum with a white finish. The polycarbonate lens protects the optical system while maintaining the standard 90 degree distribution.
Fixture dimensions are 14 inches long by 11.5 inches wide by 2.1 inches high. Weight is 6 pounds. The fixture has no cord.
Where This Product Fits Best
This linear high bay fits interior high-ceiling layouts that use rows of fixtures or aisle-focused lighting patterns. Its selectable output supports facilities that need adjustment within the same fixture form factor.
- warehouse aisle lighting
- distribution center lighting
- manufacturing facility lighting
- retail warehouse lighting
- storage facility lighting
- commercial interior high ceiling lighting
The die-cast aluminum housing, polycarbonate lens, and -40 degrees F to 122 degrees F operating range support demanding interior operating conditions. Final fit depends on mounting height, layout, target light levels, and the selected wattage setting.
Installation and Long-Term Use

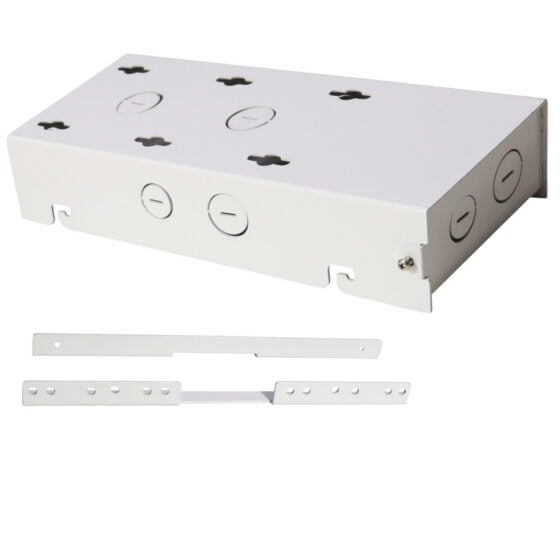

Chain-cable mounting is standard. Pendant and surface mounting are available options. The mounting method should match the building structure and the intended fixture layout.
The fixture operates on 100-277V power and has no attached cord. Confirm fixture access, branch circuit conditions, dimming connections where used, and sensor access before installation.
How This Fixture Is Commonly Used
In warehouse aisle lighting and distribution center lighting, fixtures are typically arranged in rows that follow aisle and rack layout. In manufacturing facility lighting, placement is based on work areas, equipment arrangement, mounting height, and required light distribution.
The selectable wattage setting allows adjustment for mounting height and target light levels without changing the fixture body. Higher output can reduce fixture count in a layout, but spacing and uniformity still need to be evaluated for the specific facility.
Safety, Certifications, and Warranty
This fixture is UL listed and DLC Premium listed.
The warranty is 5 years. Installation and service should account for fixture weight, mounting method, electrical connections, and access to the fixture.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture is selectable at 90 watts and 13,860 lumens, 105 watts and 16,170 lumens, or 130 watts and 20,020 lumens.
Q: What color temperatures are available?
A: The fixture has selectable 4000K and 5000K color temperature settings.
Q: Does this linear high bay support dimming?
A: Yes. It supports 0-10V dimming.
Q: What mounting methods are available?
A: Chain-cable mounting is standard. Pendant and surface mounting are available options.
Q: What are the default motion sensor settings?
A: Default settings are 100% detection area, 30 second hold time, 60 second standby period, and 10% standby dimming level.
Application Questions and Clarification
Q: Is this fixture appropriate for warehouse aisle lighting and distribution center lighting?
A: The fixture is designed for warehouse aisle lighting and distribution center lighting. Final layout depends on mounting height, target light levels, and the selected wattage setting.
Q: What should be reviewed when planning fixture placement?
A: Mounting height, target light levels, aisle or work-area layout, and the selected wattage setting affect fixture placement. A specific spacing value is not established by the supplied product data.
Q: What is required to change motion sensor settings?
A: A motion sensor remote control is required to change the default sensor settings.
