125 / 225 / 300 Watt Adjustable Indirect High Bay Sports Light | 19375 to 46500 Lumens | 5000K | 100-277V
This indirect high bay sports light is a strong choice for facilities needing high-output, glare-controlled illumination with flexibility. Its selectable wattage (125, 225, or 300 watts) and output range (19,375 to 46,500 lumens) allow precise adjustment for various ceiling heights and lighting needs, while the 45-degree beam and frosted tempered glass optics minimize glare – critical for sports venues, gymnasiums, warehouses, and manufacturing floors. The IK08 impact rating and aluminum alloy housing support durability in active environments. However, as no wet location or hazardous area ratings are provided, it is not suitable for those applications.
Dwayne Kula | President, CTO and Founder
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 125 | 225 | 300 |
| Lumens | 19375 | 34875 | 46500 |
| Lumens Per Watt | 155 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V Optional |
| Color Temperature | 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 45° |
| Optics | Frosted Tempered Glass |
| Lifespan | 200,000 (L70) hours |
| Mounting | Chain-Cable |
| Mounting (Opt) | Yoke |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
Durable Construction
| Housing | Aluminum Alloy |
| IK Rating | IK08 |
| Surge Protection | 6kV |
| Operating Temperature | -22°F to 122°F |
| Certifications | UL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 19.25 L X 15.75 W X 5 H |
| Weight (lbs) | 11 |
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable indirect UFO high bay sports light provides 19,375, 34,875, or 46,500 lumens at 5000K. Its indirect distribution, frosted tempered glass optic, and 45 degree beam angle support controlled high-output lighting from overhead mounting positions.
The fixture is commonly considered for warehouse lighting, manufacturing facility lighting, distribution center lighting, and indoor sports facility lighting. It operates on 100-277V, with 277-480V available as an option, and can replace a 400 watt metal halide fixture.
Core Performance and Output
Selectable 125W, 225W, and 300W output settings produce 19,375, 34,875, and 46,500 lumens. Fixture efficacy is 155 lumens per watt, with 80+ CRI and a 5000K color temperature.
The standard 45 degree beam distribution concentrates output for higher mounting positions and defined lighting layouts. At lower mounting heights, the higher output settings can produce more light than required and should be evaluated against target light levels.
The fixture operates at 50/60Hz on 100-277V electrical systems. A 277-480V version is available where that voltage range is present.
Adjustability and Control Options
Wattage adjustment provides three selectable operating levels: 125W, 225W, and 300W. This allows output to be matched to the layout without changing the fixture body.
0-10V dimming is included. Control wiring and dimming behavior should be confirmed against the installed control system before commissioning.
Longevity and Reliability
The fixture is rated for 200,000 L70 hours. L70 indicates the point at which light output is maintained at 70 percent of initial output.
6kV surge protection is integrated into the fixture. The operating temperature range is -22F to 122F.
Build Quality and Physical Characteristics
The housing is aluminum alloy with a white finish. Frosted tempered glass protects the optic while diffusing the 45 degree distribution.
The fixture measures 19.25 inches long by 15.75 inches wide by 5 inches high and weighs 11 pounds. It carries an IK08 impact rating.
Where This Product Fits Best
This fixture fits high-ceiling indoor locations that need concentrated, high-output illumination and an indirect high bay form factor. The adjustable wattage settings support layouts with differing output requirements.
- warehouse lighting
- manufacturing facility lighting
- distribution center lighting
- indoor sports facility lighting
- gymnasium lighting
- basketball court lighting
- pickleball court lighting
Its aluminum alloy housing, IK08 rating, tempered glass optic, and -22F to 122F operating range support demanding indoor operating conditions. UL listed.
Installation and Long-Term Use

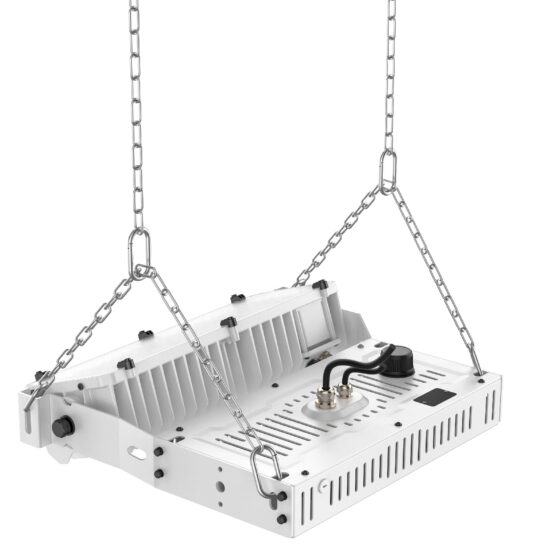

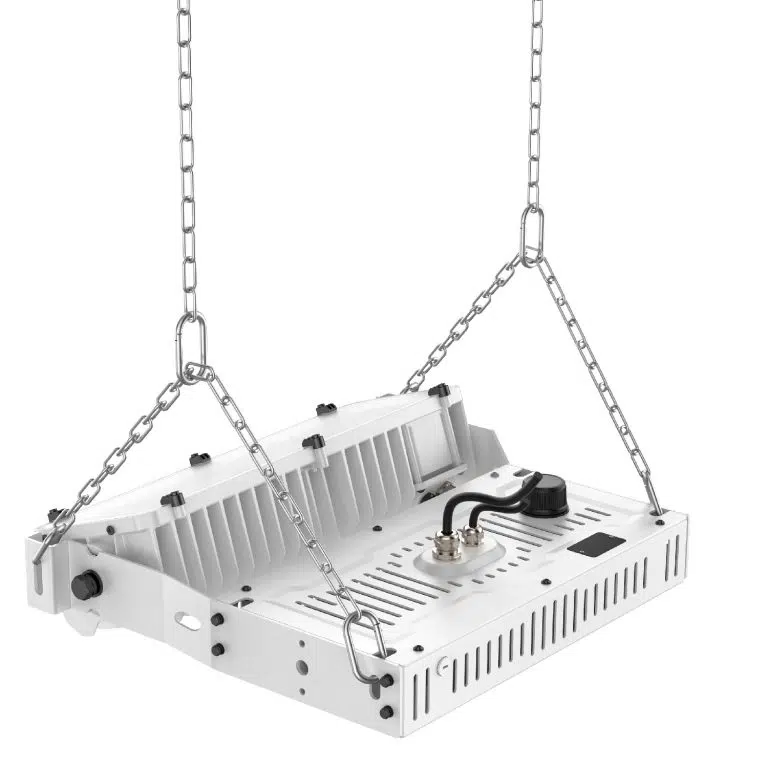

Chain-cable mounting is standard. A yoke mount is available for installations requiring a rigid fixture orientation.
Verify support structure capacity, supply voltage, dimming connections, and mounting configuration before installation. The 11 pound fixture weight and fixture dimensions should be accounted for when positioning attachment points.
How This Fixture Is Commonly Used
In warehouse lighting and distribution center lighting layouts, fixtures are arranged in rows or coordinated patterns based on mounting height, target light levels, and the 45 degree beam angle. Manufacturing facility lighting layouts also need to account for equipment locations and work-area lighting requirements.
For gymnasium lighting, basketball court lighting, pickleball court lighting, and indoor sports facility lighting, fixture placement is coordinated around the activity area and mounting structure. Higher output can reduce fixture count, but spacing and aiming still determine uniformity and glare control.
Safety, Certifications, and Warranty
UL listed. The fixture has an IK08 impact rating and 6kV surge protection.
A 5-year warranty is included. Maintain access to mounting hardware, electrical connections, and controls for future inspection and service.
Frequently Asked Questions
Q: What output levels are available?
A: The fixture has selectable 125W, 225W, and 300W settings producing 19,375, 34,875, and 46,500 lumens.
Q: Does this fixture support dimming?
A: Yes. It supports 0-10V dimming.
Q: What mounting methods are available?
A: Chain-cable mounting is standard. Yoke mounting is available as an option.
Q: What should be considered when planning fixture layout?
A: Mounting height, target light levels, fixture output setting, and the 45 degree beam angle affect the layout. The supplied product data does not establish a specific spacing value or fixture quantity.
Application Questions and Clarification
Q: Is this fixture appropriate for warehouse lighting and manufacturing facility lighting?
A: Warehouse lighting and manufacturing facility lighting are primary applications for this UFO high bay product family. Final fit depends on the required output setting, mounting layout, target light levels, and available voltage.
Q: What should be reviewed for gymnasium lighting or indoor sports facility lighting?
A: Gymnasium lighting and indoor sports facility lighting are valid applications. Review mounting position, activity-area layout, target light levels, fixture output setting, and the 45 degree beam distribution.
Q: When is the 277-480V option relevant?
A: The optional 277-480V version is relevant where that voltage range is present. The standard fixture operates on 100-277V.
