80 / 90 / 105 Watt Adjustable Linear LED High Bay | 12000 to 15750 Lumens | 4000K / 5000K Adjustable | 100-277V | 2 Foot
80 | 90 | 105 Wattage Adjustable Linear LED High Bay provides exceptional lighting solutions, combining efficiency and durability for various industrial and commercial applications. These linear high bays are also color adjustable – choose either 4000K or 5000K. The ultimate in post installation flexibility.
Dwayne Kula | President, CTO and Founder
127 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 80 | 90 | 105 |
| Lumens | 12000 | 13500 | 15750 |
| Lumens Per Watt | 150 |
| Replaces | 150 or 250 or 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 120° |
| Optics | Frosted Lens |
| Lifespan | 100,000 (L70) hours |
| Mounting | Chain-Cable |
| Mounting (Opt) | Pendant or Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | .90 |
| THD | 20% Max |
Durable Construction
| Housing | Die-Cast Aluminum |
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 23.2 L X 12.6 W X 3 H |
| Weight (lbs) | 6.75 |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Motion Sensor
Notes
Motion sensor remote control is required to change the default sensor settings. 1 remote per project.
Default Motion Sensor Configuration
- Detection Area: 100%
- Hold Time: 30 seconds
- Standby period: 60 seconds
- Standby Dimming Level: 10% brightness
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable linear LED high bay is a 2-foot fixture for warehouse aisle lighting, manufacturing facility lighting, and distribution center lighting. It provides selectable wattage and color temperature settings in a low-profile linear form.
The fixture operates from 100-277V and uses a frosted 120-degree lens for broad downward distribution. It can replace 150W, 250W, or 400W metal halide fixtures where the existing layout and target light levels support the selected output.
Core Performance and Output
Selectable 80W, 90W, and 105W settings produce 12,000, 13,500, and 15,750 lumens. Fixture efficacy is 150 lumens per watt, with 4000K and 5000K selectable color temperatures and 80+ CRI.
The standard 120-degree distribution supports broad aisle and open-area coverage. Higher output can reduce fixture count in a layout, but may create excessive light levels where mounting heights are low.
The fixture operates on 100-277V, 50/60Hz power with a 0.90 power factor and 20% maximum THD. It supports 0-10V dimming.
Adjustability and Control Options
Wattage adjustment allows the fixture to operate at 80W, 90W, or 105W. Color temperature adjustment provides 4000K or 5000K output.
A motion sensor is available. Default sensor settings are 100% detection area, 30-second hold time, 60-second standby period, and 10% standby dimming level.
A motion sensor remote control is required to change default sensor settings. One remote is required per project.
Longevity and Reliability
The rated lifespan is 100,000 hours at L70. This supports long operating periods in facilities where fixture access may require lift equipment or planned shutdown time.
Integrated 6kV surge protection helps address electrical transient exposure. The fixture is rated for operation from -40F to 113F.
Build Quality and Physical Characteristics

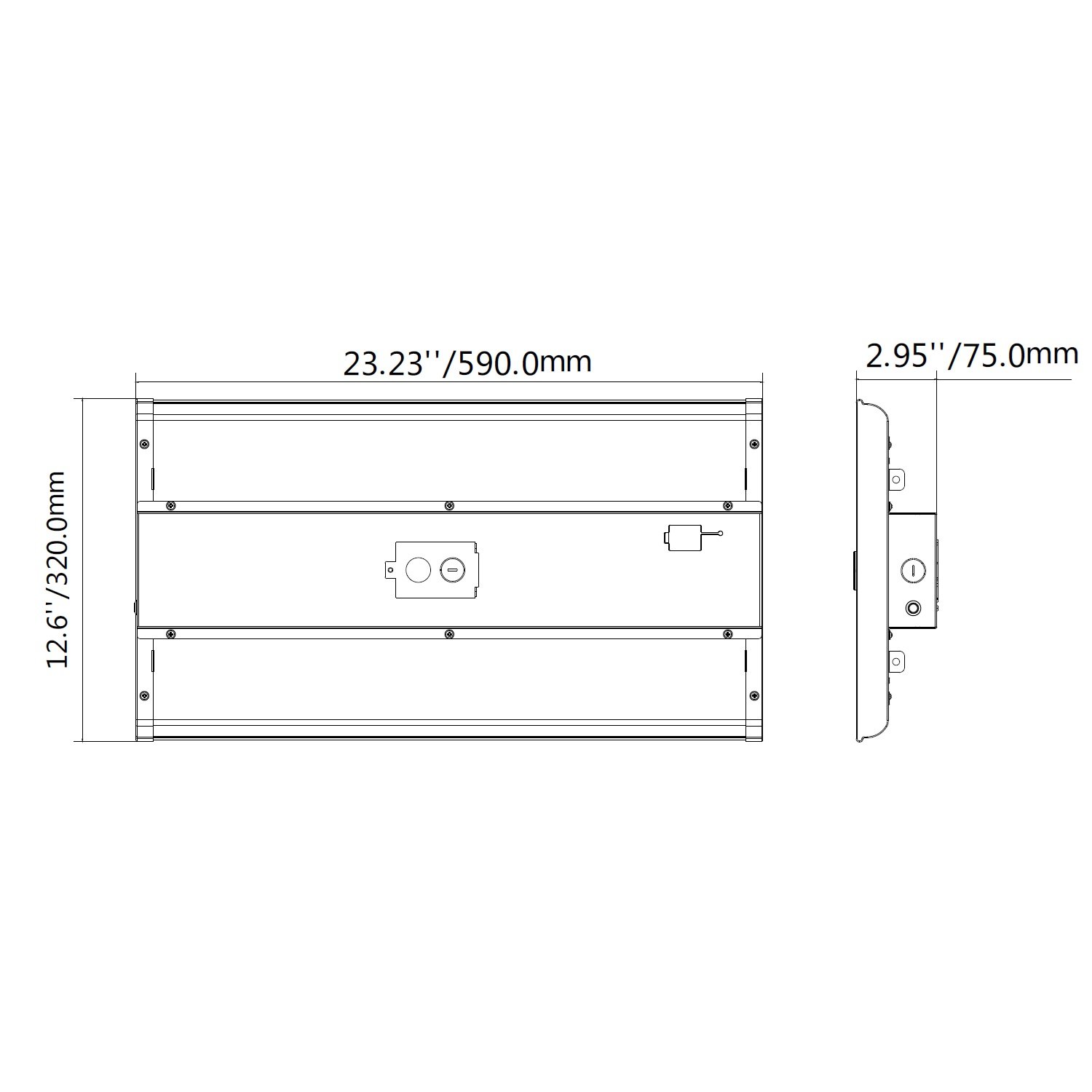

The housing is die-cast aluminum with a white finish. The fixture measures 23.2 inches long by 12.6 inches wide by 3 inches high and weighs 6.75 pounds.
Standard mounting is chain-cable. Pendant and surface mounting are optional, allowing the fixture to align with different ceiling and structural conditions.
No cord is included. Installation requires connection to the building electrical system.
Where This Product Fits Best
This linear high bay fits interior facilities that use aisle-oriented or open high-ceiling layouts. Its selectable output supports projects where the final light level needs to be set during installation.
- warehouse aisle lighting
- distribution center lighting
- manufacturing facility lighting
- retail warehouse lighting
- storage facility lighting
- commercial interior high ceiling lighting
The die-cast aluminum housing and -40F to 113F operating range support demanding interior temperature conditions. The 120-degree frosted lens is intended for broad distribution rather than narrow, concentrated light patterns.
Installation and Long-Term Use
Chain-cable mounting is the standard installation method. Pendant or surface mounting can be used when the fixture location and ceiling structure require a different mounting arrangement.
Fixture placement should account for mounting height, aisle orientation, target light levels, and the selected wattage setting. The supplied data does not establish a fixed spacing distance or fixture quantity.
For motion sensor installations, verify the required sensor settings before commissioning. Changing the default sensor configuration requires the motion sensor remote control.
How This Fixture Is Commonly Used
In warehouse aisle lighting and distribution center lighting, fixtures are commonly arranged in rows that follow aisle direction and storage layout. Mounting height and fixture output determine how broadly the 120-degree distribution reaches across the space.
In manufacturing facility lighting and commercial interior high ceiling lighting, layouts are generally based on work areas, equipment arrangement, and required light levels. Higher output settings can reduce fixture count, but layout uniformity still depends on mounting height and placement.
Retail warehouse lighting and storage facility lighting may use the selected 4000K or 5000K setting to match the facility lighting plan. Final spacing should be based on project-specific layout requirements.
Safety, Certifications, and Warranty
This fixture is UL listed and DLC Premium listed.
The warranty is 5 years.
Frequently Asked Questions
Q: What wattage and lumen settings are available?
A: The fixture is adjustable between 80W, 90W, and 105W. Output is 12,000, 13,500, or 15,750 lumens depending on the selected wattage.
Q: What color temperatures are available?
A: The fixture has selectable 4000K and 5000K color temperatures.
Q: Can this linear high bay be dimmed?
A: Yes. The fixture supports 0-10V dimming.
Q: What mounting options are available?
A: Chain-cable mounting is standard. Pendant and surface mounting are optional.
Q: What should be considered when planning fixture layout?
A: Mounting height, selected wattage, target light levels, aisle orientation, and layout requirements affect placement. The supplied product data does not establish a fixed spacing distance or fixture quantity.
Application Questions and Clarification
Q: Is this fixture appropriate for warehouse aisle lighting?
A: Yes. Warehouse aisle lighting is a primary application for this linear high bay. The 120-degree frosted lens provides broad downward distribution.
Q: What should be reviewed for manufacturing facility lighting?
A: Review mounting height, work area layout, target light levels, selected wattage, and selected color temperature. The fixture provides 80W, 90W, and 105W settings with 4000K or 5000K selection.
Q: Can motion sensor settings be changed after installation?
A: Yes. A motion sensor remote control is required to change the default sensor settings.
