60 / 80 / 100 Watt Adjustable LED Wall Pack | 11,200 to 16,800 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Built-In Photocell

Product Overview

This LED wall pack provides adjustable wattage settings of 80, 100, or 120 watts, delivering lumen outputs from 11,200 to 16,800. The fixture supports color temperature adjustment between 3000K, 4000K, and 5000K. It is designed for 100-277V operation and includes a built-in photocell.

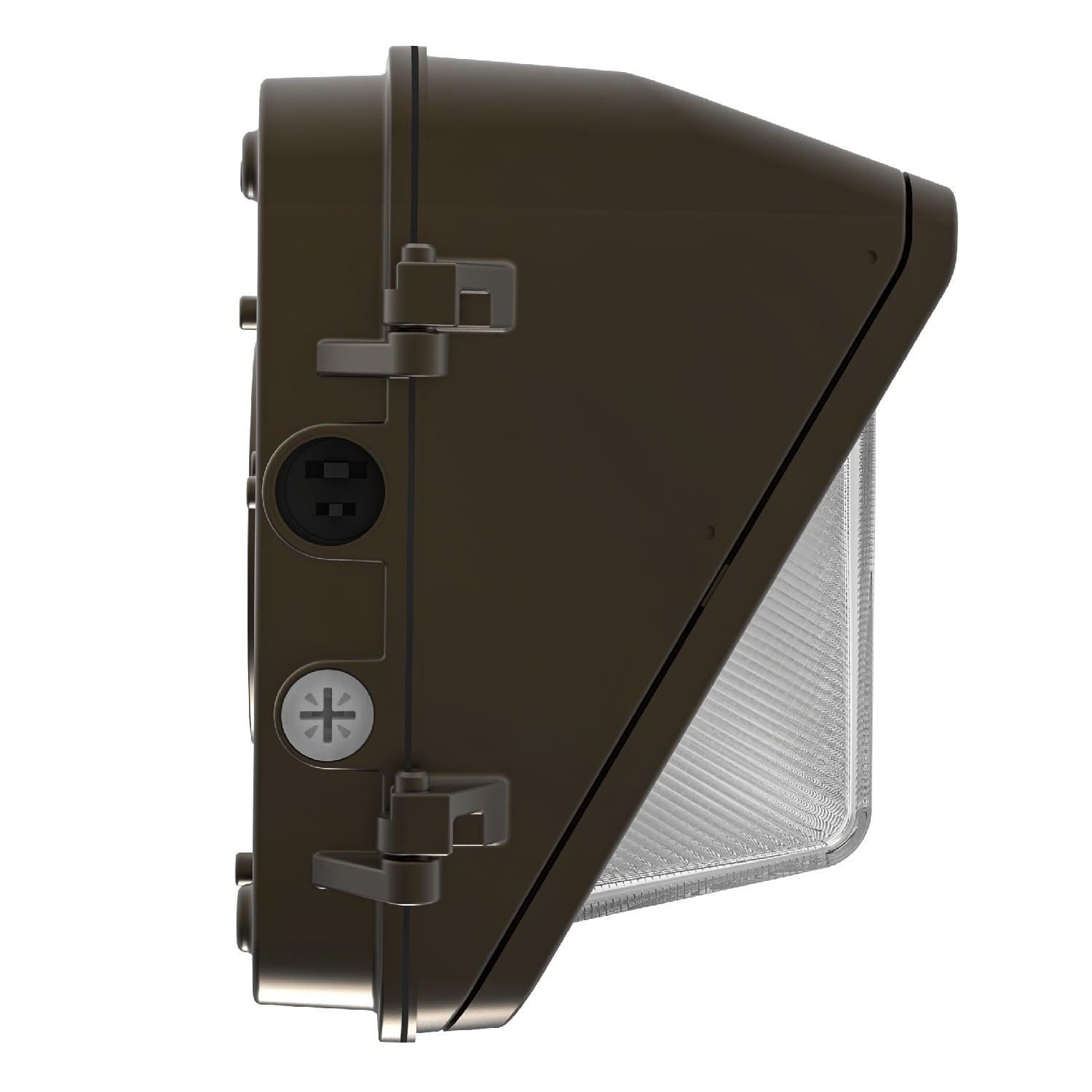

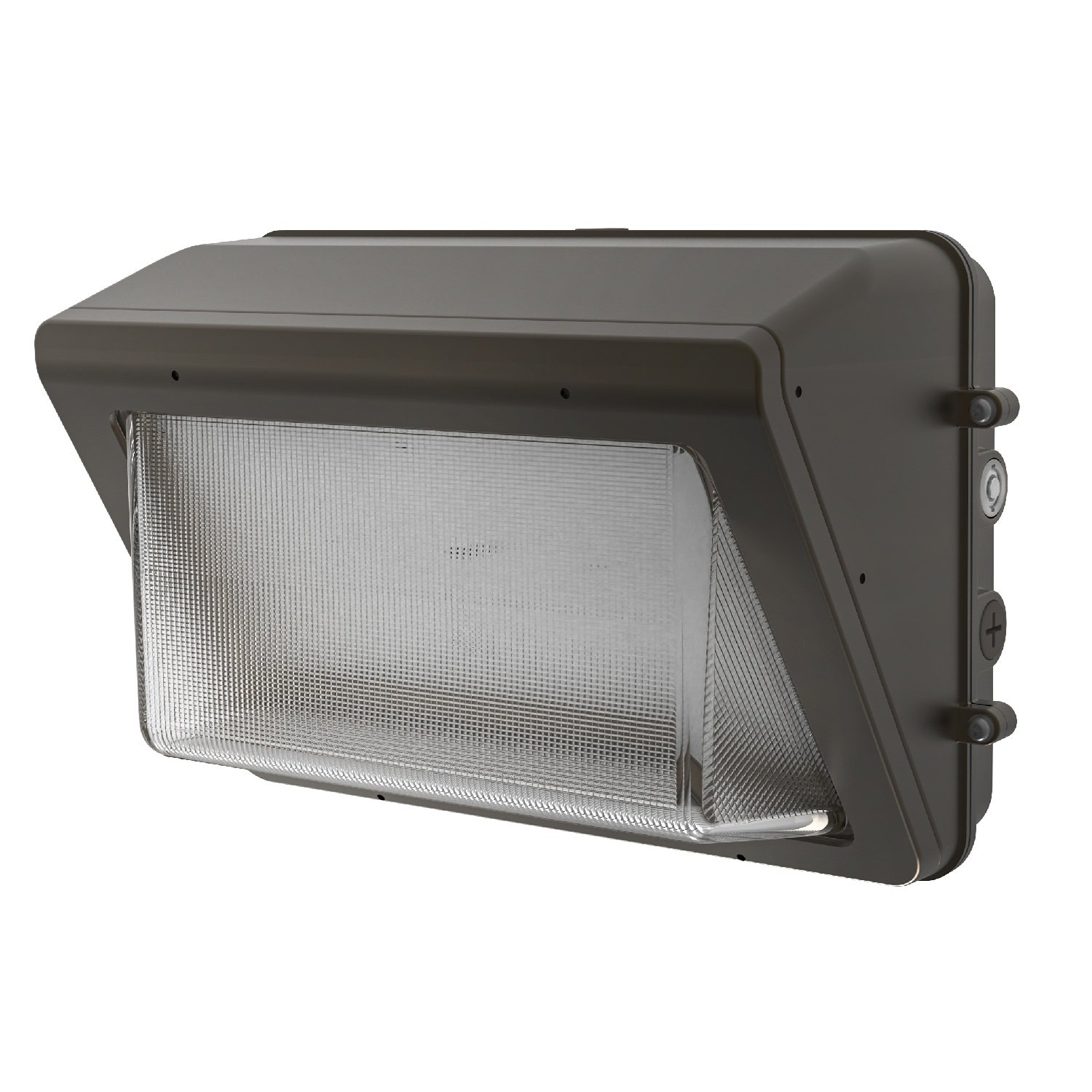

The fixture uses a die-cast aluminum housing with a tempered glass lens. It is rated for wall mounting and finished in bronze. The unit measures 14.2 x 9 x 6.5 inches and weighs 10 lbs.

It is suitable for replacing 250 or 400 watt metal halide wall packs. The fixture operates at 50/60Hz, with a power factor greater than 0.90 and total harmonic distortion under 20%.

The product is UL listed and rebate eligible. It includes 0-10V dimming and is rated for a 50,000 hour (L70) lifespan.

Where This Product Fits Best

This wall pack is intended for exterior or semi-exposed wall mounting where adjustable output and color temperature are required. It is suitable for building perimeters, loading docks, and entryways in commercial and industrial settings.

The IP65 rating allows use in locations exposed to rain, dust, and outdoor conditions. The fixture operates reliably in temperatures from -40°F to 122°F.

It is compatible with 100-277V electrical systems, making it suitable for a wide range of facility power configurations.

Applications include warehouses, manufacturing plants, distribution centers, and similar environments where legacy 250 or 400 watt metal halide wall packs are being replaced.

Performance and Functional Considerations

The fixture provides three selectable wattage settings, allowing adjustment of light output to match site requirements. Lumen output ranges from 11,200 to 16,800, with a consistent efficacy of 140 lumens per watt.

Color temperature can be set to 3000K, 4000K, or 5000K, supporting different visual environments and exterior aesthetics. The fixture maintains a CRI of 70+ across all settings.

0-10V dimming is supported for integration with compatible lighting controls. The built-in photocell enables automatic dusk-to-dawn operation.

Surge protection is rated at 6kV. The fixture is designed for a 50,000 hour L70 lifespan, supporting long-term use with minimal maintenance.

Installation and Long-Term Use

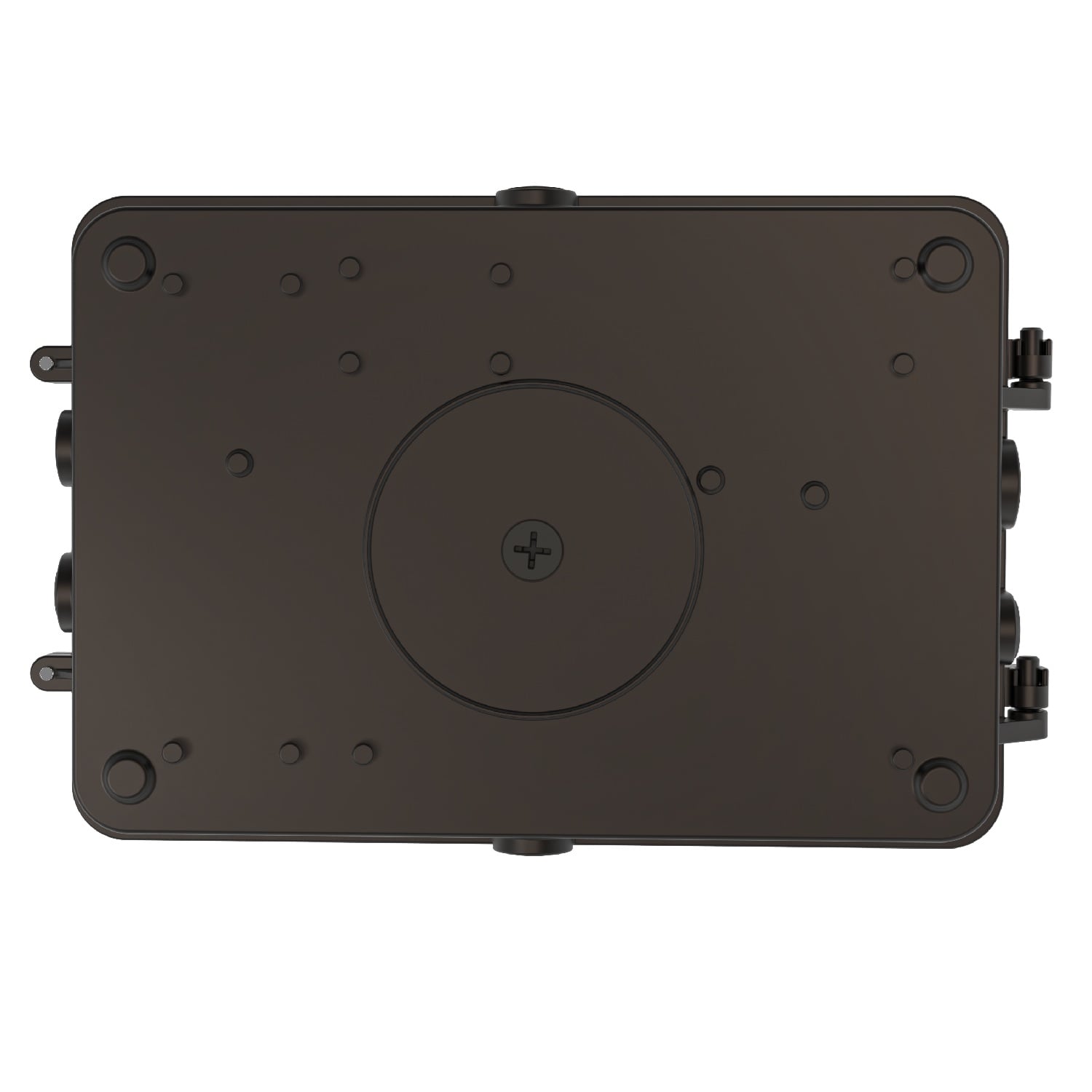

The fixture is designed for direct wall mounting. The die-cast aluminum housing and tempered glass lens provide durability in demanding environments.

With an IP65 rating, the fixture can be installed in locations exposed to water jets and dust without risk of ingress. The operating temperature range supports installation in both hot and cold climates.

The unit weighs 10 lbs and measures 14.2 x 9 x 6.5 inches, allowing for straightforward handling and mounting by a single installer.

Routine maintenance is minimized due to the long LED lifespan and robust construction. The fixture includes a 5-year warranty from LED Lighting Supply.

How This Fixture Is Commonly Used

After installation, you can set the wattage and color temperature to match the lighting needs of the area. Adjustments can be made on-site to increase or decrease light output or to select a warmer or cooler color appearance.

The built-in photocell automates dusk-to-dawn operation, so the fixture turns on and off based on ambient light levels without manual intervention.

Once installed, the fixture operates with minimal attention. The tempered glass lens and die-cast aluminum housing hold up to weather and impacts common in exterior wall applications.

0-10V dimming allows integration with building lighting controls if needed, supporting energy management or scheduled dimming routines.

Safety, Certifications, and Warranty

This fixture is UL listed and rebate eligible.

The IP65 rating allows use in wet and dusty environments. The fixture is rated for operation from -40°F to 122°F.

Surge protection is rated at 6kV. The fixture includes a 5-year warranty from LED Lighting Supply.

The tempered glass lens and die-cast aluminum housing provide physical durability for exterior use.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100-277V.

What is the wattage and lumen output range?
Selectable wattage settings are 80, 100, or 120 watts, with lumen output from 11,200 to 16,800.

What environmental conditions can this fixture handle?
The fixture is rated IP65 and operates from -40°F to 122°F.

What mounting method is supported?
This fixture is designed for wall mounting.

Is this fixture UL listed and rebate eligible?
This fixture is UL listed and rebate eligible.

What warranty is provided?
LED Lighting Supply provides a 5-year warranty on this fixture.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
