30 / 45 / 63 Watt Adjustable Full Cutoff LED Wall Pack | 4650 to 9765 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Built-In Photocell

Product Overview

This adjustable full cutoff LED wall pack provides exterior wall-mounted lighting with selectable 30W, 45W, and 63W output settings. It also includes selectable 3000K, 4000K, and 5000K color temperatures and a built-in photocell.

The fixture is configured for wall mounting on commercial exterior surfaces where controlled downward light distribution is needed. Its full cutoff form limits uplight compared with open-style wall pack fixtures.

This wall pack replaces a 250W metal halide fixture while using substantially less power at its selected wattage setting.

Core Performance and Output

Output ranges from 4,650 to 9,765 lumens, depending on the selected wattage. Fixture efficacy is 155 lumens per watt, with a CRI of 70+.

The full cutoff distribution directs light downward from the wall mounting position. Higher output settings provide more light from each fixture, while low mounting locations may require the lower wattage setting to control excessive brightness.

The fixture operates on 100-277V, 50/60Hz power. Power factor is greater than 0.9, and total harmonic distortion is less than 20%.

Adjustability and Control Options

Wattage is field adjustable between 30W, 45W, and 63W. Color temperature is adjustable between 3000K, 4000K, and 5000K.

A built-in photocell supports dusk-to-dawn operation based on ambient light. The fixture is not dimmable.

An optional emergency backup is available. Confirm emergency backup requirements before installation because the fixture data does not establish emergency runtime or output.

Longevity and Reliability

The rated service life is 50,000 hours at L70. This rating indicates the point at which light output is expected to reach 70% of initial output.

The operating temperature range is -40 degrees F to 113 degrees F. Integrated 4kV surge protection provides electrical protection against transient events.

Build Quality and Physical Characteristics

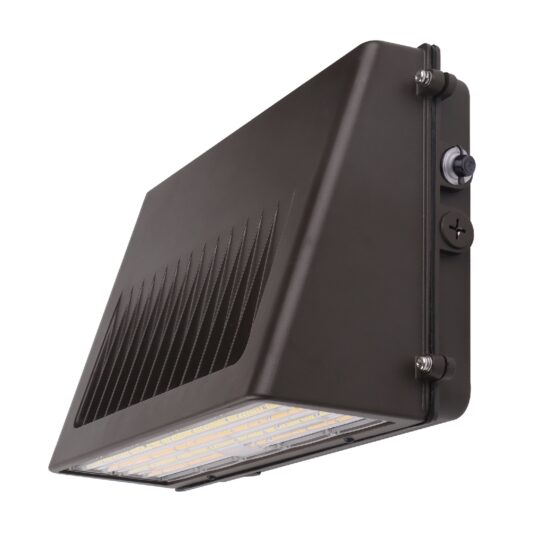

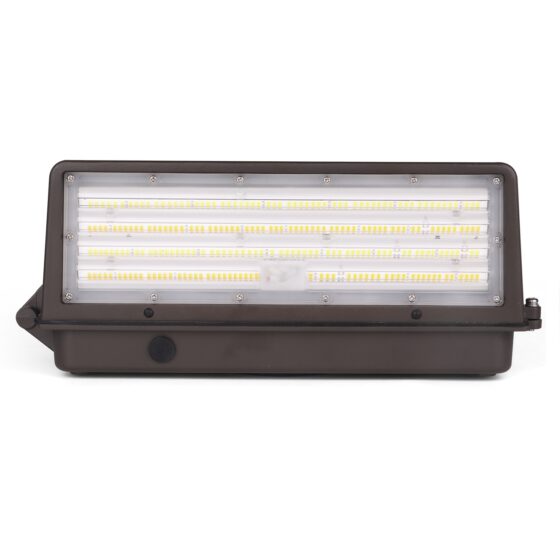

The housing is die-cast aluminum with a bronze finish. A polycarbonate lens protects the optical components.

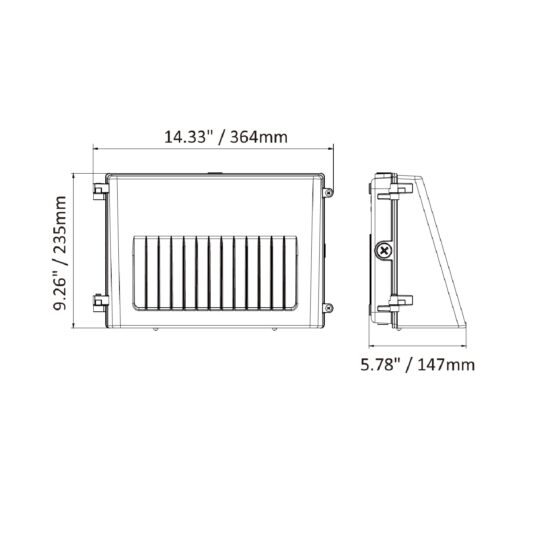

The fixture measures 14.33 inches long by 9.25 inches high by 5.78 inches wide and weighs 6.16 pounds. Its IP65 rating supports exterior wall installation where the fixture is exposed to weather.

Where This Product Fits Best

This wall pack fits exterior wall locations requiring controlled illumination near building surfaces, entries, service points, and property boundaries.

• security lighting and perimeter lighting
• building facade lighting and building exterior lighting
• commercial exterior wall lighting
• entry lighting and service area lighting
• loading area lighting
• alley lighting

The IP65 enclosure, die-cast aluminum housing, and -40 degrees F to 113 degrees F operating range support exposed exterior conditions. The full cutoff design is appropriate where light should be directed below the fixture rather than above the mounting plane.

Installation and Long-Term Use

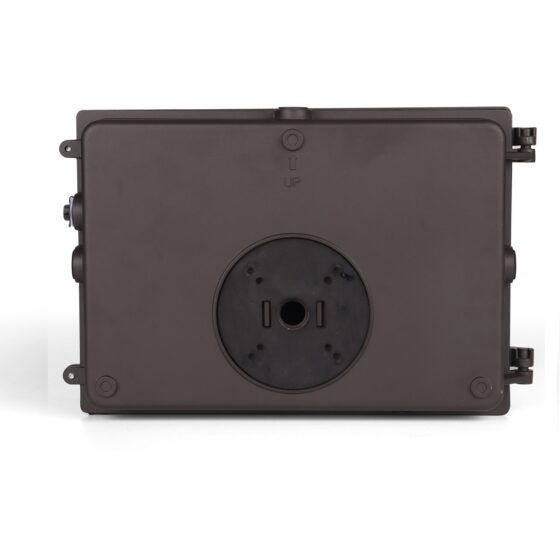

The fixture mounts directly to a wall surface. Verify the wall structure, junction box condition, supply voltage, and mounting location before installation.

Set wattage and color temperature before final commissioning. The built-in photocell should be positioned so nearby artificial light does not cause unwanted cycling.

For long-term maintenance, inspect the lens, housing, seals, mounting hardware, and electrical connections during routine exterior lighting service. The fixture is not dimmable, so output adjustment is limited to its wattage settings.

How This Fixture Is Commonly Used

Wall mounting height is determined by the building surface, target light level, and the area needing illumination below the fixture. The full cutoff distribution places light below the mounting location rather than projecting light upward.

For security lighting, perimeter lighting, and building exterior lighting, fixtures are typically arranged along wall lines and around access points. Entry lighting, service area lighting, loading area lighting, and alley lighting layouts follow the wall geometry and available mounting points.

Spacing varies with the selected wattage, mounting height, wall setbacks, and required light levels. Higher output can reduce fixture count, but it can also create brighter areas directly below the fixture.

Safety, Certifications, and Warranty

UL listed. Rebate eligible.

The fixture is IP65 rated and includes 4kV surge protection. It carries a 5-year warranty.

Frequently Asked Questions

Q: What wattage and lumen settings are available?

A: The fixture has selectable 30W, 45W, and 63W settings producing 4,650, 6,675, and 9,765 lumens, respectively.

Q: Can the color temperature be changed?

A: Yes. The fixture has selectable 3000K, 4000K, and 5000K color temperature settings.

Q: Does this wall pack include a photocell?

A: Yes. A built-in photocell is included.

Q: Is the fixture dimmable?

A: No. The fixture is not dimmable.

Q: What mounting method does this fixture use?

A: This fixture is designed for wall mounting.

Application Questions and Clarification

Q: Is this fixture appropriate for security lighting and perimeter lighting?

A: The full cutoff wall-mounted design, IP65 rating, selectable wattage, and built-in photocell support security lighting and perimeter lighting applications.

Q: What should be reviewed when placing fixtures for building exterior lighting?

A: Review wall mounting height, selected wattage, target light levels, building geometry, and the required lighting area. The supplied product data does not establish a specific fixture spacing value.

Q: Can the fixture be used for entry lighting or service area lighting?

A: Entry lighting and service area lighting are valid applications. Select the wattage and color temperature based on the required light level and appearance at the installed location.
