45 / 63 / 90 Watt Adjustable Full Cutoff LED Wall Pack | 7200 to 14000 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Built-In Photocell | Bronze or White

Product Overview

This adjustable full cutoff LED wall pack is designed for exterior wall-mounted lighting on commercial and industrial buildings. The fixture supports selectable wattages of 45, 63, or 90 watts, delivering up to 14,000 lumens. It is suitable for replacing 250W or 400W metal halide wall packs in security, perimeter, and building facade applications.

The fixture includes field-adjustable color temperature (3000K, 4000K, 5000K) and a built-in photocell for dusk-to-dawn operation. Typical mounting heights range from 8 to 20 feet on exterior walls, providing uniform illumination for building exteriors and adjacent areas.

Core Performance and Output

This wall pack offers three selectable output levels: 7200, 10,000, or 14,000 lumens, with an efficacy of 150 lumens per watt. The full cutoff design provides forward-throw distribution while minimizing uplight and glare. Color temperature can be set to 3000K, 4000K, or 5000K as needed for site requirements.

Electrical operation is 100-277V, 50/60Hz. The fixture is non-dimming and includes a built-in photocell for automatic on/off control. At lower mounting heights, the 90W setting may produce excessive brightness for pedestrian areas. Uniformity may decrease at mounting heights above 20 feet.

Adjustability and Control Options

Wattage and color temperature are field-adjustable via internal switches, allowing adaptation to site-specific requirements or future changes. The built-in photocell enables dusk-to-dawn operation without external controls. No dimming or networked control options are included.

Adjustment access is located inside the housing, requiring removal of the lens or cover during commissioning or maintenance. The fixture is available in bronze or white finishes to match building aesthetics.

Longevity and Reliability

The fixture is rated for 50,000 hours (L70) and includes a 5-year warranty. The die-cast aluminum housing and polycarbonate lens provide impact resistance and protection against vandalism.

IP65 rating ensures protection against dust and water jets, suitable for exposed exterior installations. Surge protection is rated at 4kV. Operating temperature range is -40°F to 113°F, supporting year-round use in most climates.

Build Quality and Physical Characteristics

The housing is constructed from die-cast aluminum with a powder-coated finish for corrosion resistance. The lens is polycarbonate for durability and impact resistance. Fixture dimensions are 14.33 in L x 9.25 in H x 5.78 in W, with a total weight of 8 lbs.

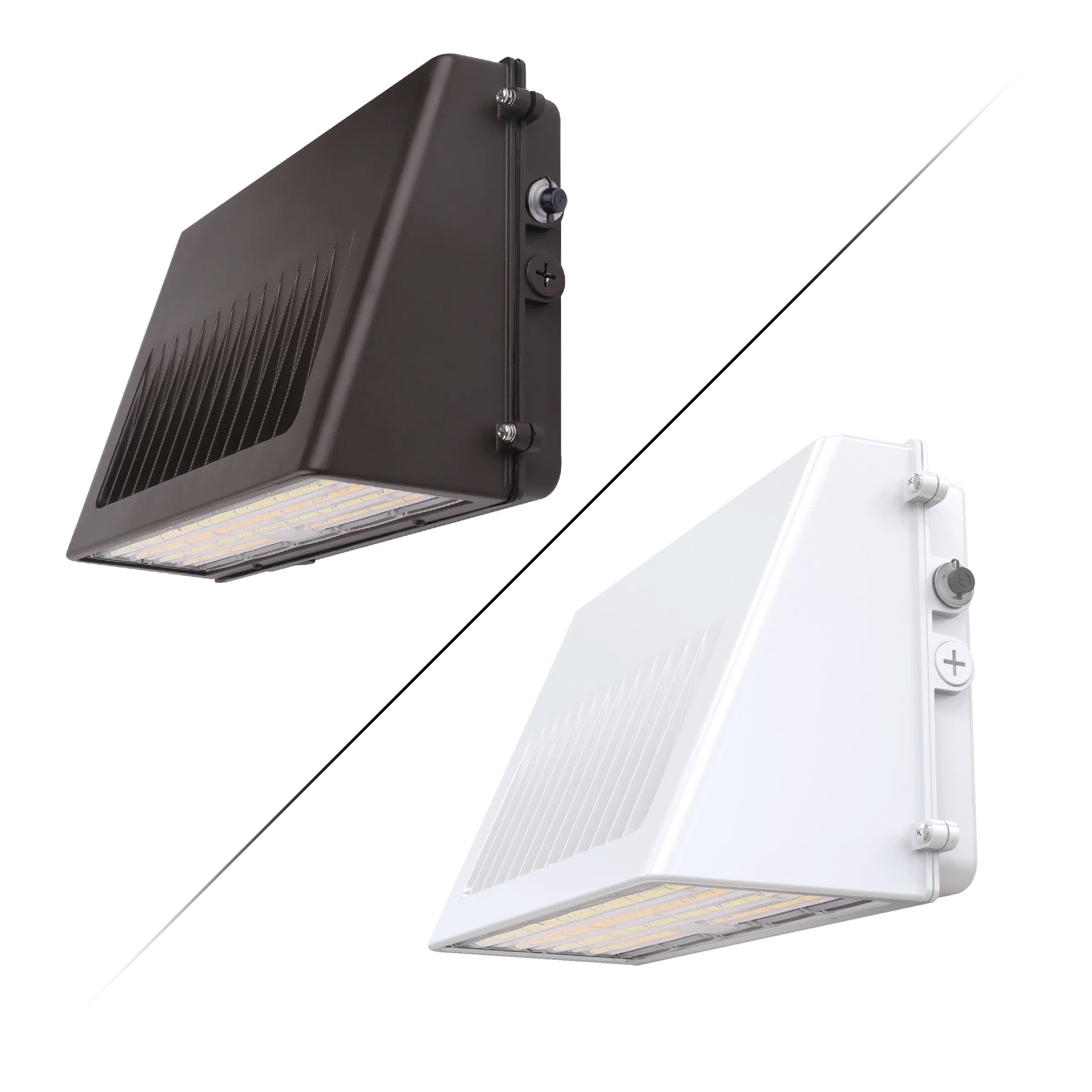

All wiring and adjustment points are accessible from the rear or inside the housing. The fixture is designed for direct wall mounting using standard hardware. Available in bronze or white to match common exterior color schemes.

Where This Product Fits Best

This wall pack is intended for exterior wall mounting on commercial and industrial buildings. It is suitable for security, perimeter, and building facade lighting, as well as entry and service area illumination. The adjustable output and color temperature allow adaptation to a range of exterior environments.

• security lighting
• building facade lighting
• building exterior lighting
• commercial exterior wall lighting
• perimeter lighting
• entry lighting
• service area lighting
• loading area lighting

IP65 rating and vandal-resistant construction support use in exposed locations. The fixture is not intended for canopy, pole, or ceiling mounting. Excessive output may require careful selection of wattage for pedestrian-heavy areas.

Installation and Long-Term Use

The fixture mounts directly to exterior walls using standard anchors or junction boxes. All wiring is completed from the rear, with access to adjustment switches inside the housing. The built-in photocell eliminates the need for separate control wiring.

Routine maintenance is limited to periodic cleaning of the lens and inspection of seals. Field adjustability allows output and color temperature changes without fixture replacement. The fixture is designed for long-term exterior use with minimal service requirements.

How This Fixture Is Commonly Used

Typical mounting heights range from 8 to 20 feet, depending on the area to be illuminated and the selected wattage. Fixtures are spaced to provide overlapping coverage along building perimeters, entryways, and service areas. Layouts often use higher output settings for loading docks or wide facades, and lower settings for pedestrian entries.

Spacing and fixture count depend on site geometry and required light levels. Higher output settings can reduce fixture count but may increase glare or brightness near walkways. Adjustment of wattage and color temperature is often performed during commissioning to match site conditions.

Safety, Certifications, and Warranty

This fixture is UL listed and IP65 rated. It includes 4kV surge protection and is suitable for wet locations. The product is rebate eligible where applicable. A 5-year warranty covers manufacturing defects and performance.

All components are rated for exterior use and meet standard safety requirements for commercial wall-mounted lighting.

Frequently Asked Questions

Q: What is the recommended mounting height for this wall pack?

A: Typical mounting heights range from 8 to 20 feet, depending on the selected wattage and area coverage requirements.

Q: How do I adjust the wattage and color temperature?

A: Wattage and color temperature are set using internal switches located inside the housing. Access requires removal of the lens or cover.

Q: Is this fixture compatible with dimming controls?

A: No, this fixture does not support dimming. It includes a built-in photocell for dusk-to-dawn operation.

Q: Can this wall pack be used in coastal or corrosive environments?

A: The die-cast aluminum housing and powder-coated finish provide corrosion resistance, but for highly corrosive or marine environments, a dedicated marine-rated fixture is recommended.

Q: How should I plan fixture spacing for perimeter lighting?

A: Spacing depends on mounting height, output setting, and required light levels. For uniform coverage, fixtures are typically spaced 2 to 3 times the mounting height apart.

Application Questions and Clarification

Q: Is this wall pack suitable for entry lighting on multifamily buildings?

A: Yes, the adjustable output and color temperature support use at building entries, including multifamily exterior lighting.

Q: Can this fixture be used for loading area lighting?

A: Yes, the higher output settings are suitable for loading area and service area lighting on commercial buildings.

Q: Is this fixture appropriate for alley lighting?

A: Yes, this wall pack is commonly used for alley lighting when mounted on building exteriors.

Q: Does the fixture support installation on canopy ceilings or poles?

A: No, this fixture is designed for direct wall mounting only and is not intended for canopy or pole installations.
