12 / 18 / 24 / 30 Watt Adjustable Full Cutoff Architectural LED Wall Pack | 1584 to 3960 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Built-In Photocell

Product Overview

This adjustable full cutoff architectural LED wall pack is designed for exterior wall mounting on commercial and institutional buildings. It provides selectable wattage and color temperature, allowing adaptation to a range of exterior lighting requirements. The fixture is intended for use in security, perimeter, and architectural wall lighting where controlled light distribution and visual uniformity are priorities.

Typical installations include building entrances, service areas, and exterior walkways. The built-in photocell supports dusk-to-dawn operation, reducing manual intervention and supporting energy management strategies. The compact form factor and architectural styling allow for use on both new construction and retrofit projects where appearance and performance are both required.

Core Performance and Output

This wall pack delivers selectable output from 1584 to 3960 lumens, with wattage settings at 12, 18, 24, or 30 watts. The fixture achieves 132 lumens per watt, supporting energy-efficient exterior lighting. Type 4 distribution provides forward-throw coverage suitable for perimeter and entry lighting, minimizing uplight and spill.

Color temperature is field adjustable between 3000K, 4000K, and 5000K, supporting both architectural and security-focused applications. Output at the highest setting may be excessive for small entryways or low mounting heights below 8 feet. Uniformity may decrease if spacing exceeds typical wall pack intervals on large facades.

Adjustability and Control Options

Wattage and color temperature are both adjustable via onboard controls, allowing field selection to match site requirements. The integrated photocell enables automatic dusk-to-dawn operation, reducing the need for external controls or manual switching. 1-10V dimming is supported for integration with compatible lighting control systems.

Adjustability allows for tuning output and color to match changes in site use or lighting standards over time. The fixture is not intended for use with advanced networked controls or occupancy sensors without additional components.

Longevity and Reliability

The fixture is rated for 50,000 hours (L70), supporting long-term exterior use with minimal maintenance. The die-cast aluminum housing and polycarbonate lens provide resistance to impact and weather exposure. The IP65 rating ensures protection against dust and water jets, suitable for most exterior wall environments.

Operating temperature range is -22°F to 113°F, covering typical North American climates. The fixture is designed for consistent performance in both hot and cold weather, but is not intended for environments with sustained temperatures above 113°F or corrosive atmospheres.

Build Quality and Physical Characteristics

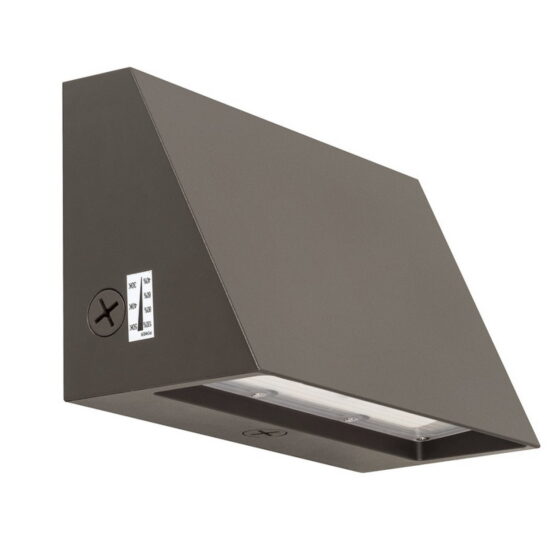

The housing is constructed from die-cast aluminum with a bronze finish, providing durability and corrosion resistance. The fixture measures 9.9 inches long, 4.4 inches wide, and 5.8 inches high, with a total weight of 7.3 lbs. The polycarbonate lens is impact resistant and supports uniform light distribution.

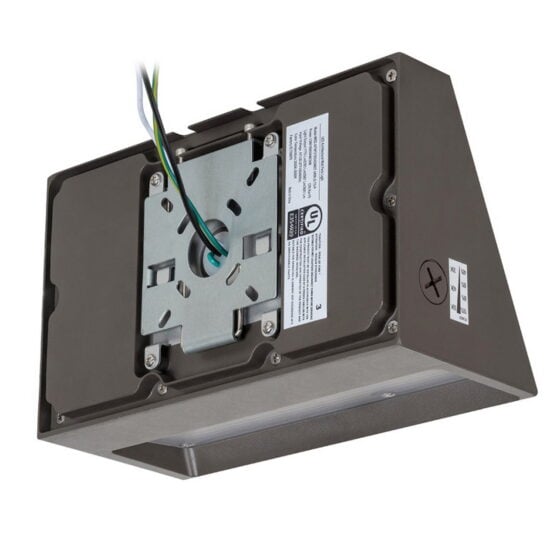

All wiring and adjustment controls are accessible during installation. The fixture is designed for direct wall mounting and includes all necessary hardware for standard installations. The compact size supports use on architectural facades without excessive visual impact.

Where This Product Fits Best

This wall pack is suited for exterior wall lighting on commercial, institutional, and multifamily buildings. It is commonly used where controlled forward-throw distribution and architectural appearance are required. The fixture is appropriate for both retrofit and new construction projects where selectable output and color are beneficial.

• security lighting
• building facade lighting
• building exterior lighting
• commercial exterior wall lighting
• perimeter lighting
• entry lighting
• service area lighting
• multifamily exterior lighting

IP65 rating supports use in wet locations and exposed exterior environments. The fixture is not intended for hazardous, marine, or high-abuse locations.

Installation and Long-Term Use

The fixture is designed for direct wall mounting using standard junction boxes or surface conduit. All adjustment controls are accessible during installation, allowing for field selection of wattage and color temperature. The built-in photocell simplifies wiring for dusk-to-dawn operation.

Routine maintenance is limited to periodic cleaning of the lens and inspection of seals. The fixture is not serviceable at the component level; replacement is recommended at end of life. Installation at heights between 8 and 15 feet is typical for optimal coverage and uniformity.

How This Fixture Is Commonly Used

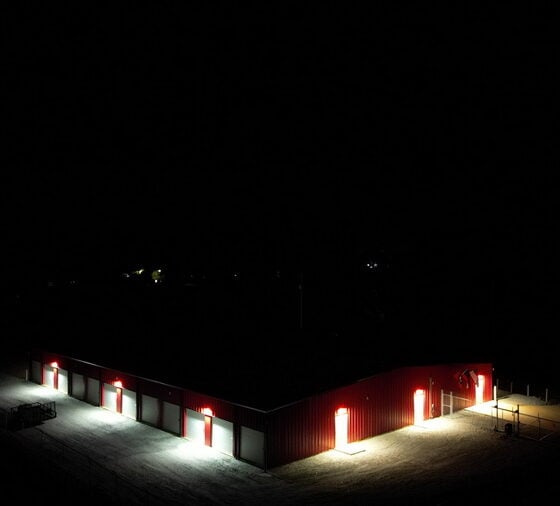

Common mounting heights range from 8 to 15 feet, depending on the area to be illuminated and the selected wattage. Fixtures are typically spaced 15 to 30 feet apart along building facades or perimeter walls to achieve uniform coverage. Entry and service area installations may use closer spacing for higher light levels.

Higher output settings reduce the number of fixtures required but may increase glare if mounted at low heights or near pedestrian entries. Spacing and output should be coordinated with site requirements and visual comfort goals.

Safety, Certifications, and Warranty

This fixture is UL listed and IP65 rated. It meets requirements for exterior wall lighting in commercial and institutional settings. The product is eligible for utility rebates where applicable.

A 5-year warranty covers manufacturing defects and performance. All safety and certification markings are present on the product label and documentation.

Frequently Asked Questions

Q: What is the recommended mounting height for this wall pack?

A: Typical mounting heights are between 8 and 15 feet for optimal coverage and uniformity.

Q: Can the wattage and color temperature be adjusted after installation?

A: Yes, both wattage and color temperature are field adjustable using onboard controls accessible during installation or maintenance.

Q: Is the built-in photocell required to be used?

A: The photocell is integrated but can be bypassed if dusk-to-dawn operation is not desired.

Q: What type of dimming is supported?

A: The fixture supports 1-10V dimming for use with compatible control systems.

Q: How should fixtures be spaced for perimeter lighting?

A: Spacing typically ranges from 15 to 30 feet, depending on mounting height, output setting, and required light levels.

Application Questions and Clarification

Q: Is this fixture suitable for use in loading area lighting?

A: Yes, this wall pack is commonly used for loading area lighting on building exteriors.

Q: Can this fixture be installed in multifamily exterior lighting applications?

A: Yes, it is suitable for multifamily exterior lighting, including entryways and perimeter walls.

Q: Is this wall pack appropriate for use in hazardous or marine environments?

A: No, this fixture is not designed for hazardous or marine environments. It is intended for standard exterior wall applications.

Q: Does the fixture support installation on both new construction and retrofit projects?

A: Yes, the fixture is suitable for both new construction and retrofit installations where wall-mounted exterior lighting is required.
