30 / 40 / 50 Watt Adjustable LED Wall Pack | 4500 to 7500 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Built-In Photocell

Product Overview

This is an adjustable LED wall pack designed for exterior wall mounting on commercial and industrial buildings. The fixture provides selectable wattage and color temperature, allowing adaptation to site-specific requirements. Typical use cases include replacing 150W or 250W metal halide wall packs on building perimeters, service areas, and entry points. The built-in photocell supports dusk-to-dawn operation for security and exterior illumination.

Common mounting heights range from 8 to 15 feet, depending on output setting and coverage needs. The fixture is suitable for environments exposed to weather, with an IP65 rating and die-cast aluminum housing for durability.

Core Performance and Output

This wall pack delivers 4500 to 7500 lumens, selectable via onboard wattage adjustment (30W, 40W, or 50W). Efficacy is 150 lumens per watt. The 110° Type 4 distribution provides wide, forward-throw coverage suitable for perimeter and entry lighting. Color temperature is field-adjustable between 3000K, 4000K, and 5000K to match site requirements or existing lighting.

Power factor exceeds 0.90, and total harmonic distortion is below 20%. 1-10V dimming is supported. At lower mounting heights, the 50W setting may produce excessive brightness or glare; for uniformity at higher mounting heights, spacing and aiming should be considered.

Adjustability and Control Options

Wattage and color temperature are both adjustable via internal switches, allowing field selection during installation or maintenance. This supports adaptation to changing site needs or retrofits where matching existing light levels is required. The built-in photocell enables automatic dusk-to-dawn operation, reducing manual intervention.

1-10V dimming is available for integration with compatible controls. No motion sensor is included. Adjustability features are accessible after removing the lens cover; ensure power is disconnected before making changes.

Longevity and Reliability

The fixture is rated for 50,000 hours (L70) at typical operating conditions. The die-cast aluminum housing and tempered glass lens provide resistance to impact and weather exposure. The IP65 rating protects against dust and water jets from any direction.

Operating temperature range is -40°F to 122°F. The fixture is designed for long-term exterior use with minimal maintenance. The integrated driver and LED modules are not field-serviceable; replacement is required at end of life.

Build Quality and Physical Characteristics

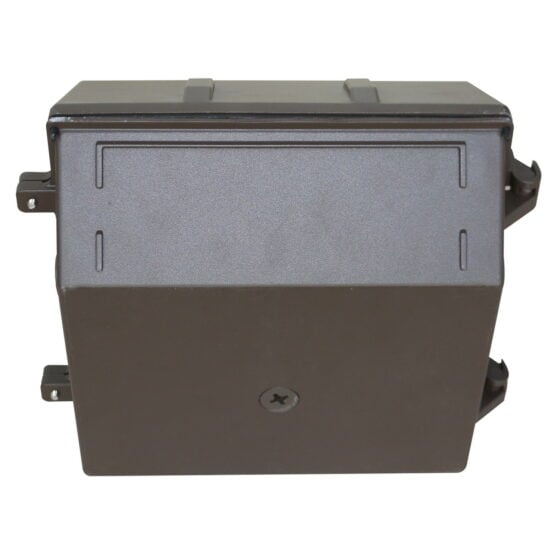

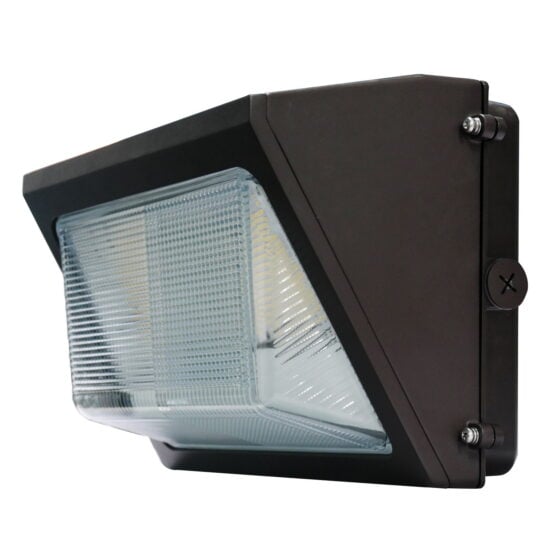

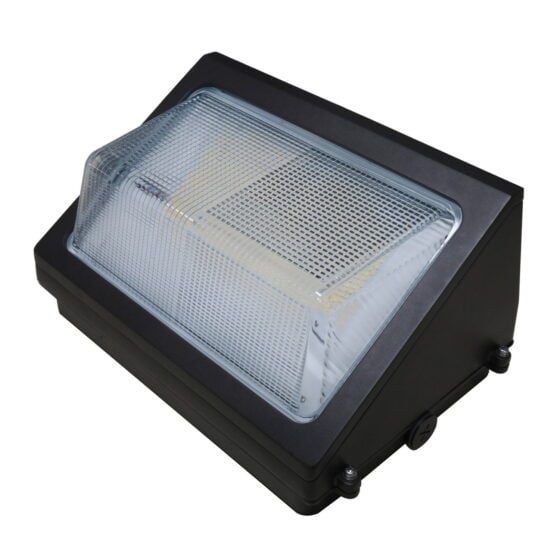

The housing is constructed from die-cast aluminum with a bronze finish. The lens is tempered glass for durability and optical clarity. Fixture dimensions are 14 x 9 x 7.12 inches, and weight is 8.5 lbs. All wiring and adjustment points are accessible from the rear or interior of the housing.

Wall mounting is standard. The fixture is UL listed and IP65 rated. All hardware is corrosion-resistant for outdoor installation. The design supports direct replacement of legacy wall packs with similar mounting patterns.

Where This Product Fits Best

This wall pack is intended for exterior wall mounting on commercial and industrial buildings where perimeter, security, and entry lighting are required. It is suitable for use in environments exposed to rain, dust, and temperature extremes. The adjustable output and color temperature allow use across a range of building types and exterior conditions.

• security lighting
• building facade lighting
• building exterior lighting
• commercial exterior wall lighting
• perimeter lighting
• entry lighting
• service area lighting
• loading area lighting

Environmental characteristics include resistance to water, dust, and impact. The fixture is not suitable for hazardous locations or areas requiring specialized ratings beyond IP65 and UL.

Installation and Long-Term Use

Wall mounting is accomplished using the integrated backplate and standard hardware. The fixture supports direct wiring to 100-277V circuits. Adjustment of wattage and color temperature is performed during installation or maintenance by accessing internal switches.

Routine inspection of the lens and housing is recommended to maintain optical performance. The built-in photocell requires unobstructed exposure to ambient light for proper operation. No special tools are required for installation. Long-term use is supported by robust construction and weatherproof design.

How This Fixture Is Commonly Used

Typical mounting heights are 8 to 15 feet, depending on output setting and area coverage requirements. Fixtures are spaced to provide overlapping coverage along building perimeters, entryways, and service areas. The wide beam angle supports broad, uniform illumination with minimal shadowing.

Spacing and fixture count vary based on selected wattage and desired light levels. Higher output settings reduce fixture count but may increase glare at low mounting heights. Adjustability allows adaptation to site-specific needs over time.

Safety, Certifications, and Warranty

This fixture is UL listed and IP65 rated. It meets requirements for exterior wall-mounted lighting in commercial and industrial environments. The product is eligible for utility rebates where applicable.

Warranty coverage is 5 years from date of installation. All components are designed for safe operation within the specified voltage and temperature range. No hazardous materials are present in the construction.

Frequently Asked Questions

Q: What is the recommended mounting height for this wall pack?

A: Recommended mounting height is 8 to 15 feet, depending on output setting and coverage needs.

Q: How do I adjust the wattage and color temperature?

A: Wattage and color temperature are adjusted via internal switches accessible after removing the lens cover. Power must be disconnected before making adjustments.

Q: Is the built-in photocell field-replaceable?

A: The photocell is integrated and not field-replaceable. If photocell function fails, the fixture must be replaced.

Q: Can this fixture be used with external lighting controls?

A: 1-10V dimming is supported for integration with compatible external controls. No motion sensor is included.

Q: What is the expected lifespan of the fixture?

A: The fixture is rated for 50,000 hours (L70) under typical operating conditions.

Q: How should fixtures be spaced for perimeter lighting?

A: Spacing depends on selected wattage and required light levels. Typical spacing is 2 to 3 times the mounting height for uniform coverage.

Application Questions and Clarification

Q: Is this wall pack suitable for hazardous or corrosive environments?

A: This fixture is not rated for hazardous or corrosive environments. It is intended for standard exterior use with IP65 protection.

Q: Can this fixture be used for multifamily exterior lighting?

A: Yes, it is suitable for multifamily exterior lighting where wall-mounted perimeter or entry illumination is required.

Q: Does the fixture support upward or downward aiming?

A: The fixture is designed for downward wall mounting only. Upward aiming is not supported.

Q: Is this fixture appropriate for use in loading area lighting?

A: Yes, it is commonly used for loading area lighting on building exteriors at appropriate mounting heights.
