LED Distillery Lighting
Choose LED distillery light fixtures by evaluating each mounting location, not by wattage or fixture appearance alone. First determine whether the location is within a hazardous boundary or exposed to moisture, cleaning, heat, or sanitary requirements. Then confirm the illumination needed for the work performed, along with ceiling height, ventilation, alcohol vapor, controls, and other site conditions. Areas where ethanol or other flammable vapors may be released can require
Class I, Division 1 or
Class I, Division 2 hazardous-location lighting. Other production areas may need vapor-tight, washdown-rated, NSF-listed, corrosion-resistant, or high-temperature fixtures. Warehouses, offices, and tasting rooms outside hazardous boundaries may use standard commercial or industrial lighting.
Selection and Installation Note: Confirm the class, division or zone, gas group, temperature code, ambient-temperature range, wet-location or IP rating, sanitary requirements, voltage, controls, mounting method, and product listing required for the exact installation area. Hazardous-area classifications and final fixture approval should be confirmed by the facility team, project engineer, safety professional, authority having jurisdiction, or another qualified professional.
Recommended Foot-Candles for Distillery Lighting
Distillery light levels vary by the work performed. Bottling, inspection, equipment maintenance, and gauge reading generally need more light than barrel storage or general circulation. Tasting rooms require a different lighting approach than production areas, while classified locations require properly approved fixtures regardless of the desired foot-candle level.
Distillery Lighting by Area and Hazard
A distillery usually requires several fixture families. The table below identifies the primary lighting and environmental considerations for common production, storage, support, and visitor areas.
| Distillery Area |
Lighting and Hazard Considerations |
| Fermentation areas |
Review carbon dioxide accumulation, moisture, cleaning procedures, vessel layout, valves, platforms, and whether alcohol-containing material or process conditions create a classified location. |
| Distillation and still areas |
Ethanol vapor, process heat, tanks, piping, valves, vents, pumps, and limited ventilation may require C1D1 or C1D2 fixtures with suitable temperature and environmental ratings. |
| Spirit receiving and collection |
Areas around spirit receivers, collection tanks, proofing equipment, sampling points, vents, and transfer connections should be reviewed for normal or abnormal vapor release. |
| Blending and proofing areas |
Pumps, open handling, tanks, sampling, transfer, and high-proof alcohol may create classified areas. Lighting should also support reading instruments and inspecting connections. |
| Barrel filling and dumping |
Alcohol transfer, open containers, hoses, spills, and vapor release may require hazardous-location lighting. Useful vertical illumination is needed around barrels, fittings, controls, and walking surfaces. |
| Barrel warehouses and aging rooms |
Classification depends on alcohol storage, vapor concentration, ventilation, building design, and local requirements. Fixtures may also need low-glare distribution, corrosion resistance, or low-temperature performance. |
| Bottling and packaging lines |
Uniform light, good CRI, and controlled glare support inspection of fill levels, labels, caps, closures, seals, cartons, and finished products. Hazardous-location fixtures may not be required where the area is outside classified boundaries. |
| Washdown and cleaning areas |
Moisture, spray, steam, chemicals, and temperature changes may require sealed vapor-tight, washdown-rated, corrosion-resistant, or NSF-listed fixtures. |
| Flammable liquid and chemical storage |
Alcohol, solvents, cleaning agents, fuels, and chemicals should be reviewed for vapor hazards, ventilation, storage methods, and C1D1 or C1D2 requirements. |
| Maintenance and utility rooms |
Review solvents, lubricants, boiler equipment, heat, steam, impact, vibration, electrical panels, task visibility, and whether the room is inside or outside a classified area. |
| Tasting rooms and visitor areas |
Architectural, recessed, pendant, or decorative fixtures can create a warmer environment where the space is outside hazardous boundaries. Glare, dimming, product presentation, and emergency lighting should be considered. |
| Offices and administrative spaces |
Panels, troffers, or linear fixtures can provide comfortable illumination for computer work, reading, meetings, and paperwork. |
Class I Division 1 and Division 2 Lighting in Distilleries
Ethanol is a flammable liquid that can produce ignitable vapor concentrations under certain conditions. A distillery can contain C1D1, C1D2, and non-classified areas depending on the process, alcohol concentration, equipment design, ventilation, release points, and operating procedures.
| Classification |
Where It May Apply in a Distillery |
| Class I, Division 1 |
Areas where ignitable alcohol vapor may be present during normal production, transfer, filling, dumping, sampling, venting, draining, cleaning, maintenance, or other expected operations. |
| Class I, Division 2 |
Surrounding areas where alcohol is normally contained within closed tanks, piping, vessels, or transfer equipment and an ignitable atmosphere would generally result from an abnormal leak, rupture, equipment failure, or ventilation problem. |
| Non-Classified |
Bottling areas, warehouses, offices, tasting rooms, and support spaces that are outside the hazardous boundaries shown on the facility’s electrical drawings. |
C1D1 and C1D2 are hazardous-location area classifications, not fixture shapes or universal fixture approvals. Area lights, flood lights, linear fixtures, compact lights, and high bays may each be available with different hazardous-location listings. A fixture listed for C1D1 is not automatically suitable for every C1D1 installation. The gas group, temperature code, ambient-temperature range, voltage, wiring method, environmental ratings, and accessories must also match the application.
Where Hazardous-Location Lighting May Be Required
| Area or Process |
What to Review |
| Stills and distillation equipment |
Review ethanol vapor release, valves, seals, vents, drains, pumps, process openings, ambient heat, ventilation, and classified boundaries. |
| Spirit receivers and collection vessels |
Confirm whether normal filling, venting, sampling, draining, or transfer operations can release ignitable vapor. |
| Blending and proofing tanks |
Review alcohol concentration, open versus closed handling, tank vents, pumps, valves, sampling, transfer, and cleaning procedures. |
| Barrel filling and dumping stations |
Consider open containers, hoses, spills, transfer connections, drainage, ventilation, and the frequency of vapor release during routine operations. |
| Pump and transfer areas |
Mechanical seals, hoses, fittings, valves, manifolds, and connections may create potential release points requiring classified fixtures. |
| High-proof alcohol storage |
Review tank construction, container type, quantity, ventilation, vents, spill control, transfer operations, and the hazardous boundaries assigned to the storage area. |
| Flammable chemical storage |
Solvents, cleaners, coatings, fuels, and maintenance chemicals may create Class I requirements separate from the alcohol-production process. |
| Enclosed or poorly ventilated spaces |
Vapor can accumulate differently in pits, low areas, rooms, ceiling pockets, or enclosed equipment spaces. Classification should account for ventilation and vapor behavior. |
Hazardous-Location Buying Guidance: Confirm the class, division or zone, gas group, temperature code, ambient-temperature range, mounting method, voltage, conduit, seals, fittings, controls, and environmental rating before ordering. A vapor-tight, NSF-listed, or wet-location fixture is not automatically approved for a hazardous location.
Recommended Types of Distillery Lights
| Fixture Type |
Where It Works Best |
| Explosion-Proof LED Area Lights |
Classified production floors, distillation areas, spirit handling, blending, pump areas, and other open work zones that need broad general illumination. |
| Explosion-Proof LED Flood Lights |
Stills, tanks, elevated equipment, barrel handling, loading areas, and machinery that need directional illumination. |
| Explosion-Proof Linear LED Lights |
Platforms, walkways, stairs, equipment rooms, production lines, tank areas, and spaces where an elongated light distribution provides more even coverage. |
| Compact Explosion-Proof Lights |
Valves, gauges, instrument points, doors, stairs, landings, small equipment areas, and localized inspection locations. |
| Hazardous-Location High Bays |
Classified production or storage spaces with higher ceilings where broad downward illumination is needed and the exact model carries the required approval. |
| NSF-Listed LED Fixtures |
Food and beverage production, bottling, packaging, and sanitary areas where cleanable construction is required and the location is not classified unless the model also carries the required hazardous approval. |
| Vapor-Tight LED Fixtures |
Washdown, damp, humid, cleaning-heavy, and condensation-prone spaces outside classified boundaries, unless the fixture has additional hazardous-location approval. |
| High-Temperature LED Fixtures |
Areas near stills, boilers, process heat, hot piping, and ceiling spaces where the ambient temperature exceeds standard fixture limits. |

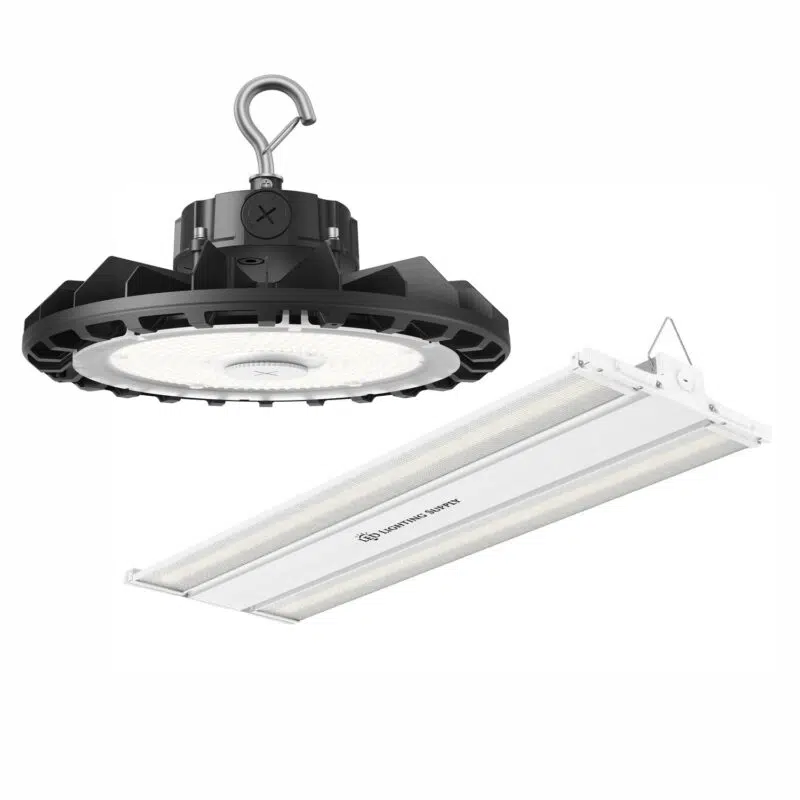

| Standard LED High Bays |
Non-classified bottling, warehousing, storage, and production areas with higher ceilings and suitable environmental conditions. |
| Panels, Linear Fixtures, and Architectural Lights |
Offices, laboratories, tasting rooms, bars, retail displays, meeting rooms, and customer-facing spaces outside hazardous zones. |
How to Choose LED Distillery Lighting
| Selection Factor |
What to Confirm |
| Hazard classification |
Determine whether the fixture location is C1D1, C1D2, Zone-classified, or outside the hazardous area. |
| Alcohol concentration and process |
Review where high-proof alcohol is produced, collected, transferred, blended, stored, filled, dumped, sampled, or drained. |
| Release points |
Identify vents, seals, valves, fittings, pumps, hoses, tank openings, drains, transfer connections, and sampling points. |
| Ventilation and vapor behavior |
Consider room ventilation, enclosed equipment, pits, low areas, floor drains, tanks, walls, and other features that can affect vapor accumulation. |
| Gas group and temperature code |
Confirm that the fixture approval and maximum surface temperature are suitable for the flammable material present. |
| Ambient temperature |
Check temperature at fixture height near stills, boilers, tanks, process piping, steam, and poorly ventilated ceiling spaces. |
| Moisture and cleaning |
Review spray, washdown pressure, steam, condensation, cleaning agents, lens materials, gaskets, housings, and IP ratings. |
| Sanitary requirements |
Determine whether NSF-listed or easily cleanable fixtures are required for bottling, packaging, or production areas. |
| Fixture distribution |
Use area or high bay fixtures for broad coverage, flood lights for directional targets, linear fixtures for production lines and platforms, and compact lights for localized work. |
| Inspection and color quality |
Confirm foot-candles, CRI, CCT, uniformity, and glare control for labels, fill levels, caps, seals, color, and visual inspection. |
| Voltage and controls |
Confirm voltage, dimming, emergency circuits, sensors, control wiring, and whether controls and accessories are approved for the environment. |
| Complete electrical installation |
Conduit, seals, fittings, junction boxes, cable entries, switches, sensors, grounding, and wiring methods must also meet classified-area requirements. |
Washdown, Moisture, and Sanitary Lighting
Distillery production, bottling, and cleaning areas can expose fixtures to water, steam, humidity, temperature changes, product residue, and cleaning chemicals. These locations may require vapor-tight, washdown-rated, corrosion-resistant, or NSF-listed fixtures even when they are outside a hazardous zone.
| Site Condition |
Fixture Considerations |
| Water spray and washdown |
Confirm water pressure, spray direction, cleaning frequency, mounting orientation, IP rating, gasket design, and housing construction. |
| Steam and condensation |
Use sealed fixtures designed to resist moisture intrusion and verify materials, seals, and environmental ratings for the expected conditions. |
| Cleaning chemicals |
Review housing, lens, coating, seal, gasket, hardware, and mounting compatibility with detergents, sanitizers, and other cleaning agents. |
| Food and beverage production |
NSF-listed or sanitary fixtures may be required where cleanability, smooth construction, debris control, or specific sanitation standards apply. |
| Classified washdown areas |
The fixture may need both hazardous-location approval and the appropriate wet-location or washdown rating. One rating does not replace the other. |
High-Temperature Areas Near Stills and Process Equipment
Stills, boilers, hot piping, process vessels, steam systems, and poorly ventilated ceiling spaces can expose fixtures to elevated ambient temperatures. The temperature at the mounting location may be substantially higher than the occupied floor level. Confirm the fixture’s maximum ambient-temperature rating, lumen performance at elevated temperature, driver location, IP rating, mounting method, hazardous-location temperature code where applicable, and warranty conditions. A standard LED fixture may fail prematurely or operate outside its listing even when its initial lumen output appears sufficient.
Color Temperature and Visual Inspection
Production, bottling, packaging, laboratories, and inspection areas commonly use neutral or cooler color temperatures such as 4000K or 5000K for clear visibility. Tasting rooms, bars, displays, and visitor areas often use warmer lighting around 3000K to create a more comfortable atmosphere. CRI, glare, distribution, and uniformity are also important. Bottling personnel may need to inspect fill levels, labels, caps, closures, seals, carton printing, and product appearance. Selecting color temperature alone will not correct uneven coverage or glare.
Controls for Distillery Lighting
Occupancy sensors, dimming, schedules, switching zones, and building controls can reduce energy use in warehouses, offices, storage rooms, and intermittently occupied areas. Production and classified spaces require additional review. Sensors, switches, relays, control wiring, junction boxes, and other components installed inside a hazardous area must be approved for that location. Wet or washdown areas also require compatible controls and enclosures. Controls should not be selected separately from the fixture and installation environment.
Photometric Planning for Distilleries
Stills, tanks, fermenters, columns, platforms, pipework, barrels, bottling equipment, structural components, and storage racks can block light and create shadows. A photometric plan can help evaluate fixture quantity, mounting height, optics, aiming, average and minimum foot-candles, uniformity, glare, and vertical illumination. Hazardous-area boundaries, process equipment, mounting restrictions, temperature exposure, and washdown areas should be identified before the final lighting layout is completed.
Distillery Lighting Certifications, Rebates, and Warranty Support
LED distillery lighting fixtures from LED Lighting Supply may carry a safety listing such as
UL,
ETL, or
CSA, depending on the product. Many standard commercial and industrial models are
DLC or
DLC Premium listed for utility rebate support where available. DLC qualification is an efficiency and performance program, not an electrical safety certification. Hazardous-location, high-temperature, NSF-listed, and specialty fixtures may have different certifications and rebate eligibility. Warranty terms vary by product, with USA-based warranty support available. Review the selected product specification to confirm hazardous-location approval, gas group, temperature code, ambient-temperature range, wet-location or IP rating, NSF status, voltage, controls, mounting, certifications, DLC status, and warranty coverage.
Need Help Choosing Distillery Lights?
Contact us about LED distillery lighting, and our Product Specialists can help review production areas, stills, spirit handling, blending, barrel operations, bottling lines, washdown zones, storage areas, tasting rooms, established hazard classifications, fixture type, temperature exposure, sanitary requirements, voltage, controls, and photometric planning.
LED Distillery Lighting FAQs
How Should I Choose LED Distillery Lighting For Different Areas?
Select fixtures by the conditions at each mounting location, including hazard classification, alcohol vapor release points, ventilation, moisture, cleaning procedures, ambient temperature, sanitary requirements, inspection needs, voltage, controls, and mounting method. A distillery can contain C1D1, C1D2, and non-classified areas with different fixture requirements.
When May Hazardous-Location Lighting Be Required In A Distillery?
Hazardous-location lighting may be required where ethanol or other flammable vapors may be released, including certain distillation, spirit handling, blending, transfer, filling, dumping, sampling, venting, draining, cleaning, and maintenance areas. The required classification depends on the process, alcohol concentration, equipment design, ventilation, release points, and operating procedures.
Can Vapor-Tight Or NSF-Listed Fixtures Be Used In Hazardous Areas?
A vapor-tight, NSF-listed, or wet-location fixture is not automatically approved for a hazardous location. Classified washdown areas may require both hazardous-location approval and the appropriate wet-location or washdown rating.
What Should Be Confirmed For A C1D1 Or C1D2 Fixture?
Confirm the class, division or zone, gas group, temperature code, ambient-temperature range, voltage, mounting method, environmental rating, controls, and required accessories for the exact installation area. A C1D1 fixture is not automatically suitable for every C1D1 installation.
How Do Moisture, Washdown, And Cleaning Affect Fixture Selection?
Moisture, spray, steam, chemicals, temperature changes, and product residue may require vapor-tight, washdown-rated, corrosion-resistant, or NSF-listed fixtures. Water pressure, spray direction, cleaning frequency, IP rating, gasket design, housing construction, and compatibility with cleaning agents should be reviewed.
What Lighting Should Be Considered For Bottling And Inspection Areas?
Bottling and packaging lines need uniform light, good CRI, and controlled glare to support inspection of fill levels, labels, caps, closures, seals, cartons, and finished products. Bottling, inspection, equipment maintenance, and gauge reading generally need more light than barrel storage or general circulation.
Why Is Photometric Planning Useful For Distillery Lighting?
A photometric plan can help evaluate fixture quantity, mounting height, optics, aiming, average and minimum foot-candles, uniformity, glare, and vertical illumination. Stills, tanks, fermenters, pipework, platforms, barrels, bottling equipment, and storage racks can block light and create shadows.
What Should Be Considered When Selecting Controls For Distillery Lighting?
Controls should be selected with the fixture and installation environment because sensors, switches, relays, control wiring, junction boxes, and other components inside a hazardous area must be approved for that location. Wet or washdown areas also require compatible controls and enclosures.
