120 / 160 / 200 Watt Adjustable UFO High Bay | 19800 to 33000 Lumens | 4000K / 5000K | 100-277V | White or Black Housing

Product Overview

This UFO high bay fixture offers selectable wattage settings of 120, 160, or 200 watts, delivering lumen outputs from 19,800 up to 33,000. The fixture supports both 4000K and 5000K color temperatures and operates on 100-277V input power.

The fixture is available with either a black or white aluminum alloy housing. It uses a frosted polycarbonate lens and provides a 120° beam angle as standard. The fixture is designed for hook mounting, with pendant and surface mounting options available.

It is rated for 134,000 hours (L70) and includes 1-10V dimming capability. The fixture weighs 5.1 lbs and measures 11.8 by 6.6 inches.

Color temperature and wattage are adjustable. A motion sensor is available. A dome accessory is also listed.

Where This Product Fits Best

This fixture is suitable for commercial and industrial spaces requiring high bay lighting, such as warehouses, manufacturing areas, and distribution centers. It is designed to replace 250 or 400 watt metal halide fixtures.

The IP65 rating allows use in environments where dust and water exposure are present. The IK08 rating supports use in locations where moderate impact resistance is needed.

Operating temperature range of -22°F to 122°F allows installation in both cold and warm environments. The fixture is compatible with 100-277V electrical systems, supporting a wide range of facility power configurations.

Selectable color temperature and wattage provide flexibility for spaces with changing lighting requirements or where future adjustments may be needed.

Performance and Functional Considerations

The fixture delivers up to 165 lumens per watt, supporting high efficiency requirements. Lumen output can be set to 19,800, 26,400, or 33,000 depending on the selected wattage.

1-10V dimming is supported for integration with compatible dimming controls. The CRI is 80+, suitable for general industrial and commercial tasks.

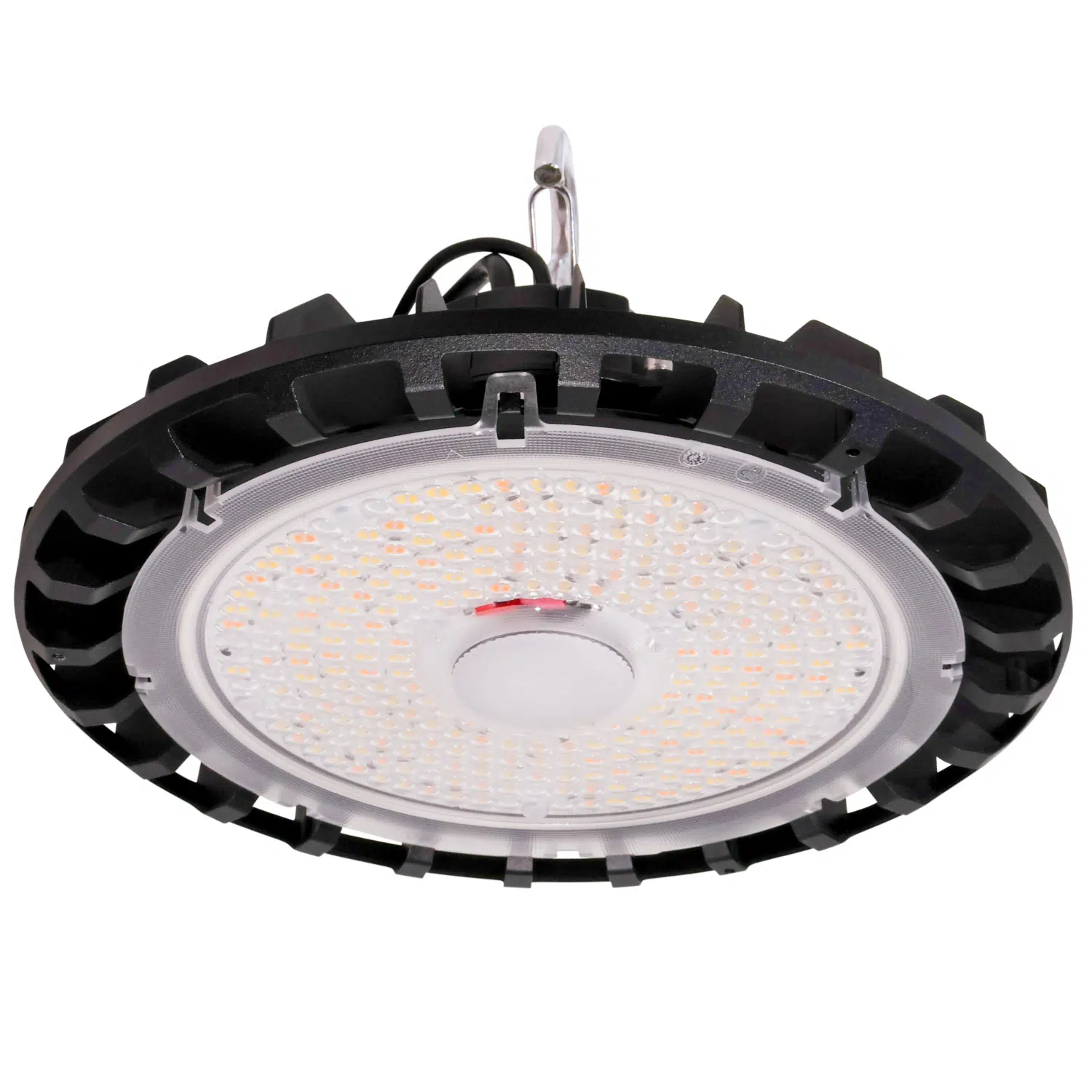

The frosted polycarbonate lens provides diffused light, reducing glare in occupied spaces. The 120° beam angle supports wide area coverage.

Surge protection is rated at 6kV, supporting use in facilities with electrical disturbances. The fixture operates at 50 or 60 Hz.

Installation and Long-Term Use

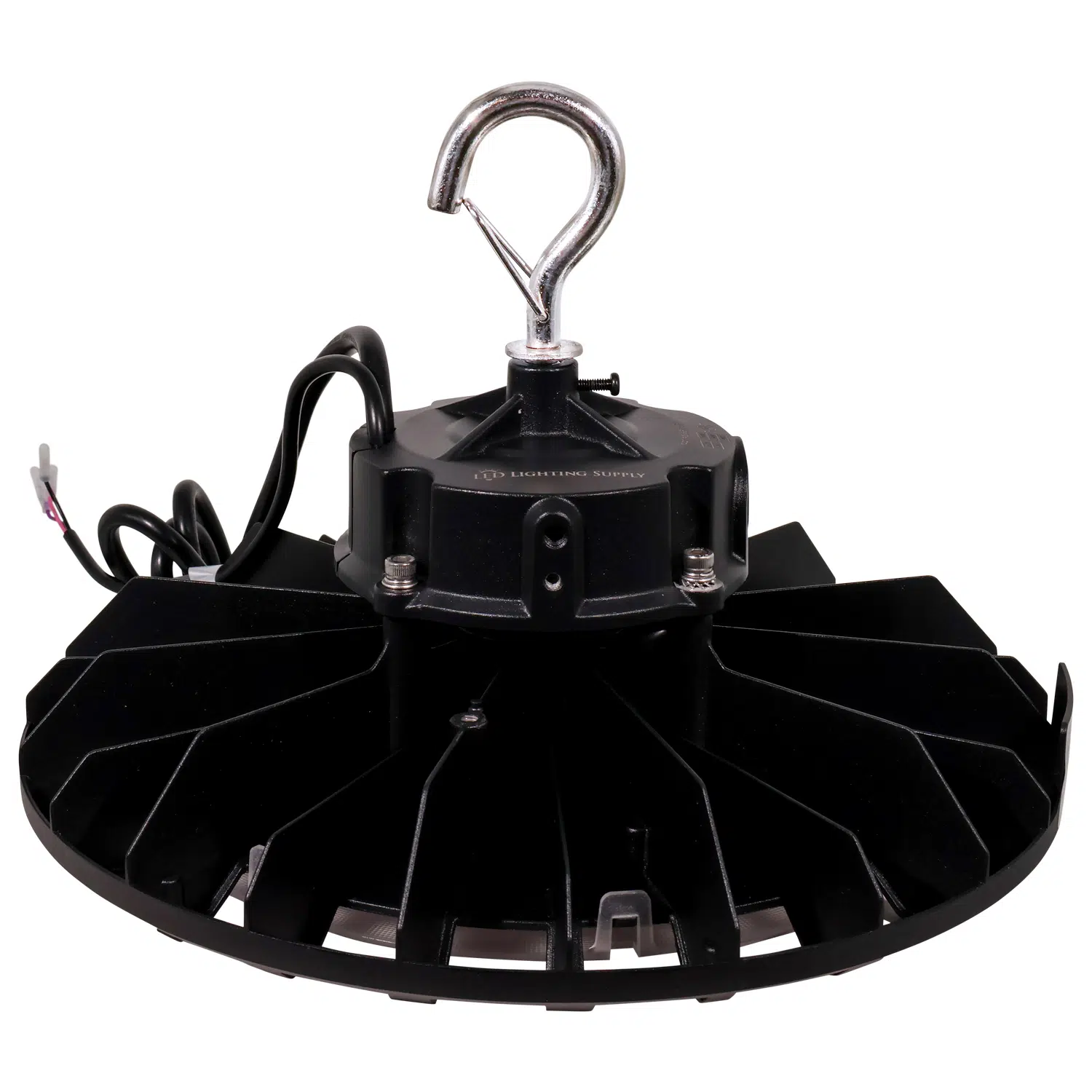

The fixture is designed for hook mounting as standard, with pendant and surface mounting options available. The aluminum alloy housing provides durability and corrosion resistance.

At 5.1 lbs and compact dimensions, the fixture is manageable for single-person installation. The IP65 rating allows for installation in areas exposed to dust and water spray.

IK08 impact protection supports use in environments where fixtures may be subject to moderate physical contact. The fixture is rated for 134,000 hours (L70), supporting long-term use with minimal maintenance.

Color and wattage adjustability can be set during installation or as needed for future changes in lighting requirements. Motion sensor functionality is available for applications requiring occupancy-based control.

How This Fixture Is Commonly Used

After installation, you can adjust the wattage and color temperature to match the lighting needs of your space. This allows you to fine-tune light levels or color appearance without replacing the fixture.

The fixture?s dimming capability allows integration with 1-10V dimming systems, so you can control light output as needed for different tasks or occupancy patterns.

The frosted lens helps reduce glare, making the fixture suitable for areas where workers are present below. The wide beam angle provides even coverage across open floor areas.

If a motion sensor is used, the fixture can respond to occupancy, supporting energy management strategies in spaces with variable use.

Safety, Certifications, and Warranty

This fixture is ETL listed and DLC Premium qualified.

The IP65 rating allows use in locations exposed to dust and water spray. IK08 impact protection supports use in areas with moderate risk of physical contact.

Surge protection is rated at 6kV. The fixture is covered by a 5-year warranty from LED Lighting Supply.

Operating temperature range is -22°F to 122°F.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100-277V input power.

What is the maximum lumen output?
Maximum output is 33,000 lumens at the highest wattage setting.

What mounting methods are available?
Standard mounting is hook. Pendant and surface mounting options are also available.

Is this fixture DLC Premium qualified?
Yes, this fixture is DLC Premium qualified.

What is the warranty period?
LED Lighting Supply provides a 5-year warranty for this fixture.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
