100 / 120 / 150 / 200 / 240 Watt Adjustable LED UFO High Bay | 20000 to 45600 Lumens | 5000K | 100-277V | High Performance
Neil Peterson | CEO and Chief Lighting Specialist
128 in stock (can be backordered)
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 100 | 120 | 150 | 200 | 240 |
| Lumens | 20000 | 24000 | 30000 | 40000 | 45600 |
| Lumens Per Watt | 200 |
| Replaces | 1000 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Beam Angles (Opt) | 60° or 90° |
| Optics | Polycarbonate Lens |
| Lifespan | 134,000 (L70) hours |
| Mounting | Eye-Hook |
| Mounting (Opt) | Pendant or Surface |
| Fixture Color | Black |
| Frequency (Hz) | 50/60 |
| Power Factor | .90 |
| THD | 20% Max |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Surge Protection | 4kV |
| Operating Temperature | -22°F to 122°F |
| Certifications | ETL | DLC Premium |
| Warranty | 5 years |

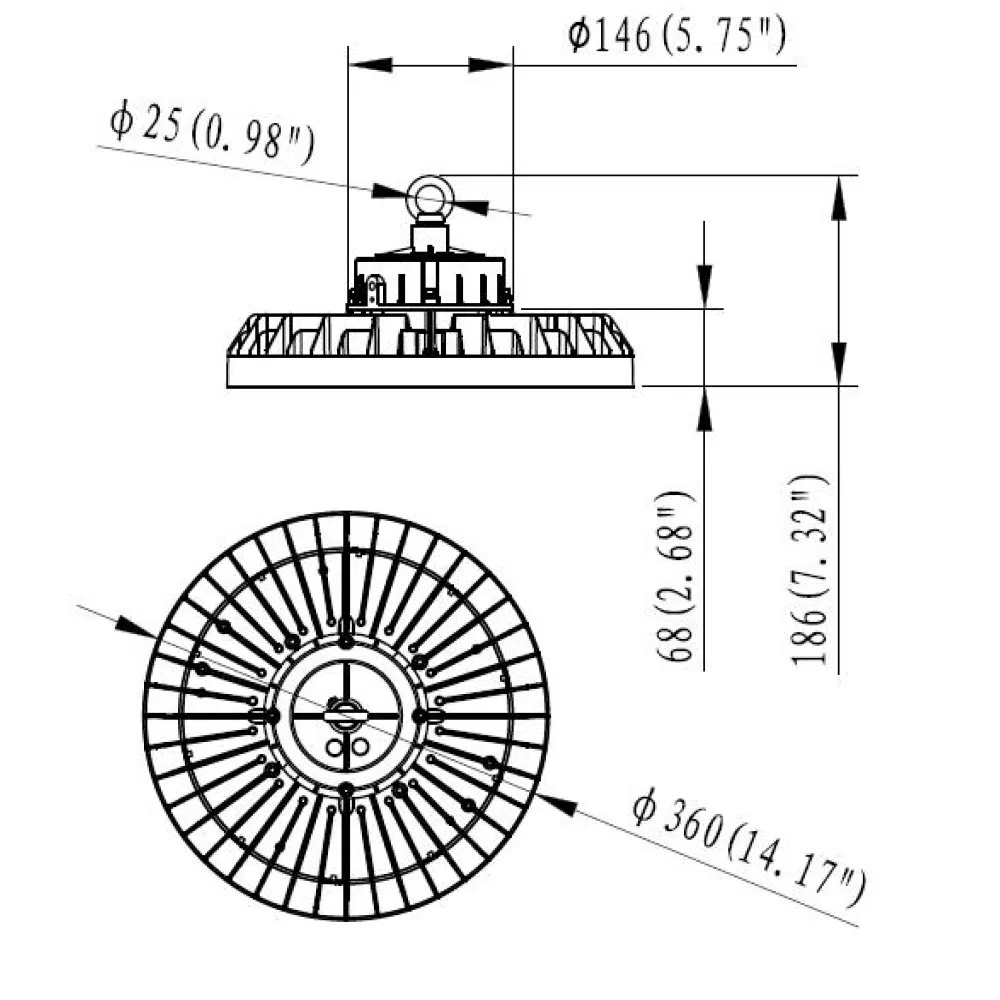

Measurements
| Dimensions (in) | 14.7 W X 7.32 H |
| Weight (lbs) | 12 |
| Cord Length | 5 Feet |
| Dimming Cord Length | 8 Inches |
Features/Accessories
- Wattage Adjustable
- Motion Sensor
Notes
Motion sensor remote control is required to change the default sensor settings. 1 remote per project.
Default Motion Sensor Configuration
- Detection Area: 100%
- Hold Time: 3 minutes
- Standby period: 5 minutes
- Standby Dimming Level: 50% brightness
Download IES Files
Additional Resources
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable LED UFO high bay provides 20,000 to 45,600 lumens from selectable 100W, 120W, 150W, 200W, and 240W settings. The round UFO form factor is intended for high-ceiling indoor spaces that need broad general illumination.
The fixture uses a 120 degree standard distribution with optional 60 degree and 90 degree optics. It is commonly used as a replacement for 1000W metal halide high bays where light levels, beam control, and wattage adjustment need to be addressed at the fixture.
Core Performance and Output
This high bay delivers 200 lumens per watt with a 5000K color temperature and 80+ CRI. The selectable output range allows one fixture body to support different light level requirements within the available wattage settings.
The standard 120 degree beam supports broad coverage patterns. Optional 60 degree and 90 degree optics provide more controlled distributions where fixture placement or mounting height requires a narrower beam. Higher output settings can be excessive at lower mounting heights, while wider distributions require layout review to maintain uniformity at higher mounting heights.
The fixture operates on 100-277V, 50/60Hz power with a 0.90 power factor and 20% maximum THD. It supports 1-10V dimming.
Adjustability and Control Options
Wattage is adjustable across five settings: 100W, 120W, 150W, 200W, and 240W. Output can be matched to the installed layout without changing the fixture housing.
A motion sensor is available. Default sensor settings are 100% detection area, a 3-minute hold time, a 5-minute standby period, and 50% standby dimming level.
A motion sensor remote control is required to change the default sensor settings. One remote control is required per project.
Longevity and Reliability
The rated lifespan is 134,000 hours at L70. This rating supports long operating periods where fixture access requires lifts, shutdown coordination, or work above occupied areas.
The fixture includes 4kV surge protection. Operating temperature is rated from -22 degrees F to 122 degrees F.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a black finish. The fixture is IP65 rated and IK08 rated.
This UFO high bay measures 14.7 inches wide by 7.32 inches high and weighs 12 pounds. It includes a 5-foot cord and an 8-inch dimming cord.
Standard mounting is by eye-hook. Pendant and surface mounting are available options.
Where This Product Fits Best
This high-output UFO high bay fits indoor high-ceiling facilities where broad distribution, adjustable wattage, and eye-hook mounting align with the lighting layout. The available output range supports both general industrial spaces and large indoor activity areas.
- warehouse lighting
- distribution center lighting
- manufacturing facility lighting
- gymnasium lighting
- aircraft hangar lighting
- indoor sports facility lighting
- basketball court lighting
IP65 and IK08 construction support installations exposed to dust, incidental impact, and temperature variation within the stated operating range. Optic selection should match the mounting height and required distribution pattern.
Installation and Long-Term Use
Eye-hook mounting is the standard installation method. Pendant and surface mounting options allow the fixture to be adapted to the available structure and ceiling configuration.
The fixture should be set to the required wattage before final commissioning. Verify supply voltage, mounting method, control wiring, optic selection, and sensor configuration before placing the system into regular operation.
How This Fixture Is Commonly Used
In warehouse lighting, distribution center lighting, and manufacturing facility lighting, UFO high bays are typically arranged in repeated rows aligned with the building layout. In gymnasium lighting, indoor sports facility lighting, and basketball court lighting, fixture placement is coordinated around the activity area and available mounting height.
Mounting height and layout pattern determine the appropriate beam angle and wattage setting. Higher output can reduce fixture count, but it can also increase glare and require more controlled optics.
Safety, Certifications, and Warranty
This fixture is ETL listed and DLC Premium listed.
The fixture carries a 5-year warranty. IP65, IK08, and 4kV surge protection are included in the listed construction and protection features.
Frequently Asked Questions
Q: What wattage settings are available?
A: The fixture is adjustable to 100W, 120W, 150W, 200W, or 240W.
Q: What light output does this UFO high bay provide?
A: Output ranges from 20,000 to 45,600 lumens, depending on the selected wattage.
Q: What mounting options are available?
A: Eye-hook mounting is standard. Pendant and surface mounting are available options.
Q: Does this fixture support dimming?
A: Yes. The fixture supports 1-10V dimming.
Q: What beam angles are available?
A: The standard beam angle is 120 degrees. Optional 60 degree and 90 degree optics are available.
Application Questions and Clarification
Q: Is this fixture appropriate for warehouse lighting and distribution center lighting?
A: Warehouse lighting and distribution center lighting are primary applications for this UFO high bay. Wattage selection, optic selection, mounting height, and layout requirements should be reviewed for the installation.
Q: Can this fixture be used for gymnasium lighting or basketball court lighting?
A: Gymnasium lighting and basketball court lighting are supported applications. The 120 degree standard beam and optional 60 degree or 90 degree optics provide different distribution options for the fixture layout.
Q: What should be confirmed before using the motion sensor?
A: Confirm whether the default detection area, hold time, standby period, and standby dimming level meet the operating requirement. A motion sensor remote control is required to change the default settings.
